1. పరిచయం
Thank you for choosing the Generic Remote Control Waterproof Rechargeable Electronic Pet Training Collar Model 880-1. This device is designed to assist in training your pet effectively and humanely, helping to correct undesirable behaviors and reinforce positive commands. It features four distinct training modes, adjustable intensity levels, and a long operational range, making it suitable for various training environments.
Please read this manual thoroughly before use to ensure proper operation, maximize the product's lifespan, and ensure the safety and comfort of your pet.

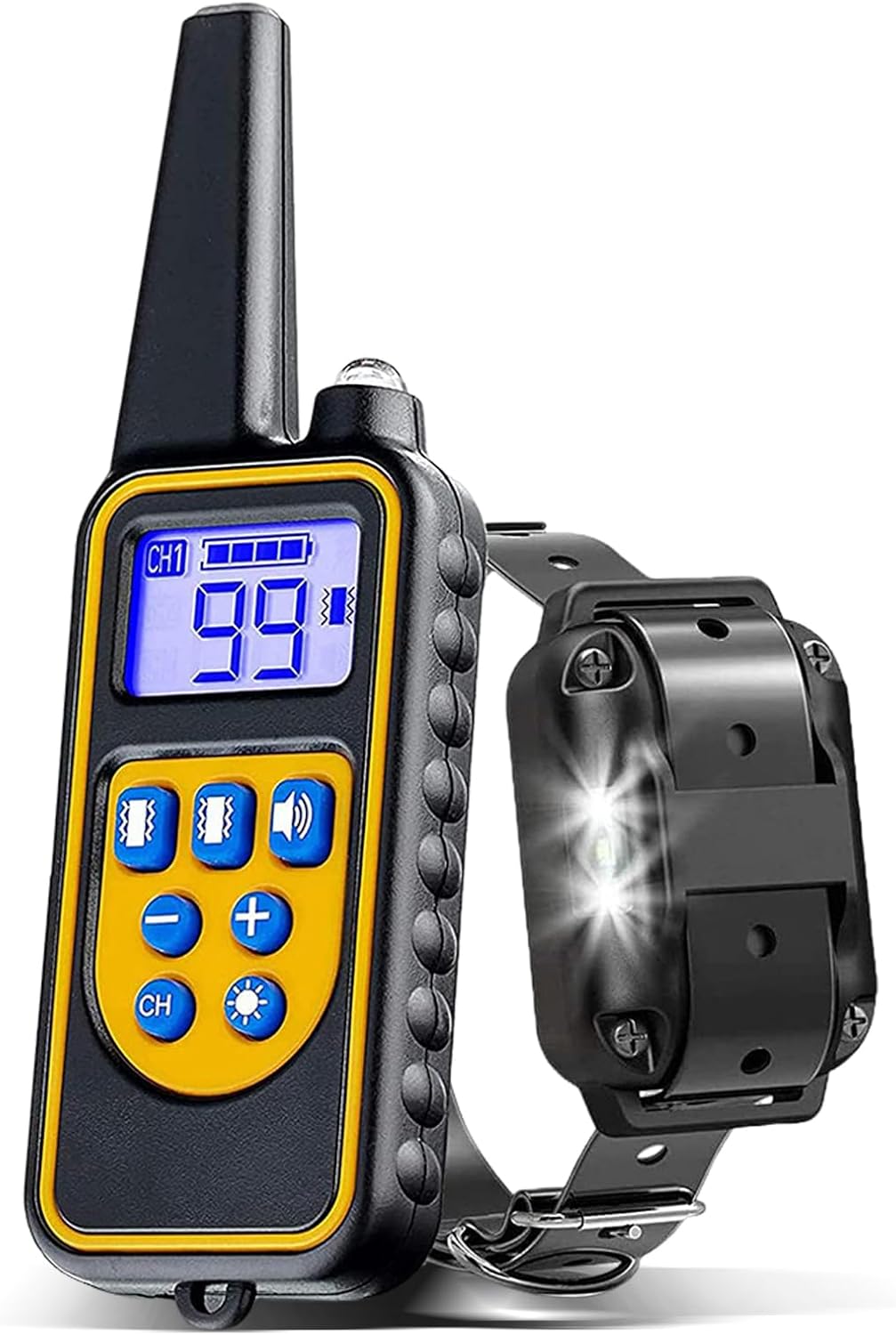

Image 1.1: The Generic Pet Training Collar system, including the remote control and receiver collar, shown alongside a dog.
2. ప్యాకేజీ విషయాలు
Upon opening your package, please ensure all the following components are present:
- రిమోట్ కంట్రోల్ ట్రాన్స్మిటర్
- రిసీవర్ కాలర్
- సర్దుబాటు చేయగల నైలాన్ కాలర్ పట్టీ
- Conductive Silicone Caps (set of 4)
- టెస్ట్ లైట్
- యూనివర్సల్ USB ఛార్జింగ్ కేబుల్
- వినియోగదారు మాన్యువల్ (ఈ పత్రం)
Image 2.1: A visual representation of all items included in the package: Remote Control, Receiver, Conductive Silicone, Test Light, USB Cable, Nylon Collar, and User Manual.
3. సెటప్ మరియు ప్రారంభ ఉపయోగం
3.1 పరికరాలను ఛార్జ్ చేయడం
Before first use, fully charge both the remote control and the receiver collar. The universal USB charging cable allows you to charge both devices simultaneously.
- Connect the USB charging cable to the charging ports on both the remote control and the receiver collar.
- Plug the USB cable into a compatible USB power adapter (not included) or a computer USB port.
- Charging indicators will illuminate. Allow approximately 2 hours for a full charge.
- Once fully charged, the devices can operate for 15-20 days, depending on usage.
3.2 కాలర్ను అమర్చడం
Proper fit of the receiver collar is crucial for effective operation and your pet's comfort.
- Attach the receiver unit to the nylon collar strap.
- కాంటాక్ట్ పాయింట్లు చర్మాన్ని తాకేలా చూసుకోండి, మీ కుక్క మెడ చుట్టూ కాలర్ ఉంచండి.
- Adjust the nylon strap to a snug fit. You should be able to fit two fingers comfortably between the collar and your dog's neck. The collar is adjustable for neck sizes from 6 cm to 25 cm, suitable for dogs weighing 7 kg to 50 kg.
- Avoid overtightening, as this can cause skin irritation. A loose collar will prevent consistent contact and reduce effectiveness.
3.3 రిమోట్ మరియు రిసీవర్ను జత చేయడం
The remote control and receiver collar are typically pre-paired. If they do not connect, follow these steps:
- రెండు పరికరాలు ఛార్జ్ చేయబడి, పవర్ ఆన్ చేయబడి ఉన్నాయని నిర్ధారించుకోండి.
- సూచిక లైట్ వేగంగా మెరిసే వరకు రిసీవర్ కాలర్లోని పవర్ బటన్ను నొక్కి పట్టుకోండి.
- Within 10 seconds, press a training mode button (e.g., Vibration or Sound) on the remote control.
- If pairing is successful, the receiver's indicator light will stop flashing and remain solid, or emit a confirmation sound.
4. ఆపరేటింగ్ సూచనలు
4.1 శిక్షణ మోడ్లు
The training collar offers four distinct modes to address various training needs:
- బలమైన కంపనం: Delivers a more intense vibration for stubborn behaviors.
- కంపనం: Provides a standard vibration stimulus.
- కాంతి: Activates an LED light on the receiver, useful for locating your pet in low light conditions.
- ధ్వని: వినగల స్వరాన్ని విడుదల చేస్తుంది.
The vibration modes (Strong Vibration and Vibration) have adjustable intensity levels from 0 to 99, allowing you to customize the stimulus to your dog's temperament and the specific training situation. Use the '+' and '-' buttons on the remote to adjust the intensity.
Image 4.1: The four training modes (Light, Sound, Vibration) available on the remote control and receiver.
4.2 Operational Range
The training collar system provides an extensive operational range of up to 800 meters (approximately 2600 feet) in open areas. This allows for flexible training in various environments such as your backyard, a park, or other open spaces.
Note that obstacles like buildings, dense foliage, or uneven terrain can reduce the effective range. For optimal performance, maintain a clear line of sight between the remote control and the receiver collar.
Image 4.2: The remote control's long-range capability, demonstrating effective distance in open areas and reduced range with obstructions.
4.3 Automatic Standby Mode
To conserve battery life, both the remote control and the receiver collar will enter a standby mode if there is no operation for 5 minutes. To reactivate, simply press any button on the remote control.
5. నిర్వహణ మరియు సంరక్షణ
5.1 ఛార్జింగ్
Regularly charge your devices to ensure they are ready for use. A full charge takes approximately 2 hours and provides 15-20 days of operation.
5.2 నీటి నిరోధకత
The receiver collar is designed to be waterproof and can be used in damp weather or during water play. However, it is not recommended to use the collar when your dog is swimming, as prolonged submersion may affect its performance or cause discomfort to your pet.
Image 5.1: The waterproof design of the collar, suitable for wet conditions like rain or water play, but not for swimming.
5.3 శుభ్రపరచడం మరియు నిల్వ చేయడం
Clean the collar and remote control regularly with a damp cloth. Ensure the contact points on the receiver are clean to maintain proper function. Store the device in a dry place when not in use.
6. ట్రబుల్షూటింగ్
- పరికరం స్పందించడం లేదు: Check battery levels of both remote and receiver. Ensure they are charged and powered on. Re-pair the devices if necessary (refer to Section 3.3).
- Collar not delivering stimulus: Verify the collar is properly fitted and the contact points are touching your dog's skin. Ensure the intensity level is set above 0. Use the test light to confirm the receiver is functioning.
- తక్కువ బ్యాటరీ జీవితం: Ensure both devices are fully charged for 2 hours. Frequent use of higher intensity settings or continuous operation may reduce battery life. The automatic standby mode helps conserve power.
- తగ్గిన పరిధి: Ensure there are no significant obstacles between the remote and the receiver. Move to an open area to test the full range.
7. ఉత్పత్తి లక్షణాలు
Image 7.1: Key technical specifications of the training collar system.
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | 880-1 |
| శిక్షణా రీతులు | Strong Vibration, Vibration, Light, Sound |
| వైబ్రేషన్ స్థాయిలు | 0-99 సర్దుబాటు |
| కార్యాచరణ పరిధి | 800 మీటర్ల వరకు (ఓపెన్ ఏరియా) |
| బ్యాటరీ రకం | Rechargeable (Non-standard batteries included) |
| ఛార్జింగ్ సమయం | సుమారు 2 గంటలు |
| ఆపరేటింగ్ సమయం | 15-20 days (after full charge) |
| నీటి నిరోధకత | Waterproof (not recommended for swimming) |
| కాలర్ మెటీరియల్ | Acrylonitrile Butadiene Styrene, Nylon |
| Recommended Dog Size | Medium to Large (7 kg to 50 kg) |
| Neck Size Range | 6 సెం.మీ నుండి 25 సెం.మీ |
| ప్యాకేజీ కొలతలు | 16.7 x 14.9 x 5.4 సెం.మీ |
| ప్యాకేజీ బరువు | 260 గ్రా |
8. Safety Guidelines and Important Information
- This training collar is recommended for medium to large dogs, specifically those weighing between 7 kg and 50 kg.
- Ensure the collar is fitted correctly. It should be snug enough for the contact points to touch the skin, but loose enough to allow two fingers to fit underneath.
- Do not leave the collar on your dog for more than 12 consecutive hours to prevent skin irritation.
- Regularly check your dog's neck for any signs of skin irritation or sores. If irritation occurs, discontinue use until the skin heals.
- While the collar is waterproof for damp conditions and water play, it is not recommended for use while your dog is swimming.
- This device is a training aid and should be used responsibly and humanely. It is not intended to punish or harm your pet.
- Keep the remote control and receiver out of reach of children.
9. వారంటీ మరియు మద్దతు
Specific warranty information for this product is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the seller/manufacturer directly.
ఏవైనా వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రుజువును ఎల్లప్పుడూ ఉంచుకోండి.
