Brightify Classic Antique Brass Front Door Lock Set User Manual

పరిచయం

Thank you for choosing the Brightify Classic Antique Brass Front Door Lock Set. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new door lock set. Please read all instructions carefully before beginning installation to ensure correct function and longevity of the product.

ప్యాకేజీ విషయాలు

Before installation, verify that all components listed below are present in your package. If any parts are missing or damaged, please contact Brightify customer support.

చిత్రం 1: ప్యాకేజీ విషయాలు. This image displays all parts included with the Brightify Classic Antique Brass Front Door Lock Set, such as the exterior handle, interior handle, deadbolts, keys, and various screws.

• బాహ్య హ్యాండిల్
• ఇంటీరియర్ హ్యాండిల్
• Exterior Deadbolt
• Interior Deadbolt
• Entry Keys (3 pieces)
• వాషర్ కవర్
• డెడ్‌బోల్ట్ స్ట్రైక్ ప్లేట్
• 1-3/8" (35mm) Screw (1 piece)
• 1-3/5" (40mm) Screws (2 pieces)
• డెడ్‌బోల్ట్ లాచ్ సెట్ (సర్దుబాటు)
• 3/4" (20mm) Screws (4 pieces)
• Small Parts Box (containing additional fasteners)

సెటప్ మరియు ఇన్‌స్టాలేషన్

1. Pre-Installation Measurements

Accurate measurements are crucial for proper fit and function. Confirm your door's dimensions and existing bore holes before proceeding.

Figure 2: Fit Door Thickness and Dimensions. This diagram illustrates the required door thickness (1-3/8" to 1-3/4") and various lock component dimensions.

• తలుపు మందం: The lock set is designed for doors with a thickness of 1-3/8 inches to 1-3/4 inches (35mm-45mm).
• Adjustable Distance from Center Hole: The handleset accommodates an adjustable distance from the center hole, ranging from a minimum of 7-3/4 inches (196mm) to a maximum of 9-1/8 inches (232mm).
• బ్యాక్‌సెట్: The adjustable deadbolt latch supports backsets of 2-3/8 inches (60mm) or 2-3/4 inches (70mm).

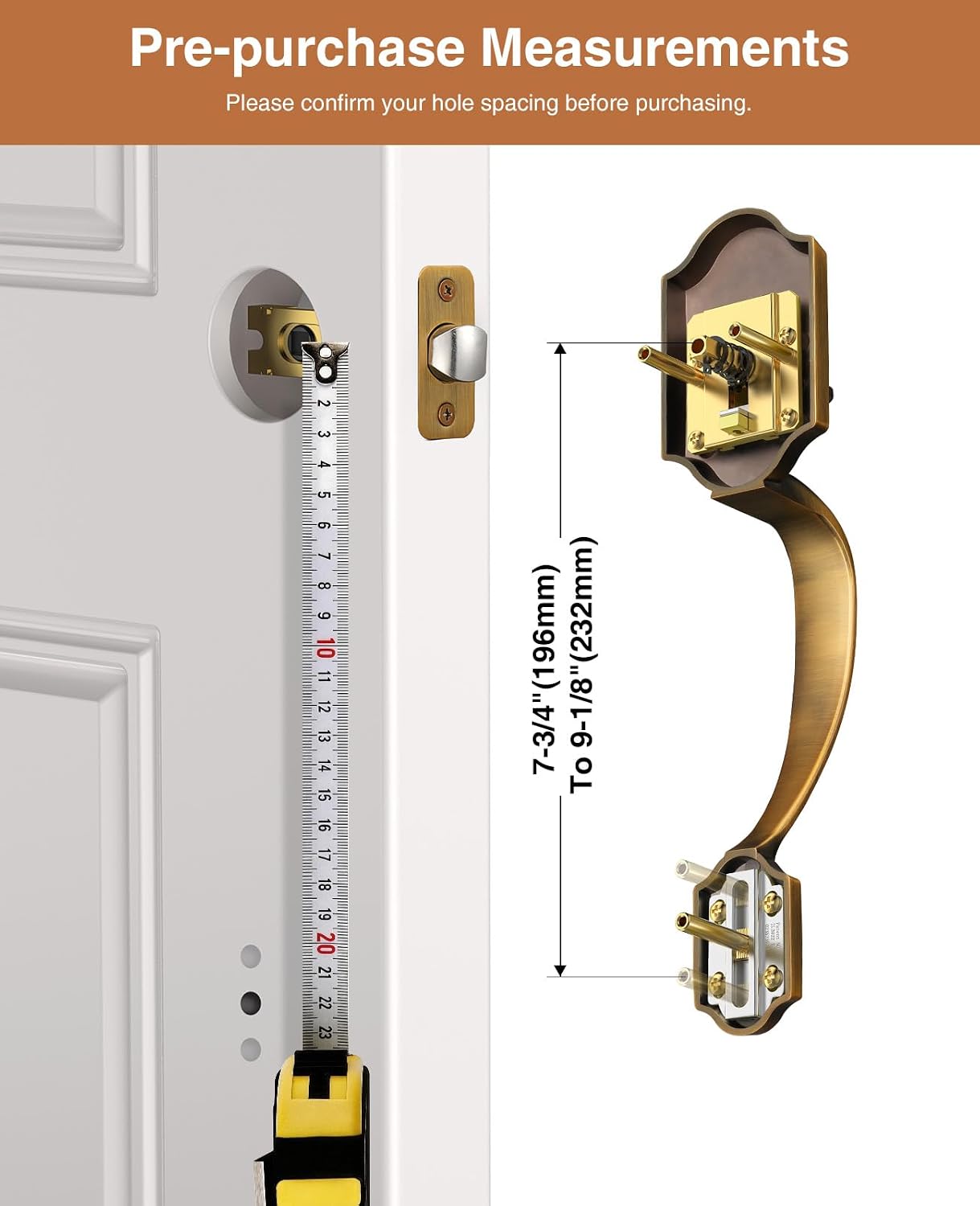

Figure 3: Measuring Hole Spacing. This image shows the correct method for measuring the hole spacing on your door to ensure compatibility with the handleset.

2. సంస్థాపనా దశలు

Follow these general steps for installing your Brightify door lock set. Refer to the included hardware for specific screw types and lengths.

1. తలుపును సిద్ధం చేయండి: Ensure the door has the correct bore holes and edge bore for the latch and deadbolt. If installing on a new door, use a template (not included) for drilling.
2. డెడ్‌బోల్ట్ లాచ్‌ని ఇన్‌స్టాల్ చేయండి: Insert the adjustable deadbolt latch into the edge bore of the door. Ensure the correct backset (2-3/8" or 2-3/4") is selected by adjusting the latch mechanism as shown in Figure 4. Secure with the appropriate screws.


Figure 4: Adjustable Latch. This image demonstrates how to adjust the deadbolt latch for different backset measurements (60mm or 70mm).

3. Install Deadbolt Cylinders: Insert the exterior deadbolt cylinder through the top bore hole from the outside, and the interior deadbolt mechanism from the inside. Secure them together with the provided screws.
4. అప్పగించడాన్ని నిర్ణయించండి: Identify if your door is right-handed or left-handed. This determines the orientation of the interior lever handle. Refer to Figure 5 for guidance.


Figure 5: Right-Handed vs. Left-Handed. This image helps determine the correct handing for your door, which is essential for installing the interior lever handle correctly.

5. Install Exterior Handle: స్పిండిల్ లాచ్ మెకానిజంతో సమలేఖనం చేయబడిందని నిర్ధారించుకుని, బాహ్య హ్యాండిల్ అసెంబ్లీని ఉంచండి.
6. Install Interior Handle: Attach the interior handle assembly, aligning it with the exterior handle and securing it with the long through-bolts and screws. Ensure the floating spindle design (Figure 6) is correctly engaged for optimal performance.

Figure 6: Floating Spindle Design. This image highlights the "New Generation" floating spindle design, which enhances internal stability for long-lasting, reliable door handle performance compared to older fixed spindle structures.
7. Install Strike Plates: Install the deadbolt strike plate and the latch strike plate on the door frame, aligning them with the latches. Secure with screws.
8. పరీక్ష ఆపరేషన్: Close the door and test the operation of both the deadbolt and the handle latch from both the interior and exterior using the keys. Ensure smooth engagement and disengagement.

ఆపరేటింగ్ సూచనలు

The Brightify Classic Antique Brass Front Door Lock Set provides secure entry and exit for your home.

• బయటి నుండి లాక్ చేయడానికి: Insert the key into the deadbolt cylinder and turn it to extend the deadbolt. Remove the key. The handle below will also engage the latch when closed.
• బాహ్య నుండి అన్‌లాక్ చేయడానికి: Insert the key into the deadbolt cylinder and turn it to retract the deadbolt. Turn the handle lever downwards to open the door.
• లోపలి నుండి లాక్ చేయడానికి: Turn the thumb-turn on the interior deadbolt to extend the deadbolt. The interior handle lever will engage the latch when closed.
• ఇంటీరియర్ నుండి అన్‌లాక్ చేయడానికి: Turn the thumb-turn on the interior deadbolt to retract the deadbolt. Turn the handle lever downwards to open the door.

Figure 7: Lock Set in Use. This image demonstrates the lock set installed on a door, highlighting its robust construction designed for frequent use.

నిర్వహణ

Regular maintenance will ensure the longevity and smooth operation of your Brightify door lock set.

• శుభ్రపరచడం: బాహ్య ఉపరితలాలను మృదువైన, d తో శుభ్రం చేయండి.amp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the antique brass finish.
• సరళత: Periodically apply a small amount of graphite lubricant (powdered graphite) into the keyway of the deadbolt cylinder. Do not use oil-based lubricants, as they can attract dirt and dust, leading to jamming.
• బిగించే స్క్రూలు: Over time, screws may loosen. Periodically check and tighten all visible mounting screws to ensure the lock set remains securely fastened to the door. Do not overtighten.

ట్రబుల్షూటింగ్

If you encounter issues with your lock set, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact Brightify customer support for further assistance.

స్పెసిఫికేషన్లు

• మోడల్ సంఖ్య: SY2114-AB
• బ్రాండ్: ప్రకాశవంతం చేయండి
• రంగు: పురాతన ఇత్తడి
• శైలి: క్లాసిక్
• ఉత్పత్తి కొలతలు: 2.54 x 5.08 x 5.08 cm; 1.59 kg (Product packaging dimensions)
• వస్తువు కొలతలు (L x W): 25L x 51W millimeters (Handle dimensions)
• హ్యాండిల్ రకం: లివర్
• చేర్చబడిన భాగాలు: Installation Hardware, Lock And Key
• యూనిట్ కౌంట్: 1.0 కౌంట్
• అంశాల సంఖ్య: 1
• అనుకూలమైన తలుపు మందం: 1-3/8" to 1-3/4" (35mm-45mm)
• Adjustable Backset: 2-3/8" (60మిమీ) లేదా 2-3/4" (70మిమీ)

వారంటీ మరియు మద్దతు

Brightify products are manufactured to high-quality standards and are backed by a limited warranty against defects in materials and workmanship. For specific warranty details and duration, please refer to the warranty card included with your purchase or visit the official Brightify webసైట్.

For technical support, missing parts, or warranty claims, please contact Brightify customer service through the retailer where the product was purchased or via the contact information provided on the Brightify official website. Please have your model number (SY2114-AB) and proof of purchase ready when contacting support.
