ElecMoga LE512 Bluetooth 5.4 2-in-1 Transmitter and Receiver User Manual

పరిచయం

The ElecMoga Bluetooth 5.4 2-in-1 Transmitter and Receiver is a portable audio adapter designed for versatile wireless audio connectivity. It functions as both a transmitter (TX) to send audio from non-Bluetooth devices to Bluetooth headphones or speakers, and a receiver (RX) to enable Bluetooth streaming to non-Bluetooth audio systems. Featuring Bluetooth 5.4 technology, it ensures stable connections, low latency, and supports multiple audio codecs. Its compact design and long battery life make it suitable for various applications, including travel, home entertainment, and car audio.

This device supports dual connectivity, allowing you to connect two Bluetooth devices simultaneously in TX mode (e.g., two pairs of headphones) or pair two mobile phones in RX mode. It is widely compatible with devices such as TVs, car stereos, headphones, and more.

ఉత్పత్తి ముగిసిందిview

Familiarize yourself with the components and controls of your ElecMoga LE512 adapter.

చిత్రం: వివరంగా view of the ElecMoga LE512 adapter, highlighting its 3.5mm stereo audio input/output, volume controls, play/pause/call button, connect status light, P/R paired buttons, RX/TX mode lights, power/mode switch, microphone (RX mode), and USB charging port.

• 3.5mm Stereo Audio Input/Output: ఆడియో మూలాలు లేదా అవుట్‌పుట్ పరికరాలకు కనెక్ట్ చేయడానికి.
• Volume +/- / Previous/Next Track: Controls for audio playback.
• ప్లే/పాజ్/కాల్: Multi-function button for media control and call management.
• Connect Status Light: కనెక్షన్ స్థితిని సూచిస్తుంది.
• P/R Paired Buttons: For pairing and managing connections.
• RX Mode Light: Illuminates when in Receiver mode.
• TX Mode Light: Illuminates when in Transmitter mode.
• పవర్/మోడ్ స్విచ్: To turn the device on/off and switch between TX and RX modes.
• MIC (RX mode): Built-in microphone for hands-free calls in Receiver mode.
• USB పోర్ట్: ఛార్జింగ్ కోసం టైప్-సి పోర్ట్.

స్పెసిఫికేషన్లు

చిత్రం: Visual representation of the upgraded Bluetooth 5.4 chip, emphasizing low latency, stable, and faster connection speeds.

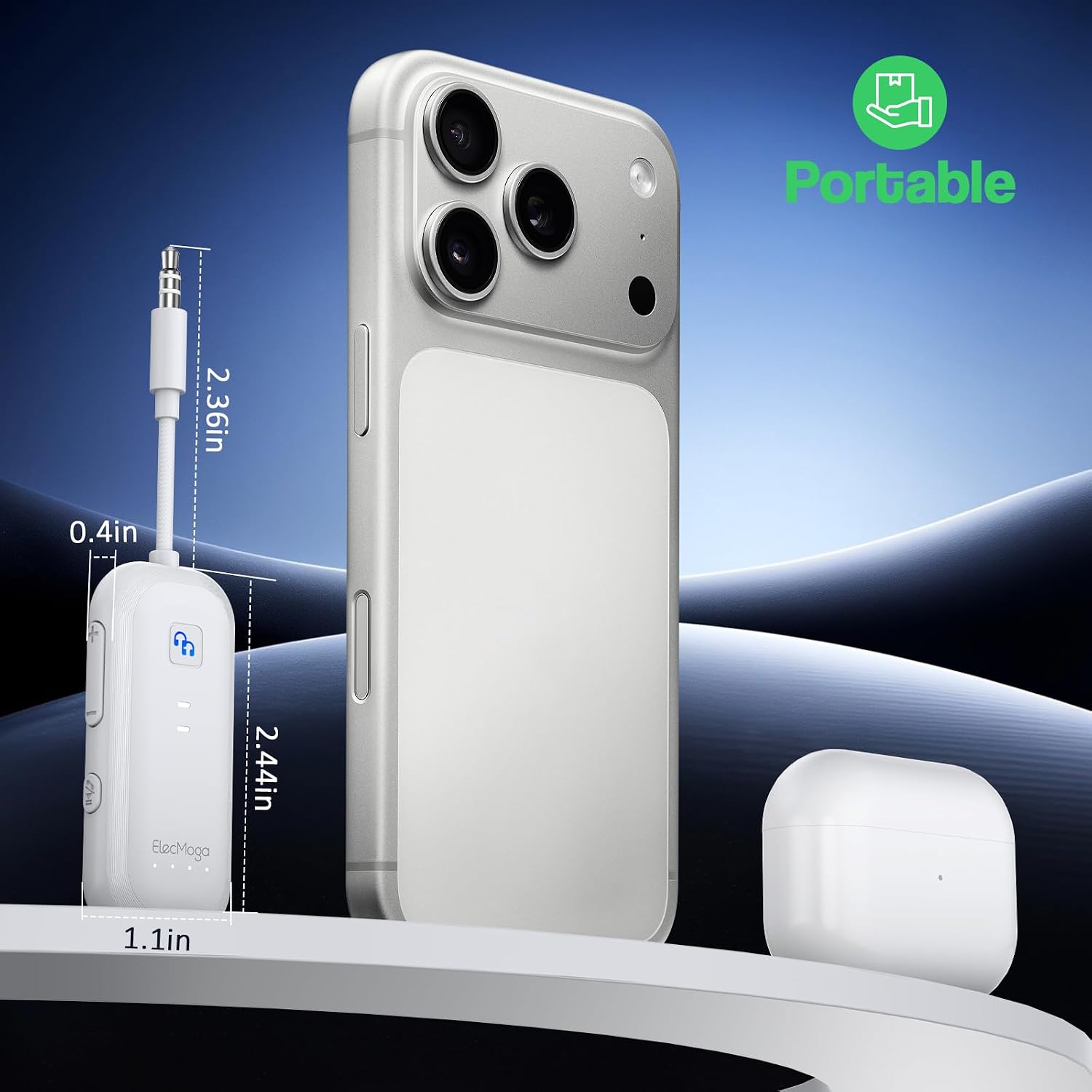

చిత్రం: The compact and portable design of the ElecMoga LE512 Bluetooth adapter shown next to a smartphone for size comparison, with dimensions indicated.

సెటప్

ప్రారంభ ఛార్జింగ్

Before first use, fully charge the device using the provided Type-C charging cable and a DC 5V power source. The charging time is approximately 2 hours.

పవర్ ఆన్/ఆఫ్

• పవర్ ఆన్ చేయడానికి: Press and hold the multi-function button until the indicator light illuminates.
• పవర్ ఆఫ్ చేయడానికి: Press and hold the multi-function button until the indicator light turns off.

మోడ్ ఎంపిక

Use the dedicated TX/RX switch on the side of the device to select the desired operating mode:

• TX (ట్రాన్స్మిటర్) మోడ్: For sending audio from non-Bluetooth devices (e.g., TV, PC, airplane entertainment) to Bluetooth headphones or speakers.
• RX (రిసీవర్) మోడ్: For receiving audio from Bluetooth-enabled devices (e.g., smartphone, tablet) and playing it through non-Bluetooth audio systems (e.g., car stereo, wired speakers).

జత చేసే సూచనలు

మీ పరికరాన్ని జత చేయడానికి ఈ దశలను అనుసరించండి:

1. TX మోడ్‌లో:
   • Connect the ElecMoga LE512 to your audio source (e.g., TV, airplane jack) using the 3.5mm audio cable.
   • Switch the adapter to TX mode. The TX mode light will illuminate.
   • మీ బ్లూటూత్ హెడ్‌ఫోన్‌లు లేదా స్పీకర్‌లను జత చేసే మోడ్‌లో ఉంచండి.
   • The adapter will automatically search for and connect to your Bluetooth audio device. The connect status light will indicate a successful connection.
2. RX మోడ్‌లో:
   • Connect the ElecMoga LE512 to your non-Bluetooth audio system (e.g., car stereo, wired speaker) using the 3.5mm audio cable.
   • Switch the adapter to RX mode. The RX mode light will illuminate.
   • మీ స్మార్ట్‌ఫోన్, టాబ్లెట్ లేదా ఇతర ఆడియో సోర్స్ పరికరంలో బ్లూటూత్‌ను ప్రారంభించండి.
   • కోసం వెతకండి "ElecMoga LE512" in your device's Bluetooth settings and select it to pair. The connect status light will indicate a successful connection.

ఆపరేటింగ్ మోడ్‌లు

ట్రాన్స్మిటర్ (TX) మోడ్

In TX mode, the adapter transmits audio wirelessly from non-Bluetooth devices to your Bluetooth headphones or speakers. This is ideal for TVs, computers, gym equipment, or in-flight entertainment systems.

చిత్రం: Illustration showing the ElecMoga LE512 adapter in TX (Transmitter) mode connecting to a TV, airplane, or gym equipment to stream audio to Bluetooth earbuds, headphones, or speakers. Also shows RX (Receiver) mode connecting to a phone, tablet, or laptop to stream to car stereo, vintage stereo, or wired speakers.

చిత్రం: Two individuals using Bluetooth headphones connected via the ElecMoga LE512 adapter in TX Dual Link mode to an airplane's in-flight entertainment system.

చిత్రం: Top panel shows two people watching TV with Bluetooth headphones connected via the ElecMoga LE512 in TX Dual Link mode. Bottom panel shows a person running on a treadmill with the adapter connected to gym equipment in TX mode.

TX Dual Link Function

In TX mode, you can connect two Bluetooth audio devices (e.g., two pairs of headphones) simultaneously. This allows two users to listen to the same audio source wirelessly.

రిసీవర్ (RX) మోడ్

In RX mode, the adapter receives audio wirelessly from your Bluetooth-enabled devices (like smartphones or tablets) and outputs it to non-Bluetooth audio systems, such as car stereos, home stereo systems, or wired headphones.

చిత్రం: The ElecMoga LE512 adapter in RX Dual Pairing mode, connected to a car's AUX input, streaming music from a smartphone.

RX Dual Pairing Function

In RX mode, you can pair two mobile phones simultaneously. This allows for easy switching between audio sources from two different phones. Note: Simultaneous playback from two mobile phones may cause delays or sound loss. It is recommended to pause playback on one device before starting playback on the other.

Hands-Free Function (RX Mode)

When in RX mode and connected to a smartphone, the built-in microphone allows for hands-free calling. Use the Play/Pause/Call button to answer or end calls.

ఛార్జింగ్ మరియు బ్యాటరీ జీవితం

The ElecMoga LE512 features a built-in 300 mAh Li-ion battery, providing extended usage times.

• ఆపరేటింగ్ సమయం: Up to 16 hours in RX mode, and up to 12 hours in TX mode (with dual connection).
• ఛార్జింగ్ సమయం: పూర్తి ఛార్జ్ కోసం సుమారు 2 గంటలు.
• ఛార్జింగ్ ఇంటర్‌ఫేస్: Type-C port with overvoltage protection for safe and convenient charging.

A low battery level can lead to sound interference. Ensure the device is adequately charged for optimal performance.

చిత్రం: Visual representation of the ElecMoga LE512 charging process, indicating a full charge in 2 hours and battery life of 16 hours in RX mode and 12 hours in TX mode.

భద్రతా మార్గదర్శకాలు

To ensure safe operation and prevent damage, please adhere to the following safety instructions:

• Do not use or charge the adapter in humid, hot, or flammable environments. Such conditions can lead to short circuits, fires, and other hazards.
• Do not attempt to disassemble or modify this product. Unauthorized modifications can damage internal circuits and the battery, posing a significant safety risk.

నిర్వహణ

Proper maintenance will extend the lifespan and ensure optimal performance of your ElecMoga LE512 adapter:

• Avoid dropping the Bluetooth transmitter during use, as physical impact can affect its internal components and overall lifespan.
• Regularly clean the product's audio interface and casing. This helps maintain cleanliness and ensures proper heat dissipation, preventing potential performance issues.
• If the product will not be used for an extended period, ensure it is fully charged before storage. Recharge it periodically (e.g., every 3 months) to maintain battery health.

ట్రబుల్షూటింగ్

If you encounter issues with your ElecMoga LE512, refer to the following common problems and solutions:

• Cannot Pair or Connect:
  • Ensure the adapter is in the correct mode (TX or RX) for your intended use.
  • Verify that the adapter and the target Bluetooth device are both in pairing mode.
  • Make sure both devices are within the 12-meter transmission range.
  • Turn off and restart both the adapter and the target Bluetooth device.
• ధ్వని లేదు లేదా తక్కువ ధ్వని నాణ్యత:
  • Check all 3.5mm audio cable connections to ensure they are secure.
  • Adjust the volume levels on both the adapter and the connected audio device/headphones.
  • Ensure the adapter has sufficient battery charge. Low battery can cause sound interference.
  • Reduce the distance between the adapter and the connected Bluetooth device, and remove any obstructions.
• అడపాదడపా కనెక్షన్:
  • Move the adapter closer to the connected Bluetooth device.
  • Avoid physical obstructions (walls, large objects) between the devices.
  • Minimize interference from other wireless devices (Wi-Fi routers, microwaves).
• Dual Connection Issues (e.g., sound delays with two phones in RX mode):
  • As noted, simultaneous playback from two mobile phones in RX mode can cause issues. Pause playback on one phone before starting on the other.

వారంటీ మరియు మద్దతు

ElecMoga is committed to providing quality products and customer satisfaction. If you encounter any issues or require assistance with your LE512 Bluetooth adapter, please do not hesitate to contact us. Our support team is available to resolve all issues within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official ElecMoga webసైట్.
