పరిచయం
This instruction manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new Generic carburetor, model xjw1123074nn. This carburetor is designed as a replacement part for the Troy Bilt Model 12210 6.5HP Super Bronco Rear Tine Tiller. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and correct usage.
భద్రతా సమాచారం
Working with fuel systems and internal combustion engines can be hazardous. Always follow these safety precautions:
- స్పార్క్ ప్లగ్ వైర్ను డిస్కనెక్ట్ చేయండి before performing any service or maintenance to prevent accidental engine startup.
- పని a బాగా వెంటిలేషన్ ప్రాంతం to avoid inhaling fuel fumes.
- ఉంచండి మండే పదార్థాలు away from the work area. Fuel is highly flammable.
- తగిన దుస్తులు ధరించండి వ్యక్తిగత రక్షణ పరికరాలు, భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు సహా.
- Allow the engine to చల్లబరుస్తుంది completely before working on it to prevent burns.
- If you are unsure about any procedure, consult a qualified technician.
ఉత్పత్తి ముగిసిందిview
This carburetor is a crucial component for your Troy Bilt tiller's engine, responsible for mixing air and fuel in the correct proportions for combustion. It is a direct replacement part designed to restore optimal engine performance.

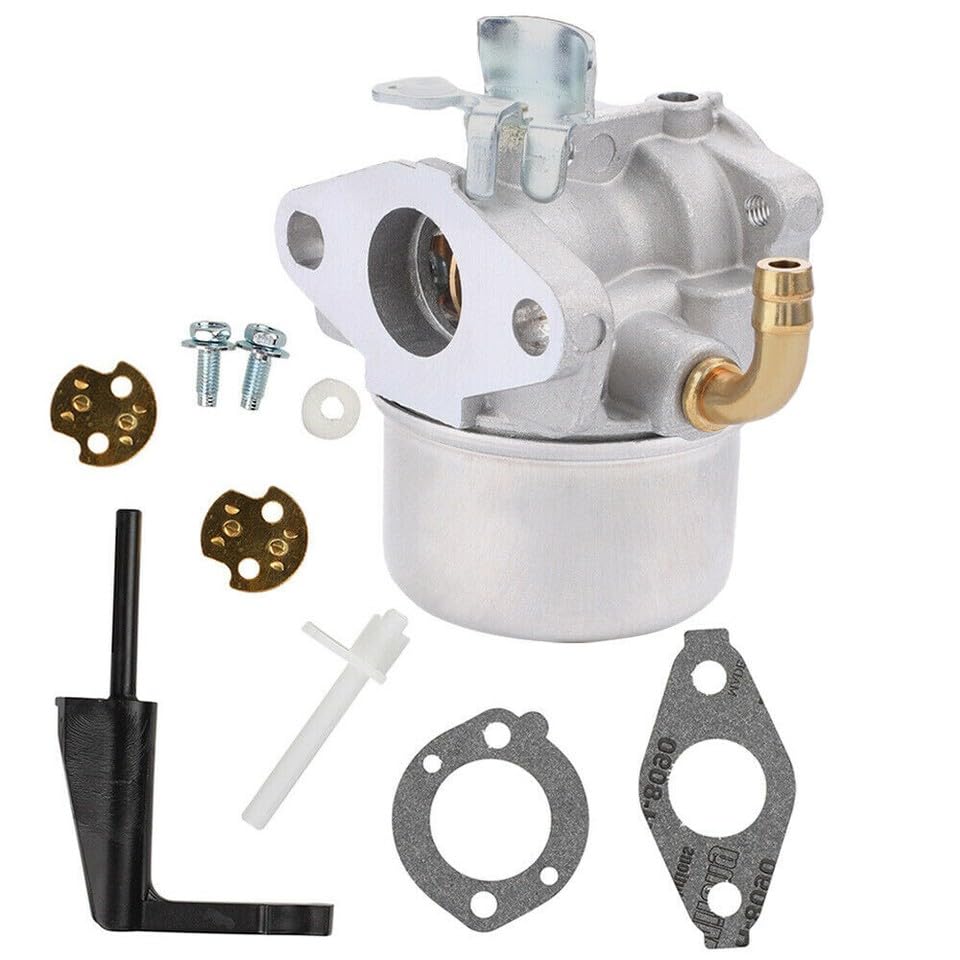

చిత్రం 1: ముందు view of the carburetor, showing the main air intake and fuel inlet pipe. This perspective highlights the primary components for air and fuel mixture.
Key features of this carburetor include:
- Designed for Troy Bilt Model 12210 6.5HP Super Bronco Rear Tine Tiller.
- Ensures proper air-fuel mixture for efficient engine operation.
- Includes the necessary components for a complete carburetor replacement as shown in the product images.
సెటప్ మరియు ఇన్స్టాలేషన్
Carburetor replacement requires mechanical aptitude. If you are not comfortable performing this procedure, it is recommended to seek professional assistance.
అవసరమైన సాధనాలు (చేర్చబడలేదు):
- సాకెట్ రెంచ్ సెట్
- స్క్రూడ్రైవర్ సెట్
- శ్రావణం
- ఇంధన లైన్ clamps
- New gaskets (often included with carburetor, but verify)
ఇన్స్టాలేషన్ దశలు:
- టిల్లర్ సిద్ధం చేయండి: Ensure the engine is cool. Disconnect the spark plug wire. Turn off the fuel supply valve.
- డ్రెయిన్ ఇంధనం: If necessary, drain the fuel tank into an approved container.
- ఎయిర్ ఫిల్టర్ అసెంబ్లీని తీసివేయండి: Carefully remove the air filter housing and filter to access the carburetor.
- లింకేజీలు మరియు ఇంధన లైన్ను డిస్కనెక్ట్ చేయండి:
చిత్రం 2: వైపు view of the carburetor, illustrating the various linkages and mounting points. Note the brass fuel inlet pipe on the right side.
Carefully note or photograph the connections of the throttle and choke linkages to the old carburetor. Disconnect them. Use fuel line clamps to pinch off the fuel line, then disconnect it from the carburetor. Be prepared for some fuel spillage.
- పాత కార్బ్యురేటర్ను తీసివేయండి: ఇంజిన్ మానిఫోల్డ్ నుండి పాత కార్బ్యురేటర్ను విప్పండి. ఏవైనా పాత గాస్కెట్లను తొలగించండి.
- కొత్త కార్బ్యురేటర్ను ఇన్స్టాల్ చేయండి:
చిత్రం 3: వెనుక view of the carburetor, highlighting the engine mounting flange and internal components. This view is critical for proper alignment during installation.
Place new gaskets on the engine manifold and air filter housing side. Mount the new carburetor, ensuring proper alignment. Secure it with bolts, tightening them evenly.
- భాగాలను తిరిగి కనెక్ట్ చేయండి: Reconnect the fuel line, throttle, and choke linkages. Ensure all connections are secure and move freely.
- ఎయిర్ ఫిల్టర్ అసెంబ్లీని తిరిగి ఇన్స్టాల్ చేయండి: Attach the air filter housing and install a clean air filter.
- ఇంధనాన్ని తిరిగి నింపండి మరియు పరీక్షించండి: Refill the fuel tank, open the fuel supply valve, and reconnect the spark plug wire. Start the engine and check for leaks or abnormal operation.
ఆపరేటింగ్ సూచనలు (ఇన్స్టాలేషన్ తర్వాత)
After successful installation of the carburetor, the tiller's engine should operate as designed. Refer to your Troy Bilt Tiller's original owner's manual for specific starting and operating procedures. Generally, ensure the fuel tank is filled with fresh, clean fuel, the choke is set correctly for starting, and the throttle is in the appropriate position.
If the engine does not start or runs poorly after installation, refer to the Troubleshooting section of this manual or your tiller's original manual.
నిర్వహణ
Proper maintenance of your carburetor ensures long-lasting performance and reliable engine operation. Regular maintenance includes:
- ఇంధన నాణ్యత: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during storage.
- ఇంధన ఫిల్టర్: Regularly check and replace the fuel filter (if equipped) to prevent debris from reaching the carburetor.
- ఎయిర్ ఫిల్టర్: Ensure the air filter is clean and free of debris. A clogged air filter can affect the air-fuel mixture.
- కార్బ్యురేటర్ క్లీనింగ్: If the engine experiences performance issues, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This is an advanced procedure and may require professional service.
ట్రబుల్షూటింగ్
If your engine experiences problems after carburetor installation, consider the following common issues:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ఇంజిన్ స్టార్ట్ అవ్వడం లేదు | No fuel reaching carburetor; clogged fuel line/filter; incorrect choke setting; spark plug issue. | Check fuel level and quality. Verify fuel line is clear and filter is clean. Adjust choke. Check spark plug. |
| ఇంజిన్ కఠినంగా/స్టాల్స్గా నడుస్తుంది | Improper air-fuel mixture; dirty carburetor jets; air leak around carburetor gaskets. | Ensure carburetor is properly seated and gaskets are sealed. Clean carburetor jets. |
| ఇంధన లీకేజీలు | Loose fuel line connection; damaged fuel line; faulty carburetor float or needle valve. | ఇంధన లైన్ cl బిగించండిamps. Inspect fuel lines for cracks. If carburetor internal, professional service may be needed. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified small engine mechanic.
స్పెసిఫికేషన్లు
- బ్రాండ్: సాధారణమైనది
- మోడల్ సంఖ్య: xjw1123074nn
- అనుకూలత: Troy Bilt Model 12210 6.5HP Super Bronco Rear Tine Tiller
- UPC: 776869318128
- ASIN: B0G3J15XKB
చిత్రం 4: పై నుండి క్రిందికి view of the carburetor, providing a clear perspective of the internal components and the two main mounting holes for attachment to the engine.
వారంటీ మరియు మద్దతు
For specific warranty information regarding this Generic carburetor, please refer to the seller or the original purchase documentation. As this is a replacement part, warranty terms may vary.
If you require further assistance or have questions not covered in this manual, please contact the seller directly through your purchase platform. Always provide your product model number (xjw1123074nn) and the ASIN (B0G3J15XKB) when seeking support.
