VOCIC Z25 3-Wheel Foldable Rollator Instruction Manual

పరిచయం

Thank you for choosing the VOCIC Z25 3-Wheel Foldable Rollator. This lightweight and adjustable mobility aid is designed to provide stability and support for seniors, featuring 8-inch all-terrain tires, a cane holder, and a cup holder. Please read this manual carefully before assembly and use to ensure safe and optimal operation.

భద్రతా సమాచారం

• Always engage brakes before sitting. This rollator is not designed for sitting.
• This rollator is equipped with a hand brake system only (no foot brake).
• It requires sufficient hand grip strength and upper body mobility for safe operation.
• ప్రతి ఉపయోగం ముందు అన్ని భాగాలు సురక్షితంగా అమర్చబడి ఉన్నాయని నిర్ధారించుకోండి.
• గరిష్ట బరువు సామర్థ్యం 300 పౌండ్లు మించకూడదు.
• ఆహార పదార్ధాలకు సంబంధించిన ప్రకటనలు FDAచే మూల్యాంకనం చేయబడలేదు మరియు ఏదైనా వ్యాధి లేదా ఆరోగ్య పరిస్థితిని నిర్ధారించడానికి, చికిత్స చేయడానికి, నయం చేయడానికి లేదా నిరోధించడానికి ఉద్దేశించబడలేదు.

సెటప్

The VOCIC Z25 rollator requires simple assembly. A detailed instruction manual and video tutorial are included with your product. Follow these general steps for initial setup:

1. రోలేటర్‌ను విప్పు: Gently pull the handles apart until the frame locks into its open position. Ensure all locking mechanisms are engaged.
2. హ్యాండిల్ ఎత్తును సర్దుబాటు చేయండి: The handles adjust to 6 heights (33"–38") to fit users from 4'11" to 6'3". Press the adjustment buttons on the handle shafts and slide the handles to your desired height. Ensure the buttons click into place securely.
3. ఉపకరణాలను అటాచ్ చేయండి: Secure the detachable storage bag, cup holder, and cane holder to the designated points on the frame.

Image: The VOCIC Z25 Rollator in its fully assembled and unfolded state, showing adjustable handles and attached storage bag.

Image: Close-up of the VOCIC Z25 Rollator handles, illustrating the height adjustment mechanism.

Image: The VOCIC Z25 Rollator showcasing its integrated storage bag, cup holder, and cane holder.

ఆపరేటింగ్ సూచనలు

రోలేటర్‌తో నడవడం

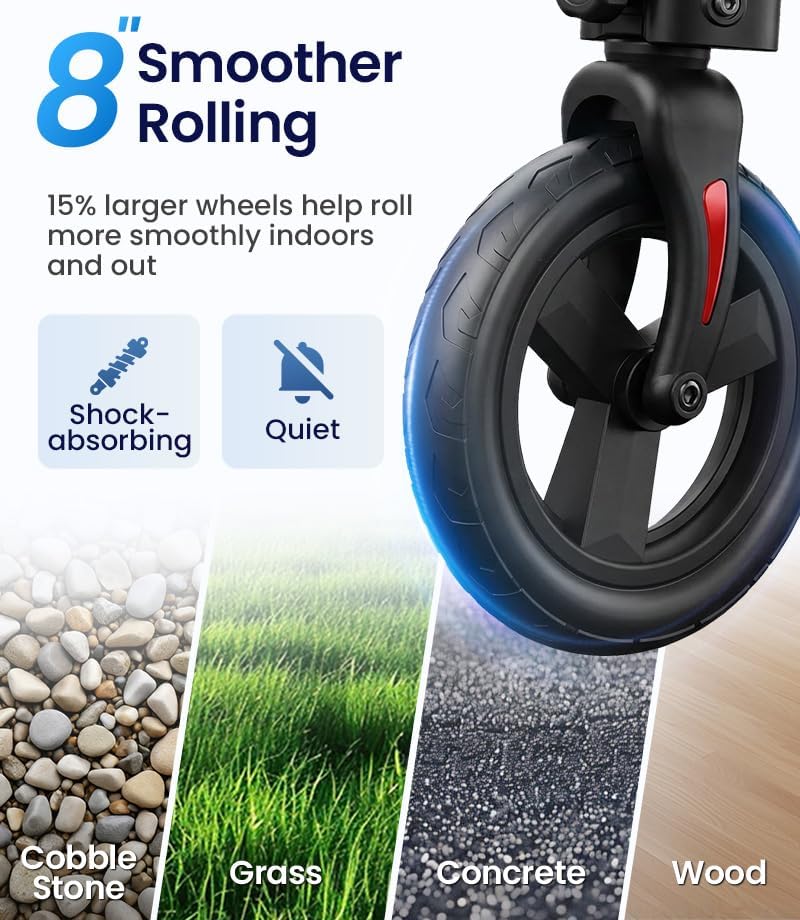

Position yourself between the handles, maintaining an upright posture. Push the rollator forward as you walk, allowing the 8-inch EVA foam shock-absorbing wheels to provide a smooth and quiet ride. The low center of gravity and wider rear wheel base enhance stability, while ergonomic inward-grip handles follow your natural stride.

Image: A person demonstrating proper walking posture while using the VOCIC Z25 Rollator.

బ్రేకింగ్ సిస్టమ్

The Z25 features a dual safety brake system:

• వేగాన్ని తగ్గించడానికి: Pull the brake levers upwards towards the handles. This applies gradual braking force.
• To Lock Brakes (Parking): Push the brake levers downwards until they click into the locked position. This secures the rollator in place. Always engage the parking brakes when standing still or transferring.

చిత్రం: వివరణాత్మకం view of the dual brake system on the VOCIC Z25 Rollator, showing the levers for slowing and locking.

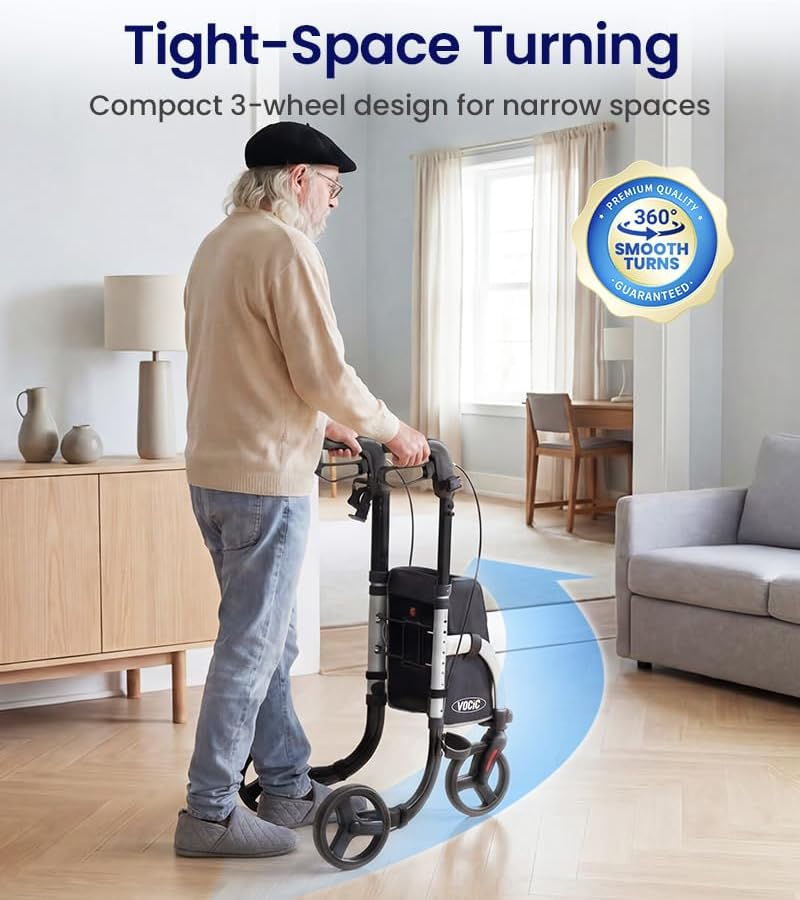

Navigating Tight Spaces

The compact three-wheel design allows for easier turning in narrow areas such as doorways, kitchens, or crowded aisles. The responsive yet stable design offers a balance of agility and support.

నిల్వ మరియు రవాణా కోసం మడతపెట్టడం

The Z25 folds in one step and stands upright on its own. This makes it easy to store behind a door, in a corner, or transport in a vehicle. To fold, locate the folding mechanism (typically a strap or lever near the center of the frame) and activate it, then bring the sides of the rollator together.

Image: The VOCIC Z25 Rollator in its folded state, placed in a car trunk alongside other items, demonstrating its compact storage.

నిర్వహణ

• శుభ్రపరచడం: Wipe down the frame and handles regularly with a damp వస్త్రం మరియు తేలికపాటి సబ్బు. రాపిడి క్లీనర్లను నివారించండి.
• చక్రాల తనిఖీ: చక్రాలు తరుగుదల కోసం కాలానుగుణంగా తనిఖీ చేయండి. అవి స్వేచ్ఛగా తిరుగుతున్నాయని మరియు చెత్త లేకుండా ఉన్నాయని నిర్ధారించుకోండి.
• బ్రేక్ చెక్: Test the brakes before each use to ensure they engage and disengage properly. If brakes feel loose or ineffective, consult a professional for adjustment.
• ఫాస్టెనర్ తనిఖీ: Regularly inspect all screws, bolts, and locking mechanisms to ensure they are tight and secure.
• నిల్వ: Store the rollator in a dry place away from extreme temperatures.

ట్రబుల్షూటింగ్

• Rollator feels unstable:
  • Ensure the rollator is fully unfolded and all locking mechanisms are engaged.
  • Verify that the handle heights are adjusted evenly on both sides.
  • Check for any loose fasteners on the frame or wheels.
• Brakes are not working effectively:
  • Inspect the brake cables for damage or fraying.
  • Ensure the brake levers are fully pulled or pushed to engage.
  • If the issue persists, professional adjustment or repair may be required.
• చక్రాలు సజావుగా తిరగడం లేదు:
  • Check for debris (e.g., hair, lint) wrapped around the wheel axles.
  • Ensure the wheels are not damaged or excessively worn.

For issues not covered here, please contact VOCIC customer support.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

The VOCIC Z25 Rollator comes with a 30-day return/refund/replacement guarantee. For any questions, concerns, or support needs, please contact VOCIC customer service through the retailer where you purchased the product or visit the official VOCIC webసంప్రదింపు సమాచారం కోసం సైట్.

తయారీదారు: VOCIC
