పరిచయం
The Yeedi S20 Infinity Ultra is an advanced robot vacuum and mop designed to provide comprehensive floor cleaning. It features FocusJet Stain Pre-Dissolving Technology, a Mop Roller Smart Cover, powerful 22000Pa suction, 145°F hot air drying, hot water mop washing, and AI obstacle avoidance. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance.
Image: The Yeedi S20 Infinity Ultra Robot Vacuum and Mop with its Omni Station.
సెటప్
Follow these steps to set up your Yeedi S20 Infinity Ultra for the first time:
- పరికరాన్ని అన్ప్యాక్ చేయండి: Carefully remove all components from the packaging. Ensure all protective films and packing materials are removed from the robot and the Omni Station.
- ఓమ్ని స్టేషన్ను ఉంచండి: Place the Omni Station on a hard, level surface against a wall, ensuring there is at least 0.5 meters (1.6 feet) of clear space on both sides and 1.5 meters (4.9 feet) in front. Plug the power cord into the station and a wall outlet.
- Install Side Brush and Main Brush: Attach the side brush to the designated post on the underside of the robot. Ensure the main brush and its cover are correctly installed.
- నీటి ట్యాంకులు నింపండి: Fill the clean water tank in the Omni Station with clean water. If desired, add the provided cleaning solution to the solution tank.
- స్టేషన్లో రోబోట్ను ఉంచండి: Place the robot onto the Omni Station. It will begin charging automatically.
- అనువర్తనాన్ని డౌన్లోడ్ చేయండి: Download the Yeedi app from your smartphone's app store. Follow the in-app instructions to connect your robot to your 2.4GHz Wi-Fi network.
వీడియో: ఒక ఓవర్view of the YEEDI S20 Infinity Ultra Robotic Vacuum and Mop, demonstrating its features and setup process.
ఆపరేటింగ్ సూచనలు
The Yeedi S20 Infinity Ultra offers various cleaning modes and smart features for efficient floor care.
క్లీనింగ్ మోడ్లు
- ఆటో క్లీన్: The robot intelligently maps your home and cleans all accessible areas.
- ప్రాంతం శుభ్రం: Select specific rooms or zones to clean via the Yeedi app.
- స్పాట్ క్లీన్: Direct the robot to clean a concentrated area for spills or localized dirt.
- కస్టమ్ క్లీన్: Adjust suction power, water flow, and cleaning frequency through the app.
FocusJet Stain Pre-Dissolving Technology
This technology sprays a targeted fine mist onto tough stains before mopping, allowing them to break down for more effective removal.
Image: The robot vacuum applying FocusJet Stain Pre-Dissolving Technology to a floor stain.

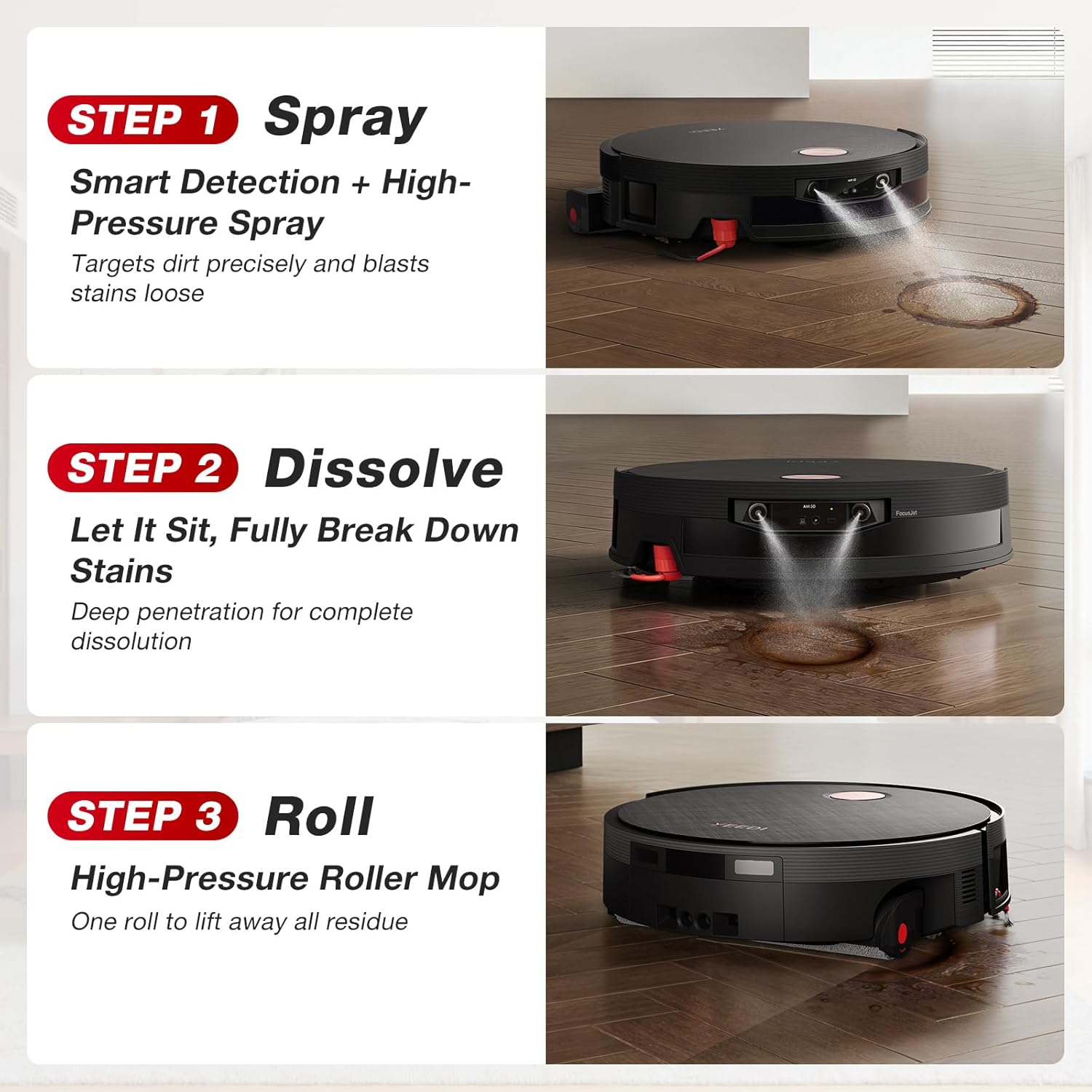

Image: Visual representation of the three steps of FocusJet technology: Spray, Dissolve, and Roll.
Mop Roller Smart Cover
The Mop Roller Smart Cover automatically shields the mop roller when the robot detects carpets or non-mopping zones, preventing wetting and cross-contamination.
Image: The robot vacuum demonstrating its mop roller lifting mechanism over a carpet.
AI Obstacle Avoidance
Equipped with RGBD AI obstacle avoidance technology, the robot identifies and navigates around furniture, toys, and other obstacles in real-time. It also recognizes stains and large particles, adjusting cleaning intensity as needed.
Image: The robot vacuum using AI to avoid obstacles and clean edges.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your Yeedi S20 Infinity Ultra.
Omni Station Maintenance
- ఖాళీ మురికి నీటి ట్యాంక్: Regularly empty the dirty water tank in the Omni Station. Rinse it with clean water.
- శుభ్రమైన నీటి ట్యాంక్ను తిరిగి నింపండి: Ensure the clean water tank is always filled for mopping operations.
- డస్ట్ బ్యాగ్ తనిఖీ చేయండి: Replace the dust bag in the Omni Station when indicated by the app or when full.
- Clean Station Base: Periodically clean the base of the Omni Station to remove any accumulated dirt or debris.
Image: The 10-in-1 Smart Cleaning Station, illustrating its various automated maintenance functions.
రోబోట్ నిర్వహణ
- Clean Mop Roller: The Omni Station automatically washes and hot-air dries the mop roller. Ensure the roller is free from debris.
- Clean Side Brush: Remove and clean the side brush regularly to prevent hair entanglement.
- ప్రధాన బ్రష్ను శుభ్రం చేయండి: Remove the main brush and clean any hair or debris wrapped around it.
- క్లీన్ ఫిల్టర్లు: Tap out or rinse the robot's filter as needed. Allow to air dry completely before reinserting.
- Wipe Sensors: Use a dry cloth to wipe the robot's sensors to ensure accurate navigation.
Image: Close-up of the robot's underside, highlighting the Airflow-Directed Anti-Tangle Main Brush and ARClean Anti-Tangle Side Brush.
ట్రబుల్షూటింగ్
If you encounter issues with your Yeedi S20 Infinity Ultra, refer to the following common solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| రోబోట్ ప్రారంభం కాదు లేదా ప్రతిస్పందించదు. | బ్యాటరీ తక్కువగా ఉంది; పవర్ స్విచ్ ఆఫ్; రోబోట్ నిలిచిపోయింది. | Ensure robot is fully charged. Check if the power switch is on. Clear any obstructions. |
| పేలవమైన శుభ్రపరిచే పనితీరు. | Full dustbin; clogged brushes; dirty filter; low water in tank. | Empty dustbin. Clean main and side brushes. Clean or replace filter. Refill clean water tank. |
| రోబో తరచుగా ఇరుక్కుపోతుంది. | Obstacles in path; dirty sensors; uneven surfaces. | Clear cables, toys, and other small items. Wipe all sensors with a dry cloth. Ensure cleaning area is suitable. |
| Mop leaves streaks or doesn't clean effectively. | Dirty mop roller; insufficient water; incorrect cleaning solution. | Ensure mop roller is clean and properly installed. Check clean water tank level. Use only recommended cleaning solutions. |
| Wi-Fiకి కనెక్ట్ చేయడం సాధ్యపడదు. | Incorrect Wi-Fi band; wrong password; router issues. | Ensure you are connecting to a 2.4GHz Wi-Fi network. Double-check password. Restart router and robot. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | Yeedi |
| మోడల్ పేరు | YEEDI S20 Infinity Ultra |
| ఉపరితల సిఫార్సు | Hard Floors & Carpets |
| చూషణ శక్తి | 22000పా |
| ప్రత్యేక లక్షణాలు | FocusJet Technology, Mop Roller Smart Cover, OZMO ROLLER 3.0, PowerBoot PLUS, AI Obstacle Avoidance |
| రంగు | నలుపు |
| కంట్రోలర్ రకం | అనువర్తన నియంత్రణ |
| బ్యాటరీ లైఫ్ | Up to 5461 minutes (under specific conditions) |
| బ్యాటరీ రకం | లిథియం అయాన్ |
| వాల్యూమ్tage | 110 వోల్ట్లు |
| డస్ట్బిన్ కెపాసిటీ | 2.5 Liters (Omni Station dust bag) |
| అంశం కొలతలు (L x W x H) | Robot: 13.9"L x 13.82"W x 3.86"H, Station: 13.31"L x 18.07"W x 19.69"H |
| చేర్చబడిన భాగాలు | Robot, OMNI Station, Power cord, User Manual, Quick guide, Side Brush, Main Brush & Cover, Filter, Dust Bag, Cleaning Solution (260mL), Heavy Duty Cleaning Solution (260mL), Auxiliary Compartment Auto-Fill Module, Ordinary Roller Mop, Clean Water Tank, Dirty Water Tank |
| UPC | 850066464304 |
Image: Dimensions of the Yeedi S20 Infinity Ultra robot and its Omni Station.
వారంటీ మరియు మద్దతు
Yeedi provides comprehensive support for its products.
- వారంటీ: Yeedi offers a 1-year coverage for any manufacturing defects or quality issues.
- రిటర్న్స్: A 30-day free return policy is available through Amazon.
- కస్టమర్ సేవ: For any issues or assistance, contact Yeedi customer support. Issues can often be resolved with guidance or replacement parts.
- నాణ్యత హామీ: Every product undergoes strict quality checks to ensure reliability.
For further assistance, please visit the official Yeedi webసైట్ లేదా వారి కస్టమర్ సేవను నేరుగా సంప్రదించండి.
