1. పరిచయం
This manual provides essential information for the proper installation, operation, and maintenance of your MSD 8676 Retard Selector Switch. Please read this manual thoroughly before using the product to ensure safe and effective performance. The MSD 8676 is designed to work with compatible MSD ignition systems to provide precise timing retard control.
2. ఉత్పత్తి ముగిసిందిview మరియు ఫీచర్లు
The MSD 8676 Retard Selector Switch is a compact and robust device designed for quick and accurate adjustment of ignition timing retard. It offers a simple and intuitive interface for selecting desired retard amounts.
- Selection of 12 Retard Amounts: Provides a wide range of timing adjustments.
- Simple Turn Dial Selector: Allows for easy and quick changes to retard settings.
- Change in 1 Degree Increments: Enables fine-tuning of ignition timing.
- Designed for Quick Changes: Facilitates on-the-fly adjustments for various performance needs.
3. భద్రతా సమాచారం
Always prioritize safety when working with automotive electrical systems. Disconnect the vehicle's battery before installation or maintenance. Ensure all connections are secure and properly insulated to prevent short circuits.
కాలిఫోర్నియా హెచ్చరిక: క్యాన్సర్ మరియు పునరుత్పత్తి హాని - www.P65Warnings.ca.gov
4. సెటప్ మరియు ఇన్స్టాలేషన్
The MSD 8676 Retard Selector Switch is designed for straightforward integration into an existing MSD ignition system. It typically connects to a dedicated port on a compatible MSD ignition control unit.
- మౌంటు: Select a secure and accessible location within the vehicle, away from excessive heat, moisture, and vibration. Use the integrated mounting tabs to firmly attach the module using appropriate fasteners.
- వైరింగ్: Refer to the specific wiring diagram provided with your MSD ignition control unit for the correct connection points for the retard selector switch. The 8676 features a 'Plug In' connector type, ensuring a secure and reliable electrical connection. Ensure the vehicle's battery is disconnected before making any electrical connections.
- ధృవీకరణ: After installation, double-check all connections for tightness and proper insulation. Reconnect the battery and proceed to the operating instructions.
5. ఆపరేటింగ్ సూచనలు

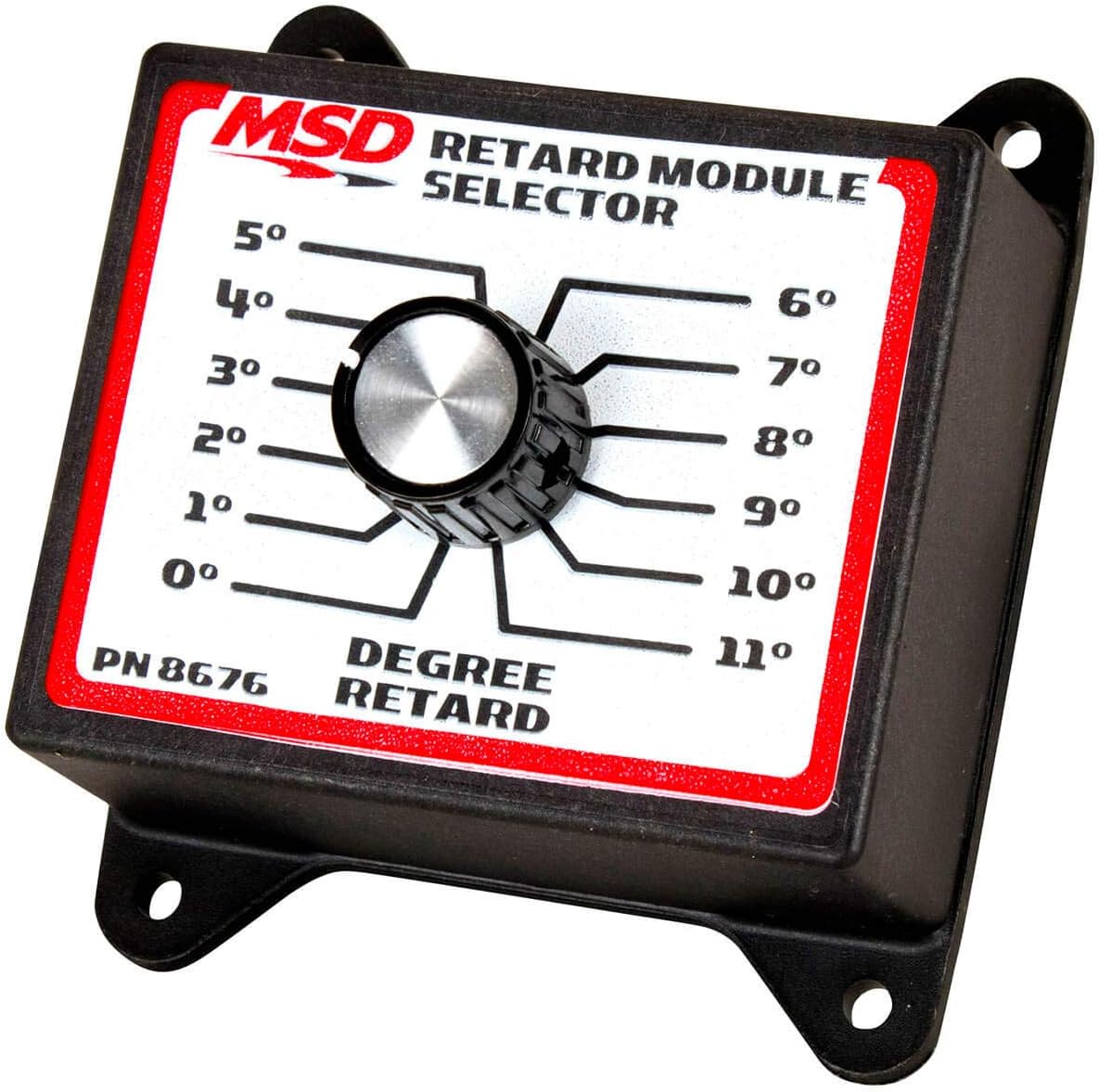

The MSD 8676 Retard Selector Switch provides a simple rotary control for adjusting ignition timing retard.
- పవర్ ఆన్: Ensure your MSD ignition system is powered on and operational.
- Select Retard Amount: Rotate the central dial to the desired retard setting. The dial is clearly marked with degree values from 0° to 11°, allowing for precise adjustments in 1-degree increments.
- Observe Changes: The selected retard value will be applied to the ignition timing as configured with your MSD ignition control unit.
Always consult your MSD ignition control unit's manual for detailed information on how the retard input affects your specific ignition system's performance.
6. నిర్వహణ
The MSD 8676 Retard Selector Switch is designed for durability and requires minimal maintenance. Regular inspection can help ensure its longevity and proper function.
- శుభ్రపరచడం: Keep the module clean and free from dirt, dust, and moisture. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or abrasive cleaners.
- కనెక్షన్ తనిఖీ: Periodically inspect the wiring connections to ensure they remain tight and free from corrosion.
- పర్యావరణ పరిరక్షణ: While rated IP54 for protection against dust and splashing water, avoid exposing the unit to extreme temperatures or direct water spray.
7. ట్రబుల్షూటింగ్
If you experience issues with your MSD 8676 Retard Selector Switch, consider the following basic troubleshooting steps:
- స్పందన లేదు: Verify that the module is correctly connected to your MSD ignition control unit according to the wiring diagram. Check for loose or corroded connections.
- Incorrect Retard: Ensure the dial is set to the desired position. Confirm that your MSD ignition control unit is properly configured to accept and interpret the retard signal from the 8676.
- సిస్టమ్ పనిచేయకపోవడం: If the issue persists, consult the troubleshooting section of your MSD ignition control unit's manual. The 8676 is a passive selector; most operational issues will stem from the main ignition unit or its wiring.
For complex issues, it is recommended to contact MSD technical support or a qualified automotive technician.
8. స్పెసిఫికేషన్లు
| స్పెసిఫికేషన్ | విలువ |
|---|---|
| మోడల్ పేరు | MSD 8676 Retard Selector Switch |
| పార్ట్ నంబర్ | MSD-8676 |
| బ్రాండ్ | MSD |
| ఆపరేషన్ మోడ్ | ప్లగ్ |
| సంప్రదింపు రకం | సాధారణంగా తెరవండి |
| కనెక్టర్ రకం | ప్లగ్ ఇన్ చేయండి |
| టెర్మినల్ | బ్లేడ్ |
| సర్క్యూట్ రకం | 12-మార్గం |
| యాక్యుయేటర్ రకం | రోటరీ |
| సంప్రదింపు మెటీరియల్ | రాగి |
| అంతర్జాతీయ రక్షణ రేటింగ్ | IP54 |
| స్థానాల సంఖ్య | 12 |
| నియంత్రణ పద్ధతి | టచ్ |
| కనెక్టివిటీ ప్రోటోకాల్ | X-10 |
| రంగు | రంగు లేదు |
| యూనిట్ కౌంట్ | 1 కౌంట్ |
| తయారీదారు | MSD ఇగ్నిషన్ |
| వస్తువు బరువు | 0.01 ఔన్సులు |
| అంశం ప్యాకేజీ కొలతలు L x W x H | 8.1 x 6 x 2.3 అంగుళాలు |
9. వారంటీ సమాచారం
MSD products typically come with a manufacturer's warranty. For specific details regarding the warranty period, coverage, and claims process for your MSD 8676 Retard Selector Switch, please refer to the warranty documentation included with your purchase or visit the official MSD Ignition webవారంటీ ప్రయోజనాల కోసం మీ కొనుగోలు రుజువును ఉంచుకోండి.
10. కస్టమర్ మద్దతు
For technical assistance, product inquiries, or support, please contact MSD Ignition directly. Their official website often provides FAQs, technical documents, and contact information for customer service.
MSD Ignition Official Webసైట్: www.holley.com/brands/msd/ (Note: MSD is part of Holley Performance Products)
