పరిచయం
This manual provides detailed instructions for the installation, operation, and maintenance of your Pyle PLCM7200 Backup Car Camera System. This system is designed to enhance visibility and safety when reversing your vehicle, offering a clear view of the area behind you.
The Pyle PLCM7200 system includes a 7-inch LCD display mirror and a license plate mountable backup camera, designed for clear rear visibility.
ముఖ్యమైన భద్రతా సమాచారం
హెచ్చరిక: ఈ ఉత్పత్తిలో క్యాన్సర్ మరియు జనన లోపాలు లేదా ఇతర పునరుత్పత్తి హాని కలిగించే కాలిఫోర్నియా రాష్ట్రానికి తెలిసిన రసాయనాలు ఉన్నాయి.
Always ensure your vehicle is parked safely and the engine is off before attempting any installation or maintenance procedures. Disconnect the vehicle's battery to prevent electrical shorts during installation. Consult a professional if you are unsure about any installation steps.
ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ప్యాకేజీలో ఉన్నాయని నిర్ధారించుకోండి:
- 7" TFT/LCD Mirror Monitor
- లైసెన్స్ ప్లేట్ మౌంట్ కెమెరా
- RCA వీడియో కేబుల్
- మానిటర్ కోసం పవర్ కేబుల్
- Power Cable for Camera
Illustration of the Pyle PLCM7200 system components, including the 7-inch LCD mirror, license plate camera, RCA cable, and power cable.
సెటప్ మరియు ఇన్స్టాలేషన్
కెమెరా ఇన్స్టాలేషన్
The slim-style camera is designed to mount easily above your vehicle's license plate. Ensure the mounting location does not obstruct the license plate or vehicle lights.
- Secure the camera to the license plate frame using the provided screws or appropriate fasteners.
- Carefully route the camera's video cable (RCA) and power cable through a suitable opening into the vehicle's interior. This may require drilling a small hole if no existing access point is available. Seal any drilled holes to prevent water entry.
- Connect the camera's red power wire to the vehicle's reverse light positive (+) wire. This allows the camera to power on automatically when the vehicle is in reverse.
- Connect the camera's black ground wire to a clean, unpainted metal chassis ground point (-) within the vehicle.

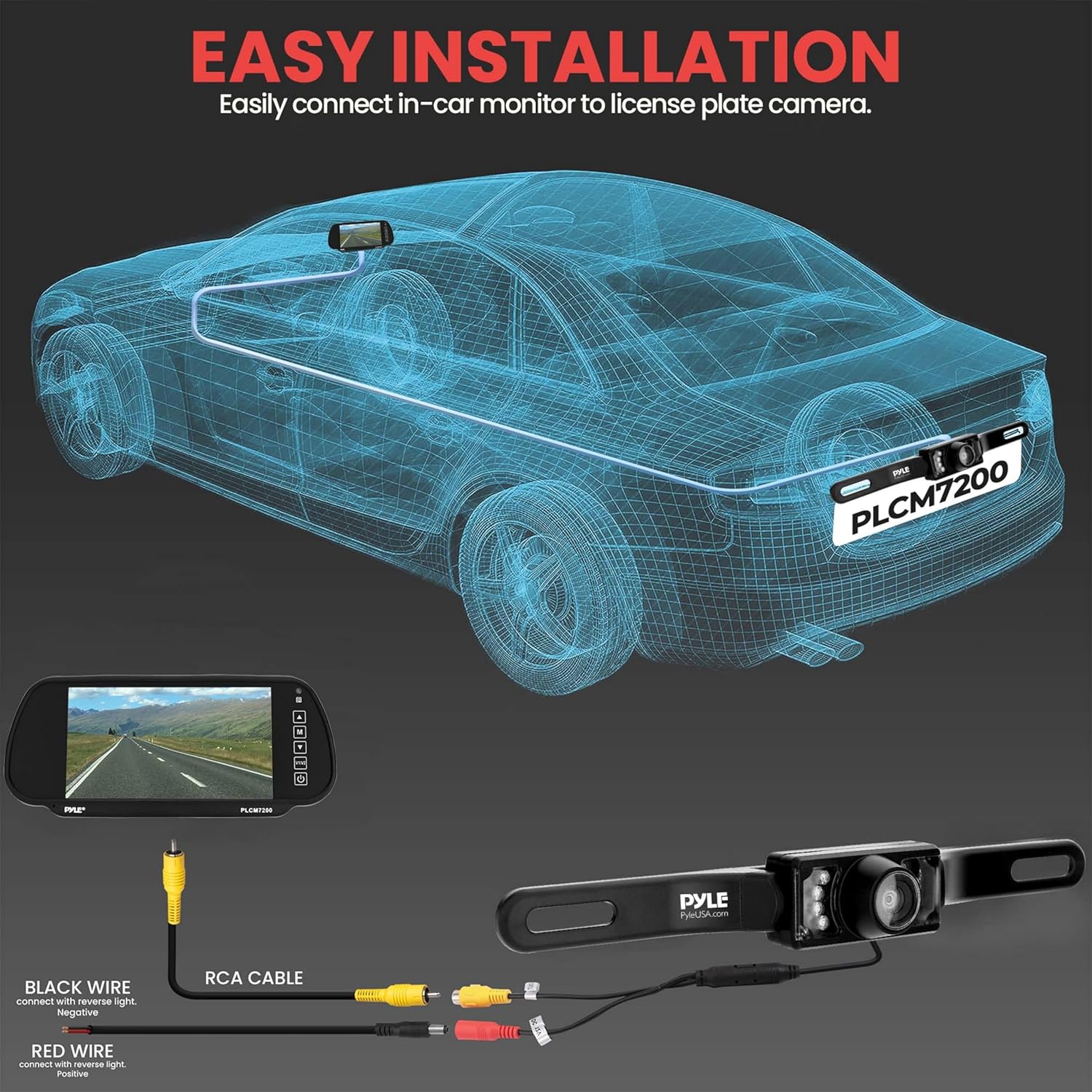

Diagram showing the connection of the camera's RCA cable to the monitor and the power wires (red to positive, black to negative) for easy installation.
మానిటర్ సంస్థాపన
The 7" LCD monitor is designed to clip securely onto your existing rearview అద్దం.
- Gently clip the monitor securely over your vehicle's existing rearview mirror. Ensure it is firmly seated and does not obstruct your view.
- Connect the RCA video cable from the camera to one of the video input ports (V1 or V2) on the monitor.
- Connect the monitor's power cable to a 12V power source in your vehicle. This can be a switched accessory power source or directly to the vehicle's battery (with an inline fuse) if you desire constant power.
The 7-inch TFT/LCD mirror monitor clipped onto a vehicle's rearview mirror, displaying a clear view వెనుక రహదారి.
ఆపరేటింగ్ సూచనలు
పవర్ ఆన్/ఆఫ్
The system is designed for automatic operation. When the vehicle is shifted into reverse, the camera will power on and the monitor will automatically display the camera feed. When taken out of reverse, the monitor will return to its previous state or turn off.
Distance Scale Lines
The camera provides visual parking assistance with accurate distance scale lines displayed on the monitor. These lines help in judging distances to obstacles behind your vehicle, aiding in safer parking and reversing maneuvers.
A clear reversing image displayed on the monitor, showing distance scale lines and a person walking behind the vehicle, demonstrating enhanced safety.
నైట్ విజన్
The camera is equipped with integrated IR LED lights and boasts a low lux capability (0.1 Lux), providing superior night vision. This ensures clear and visible images even in challenging low-light conditions, enhancing safety during nighttime driving or parking.
కెమెరాను చూపించే పోలిక చిత్రం view in daylight and at night, highlighting the effectiveness of the IR night vision feature.
వెడల్పు Viewing యాంగిల్
కెమెరా విస్తృత అందిస్తుంది viewing angle of 170 degrees. This broad perspective helps to minimize blind spots and provides a comprehensive view of the area directly behind your vehicle, increasing awareness of surroundings.
An illustration demonstrating the 170-degree wide-angle view of the backup camera, showing its broad coverage behind a vehicle.
సంరక్షణ మరియు నిర్వహణ
To ensure optimal performance and longevity of your Pyle PLCM7200 system, follow these guidelines:
- కెమెరా లెన్స్ మరియు మానిటర్ స్క్రీన్ను క్రమం తప్పకుండా మృదువైన, d తో శుభ్రం చేయండి.amp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.
- Ensure all cable connections remain secure and free from corrosion. Periodically check connections, especially after driving through harsh weather conditions.
- The camera is IP68 marine-grade waterproof, designed to withstand harsh weather. However, avoid directing high-pressure water jets directly onto the camera lens or housing, as this could potentially compromise the seal over time.
- If the system will not be used for an extended period, consider disconnecting it from the power source to prevent battery drain.
Image illustrating the IP68 waterproof and fog-resistant features of the camera, showing water droplets on the lens.
ట్రబుల్షూటింగ్ గైడ్
If you encounter issues with your Pyle PLCM7200 system, refer to the table below for common problems and their solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| మానిటర్లో చిత్రం లేదు | వదులైన కేబుల్ కనెక్షన్ | Check all RCA and power cable connections to ensure they are secure. |
| మానిటర్లో చిత్రం లేదు | No power to camera/monitor | Verify power supply to both camera and monitor. Check vehicle fuses related to the power source. |
| మినుకుమినుకుమనే లేదా వక్రీకరించబడిన చిత్రం | Electrical interference or poor connection | Ensure cables are not routed near high-voltage wires or other sources of electrical interference. Re-seat all connections firmly. |
| రాత్రిపూట దృష్టి సరిగా లేదు | Camera lens obstruction or insufficient IR light | Clean the camera lens thoroughly. Ensure the IR LEDs are not blocked by dirt or debris. |
| Monitor does not turn on automatically in reverse | Incorrect power connection for camera or monitor | Confirm the camera's red power wire is connected to the reverse light positive (+) and the monitor's power is correctly wired. |
సాంకేతిక లక్షణాలు
| ఫీచర్ | వివరాలు |
|---|---|
| ప్రదర్శన రకం | 7" TFT/LCD Mirror |
| డిస్ప్లే రిజల్యూషన్ | 800x480 పిక్సెల్స్ |
| కెమెరా రకం | Exterior License Plate Mount Cam |
| జలనిరోధిత రేటింగ్ | IP68 Marine-Grade |
| టీవీ లైన్లు | 380 టీవీ లైన్లు |
| నైట్ విజన్ | Yes, with IR LED lights (0.1 Lux) |
| Viewing యాంగిల్ | 170 డిగ్రీలు |
| వీడియో ఇన్పుట్లు | Dual (V1/V2) |
| విద్యుత్ సరఫరా | 12 వోల్ట్స్ DC |
| ఉత్పత్తి కొలతలు (మానిటర్) | 10.25"లీ x 4.25"వా x 1"హ |
| Product Dimensions (Camera) | 8.46"L x 1.29"H (approx.) |
| వస్తువు బరువు | 14.1 ounces (system) |
వారంటీ మరియు మద్దతు
This Pyle product comes with a 2 సంవత్సరాల వారంటీ, backed by a USA-based manufacturer. This warranty covers defects in materials and workmanship under normal use. For warranty service or technical support, please contact Pyle customer service directly.
You can find additional support and product information, including detailed installation guides and certificates, by referring to the following PDF documents:
Note: No official product videos with 'Seller' as 'creator_type' were found in the provided data for embedding.
