Lumex Silver Collection Steel Drop Arm 3-in-1 Commode

1. ఉత్పత్తి ముగిసిందిview

The Lumex Silver Collection Steel Drop Arm 3-in-1 Commode is a versatile medical aid designed for use as a bedside commode, a raised toilet seat, or a toilet safety frame. Its durable, welded-steel frame ensures strength and stability, while the powder-coated finish allows for easy cleaning. The commode features an easy-to-release drop arm mechanism for safe lateral transfers and cushioned armrests for enhanced user comfort. It is designed to accommodate most users with a maximum weight capacity of 300 pounds.

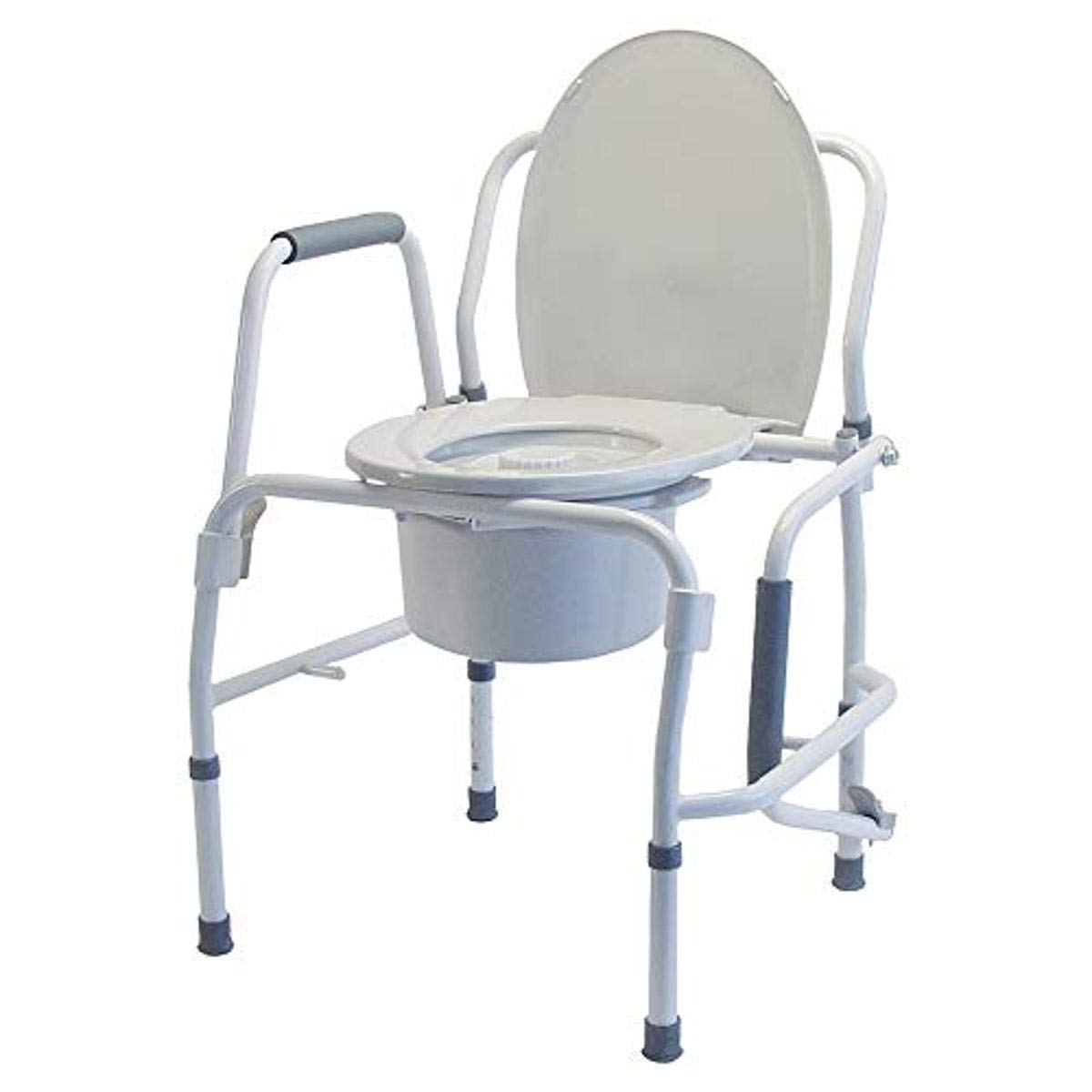

Image: The Lumex Silver Collection Steel Drop Arm 3-in-1 Commode, shown with its seat and commode pail.

ముఖ్య లక్షణాలు:

• 3-ఇన్-1 బహుముఖ ప్రజ్ఞ: Functions as a bedside commode, raised toilet seat, or toilet safety frame.
• హెవీ డ్యూటీ నిర్మాణం: Durable welded steel frame with a 300 lbs weight capacity.
• Drop Arm Mechanism: Arms drop independently for easy lateral transfers.
• సర్దుబాటు ఎత్తు: Seat height adjusts from 18.75 inches to 22.75 inches in 1-inch increments.
• సౌకర్యం మరియు పరిశుభ్రత: Cushioned armrests, sturdy plastic seat, and easy-to-clean powder-coated frame.
• పూర్తి సెట్: Includes commode pail, lid, and splash shield.

2. పెట్టెలో ఏముంది

Upon unpacking, please ensure all components are present and undamaged. The package for the Lumex Silver Collection Steel Drop Arm 3-in-1 Commode (Model 6433A-2) should contain the following:

• Commode Frame (pre-assembled main structure)
• Commode Seat with Lid
• Commode Pail
• స్ప్లాష్ షీల్డ్
• సూచనల మాన్యువల్ (ఈ పత్రం)

Image: Two Lumex Silver Collection Steel Drop Arm 3-in-1 Commodes, illustrating the product as a pack of two.

3. సెటప్ మరియు అసెంబ్లీ

The Lumex Silver Collection 3-in-1 Commode comes largely pre-assembled. Follow these steps for final setup and adjustment:

1. ఫ్రేమ్‌ను విప్పు: Carefully unfold the commode frame until it locks securely into place. Ensure all four legs are stable on the floor.
2. ఎత్తును సర్దుబాటు చేయండి: To adjust the seat height, locate the push-pins on each leg. Press the pin and slide the leg up or down to the desired height. Ensure all four legs are adjusted to the same height and the pins are securely engaged in the adjustment holes. The seat height can be adjusted from 18.75 inches to 22.75 inches.
3. సీటు మరియు మూతను అటాచ్ చేయండి: Place the plastic commode seat onto the frame. It should snap securely into place. Attach the lid to the seat.
4. Insert Commode Pail and Splash Shield: For bedside commode use, insert the commode pail into the frame beneath the seat. For use as a raised toilet seat or toilet safety frame over an existing toilet, remove the commode pail and insert the splash shield.
5. Check Armrests: Ensure the cushioned armrests are securely in place. The drop arm mechanism allows the arms to be lowered for easier transfers. To lower an arm, press the release button (if present, or follow specific mechanism instructions) and gently guide it down. To raise, lift the arm until it locks into position.

చిత్రం: ఒక వైపు view of the Lumex Silver Collection 3-in-1 Commode, highlighting its adjustable legs and drop arm feature.

4. ఆపరేటింగ్ సూచనలు

The Lumex 3-in-1 Commode offers three primary modes of operation:

4.1. As a Bedside Commode

1. Ensure the commode is placed on a flat, stable surface next to the bed.
2. Verify that the commode pail is correctly inserted beneath the seat.
3. For transfers, lower the armrest closest to the bed by pressing the release button and gently guiding it down.
4. Assist the user to sit on the commode.
5. After use, replace the lid on the commode pail.
6. Empty and clean the commode pail as described in the Maintenance section.

4.2. As a Raised Toilet Seat

1. Remove the commode pail from the frame.
2. Insert the splash shield into the frame.
3. Position the commode over an existing toilet, ensuring the legs are stable and the commode is centered.
4. Adjust the height of the commode legs so that the seat is at a comfortable and safe height above the toilet bowl.
5. Ensure the back bar is securely attached or detached as needed to fit over the toilet.

4.3. As a Toilet Safety Frame

1. Detach the back bar of the commode frame. This allows the frame to be positioned around an existing toilet without the backrest.
2. Remove the commode seat, lid, and pail/splash shield. The frame will now act as support arms around the toilet.
3. Position the frame around the toilet, ensuring it is stable and the armrests provide adequate support for the user to push up or lower themselves.
4. Adjust the height of the legs to match the height of the toilet for optimal support.

5. నిర్వహణ మరియు శుభ్రపరచడం

Regular cleaning and maintenance will ensure the longevity and hygienic use of your Lumex Commode.

• రోజువారీ శుభ్రపరచడం: After each use, empty the commode pail and clean it thoroughly with a mild disinfectant and water. Rinse well and dry.
• ఫ్రేమ్ క్లీనింగ్: Wipe down the steel frame and plastic seat with a damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could damage the powder-coated finish.
• తనిఖీ: Periodically inspect all nuts, bolts, and fasteners to ensure they are tight. Check the rubber tips on the legs for wear and replace if necessary to maintain stability.
• నిల్వ: When not in use, store the commode in a dry place away from direct sunlight or extreme temperatures.

6. ట్రబుల్షూటింగ్

If you encounter any issues with your commode, please refer to the following common solutions:

• అస్థిరత/తడబాటు:
  • Ensure all four legs are adjusted to the same height and the push-pins are fully engaged.
  • Verify that the commode is placed on a flat, even surface.
  • Check all frame connections and tighten any loose bolts.
• Difficulty with Drop Arms:
  • Ensure the release mechanism is fully pressed.
  • Check for any obstructions preventing smooth movement.
  • Apply a small amount of silicone spray to the pivot points if movement is stiff (avoiding contact with seating surfaces).
• Seat Not Snapping On:
  • Align the seat properly with the frame's attachment points.
  • Apply firm, even pressure until it clicks into place.

సమస్యలు కొనసాగితే, దయచేసి కస్టమర్ మద్దతును సంప్రదించండి.

7. స్పెసిఫికేషన్లు

8. భద్రతా సమాచారం

Please read and understand all safety warnings before using this product. Failure to do so could result in injury.

• Always ensure the commode is placed on a level, stable surface before use.
• Verify that all leg adjustment pins are fully engaged and secure before applying weight.
• గరిష్ట బరువు సామర్థ్యం 300 పౌండ్లు మించకూడదు.
• Ensure the user is properly seated and stable before leaving them unattended.
• Regularly inspect the commode for any signs of wear, damage, or loose components. Do not use if damaged.
• Keep the commode clean and dry to prevent slips and maintain hygiene.
• Use caution when transferring to and from the commode. Seek assistance if needed.

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or to order replacement parts, please contact Graham-Field customer service.

• తయారీదారు: GF హెల్త్ ప్రొడక్ట్స్, ఇంక్.
• సంప్రదింపు సంఖ్య: 770-368-4700
• Webసైట్: www.grahamfield.com (దయచేసి గమనించండి: ఈ లింక్ ఒక మాజీampలె, వాస్తవమైనది website may vary. Refer to product packaging for official contact details.)

Please have your model number (6433A-2) and purchase date available when contacting support.
