Walker 45765 Exhaust Tail Pipe Instruction Manual for Chevrolet C10

1. ఉత్పత్తి ముగిసిందిview

The Walker 45765 Exhaust Tail Pipe is engineered for durability and precise fitment in compatible Chevrolet C10 models. Constructed from aluminized steel, this premium pipe is designed to inhibit corrosion and promote long-lasting performance. It features a 2-inch inlet (ID) and a 2-inch outlet (OD).

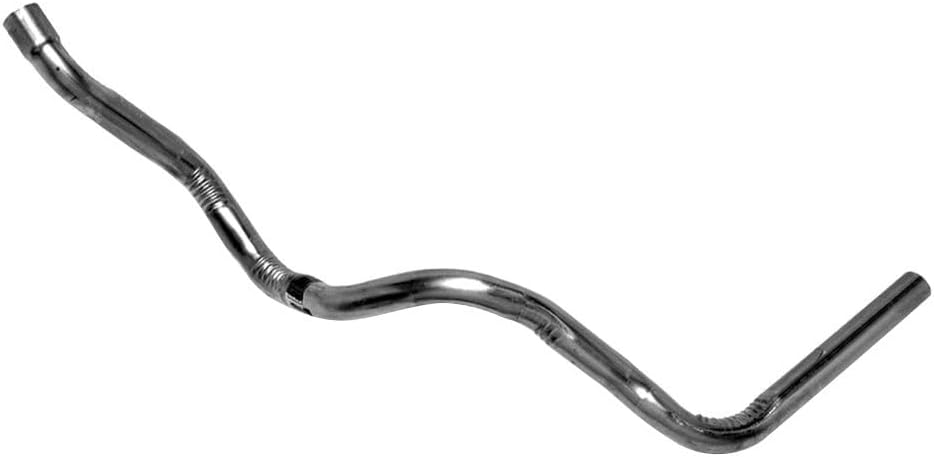

Figure 1: Walker 45765 Exhaust Tail Pipe, showcasing its curved design and aluminized steel finish.

2. అనుకూలత

This exhaust tail pipe is compatible with the following Chevrolet C10 and C20 models:

• 1980-1986 షెవ్రొలెట్ C10
• 1980-1982 షెవ్రొలెట్ C20

ముఖ్యమైన: కొనుగోలు చేయడానికి ముందుasing and installation, it is crucial to verify that this part is suitable for your specific vehicle. Please enter all vehicle information (year, make, model, engine, and trim) to confirm compatibility and review any specific qualifier notes.

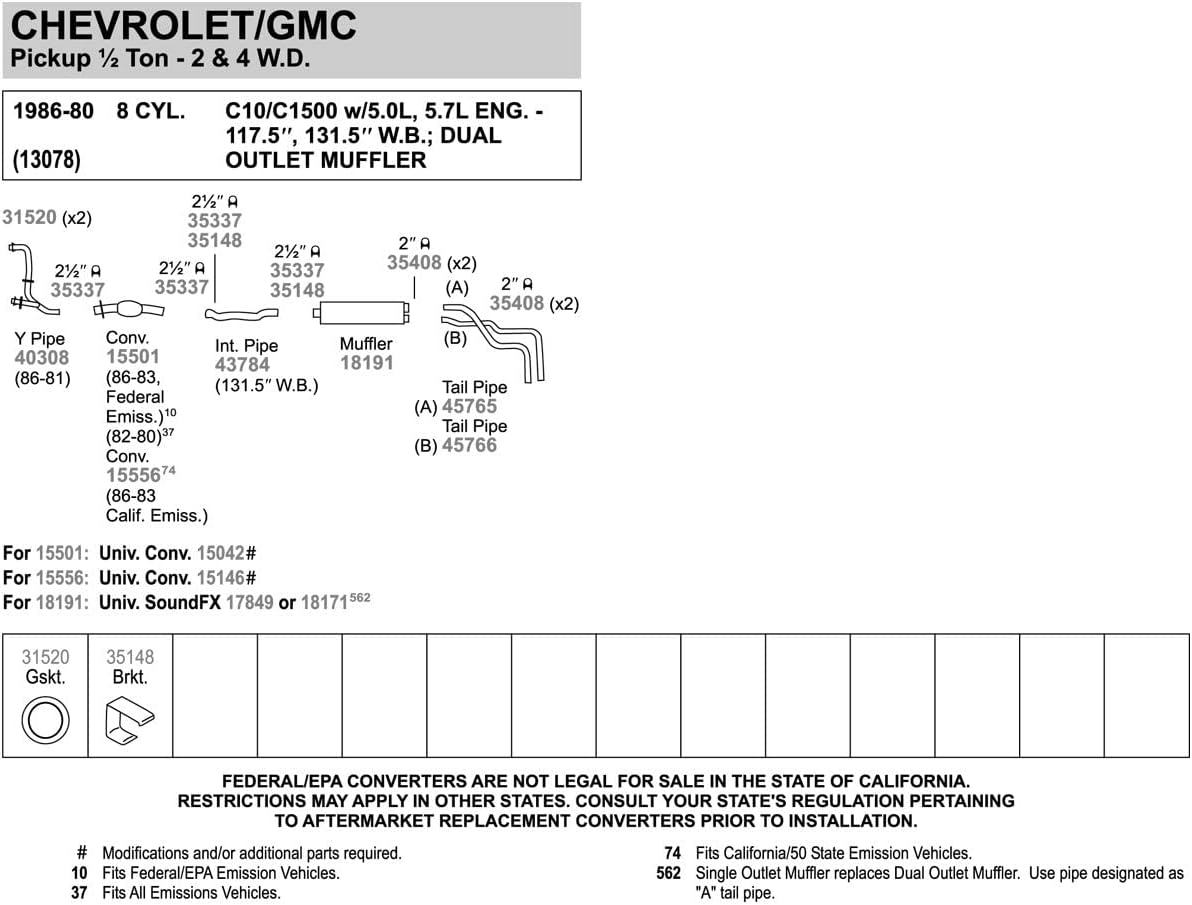

Figure 2: Exhaust system diagram for 1986-80 Chevrolet C10/C1500 Pickup 1/2 Ton - 2 & 4 W.D. with 5.0L, 5.7L engine, 117.5" W.B., Dual Outlet Muffler. Part 45765 is indicated as Tail Pipe (A).

Figure 3: Exhaust system diagram for 1986-80 Chevrolet C20/C2500 Pickup 3/4 Ton - 2 & 4 W.D. with 5.0L, 5.7L engine, 131.5" W.B., Dual Outlet w/Converter. Part 45765 is indicated as Tail Pipe (A).

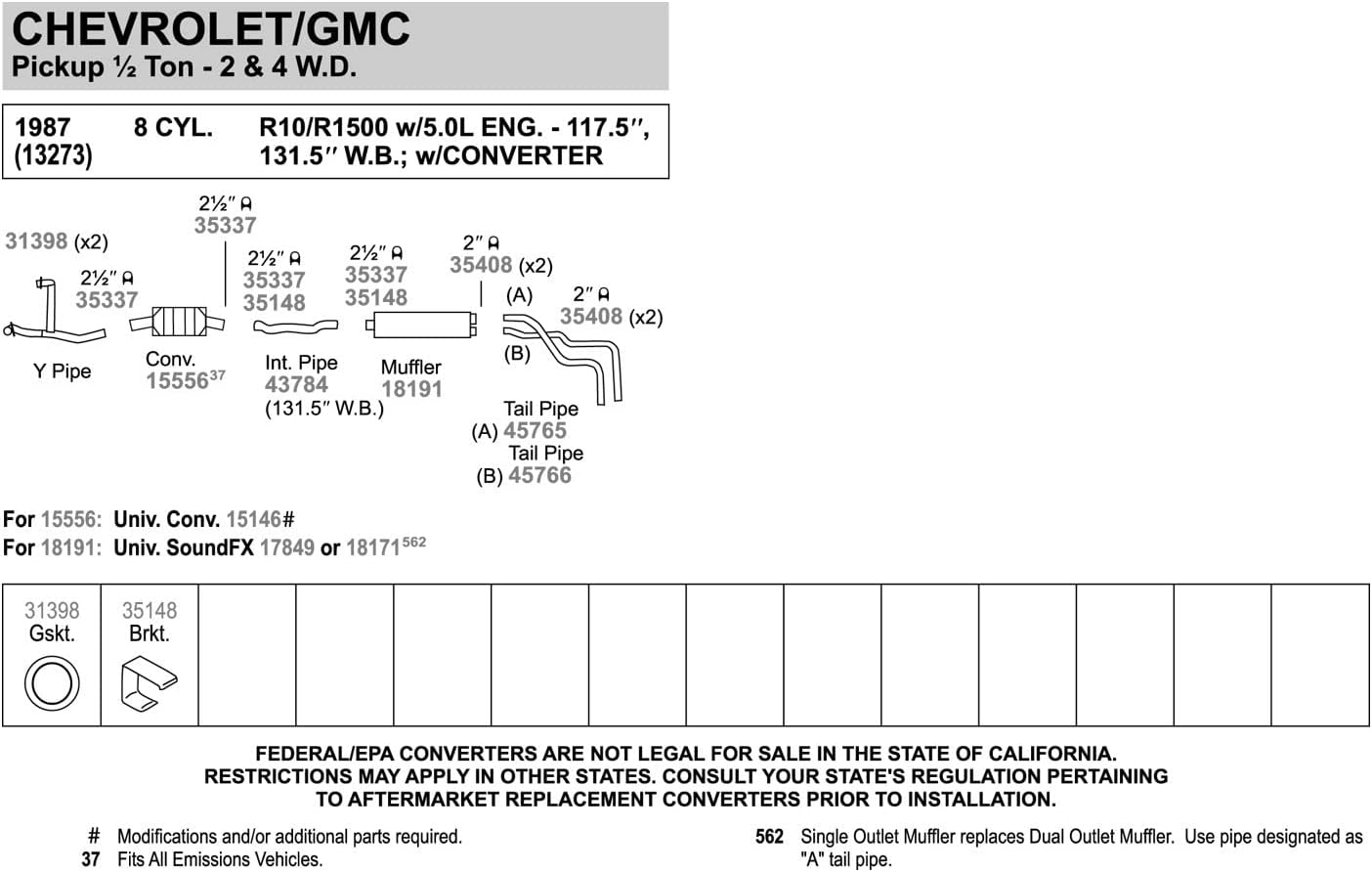

Figure 4: Exhaust system diagram for 1987 Chevrolet R10/R1500 Pickup 1/2 Ton - 2 & 4 W.D. with 5.0L engine, 117.5" W.B., w/Converter. Part 45765 is indicated as Tail Pipe (A).

Figure 5: Exhaust system diagram for 1987 Chevrolet C20/C2500 Pickup 3/4 Ton - 2 & 4 W.D. with 5.0L engine, 131.5" W.B., w/Converter. Part 45765 is indicated as Tail Pipe (A).

3. ఇన్‌స్టాలేషన్ సూచనలు

The Walker 45765 Exhaust Tail Pipe is designed for a direct-fit, bolt-on installation, ensuring a precise fit that performs like original equipment. It is manufactured with precision bends and OE-style routings, hangers, and connectors to facilitate easy installation where applicable.

3.1. మీరు ప్రారంభించడానికి ముందు

• Ensure the vehicle is cool and safely supported on jack stands or a lift.
• Gather all necessary tools for exhaust system work.
• Inspect the existing exhaust system for any damaged components that may also need replacement.

3.2. సంస్థాపనా దశలు

1. Locate the existing tail pipe on your vehicle's exhaust system.
2. Carefully remove any bolts, clamps, or hangers securing the old tail pipe.
3. Remove the old tail pipe from the vehicle.
4. Position the new Walker 45765 Exhaust Tail Pipe into place, aligning it with the existing exhaust components.
5. Secure the new tail pipe using appropriate bolts, clamps, and hangers. Ensure all connections are tight and secure to prevent leaks.
6. Verify proper clearance from other vehicle components to avoid rattles or damage.
7. Start the vehicle and check for any exhaust leaks.

గమనిక: Professional installation is recommended if you are unfamiliar with exhaust system repairs.

4. నిర్వహణ

The aluminized-steel construction of the Walker 45765 Exhaust Tail Pipe is designed to inhibit corrosion and promote long-term performance. To ensure the longevity and optimal function of your entire exhaust system, it is recommended to use premium Walker accessories when installing Walker catalytic converters and mufflers. Regular inspection of the exhaust system for rust, damage, or loose connections is advised.

5. స్పెసిఫికేషన్లు

చిత్రం 6: పైగాview of a typical exhaust system, illustrating the placement of components like manifold converters, oxygen sensor ports, catalytic converters, resonator assemblies, mufflers, and muffler assemblies.

6. ట్రబుల్షూటింగ్

If you encounter any issues after installing the Walker 45765 Exhaust Tail Pipe, consider the following general troubleshooting steps:

• ఎగ్జాస్ట్ లీక్‌లు: Check all connections (clamps, bolts) for tightness. Apply exhaust sealant if necessary.
• Rattling Noises: Ensure the tail pipe has adequate clearance from the vehicle's frame, suspension, and other components. Adjust hangers or pipe position if contact is detected.
• అసాధారణ శబ్దాలు: Verify that all components are correctly installed and not loose. Inspect for any new cracks or damage to the exhaust system.

For persistent or complex issues, it is recommended to consult a qualified automotive technician.

7. మద్దతు సమాచారం

For further assistance, technical support, or warranty inquiries regarding your Walker 45765 Exhaust Tail Pipe, please contact Walker customer service. Refer to the official Walker webఅత్యంత తాజా సంప్రదింపు సమాచారం కోసం సైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్.
