పరిచయం
This manual provides essential instructions for the safe installation, operation, and maintenance of your Toro 54-0010-03 lawn mower blade. Adhering to these guidelines will ensure optimal performance and extend the lifespan of your blade. Please read this manual thoroughly before proceeding with any installation or maintenance procedures.
భద్రతా సమాచారం
Always prioritize safety when working with lawn mower blades. Failure to follow these safety precautions can result in serious injury.
- స్పార్క్ ప్లగ్ను డిస్కనెక్ట్ చేయండి: Before performing any work on the mower, always disconnect the spark plug wire to prevent accidental engine starting.
- రక్షణ గేర్ ధరించండి: Always wear heavy-duty gloves and eye protection when handling or working near mower blades. Blades are sharp and can cause severe cuts.
- స్థిరమైన ఉపరితలం: Ensure the lawn mower is on a flat, stable surface and properly supported before tilting or lifting.
- ఇంజిన్ చల్లబరచడానికి అనుమతించండి: కాలిన గాయాలను నివారించడానికి మొవర్పై పనిచేసే ముందు ఇంజిన్ మరియు మఫ్లర్ పూర్తిగా చల్లబరచడానికి అనుమతించండి.
- సరైన సాధనాలను ఉపయోగించండి: Use appropriate tools for blade removal and installation to prevent damage to fasteners or injury.
ఇన్స్టాలేషన్ సూచనలు
This section outlines the steps for replacing your lawn mower blade.
1. తయారీ
- Ensure the mower engine is off and cool.
- ప్రమాదవశాత్తు ప్రారంభాన్ని నిరోధించడానికి స్పార్క్ ప్లగ్ వైర్ను డిస్కనెక్ట్ చేయండి.
- Position the mower on a flat, stable surface. If tilting, ensure the carburetor side is up to prevent fuel or oil leaks.
2. Blade Removal
- Using a block of wood or a specialized blade removal tool, secure the blade to prevent it from turning.
- Using a wrench, loosen and remove the blade bolt(s) by turning counter-clockwise.
- Carefully remove the old blade, noting the orientation of the cutting edge.
3. బ్లేడ్ ఇన్స్టాలేషన్
The Toro 54-0010-03 blade is designed for specific cutting performance. Ensure it is installed correctly.

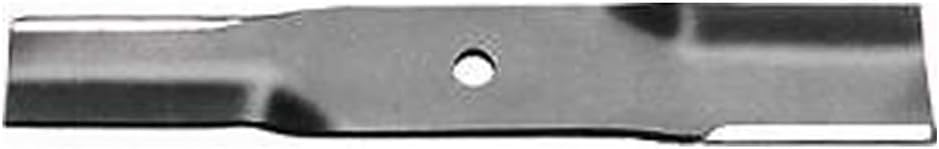

Image: The Toro 54-0010-03 lawn mower blade, showing its cutting edge and central mounting hole.
- Align the new Toro 54-0010-03 blade with the blade adapter on the mower deck. The cutting edge should face outwards, towards the ground when the mower is in its operating position.
- Insert the blade bolt(s) and hand-tighten.
- Secure the blade again with a block of wood or blade tool.
- Using a torque wrench, tighten the blade bolt(s) to the manufacturer's specified torque. Refer to your mower's owner's manual for specific torque specifications. Over-tightening or under-tightening can be dangerous.
- స్పార్క్ ప్లగ్ వైర్ను తిరిగి కనెక్ట్ చేయండి.
ఆపరేషన్ మార్గదర్శకాలు
After installing the new blade, ensure the mower operates smoothly without excessive vibration. If unusual vibrations occur, immediately shut off the engine, disconnect the spark plug, and inspect the blade for proper installation and balance.
Always operate your lawn mower according to its specific owner's manual. Avoid mowing over hard objects that could damage the blade or mower.
నిర్వహణ
Regular maintenance of your blade ensures a clean cut and prolongs its life.
బ్లేడ్ తనిఖీ
- Inspect the blade before each use for nicks, bends, or cracks. A damaged blade can be dangerous and should be replaced immediately.
- Check for excessive wear, especially near the cutting edge.
పదును పెట్టడం
- Sharpen the blade regularly to maintain cutting efficiency. Use a file or grinding wheel, maintaining the original cutting angle.
- Remove an equal amount of material from both ends of the blade to maintain balance.
బ్యాలెన్సింగ్
- After sharpening, balance the blade using a blade balancer. An unbalanced blade can cause excessive vibration, leading to premature wear on mower components and an uneven cut.
- If the blade is unbalanced, remove more material from the heavier side until it balances horizontally.
ట్రబుల్షూటింగ్
Common issues related to lawn mower blades and their potential solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| అసమాన కట్ | Dull blade, bent blade, unbalanced blade, incorrect blade installation. | Sharpen or replace blade, check for bends, balance blade, re-install correctly. |
| విపరీతమైన కంపనం | అసమతుల్య బ్లేడ్, వంగిన బ్లేడ్, వదులైన బ్లేడ్ బోల్ట్. | Balance blade, replace bent blade, tighten blade bolt to specifications. |
| Poor Grass Discharge | Dull blade, incorrect blade type for conditions, clogged deck. | Sharpen blade, ensure correct blade for mowing conditions, clean mower deck. |
స్పెసిఫికేషన్లు
Key specifications for the Toro 54-0010-03 blade.
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | 54-0010-03 |
| తయారీదారు | టోరో |
| ఉత్పత్తి కొలతలు | 19 x 4 x 4 అంగుళాలు |
| వస్తువు బరువు | 1.85 పౌండ్లు |
వారంటీ మరియు మద్దతు
For information regarding warranty coverage or technical support for your Toro 54-0010-03 blade, please refer to the official Toro website or contact Toro customer service directly. Specific warranty terms and conditions may vary.
