1. పరిచయం
The Lutron FG-2-TD-WH Fassada 2-Gang Combination Wall Plate is designed to provide a clean and seamless finish for your electrical installations. This wall plate features one traditional toggle opening and one designer opening, making it versatile for various switch and dimmer types. Its gloss white finish and screwless design enhance the aesthetic appeal of any room.

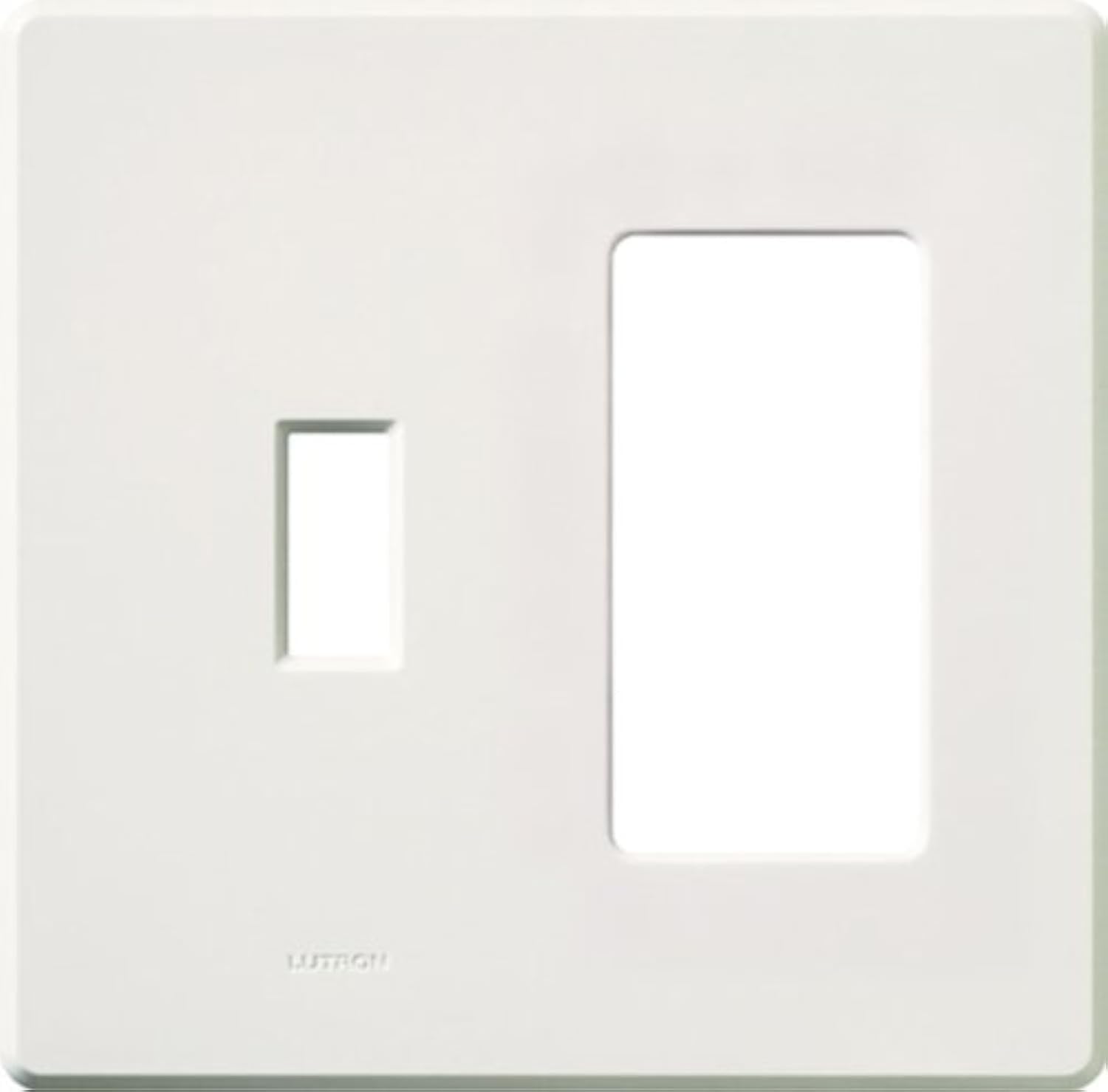

Image: Lutron FG-2-TD-WH Fassada 2-Gang Combination Wall Plate in white gloss finish.
ముఖ్య లక్షణాలు:
- Features one traditional and one designer opening for versatile use.
- Compatible with controls and accessories with traditional openings (e.g., toggle switches) and designer openings (e.g., paddle switches, dimmers).
- Superior Snap-On design ensures secure and snug attachment, regardless of wall condition.
- Reversible design allows rotation for small/large or large/small opening applications.
- Screwless, seamless design with no visible hardware for a clean, modern look.
2. భద్రతా సమాచారం
హెచ్చరిక: విద్యుత్ షాక్ ప్రమాదం. Improper installation can result in serious injury or death. Always turn off power at the circuit breaker or fuse box before installing or servicing any electrical device. If you are unsure about any part of these instructions, consult a qualified electrician.
- ఇన్స్టాలేషన్ ప్రారంభించే ముందు సర్క్యూట్ బ్రేకర్ వద్ద పవర్ ఆఫ్లో ఉందని నిర్ధారించుకోండి.
- Use appropriate tools and follow all local and national electrical codes.
- Do not install if the wall box is damaged or has exposed wires.
3. ప్యాకేజీ విషయాలు
- 1x Lutron FG-2-TD-WH Fassada 2-Gang Combination Wall Plate (White)
4. అవసరమైన సాధనాలు
- Screwdriver (Phillips and/or Flathead, depending on existing screws)
- Pliers (optional, for wire manipulation)
- వాల్యూమ్tage Tester (recommended for safety)
5. ఇన్స్టాలేషన్ సూచనలు
This section provides general guidance for installing the wall plate. For detailed wiring instructions for specific switches or dimmers, please refer to the instructions provided with those devices.
General Wall Plate Installation:
- పవర్ ఆఫ్ చేయండి: Locate the circuit breaker controlling the switch or outlet you are working on and turn it OFF. Verify power is off using a voltagఇ టెస్టర్.
- Remove Old Wall Plate: Carefully unscrew and remove the existing wall plate and any sub-plate.
- Install Electrical Device (if applicable): If you are installing a new switch or dimmer, follow its specific wiring instructions. Ensure the device is securely mounted to the wall box.
- Attach Sub-Plate (if applicable): Some devices may come with a sub-plate that attaches directly to the electrical device. Install this first if required.
- Install New Wall Plate: Align the Lutron Fassada wall plate over the installed electrical device(s) and sub-plate (if present). Gently press the wall plate firmly until it snaps securely into place. The screwless design means no visible hardware.
- శక్తిని పునరుద్ధరించండి: Once the wall plate is securely installed, turn the power back ON at the circuit breaker.
ఇన్స్టాలేషన్ వీడియో రిఫరెన్స్:
The following video demonstrates the snap-on installation of a Lutron wall plate. While it may feature a different specific device, the wall plate installation method is similar.
Video: Quick Wallplate Installation. This video demonstrates the simple snap-on installation process for a Lutron wall plate, highlighting how it securely attaches over an electrical device.
6. ఆపరేషన్
The Lutron Fassada wall plate is a passive component designed to cover and protect electrical devices. Its operation is directly tied to the functionality of the switches, dimmers, or outlets it houses. Ensure that the devices installed within the wall plate openings are functioning correctly after installation.
7. నిర్వహణ
To maintain the appearance and functionality of your Lutron Fassada wall plate:
- శుభ్రపరచడం: ఉపరితలాన్ని మృదువైన, డితో తుడవండిamp వస్త్రం. రాపిడి క్లీనర్లు, ద్రావకాలు లేదా కఠినమైన రసాయనాలను నివారించండి, ఎందుకంటే ఇవి ముగింపును దెబ్బతీస్తాయి.
- తనిఖీ: Periodically check the wall plate for any signs of damage or loose fit. If the plate becomes loose, gently press it back into place.
8. ట్రబుల్షూటింగ్
- Wall Plate Does Not Snap On Securely:
- Ensure the electrical device(s) are properly seated and flush with the wall box.
- Check for any obstructions or excess wiring within the wall box that might prevent the plate from sitting flush.
- Verify that the correct sub-plate (if any) is installed and aligned.
- Electrical Device Not Functioning:
- సర్క్యూట్ బ్రేకర్ వద్ద పవర్ ఆఫ్ చేయండి.
- Remove the wall plate and check the wiring connections of the electrical device. Refer to the device's specific installation instructions.
- Ensure the circuit breaker is ON.
9. స్పెసిఫికేషన్లు
| గుణం | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | FG-2-TD-WH |
| బ్రాండ్ | లుట్రాన్ |
| ఆకృతీకరణ | 2-Gang (1 Traditional, 1 Designer) |
| రంగు | తెలుపు |
| ముగింపు రకం | గ్లోస్ ఫినిష్ |
| మెటీరియల్ | Either Plastic or Metal |
| సంస్థాపన రకం | Snap-On |
| ఉత్పత్తి కొలతలు | 4.67 x 5.9 x 4.6 అంగుళాలు |
| వస్తువు బరువు | 2.4 ఔన్సులు |
| UPC | 027557554404 |
10. వారంటీ & సపోర్ట్
Lutron products are designed for quality and reliability. For specific warranty information, please refer to the documentation included with your product or visit the official Lutron webసైట్.
కస్టమర్ మద్దతు:
Lutron offers 24/7 support to assist with any questions or issues you may encounter.
- ఫోన్ మద్దతు: 844-588-7661
- Webసైట్: lutron.com
Support Video Reference:
ఒక ఓవర్ కోసం ఈ వీడియో చూడండిview of Lutron's dedicated customer support.
Video: Lutron 24/7 Support. This video highlights the availability of Lutron's customer support team for assistance with their products.
