Manfrotto 220B Still Life Table

1. పరిచయం

Thank you for choosing the Manfrotto 220B Still Life Table. This professional-grade table is designed for product photography, providing a seamless background and versatile lighting options. Its white, translucent Perspex cover allows for both front and back lighting, ensuring optimal results for various subjects.

Please read this manual carefully before assembly and operation to ensure safe and correct use of the product. Keep this manual for future reference.

2. భద్రతా సమాచారం

Observe the following safety precautions to prevent damage to the product or injury to yourself:

• బరువు సామర్థ్యం: Do not exceed the maximum load capacity of 33.07 lbs (15 kg). Overloading can cause instability and damage.
• స్థిరమైన ఉపరితలం: టేబుల్ వంగిపోకుండా ఉండటానికి ఎల్లప్పుడూ చదునైన, స్థిరమైన మరియు సమతల ఉపరితలంపై ఉంచండి.
• అసెంబ్లీ: Ensure all components are securely fastened before use. Refer to the setup instructions.
• పట్టికను తరలించడం: If equipped with wheels, ensure they are locked when the table is in use. Unlock them only when moving the table.
• శుభ్రపరచడం: Use only recommended cleaning agents for the Perspex surface to avoid damage.
• పిల్లలు మరియు పెంపుడు జంతువులు: Keep children and pets away from the table during assembly and operation to prevent accidents.

3. ప్యాకేజీ విషయాలు

అన్‌ప్యాక్ చేసిన తర్వాత అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:

• Manfrotto 220B Still Life Table Frame (Black)
• White Translucent Perspex Panel (200cm x 122cm)
• Assembly Hardware (knobs, clampలు, మొదలైనవి)
• సూచనల మాన్యువల్ (ఈ పత్రం)

If any parts are missing or damaged, please contact Manfrotto customer support.

4. సెటప్ సూచనలు

Follow these steps to assemble your Manfrotto 220B Still Life Table:

1. భాగాలను అన్‌ప్యాక్ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తీసివేసి, వాటిని శుభ్రమైన, చదునైన ఉపరితలంపై వేయండి.
2. ఫ్రేమ్‌ని సమీకరించండి: Connect the frame sections according to the diagram. Ensure all locking mechanisms and knobs are tightened securely. The frame provides the base structure for the table.
3. Attach Perspex Panel: Gently place the white translucent Perspex panel onto the assembled frame. The panel should rest securely on the support bars.
4. సురక్షిత ప్యానెల్: అందించిన cl ఉపయోగించండిamps or fasteners to secure the Perspex panel to the frame. Ensure the panel is taut and evenly supported.
5. Adjust Back Section: The back section of the Perspex panel is designed to tilt. Adjust it to your desired angle for the shooting surface. Secure the tilt mechanism firmly once the desired position is achieved.
6. తుది తనిఖీ: Before placing any items on the table, verify that all connections are tight and the table is stable.

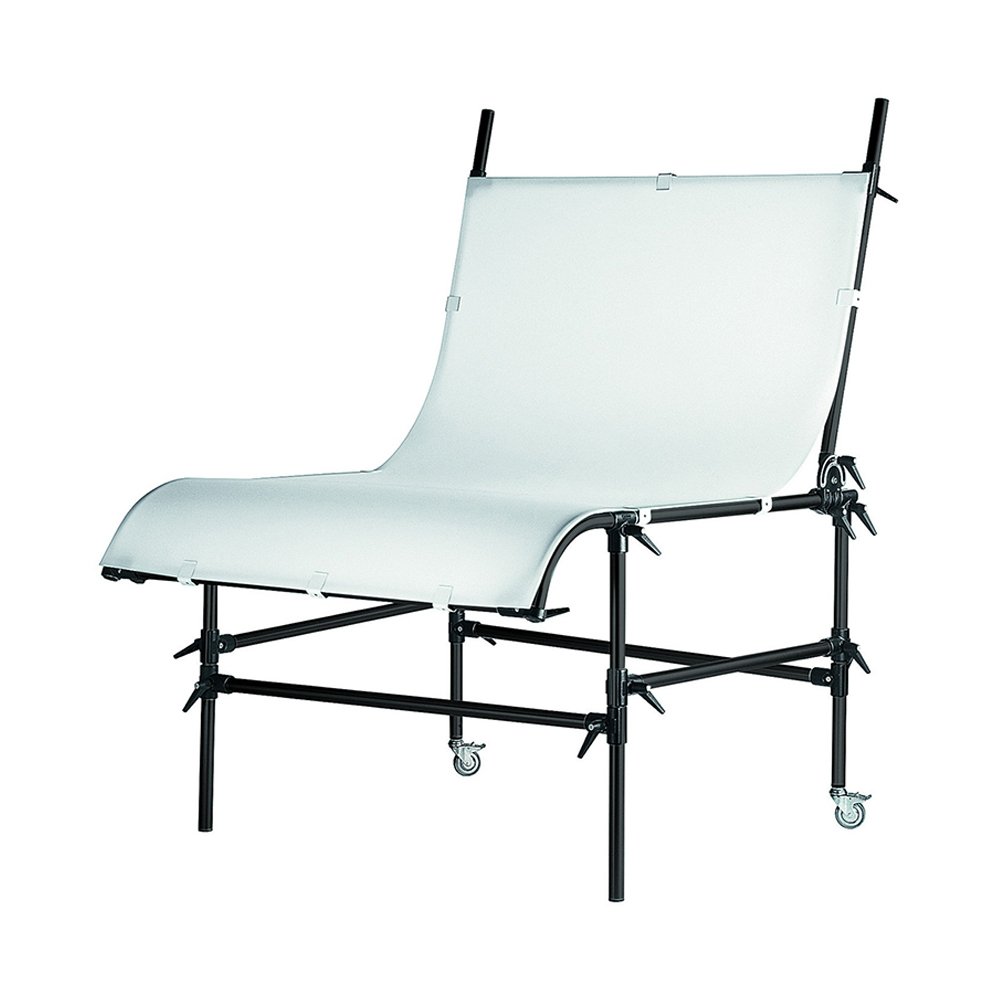

Figure 4.1: Assembled Manfrotto 220B Still Life Table. Note the seamless curve of the Perspex panel.

5. ఆపరేటింగ్ సూచనలు

The Manfrotto 220B Still Life Table is designed for versatile product photography. Here are guidelines for its use:

• ప్లేస్‌మెంట్: Position the table in your studio or desired shooting location. Ensure adequate space around the table for lighting equipment and camera setup.
• Subject Placement: Carefully place your product on the flat surface of the Perspex panel. Distribute weight evenly and avoid placing heavy objects near the edges.
• Adjusting the Back: The back section of the Perspex panel can be adjusted to create a seamless background curve. Loosen the adjustment knobs, set the desired angle, and re-tighten the knobs firmly. The maximum height with the back in a vertical position is 193cm (75.98 inches).
• లైటింగ్:
  • Front Lighting: Position your light sources in front of the table, directing light onto the product and the Perspex panel.
  • వెనుక లైటింగ్: Utilize the translucent nature of the Perspex panel by placing light sources behind or underneath the table, shining through the panel. This creates a bright, even background and can help eliminate shadows.
  • Combined Lighting: Experiment with a combination of front and back lighting to achieve desired effects, such as high-key product shots.
• Cleaning During Use: If the Perspex surface gets smudged or dusty during a shoot, gently wipe it with a soft, lint-free cloth.

Figure 5.1: Manfrotto 220B Still Life Table in use, demonstrating the smooth transition from horizontal to vertical surface.

6. నిర్వహణ

Proper maintenance will extend the life and performance of your still life table:

• Cleaning the Perspex Panel:
  • For light dust, use a soft, dry, lint-free microfiber cloth.
  • For smudges or fingerprints, dampen a soft cloth with water and a mild, non-abrasive soap solution. Wipe gently, then dry with a clean, dry cloth.
  • నివారించండి: Harsh chemicals, ammonia-based cleaners (like window cleaner), abrasive pads, or solvents, as these can scratch or damage the Perspex.
• ఫ్రేమ్ క్లీనింగ్: ప్రకటనతో మెటల్ ఫ్రేమ్‌ను తుడవండిamp cloth and mild detergent if necessary. Dry thoroughly to prevent rust.
• కనెక్షన్‌లను తనిఖీ చేయడం: Periodically check all screws, knobs, and clamps to ensure they are tight. Re-tighten as needed to maintain stability.
• నిల్వ: When not in use, store the table in a clean, dry environment. If disassembling for storage, keep all components organized and protected from dust and damage.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Manfrotto 220B Still Life Table, consider the following:

• పట్టిక అస్థిరత:
  • Ensure all frame connections and panel clampలు సురక్షితంగా బిగించి ఉంటాయి.
  • Verify the table is placed on a completely flat and level surface.
  • Check that the load on the table does not exceed the maximum capacity of 33.07 lbs (15 kg).
• Scratches on Perspex:
  • Minor scratches can sometimes be buffed out with specialized acrylic polish, but prevention is key.
  • Always use soft cloths for cleaning and avoid abrasive materials.
• Uneven Background:
  • Ensure the Perspex panel is evenly secured and taut across the frame.
  • Adjust the tilt of the back section to create a smooth, continuous curve.
  • Check your lighting setup; uneven lighting can create the illusion of an uneven background.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

Manfrotto products are manufactured to high quality standards and are warranted against defects in material and workmanship. Specific warranty terms may vary by region and product.

For detailed warranty information, product support, or to purchase replacement parts, please visit the official Manfrotto webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి:

• Manfrotto Official Webసైట్: www.manfrotto.com
• కస్టమర్ మద్దతు: అధికారిక పేజీలో "మద్దతు" లేదా "మమ్మల్ని సంప్రదించండి" విభాగాన్ని చూడండి. webప్రాంతీయ సంప్రదింపు సమాచారం కోసం సైట్.

Please have your product model number (220B) and purchase date available when contacting support.
