వీలెన్ ఇంజనీరింగ్ L53 సూపర్-LED మినీ బీకాన్ యూజర్ మాన్యువల్

ఉత్పత్తి ముగిసిందిview

The Whelen L53 Super-LED Mini Beacon, Model L53AP, is a compact and durable warning light designed for various applications. This beacon features advanced Super-LED technology for bright and efficient illumination.

The L53AP is classified as a SAE Class 3 warning light. Class 3 lights are typically used in environments with low ambient sunlight, such as inside buildings or warehouses. A common application for this type of light is on forklifts to enhance visibility and safety.

ముఖ్య లక్షణాలు ఉన్నాయి:

• Whelen L53AP Amber LED Beacon Permanent Mount
• Designed for optimal visibility in specific indoor or low-light conditions.
• Robust construction for long-lasting performance.

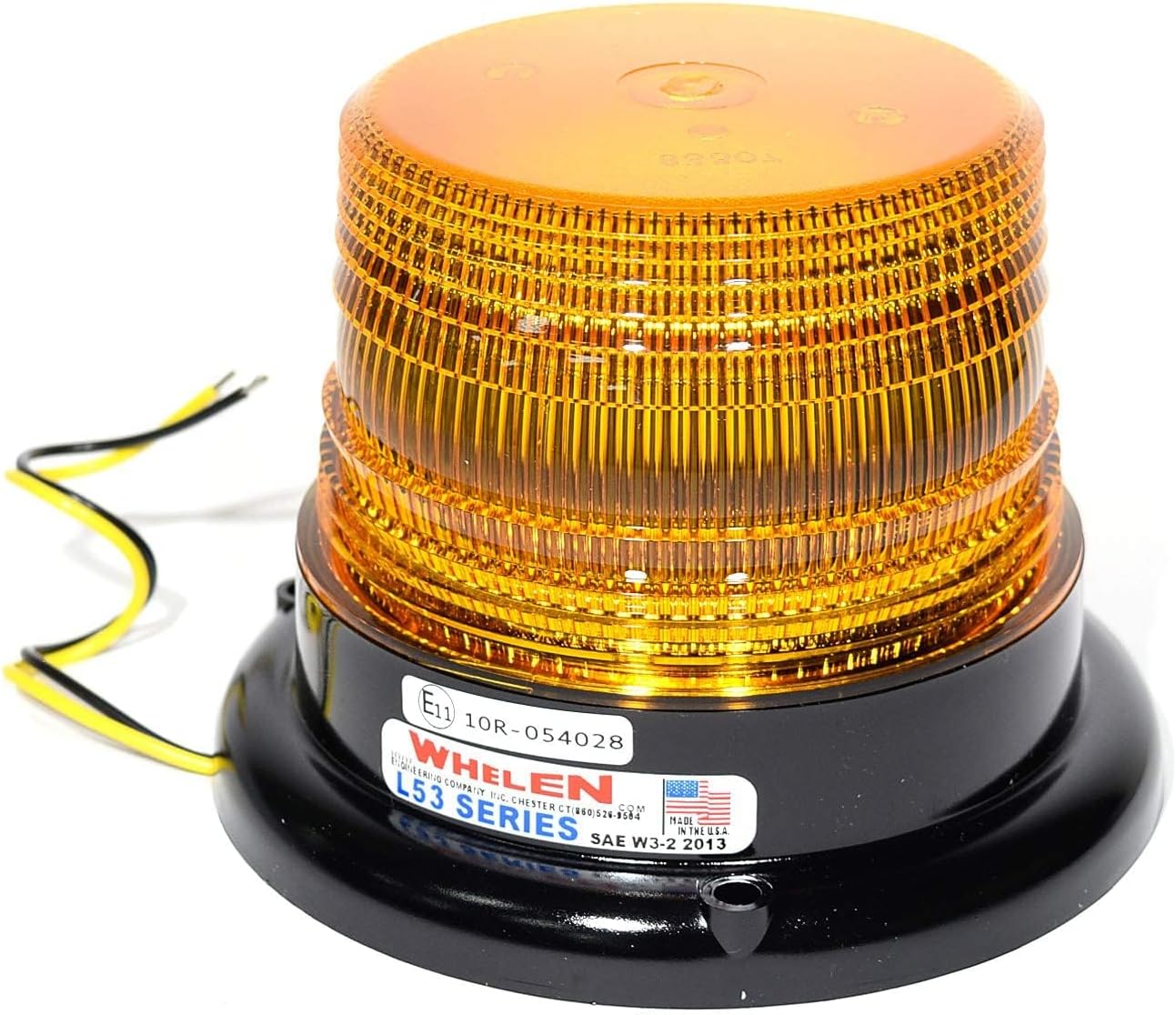

మూర్తి 1: ముందు view of the Whelen L53 Super-LED Mini Beacon.

భద్రతా సమాచారం

Always ensure proper installation and adherence to all local and national electrical codes. Disconnect power before installing or servicing the beacon. Do not look directly into the light when it is active, as it may cause eye strain or temporary vision impairment.

This Class 3 beacon is intended for applications where high intensity is not required, such as indoor environments or areas with minimal direct sunlight. Using this light in bright outdoor conditions may reduce its effectiveness as a warning signal.

సంస్థాపన

The L53AP beacon is available in both permanent mount and magnetic mount versions. This manual primarily covers the permanent mount version as indicated by the model number L53AP, but also provides information on the magnetic mount variant for context.

Permanent Mount Installation

For permanent mounting, select a flat, stable surface on your vehicle or equipment. Ensure the mounting location allows for clear visibility of the beacon from all necessary angles. The unit typically requires drilling holes for secure attachment.

1. Mark the drilling points using the beacon's base as a template.
2. Drill appropriate pilot holes for the mounting screws.
3. Secure the beacon to the surface using the provided hardware (screws, washers, nuts).
4. Connect the power wires: typically, the black wire is negative (-) and the yellow wire is positive (+). Ensure connections are secure and insulated.

Figure 2: Whelen L53 Beacon with included mounting hardware.

Magnetic Mount (Variant Information)

While the L53AP is a permanent mount model, a magnetic mount version of the L53 series is also available. This version features a strong magnetic base for temporary attachment to metallic surfaces. It typically includes a power cord with a cigarette lighter plug for easy connection to a vehicle's 12V power outlet.

మూర్తి 3: అండర్ సైడ్ view of the Whelen L53 Beacon, showing the magnetic base (if applicable) and wiring.

The magnetic mount version usually has an integrated on/off switch on the power plug. Note that magnetic mount versions typically have a fixed light pattern and do not offer the 15 different flash patterns available with the permanent mount version.

ఆపరేషన్

Once properly installed and connected to a 12V DC power source, the Whelen L53 beacon will activate. For permanent mount versions, the flash pattern can be selected from 15 different options, providing versatility for various warning needs. Refer to the specific wiring diagram for pattern selection (not provided in this general manual).

For magnetic mount versions, operation is typically controlled by the on/off switch on the power plug, and the flash pattern is fixed.

The amber LED light provides a clear visual warning, suitable for applications such as:

• Forklifts and other industrial vehicles in warehouses.
• Utility vehicles operating in controlled environments.
• Ground support equipment at airports.

నిర్వహణ

The Whelen L53 Super-LED Mini Beacon is designed for low maintenance. To ensure optimal performance and longevity:

• శుభ్రపరచడం: Periodically clean the lens with a soft, damp ధూళి మరియు చెత్తను తొలగించడానికి వస్త్రం. లెన్స్‌ను గీతలు పడే రాపిడి క్లీనర్‌లను నివారించండి.
• కనెక్షన్లు: Regularly inspect electrical connections for corrosion or looseness. Ensure all wiring is secure and properly insulated.
• మౌంటు: Check the mounting hardware periodically to ensure the beacon remains securely attached.

ట్రబుల్షూటింగ్

If the beacon is not functioning as expected, consider the following:

• కాంతి లేదు:
  • Verify the power source is active (12 Volts DC).
  • Check all electrical connections for proper contact and ensure no wires are loose or damaged.
  • Inspect the fuse in the power circuit (if applicable).
• అడపాదడపా ఆపరేషన్:
  • Check for loose wiring or corroded terminals.
  • Ensure the power source is providing consistent voltage.
• మసక వెలుతురు:
  • Clean the lens to remove any accumulated dirt or film.
  • ఇన్‌పుట్ వాల్యూమ్‌ను ధృవీకరించండిtage is within the specified range (12V DC).

If issues persist after checking these points, contact Whelen Engineering customer support or a qualified technician.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information and technical support, please contact Whelen Engineering directly. Details regarding specific warranty periods and coverage can typically be found on the manufacturer's official webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించడం ద్వారా.

వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచుకోవాలని సిఫార్సు చేయబడింది.
