1. పరిచయం మరియు ఓవర్view

Thank you for choosing the OMNITRONIC C-50A active 2-way speaker pair. This manual provides essential information for the safe and efficient operation of your new speakers. The C-50A is a powerful active speaker system designed for fixed installations, featuring a 5-inch woofer and a 1-inch dome tweeter, delivering clear and robust sound. It includes a 2-way tone control and volume adjustment for optimal sound customization.

చిత్రం 1.1: ముందు మరియు వైపు view of the OMNITRONIC C-50A active speaker.

2. భద్రతా సూచనలు

పరికరాన్ని ఆపరేట్ చేసే ముందు దయచేసి ఈ భద్రతా సూచనలను జాగ్రత్తగా చదవండి. భవిష్యత్తు సూచన కోసం ఈ మాన్యువల్‌ని ఉంచండి.

• విద్యుత్ సరఫరా: విద్యుత్ సరఫరా వాల్యూమ్ నిర్ధారించుకోండిtage matches the rating on the device. Always connect to a grounded outlet.
• తేమ మరియు వేడి: Do not expose the speakers to rain, moisture, or excessive heat sources. Operate only in dry environments.
• వెంటిలేషన్: స్పీకర్ల చుట్టూ తగినంత వెంటిలేషన్ ఉండేలా చూసుకోండి. వెంటిలేషన్ ఓపెనింగ్‌లను బ్లాక్ చేయవద్దు.
• నిర్వహణ: Handle the speakers with care. Avoid dropping or subjecting them to strong impacts.
• శుభ్రపరచడం: Disconnect from power before cleaning. Use a dry, soft cloth. Do not use liquid cleaners.
• సర్వీసింగ్: Refer all servicing to qualified service personnel. Do not attempt to repair the device yourself.
• ప్లేస్‌మెంట్: Place speakers on a stable surface or mount securely using the provided brackets.

3. ప్యాకేజీ విషయాలు

Upon unpacking, please verify that all items listed below are present and in good condition.

• 2 x OMNITRONIC C-50A Active Speakers
• 2 x మౌంటు బ్రాకెట్లు
• 1 x Power Cable (for each speaker)
• 1 x యూజర్ మాన్యువల్ (ఈ పత్రం)

Figure 3.1: OMNITRONIC C-50A speaker shown with its included mounting bracket.

4. సెటప్

4.1 భౌతిక సంస్థాపన

The OMNITRONIC C-50A speakers are designed for fixed installation and come with versatile mounting brackets.

1. స్థానాన్ని ఎంచుకోండి: Select a suitable location for installation, ensuring the surface or wall can support the weight of the speaker. Consider optimal sound dispersion.
2. బ్రాకెట్‌ను అటాచ్ చేయండి: Secure the mounting bracket to the desired surface using appropriate screws and anchors (not included). Ensure it is firmly attached.
3. మౌంట్ స్పీకర్: Attach the speaker to the bracket. The bracket allows for angle adjustment to direct sound as needed. Tighten all fasteners to secure the speaker in place.

చిత్రం 4.1: కోణీయ view of the speaker, highlighting its design suitable for mounting.

4.2 కనెక్షన్లు

The C-50A features balanced XLR input and output connections for professional audio integration.

1. ఆడియో ఇన్‌పుట్: Connect your audio source (e.g., mixer, audio interface) to the ఇన్పుట్ XLR jack on the rear panel of the active speaker.
2. Audio Output (Daisy Chain): If connecting multiple active speakers, use the అవుట్‌పుట్ XLR jack to send the audio signal to the next speaker.
3. పవర్ కనెక్షన్: Connect the provided power cable to the AC inlet on the rear panel and then to a suitable grounded power outlet.

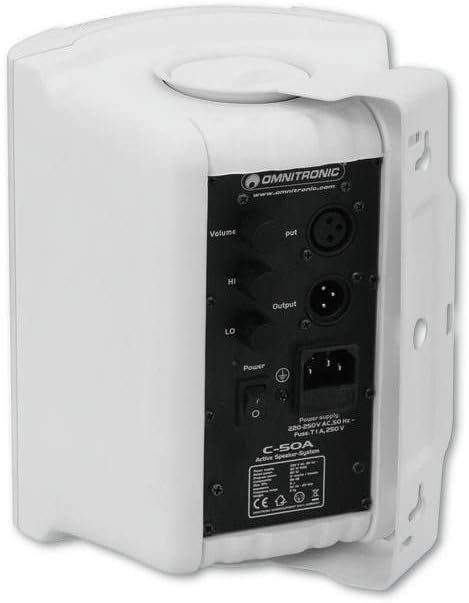

Figure 4.2: Rear panel connections including Volume, HI, LO, Input, Output, and Power switch.

5. స్పీకర్లను ఆపరేట్ చేయడం

5.1 పవర్ చేయడం ఆన్/ఆఫ్

After all connections are made, you can power on your speakers.

1. నిర్ధారించండి వాల్యూమ్ knob is set to its minimum position before powering on.
2. ఫ్లిప్ ది శక్తి switch on the rear panel to the 'ON' position. The power indicator LED will illuminate.
3. To power off, first reduce the volume, then flip the శక్తి 'ఆఫ్' కి మారండి.

5.2 వాల్యూమ్ మరియు టోన్ సర్దుబాటు

The C-50A speakers feature controls for overall volume and a 2-band equalizer for tone shaping.

• వాల్యూమ్: తిప్పండి వాల్యూమ్ knob clockwise to increase the overall output level. Adjust to a comfortable listening level.
• HI (High Frequency): ఉపయోగించండి HI knob to boost or cut the high frequencies. Turn clockwise for more treble, counter-clockwise for less.
• LO (Low Frequency): ఉపయోగించండి LO knob to boost or cut the low frequencies. Turn clockwise for more bass, counter-clockwise for less.

మూర్తి 5.1: వివరంగా view of the Volume, HI, and LO control knobs on the rear panel.

6. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your OMNITRONIC C-50A speakers.

• శుభ్రపరచడం: Regularly wipe the exterior of the speakers with a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents.
• దుమ్ము: Use a soft brush or vacuum cleaner with a brush attachment to gently remove dust from the speaker grilles and ventilation openings.
• నిల్వ: If storing the speakers for an extended period, disconnect them from power, clean them, and store them in a cool, dry place, ideally in their original packaging.
• తనిఖీ: Periodically check all cables and connections for any signs of wear or damage. Replace damaged cables immediately.

7. ట్రబుల్షూటింగ్

If you encounter issues with your OMNITRONIC C-50A speakers, refer to the table below for common problems and their solutions.

8. సాంకేతిక లక్షణాలు

Detailed specifications for the OMNITRONIC C-50A active speaker.

9. వారంటీ మరియు మద్దతు

OMNITRONIC products are manufactured with high-quality standards and come with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official OMNITRONIC webసైట్.

For technical support, spare parts, or service inquiries, please contact your local OMNITRONIC dealer or visit the official OMNITRONIC store online:OMNITRONIC Store on Amazon.de
