స్పైకర్ P20-5010 బ్రాడ్‌కాస్ట్ స్ప్రెడర్ యూజర్ మాన్యువల్

1. భద్రతా సమాచారం

Read and understand all safety instructions before operating the Spyker P20-5010 Broadcast Spreader. Failure to follow these instructions may result in injury or property damage.

• Always wear appropriate personal protective equipment, such as gloves and eye protection, when handling materials and operating the spreader.
• Ensure the spreader is on a level surface before filling or making adjustments.
• పిల్లలు మరియు పెంపుడు జంతువులను ఆపరేటింగ్ ప్రాంతం నుండి దూరంగా ఉంచండి.
• Do not overload the hopper beyond its 50-pound capacity.
• Clean the spreader thoroughly after each use to prevent material buildup and corrosion.
• Store the spreader in a dry, secure location, out of reach of children.

2. ప్యాకేజీ విషయాలు

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Spyker customer support.

• Hopper Assembly (50 lb. capacity)
• Frame Assembly with Wheels
• అసెంబ్లీని నిర్వహించండి
• Control Rod/Linkage
• Hardware Pack (bolts, nuts, washers, pins)
• స్క్రీన్ కవర్

3. అసెంబ్లీ సూచనలు

Follow these steps to assemble your Spyker P20-5010 Broadcast Spreader.

1. Attach the Handle Assembly: Secure the handle to the main frame using the provided bolts and nuts. Ensure all connections are tight.
2. Connect the Control Linkage: Attach the solid steel linkage from the handle control to the hopper's on-off assembly. This linkage controls the material flow.
3. చక్రాలను ఇన్స్టాల్ చేయండి: The pneumatic tires are typically pre-installed on the frame. Verify they are securely attached and properly inflated.
4. Place Hopper: Position the polypropylene hopper onto the frame. Ensure it sits securely and aligns with the spreading mechanism.
5. Install Screen Cover: Place the screen cover over the top of the hopper. This helps prevent large clumps from entering the spreading mechanism.

మూర్తి 3.1: కోణీయ ముందు భాగం view of the assembled Spyker P20-5010 Spreader with the screen cover in place. This image shows the hopper, handle, and pneumatic wheels.

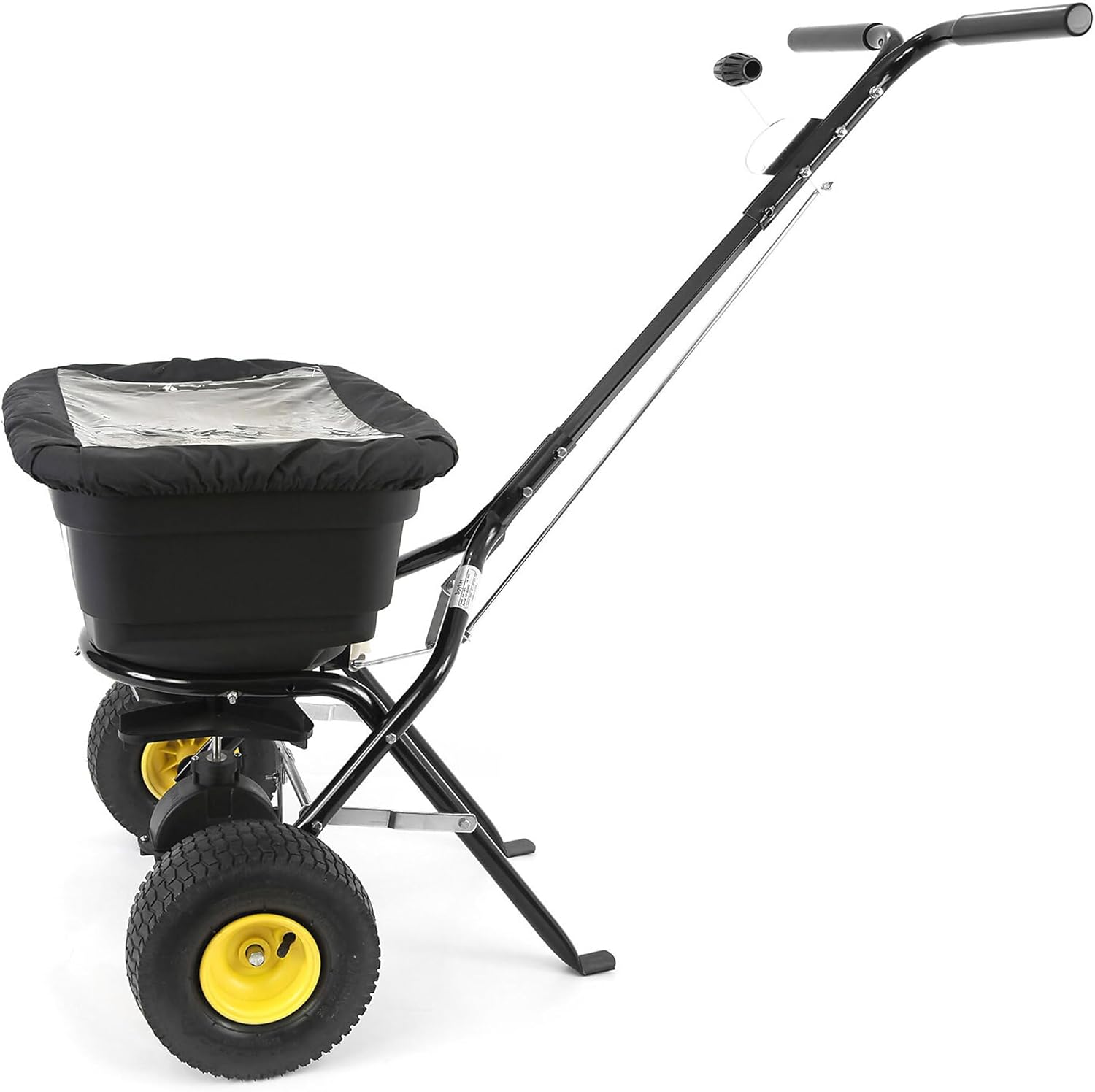

మూర్తి 3.2: వైపు view of the Spyker P20-5010 Spreader, illustrating the extended handle and the overall structure of the unit.

4. ఆపరేటింగ్ సూచనలు

Proper operation ensures efficient and uniform material application.

4.1 Filling the Hopper

• Ensure the flow control lever is in the ఆఫ్ పూరించడానికి ముందు స్థానం.
• Place the spreader on a level surface.
• Carefully pour the desired material (fertilizer, seed, ice melt) into the hopper. Do not exceed the 50-pound capacity.
• Ensure the screen cover is in place to prevent large debris from clogging the mechanism.

4.2 Adjusting Spread Settings

The Spyker Dial offers 90 settings for precise calibration. Refer to the material manufacturer's recommendations or a Spyker calibration chart for the appropriate setting for your specific material.

• Locate the Spyker Dial on the handle or near the hopper.
• Adjust the dial to the recommended setting for your material.
• Test the spread pattern and adjust as necessary to achieve desired coverage.

4.3 Spreading Material

• Begin walking at a consistent pace before engaging the flow control lever to the ON స్థానం.
• Maintain a steady walking speed for uniform application.
• When turning or stopping, move the flow control lever to the ఆఫ్ position to prevent over-application in one area. The positive on/off linkage ensures immediate material cutoff.
• Overlap each pass slightly to ensure complete coverage without gaps.

మూర్తి 4.1: A person operating the Spyker P20-5010 Spreader on a lawn, demonstrating the spreading action of material from the hopper.

5. నిర్వహణ

Regular maintenance extends the life and performance of your spreader.

• శుభ్రపరచడం: After each use, empty any remaining material from the hopper. Rinse the hopper and spreading mechanism with water. Allow all parts to dry completely before storage.
• సరళత: Periodically apply a light lubricant (e.g., pump oil) to moving parts, such as the axle, gears, and the gate control mechanism. This ensures smooth operation and prevents corrosion. The fully enclosed gearbox requires minimal maintenance but should be checked for any signs of wear.
• నిల్వ: Store the spreader in a dry, covered area to protect it from weather elements.
• టైర్ ఒత్తిడి: Check the pressure of the pneumatic tires periodically and inflate to the recommended PSI as indicated on the tire sidewall.

6. ట్రబుల్షూటింగ్

Address common issues that may arise during operation.

• Uneven Spread Pattern:
  • Ensure the spreader is clean and free of material buildup around the spinner and gate.
  • Verify the calibration setting is appropriate for the material being used.
  • Maintain a consistent walking speed.
  • Check for any obstructions or damage to the spinner or internal components.
• Material Not Flowing:
  • Confirm the flow control lever is in the ON స్థానం.
  • Check for clogs in the hopper opening or spreading mechanism.
  • Ensure the material is dry and free of clumps. Break up any large clumps.
• Difficulty Pushing Spreader:
  • టైర్ ఒత్తిడిని తనిఖీ చేయండి.
  • Ensure the wheels and axle are free of debris and lubricated.
  • Avoid overloading the hopper.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

For warranty information, please refer to the warranty card included with your product or visit the official Spyker website. For technical support, replacement parts, or further assistance, contact Spyker customer service directly.

తయారీదారు: స్పైకర్
