1. పరిచయం
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Red Lion RL-WC50TA Cast Iron Sewage Pump. Please read all instructions carefully before use to ensure proper function and longevity of the product.
The Red Lion RL-WC50TA is a robust 1/2 HP submersible pump designed for high-volume transfer of sewage or effluent. It is capable of handling semi-solids up to 2 inches in diameter, making it suitable for applications such as basement washrooms, sewage systems, or holding tanks. This pump is equipped with a piggyback tethered float switch for automatic operation.
Important: This pump is not recommended for pond use.
2. భద్రతా సమాచారం
Always prioritize safety during installation, operation, and maintenance. Failure to follow safety guidelines can result in serious injury or property damage.
- విద్యుత్ భద్రత: Ensure the power supply matches the pump's requirements (115 Volts). Always disconnect power before servicing the pump. Use a ground fault circuit interrupter (GFCI) for electrical connections.
- వ్యక్తిగత రక్షణ పరికరాలు (PPE): Wear appropriate PPE, including gloves and eye protection, when handling the pump or working with wastewater.
- సరైన సంస్థాపన: Install the pump according to local plumbing and electrical codes. Ensure the pump is placed on a solid, level surface in the basin.
- ప్రమాదకర పదార్థాలు: Be aware that sewage and effluent contain hazardous biological materials. Avoid direct contact and ensure proper disposal.
- పిల్లలు మరియు పెంపుడు జంతువులు: Keep children and pets away from the pump and installation area.
3. ఉత్పత్తి ముగిసిందిview
The Red Lion RL-WC50TA is engineered for durability and reliable performance in demanding wastewater applications.
Figure 1: Red Lion RL-WC50TA Cast Iron Sewage Pump with tethered float switch.
ముఖ్య లక్షణాలు:
- హెవీ డ్యూటీ నిర్మాణం: Cast iron housing and vortex-style impeller for durability and efficient solids handling.
- ఘనపదార్థాల నిర్వహణ: Capable of passing semi-solids up to 2 inches in diameter, preventing clogs.
- ఆటోమేటిక్ ఆపరేషన్: Piggyback tethered float switch for automatic activation and deactivation based on water levels.
- మోటార్ రక్షణ: 1/2 HP PSC dual bearing motor with thermal overload protection for extended life.
- CSA జాబితా చేయబడింది: Certified for safety in both USA and Canada.
అంతర్గత భాగాలు:
Figure 2: Diagram illustrating the internal components of the RL-WC50TA, including the 1/2 HP high-efficiency PSC motor with thermal overload protection, dual ball bearings, cast iron housing, stainless steel rotor shaft, cast iron vortex style impeller, and 2-inch FNPT threaded discharge.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Proper installation is critical for the performance and safety of your sewage pump. If you are unsure about any step, consult a qualified professional.
ప్రీ-ఇన్స్టాలేషన్ చెక్లిస్ట్:
- Verify power supply (115 Volts).
- బి ని నిర్ధారించుకోండిasin diameter is at least 18 inches.
- Gather necessary tools and plumbing fittings (2-inch FNPT discharge).
- Confirm the installation area is clear and accessible.
ఇన్స్టాలేషన్ దశలు:
- బి ని సిద్ధం చేయండిasin: సమ్ప్ బి ని నిర్ధారించుకోండిasin is clean and free of debris. The pump should rest on a solid, level surface at the bottom of the basin.
- Connect Discharge Piping: Attach a 2-inch FNPT discharge pipe to the pump outlet. Use appropriate sealant or tape to ensure a watertight connection.
- Install Check Valve: Install a check valve in the discharge line above the pump to prevent backflow of water into the basin.
- పంప్ స్థానం: Carefully lower the pump into the basin. Ensure the float switch can move freely without obstruction from the pump, basin walls, or piping.
- విద్యుత్ కనెక్షన్: Connect the pump's 10-ft. power cord to a dedicated 115 Volt, GFCI-protected outlet. The piggyback plug allows for automatic or manual operation.
Understanding Pump Types (Video):
For a better understanding of different pump types and their applications, including sewage and effluent pumps, please watch the following informational video:
Video 1: This video explains the differences between sump, sewage, effluent, and utility pumps, helping users understand the correct application for each type. Provided by Franklin Electric - Little Giant.
5. ఆపరేటింగ్ సూచనలు
The Red Lion RL-WC50TA operates automatically via its tethered float switch. It can also be manually tested.
ఆటోమేటిక్ ఆపరేషన్:
- The pump will activate when the water level reaches approximately 17.5 inches.
- The pump will continue to run until the water level falls to approximately 7.5 inches, at which point it will shut off.
- Ensure the float switch has a clear path of travel and is not restricted by any objects in the basin.
Figure 3: Illustration of the piggyback float switch and its activation/deactivation levels for automatic operation. The piggyback plug allows for switching to manual mode for testing or maintenance.
Manual Operation/Testing:
The piggyback plug design allows for manual testing of the pump. To operate manually, simply unplug the float switch plug from the wall outlet, then plug the pump's main power cord directly into the wall outlet. The pump will run continuously. To return to automatic operation, unplug the pump's main power cord and re-insert the float switch plug into the wall outlet.
Caution: Do not run the pump dry for extended periods in manual mode, as this can cause damage.
6. నిర్వహణ
క్రమం తప్పకుండా నిర్వహణ ఉత్తమ పనితీరును నిర్ధారిస్తుంది మరియు మీ పంపు యొక్క జీవితాన్ని పొడిగిస్తుంది.
- నెలవారీ తనిఖీ: సమ్ప్ బి ని తనిఖీ చేయండిasin for excessive debris. Remove any large objects that could obstruct the float switch or pump intake.
- Float Switch Check: Periodically test the float switch by manually raising it to ensure the pump activates and deactivates correctly.
- క్లీన్ ఇంపెల్లర్: If the pump's performance decreases, disconnect power and inspect the impeller for clogs or buildup. Clean as necessary.
- పవర్ కార్డ్ తనిఖీ: Examine the power cord for any signs of damage, fraying, or wear. Replace if damaged.
- శీతాకాలం (వర్తిస్తే): If the pump is in an area subject to freezing temperatures and will not be used, remove it from the basin, clean it thoroughly, and store it in a dry, frost-free location.
7. ట్రబుల్షూటింగ్
సాధారణ సమస్యలు మరియు వాటి సంభావ్య పరిష్కారాల కోసం క్రింది పట్టికను చూడండి.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| పంప్ నడవదు | విద్యుత్ లేదు; ట్రిప్డ్ బ్రేకర్; లోపభూయిష్ట ఫ్లోట్ స్విచ్; అడ్డుపడే ఇంపెల్లర్ | Check power supply and breaker; test float switch; clear impeller |
| పంప్ నిరంతరం నడుస్తుంది | Float switch stuck in ON position; faulty float switch | Check float switch for obstructions; replace float switch if faulty |
| Pump runs but no water is discharged | Clogged intake or discharge pipe; air lock; low water level | Clear clogs; prime pump if air locked; ensure sufficient water level |
| పంపు చక్రాలు చాలా తరచుగా | Basin too small; check valve not holding; float switch differential too narrow | Consult a professional for basin size; inspect/replace check valve; adjust float switch if possible (refer to specifications) |
8. స్పెసిఫికేషన్లు
Detailed technical specifications for the Red Lion RL-WC50TA Sewage Pump.
Figure 4: Dimensions diagram for the Red Lion RL-WC50TA Sewage Pump. Height (A): 15.8" (401 mm), Length (B): 9" (229 mm), Width (C): 6" (152 mm), Weight: 30 lbs (13.6 kg).
| స్పెసిఫికేషన్ | విలువ |
|---|---|
| మోడల్ | RL-WC50TA |
| పార్ట్ నంబర్ | 14942748 |
| బ్రాండ్ | ఎర్ర సింహం |
| హార్స్ పవర్ (HP) | 0.5 (1/2 HP) |
| వాల్యూమ్tage | 115 వోల్ట్లు |
| Ampఎరేజ్ | 9 Amps |
| వాట్tage | 950 వాట్స్ |
| గరిష్ట ప్రవాహం రేటు | 5600 GPH (నిమిషానికి 93 గ్యాలన్లు) |
| Maximum Lifting Height (Shutoff) | 22 అడుగులు |
| ఉత్సర్గ పరిమాణం | 2-అంగుళాల FNPT |
| ఘనపదార్థాల నిర్వహణ | Up to 2-inch diameter semi-solids |
| ఫ్లోట్ స్విచ్ రకం | Piggyback Tethered |
| Float Switch ON Level | 17.5 అంగుళాలు |
| Float Switch OFF Level | 7.5 అంగుళాలు |
| పవర్ కార్డ్ పొడవు | 10 అడుగులు |
| Minimum Basin వ్యాసం | 18 అంగుళాలు |
| మెటీరియల్ | తారాగణం ఇనుము |
| ఉత్పత్తి కొలతలు (L x W x H) | 9" x 6" x 15.8" |
| వస్తువు బరువు | 29.8 పౌండ్లు |

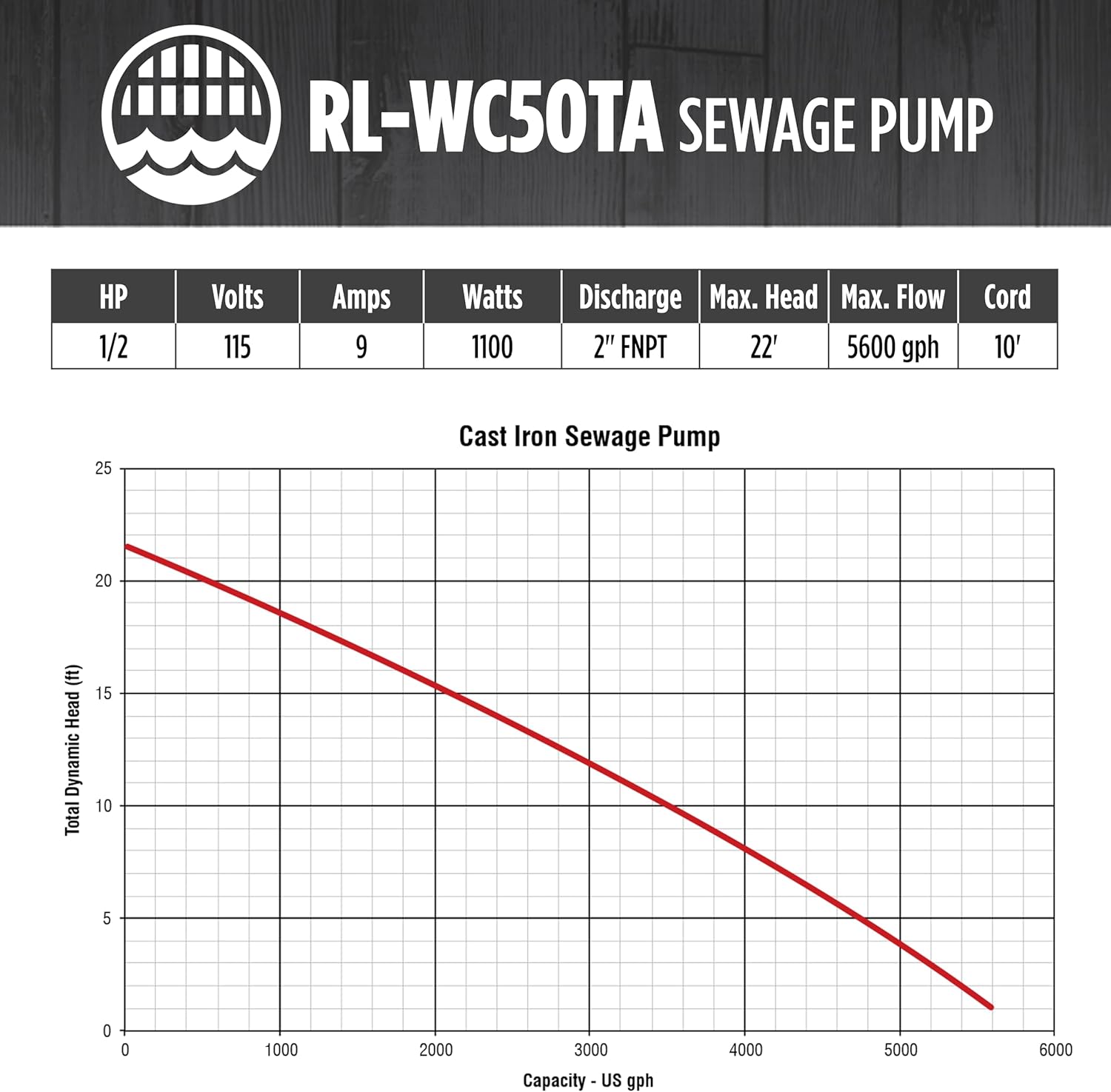

Figure 5: Performance curve and table for the Red Lion RL-WC50TA, showing Gallons Per Hour (GPH) at various lift heights and the shut-off point.
9. వారంటీ
The Red Lion RL-WC50TA Sewage Pump comes with a 2-సంవత్సరం తయారీదారు వారంటీ. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Red Lion customer support.
10. మద్దతు
For technical assistance, product inquiries, or warranty support, please contact Red Lion customer service. You can also visit the official Red Lion webఅదనపు వనరులు మరియు తరచుగా అడిగే ప్రశ్నల కోసం సైట్.
- ఎర్ర సింహం Webసైట్: Visit the Red Lion Store on Amazon
- సాంకేతిక మద్దతు: Refer to your product packaging or the Red Lion webఅత్యంత తాజా సంప్రదింపు సమాచారం కోసం సైట్.
