1. పరిచయం
Thank you for choosing the VITAL USB-C™ 4-Port Hub. This device is designed to expand the connectivity options of your USB-C enabled computer or device, allowing you to connect multiple USB peripherals simultaneously. It provides a convenient solution for connecting both older USB-A devices and newer USB-C devices, including those requiring power delivery.
2. ఉత్పత్తి ముగిసిందిview

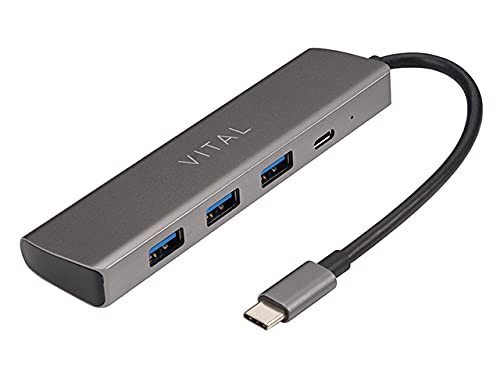

Figure 2.1: VITAL USB-C™ 4-Port Hub. This image displays the compact, rectangular hub in a dark grey finish, featuring three standard USB-A ports on one side and a single USB-C port on the end, alongside a small indicator light. An integrated USB-C cable extends from one end of the hub.
The VITAL USB-C™ 4-Port Hub is a compact and versatile accessory that expands the connectivity of your USB-C enabled devices. It features multiple ports to accommodate various peripherals, enhancing your productivity and device management.
3 ఫీచర్లు
- మొత్తం పోర్టులు: 4
- పోర్ట్ కాన్ఫిగరేషన్: Includes 3 USB 3.0 Type-A Female ports and 1 USB-C port with Power Delivery (PD) and data transfer capabilities.
- విస్తృత అనుకూలత: Compatible with Windows 10 (32/64 bit), Windows 8.1/8 (32/64 bit), Windows 7 (32/64 bit), and Mac OS X 10.8.2 or later versions.
- ప్లగ్ మరియు ప్లే: చాలా ఆపరేటింగ్ సిస్టమ్లకు డ్రైవర్లు అవసరం లేదు.
- కాంపాక్ట్ డిజైన్: పోర్టబుల్ మరియు తీసుకువెళ్ళడం సులభం.
4. సెటప్
- హబ్ని కనెక్ట్ చేయండి: Insert the integrated USB-C connector of the VITAL 4-Port Hub into an available USB-C port on your computer, laptop, or compatible device.
- డ్రైవర్ ఇన్స్టాలేషన్ (ఆటోమేటిక్): For most supported operating systems (Windows, macOS), the hub is plug-and-play. The necessary drivers will install automatically upon first connection. No manual driver installation is typically required.
- పెరిఫెరల్స్ కనెక్ట్ చేయండి: Once the hub is recognized, you can connect your USB-A devices (e.g., flash drives, keyboards, mice, external hard drives) to the three USB 3.0 Type-A ports.
- Connect USB-C Devices/Power: Use the USB-C port on the hub for additional USB-C peripherals or for power delivery to your host device (if your host device supports USB-C PD and you connect a compatible USB-C power adapter to the hub's USB-C port).
5. ఆపరేటింగ్ సూచనలు
The VITAL USB-C™ 4-Port Hub operates as a simple extension of your device's USB-C port. Once connected, it functions immediately.
- డేటా బదిలీ: Connect USB flash drives, external hard drives, or other data storage devices to any of the USB 3.0 Type-A ports or the USB-C data port for high-speed data transfer.
- పరిధీయ కనెక్టివిటీ: Use the ports to connect standard USB peripherals such as keyboards, mice, printers, and webకెమెరాలు.
- పవర్ డెలివరీ (PD): If your host device (laptop, tablet) supports charging via USB-C Power Delivery, you can connect your original USB-C power adapter to the hub's USB-C port. This allows the hub to pass through power to charge your host device while simultaneously using the other ports for data and peripherals. Note: The hub itself does not generate power; it passes through power from a connected power source.
- హాట్-స్వాపింగ్: Devices can be connected and disconnected from the hub while it is in use, without needing to restart your computer.
6. నిర్వహణ
- శుభ్రపరచడం: Use a soft, dry, lint-free cloth to clean the surface of the hub. Do not use liquid cleaners or aerosol sprays.
- నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో హబ్ను నిల్వ చేయండి.
- నిర్వహణ: Avoid dropping the hub or subjecting it to strong impacts. Do not attempt to disassemble the device.
7. ట్రబుల్షూటింగ్
- పరికరం గుర్తించబడలేదు:
- Ensure the hub's USB-C connector is fully inserted into your host device's USB-C port.
- Try connecting the hub to a different USB-C port on your host device.
- Restart your computer or host device.
- మీ ఆపరేటింగ్ సిస్టమ్ తాజాగా ఉందని నిర్ధారించుకోండి.
- Connected devices are not working:
- Verify that the connected peripheral is functioning correctly by plugging it directly into your host device (if possible).
- Ensure the peripheral is properly connected to the hub's port.
- Some high-power devices may require external power. If the hub's USB-C port is used for power delivery, ensure a sufficient power adapter is connected.
- తక్కువ డేటా బదిలీ వేగం:
- Ensure you are using USB 3.0 compatible devices and cables for optimal speeds.
- Verify that your host device's USB-C port supports USB 3.0 or higher speeds.
- Avoid connecting too many high-bandwidth devices simultaneously.
8. స్పెసిఫికేషన్లు
| ఉత్పత్తి పేరు | VITAL USB-C™ 4-Port Hub |
| మోడల్ సంఖ్య | USB-C™ 4-Port Hub (ASIN: B007FASPPA) |
| పోర్టుల సంఖ్య | 4 |
| పోర్ట్ రకాలు | 3 x USB 3.0 Type-A Female, 1 x USB-C (with PD + data) |
| Connector Type (Host) | USB టైప్ C |
| కేబుల్ రకం | USB |
| ఉత్పత్తి కొలతలు | 0.03 x 0.03 x 0.03 సెం.మీ |
| వస్తువు బరువు | 5 గ్రా |
| తయారీదారు | ప్రాణాధారమైన |
9. అనుకూలత
The VITAL USB-C™ 4-Port Hub is compatible with a wide range of operating systems:
- Windows 10 (32-బిట్ మరియు 64-బిట్)
- Windows 8.1 / 8 (32-bit and 64-bit)
- Windows 7 (32-బిట్ మరియు 64-బిట్)
- Mac OS X 10.8.2 or later versions
Ensure your device has a functional USB-C port for connection.
10. వారంటీ మరియు మద్దతు
For warranty information or technical support, please refer to the Vital product packaging or visit the official Vital website. You may also contact Vital customer service directly for assistance with product setup, troubleshooting, or general inquiries.
తాజా మద్దతు సమాచారం కోసం, దయచేసి సందర్శించండి: Vital Official Store on Amazon
