Intermatic ET91215CR 30A 120-277V SPDT 365-Day Astronomic Energy Control User Manual

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of the Intermatic ET91215CR 30A 120-277V SPDT 365-Day Astronomic Energy Control. This robust device is designed for heavy-duty industrial and commercial applications, offering precise control over electrical circuits with its astronomic time-keeping capabilities and durable Type 3R steel enclosure.

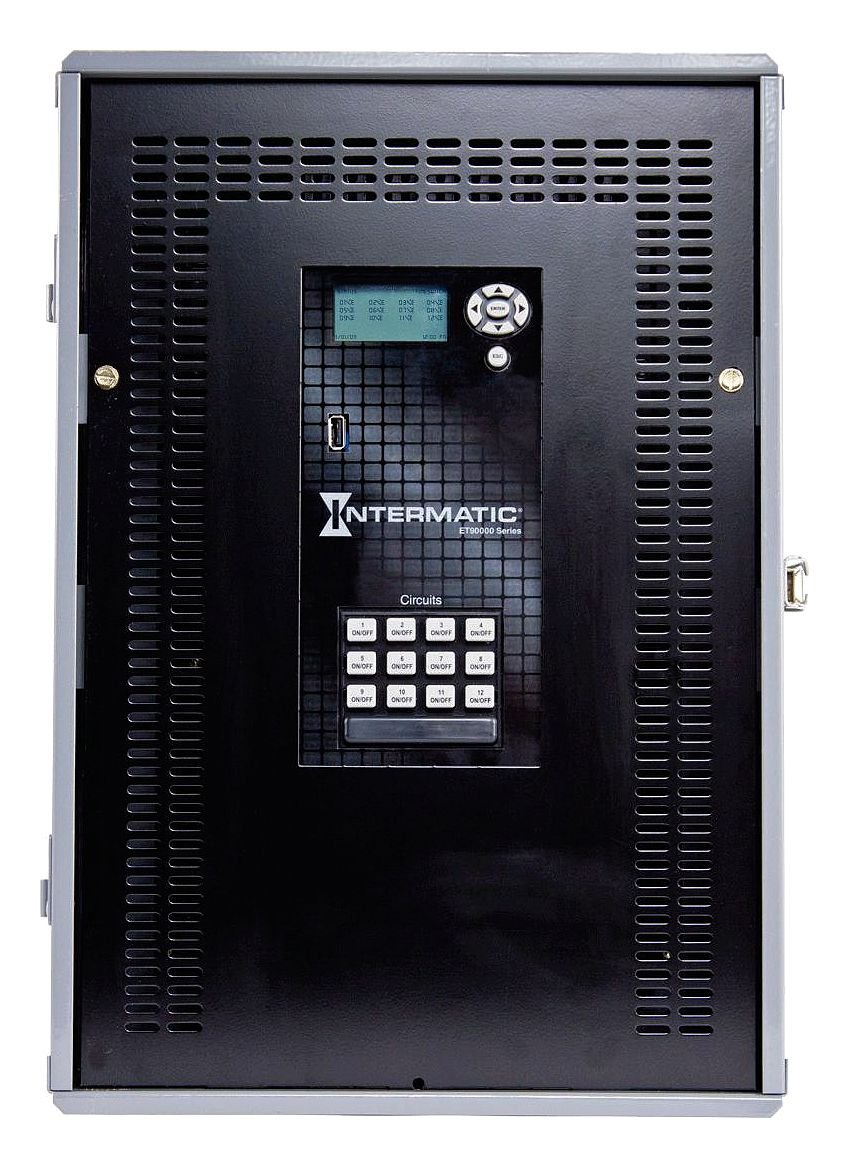

మూర్తి 1: Front panel of the Intermatic ET91215CR Energy Control. The unit features a digital display for programming, navigation buttons, a USB port for data transfer, and twelve individual ON/OFF buttons for circuit control, labeled 1 through 12. The Intermatic logo and 'ET90000 Series' designation are visible below the display.

2. భద్రతా సమాచారం

హెచ్చరిక: Risk of electric shock. Installation and servicing must be performed by qualified personnel only. Disconnect power at the circuit breaker or fuse before installing or servicing. Follow all local and national electrical codes.

• Always ensure the power supply is disconnected before working on the unit.
• Do not operate the unit with damaged wiring or if the enclosure is compromised.
• This device is intended for permanent installation.
• విద్యుత్ ప్రమాదాలను నివారించడానికి సరైన గ్రౌండింగ్ ఉండేలా చూసుకోండి.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

3.1 ఎన్‌క్లోజర్‌ను మౌంట్ చేయడం

The ET91215CR features a Type 3R steel enclosure, suitable for outdoor applications, providing protection against rain, sleet, and external ice formation. Mount the enclosure securely to a flat, vertical surface using appropriate hardware (not included). Ensure adequate clearance for wiring and ventilation.

3.2 వైరింగ్ సూచనలు

This device is rated for 30A and operates on 120-277V. It features a Single Pole Double Throw (SPDT) switch configuration. All wiring must comply with the National Electrical Code (NEC) and local codes. Refer to the wiring diagram provided inside the enclosure door for specific connections.

1. Disconnect all power to the installation site at the main circuit breaker.
2. ఆవరణ తలుపు తెరవండి.
3. Connect the incoming power supply wires to the designated terminals.
4. Connect the load wires for each controlled circuit to the appropriate output terminals.
5. అన్ని కనెక్షన్లు గట్టిగా మరియు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోండి.
6. Close the enclosure door and restore power.

గమనిక: For optimal performance and safety, it is highly recommended that a licensed electrician perform the installation and wiring of this energy control unit.

4. ఆపరేటింగ్ సూచనలు

4.1 ప్రారంభ పవర్-అప్ మరియు డిస్ప్లే

Upon initial power-up, the digital display will illuminate. The display shows current time, date, and status information. Use the navigation buttons (up, down, left, right, ENTER, ESC) located next to the display to navigate through menus and adjust settings.

4.2 సమయం మరియు తేదీని సెట్ చేయడం

Access the main menu using the navigation buttons. Select the 'Time/Date' option to set the current time, date, and year. Ensure these settings are accurate for the astronomic feature to function correctly.

4.3 Programming Schedules (Astronomic Feature)

The 365-day astronomic feature automatically adjusts ON/OFF times based on sunrise and sunset for your geographical location. This requires setting your precise latitude and longitude. Consult the detailed programming guide within the unit's internal menu or refer to the full product manual for advanced scheduling options.

1. Navigate to the 'Astronomic Settings' menu.
2. Enter your geographical coordinates (latitude and longitude).
3. Define desired offsets from sunrise/sunset if needed.
4. Assign astronomic schedules to specific circuits.

4.4 Manual Circuit Control

The unit features twelve individual ON/OFF buttons for direct control of each circuit. Pressing an 'ON/OFF' button will toggle the corresponding circuit's power state. This manual override can be used independently of programmed schedules.

4.5 USB పోర్ట్ కార్యాచరణ

The integrated USB port allows for easy transfer of programming schedules, event logs, and firmware updates. Refer to the Intermatic software documentation for detailed instructions on using this feature.

5. నిర్వహణ

The Intermatic ET91215CR is designed for minimal maintenance. Regular inspection is recommended to ensure optimal performance.

• శుభ్రపరచడం: Periodically clean the exterior of the enclosure with a soft, damp గుడ్డ. రాపిడి క్లీనర్లు లేదా ద్రావకాలు ఉపయోగించవద్దు.
• తనిఖీ: Annually inspect all wiring connections for tightness and signs of wear or corrosion. Check the enclosure for any damage that might compromise its Type 3R rating.
• ఫర్మ్‌వేర్ నవీకరణలు: Check the Intermatic website periodically for available firmware updates via the USB port to ensure your unit has the latest features and bug fixes.

6. ట్రబుల్షూటింగ్

If you encounter issues with your ET91215CR, refer to the following common troubleshooting steps:

If troubleshooting steps do not resolve the issue, contact Intermatic Technical Support for further assistance.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

8.1 పరిమిత వారంటీ

The Intermatic ET91215CR is covered by a limited warranty. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Intermatic website. This warranty typically covers defects in materials and workmanship under normal use.

8.2 సాంకేతిక మద్దతు

For technical assistance, product inquiries, or warranty claims, please contact Intermatic Customer Service. Have your product model number (ET91215CR) and purchase date available when contacting support.

Intermatic Contact Information:
Please refer to the official Intermatic webఅత్యంత తాజా సంప్రదింపు వివరాల కోసం సైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్.
