Vanguard Nivelo 214BK Travel Tripod User Manual

పరిచయం

This manual provides detailed instructions for the safe and effective use of your Vanguard Nivelo 214BK Travel Tripod. Please read this manual thoroughly before operating the product and retain it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your tripod.

Image: The Vanguard Nivelo 214BK Travel Tripod, shown with its retail packaging, user manual, and included carrying bag. This image illustrates the complete product package.

ఉత్పత్తి ముగిసిందిview

The Vanguard Nivelo 214BK is a compact and lightweight travel tripod designed for portability and stability. It features an aluminum alloy construction and a versatile ball head.

భాగాలు

• బాల్ హెడ్: For precise camera positioning and smooth movement.
• త్వరిత విడుదల ప్లేట్: మీ కెమెరాను త్వరగా అటాచ్ చేయడానికి మరియు వేరు చేయడానికి.
• మధ్య నిలువు వరుస: Extends for additional height or can be reversed for low-angle/macro photography.
• లెగ్ విభాగాలు: Multi-section legs for adjustable height and compact storage.
• లెగ్ లాక్స్: Twist locks to secure leg sections at desired lengths.
• రబ్బరు అడుగులు: Provide stability on various surfaces.
• బబుల్ స్థాయి: Integrated into the ball head for accurate leveling.

చిత్రం: వివరణాత్మక view of the tripod's ball head, showing the quick release plate, camera mounting screw, and adjustment knobs for precise camera positioning.

Image: A close-up of the tripod's leg sections, illustrating the twist-lock mechanism for extending and securing the legs, and the non-slip rubber feet at the base.

సెటప్

1. ట్రైపాడ్‌ను విప్పడం:

   Gently unfold the tripod legs from their folded position. Ensure all leg hinges are fully extended.



   Image: The Vanguard Nivelo 214BK tripod shown in its compact, folded configuration, ready for transport.

2. కాళ్ళు విస్తరించడం:

   Twist the leg locks counter-clockwise to loosen each leg section. Pull out the desired sections to extend the legs to your preferred height. Twist the leg locks clockwise to secure them firmly.
3. Adjusting Leg Angles:

   The tripod features adjustable leg angles. Press the leg angle release tabs (if present) near the top of each leg to adjust the spread of the legs for different stability requirements or low-angle shots.



   చిత్రం: క్లోజప్ view of the tripod's leg hinge area, showing the mechanism for adjusting the leg spread and angle.

4. Attaching Your Camera:

   Ensure the quick release plate is securely attached to your camera's tripod socket. Then, insert the quick release plate with the camera into the ball head receiver and secure it using the locking lever or knob on the ball head.
5. Extending the Center Column:

   To gain additional height, loosen the center column locking knob. Gently pull the center column upwards to extend it. Tighten the locking knob to secure the column at the desired height.

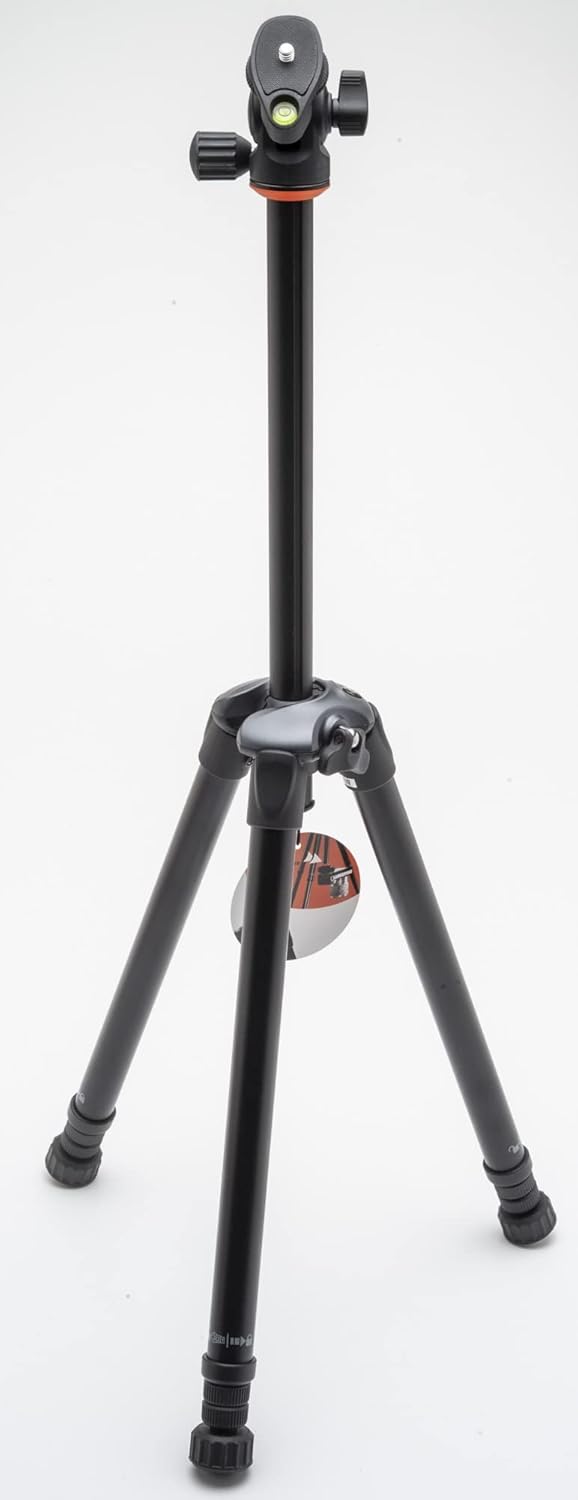

   Image: The Vanguard Nivelo 214BK tripod with its center column fully extended, demonstrating its maximum height capability.

ఆపరేటింగ్ సూచనలు

1. Adjusting the Ball Head:

   Loosen the main locking knob on the ball head to allow free movement of your camera. Position your camera as desired, then tighten the knob firmly to secure it.



   చిత్రం: వివరణాత్మక view of the ball head, highlighting the various knobs and levers used for adjusting camera angle and securing its position.

2. Using the Bubble Level:

   Utilize the integrated bubble level on the ball head to ensure your camera is perfectly level, especially for panoramic shots or architectural photography.
3. Low-Angle and Macro Photography:

   For extremely low-angle shots or macro photography, the center column can be reversed. To do this, fully extend and remove the center column, then reinsert it upside down. This allows your camera to be positioned very close to the ground.

నిర్వహణ

• శుభ్రపరచడం: త్రిపాదను మృదువైన, d తో తుడవండి.amp cloth after use, especially if exposed to dust, sand, or saltwater. Avoid using harsh chemicals or abrasive materials.
• సరళత: Periodically check leg locks and moving parts for smooth operation. Do not over-lubricate; consult a professional if lubrication is required.
• నిల్వ: త్రిపాదను దాని మోసే సంచిలో ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలు లేకుండా పొడి, చల్లని ప్రదేశంలో నిల్వ చేయండి.
• తనిఖీ: అన్ని స్క్రూలు, నాబ్‌లు మరియు లెగ్ లాక్‌లు బిగుతుగా మరియు సరిగ్గా పనిచేస్తున్నాయని నిర్ధారించుకోవడానికి వాటిని క్రమం తప్పకుండా తనిఖీ చేయండి.

ట్రబుల్షూటింగ్

• త్రిపాద అస్థిరత:

  Ensure all leg sections are fully extended and their locks are securely tightened. Verify that the leg angles are evenly spread and the tripod is on a stable, level surface. Do not exceed the maximum load capacity.

• కెమెరా సురక్షితం కాదు:

  Check that the quick release plate is properly attached to your camera and fully seated in the ball head receiver. Ensure the ball head locking knob is tightened firmly.

• Stiff Leg Locks:

  If leg locks become stiff, clean them thoroughly to remove any accumulated dirt or debris. Avoid forcing them. If the issue persists, professional servicing may be required.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

The Vanguard Nivelo 214BK Travel Tripod comes with a 5-సంవత్సరం తయారీదారు వారంటీ. ఈ వారంటీ సాధారణ ఉపయోగంలో పదార్థాలు మరియు పనితనంలో లోపాలను కవర్ చేస్తుంది.

For warranty claims, technical support, or service inquiries, please contact Vanguard customer service through their official website or authorized distributors. Please retain your proof of purchase for warranty validation.
