This manual provides detailed instructions for the installation, operation, and maintenance of your Kuryakyn 3240 LED Passenger Armrest Trim with Turn Signal Accents. This product is designed to enhance the visibility and aesthetics of your Honda Gold Wing GL1800 motorcycle by providing both running lights and turn signal functions.

The Kuryakyn 3240 is a waterproof lighting accessory intended for rear auto part position, specifically for 2006-2017 Honda Gold Wing GL1800 models (excluding F6B). Please read all instructions carefully before beginning installation.

ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని భాగాలు మీ ప్యాకేజీలో ఉన్నాయని ధృవీకరించండి:

• 1x Left Passenger Armrest Accent
• 1x Right Passenger Armrest Accent
• 1x Run-Turn Harness for Armrest Accents
• 1x Double "Y" Adapter
• 6x 6" Black Nylon Cable Ties
• 1x Dielectric Grease Pack
• 1x Alcohol Pad

గమనిక: Some 2006-2010 models may require Kuryakyn P/N 3241 for plug-and-play installation. Some 2012-2016 models may require Kuryakyn P/N 3230 for plug-and-play installation. These adapters are sold separately.

అవసరమైన సాధనాలు మరియు సామగ్రి (చేర్చబడలేదు)

• Set of metric hex wrenches
• Basic hand tools for motorcycle disassembly/assembly
• Electrical tape or heat shrink tubing (optional, for securing connections)

ఇన్స్టాలేషన్ సూచనలు

ముఖ్యమైన భద్రతా గమనిక: Before beginning any electrical work on your motorcycle, disconnect the battery to prevent accidental short circuits or damage to the electrical system. Consult your motorcycle's service manual for specific battery disconnection procedures.

1. మోటార్ సైకిల్ సిద్ధం చేయండి: Ensure the motorcycle is stable on a level surface. Remove any necessary body panels or components to access the passenger armrest area and the rear wiring harness. Refer to your motorcycle's service manual for proper removal procedures.
2. Locate Wiring Connection Point: Identify the appropriate wiring harness connection point for the rear accessory lighting. For some models, a plug-and-play rear accessory wiring adapter (P/N 3241 or 3230) may be required.
3. Install Armrest Accents: Carefully position the Left and Right Passenger Armrest Accents onto the motorcycle's passenger armrests. Ensure they fit securely.


   Image 1: Kuryakyn 3240 LED Passenger Armrest Trim installed on a red Honda Gold Wing GL1800, showing the chrome trim with integrated red LED lights on the passenger armrest.

4. వైరింగ్ హార్నెస్‌ను కనెక్ట్ చేయండి: Connect the Run-Turn Harness to the armrest accents and then to the motorcycle's wiring system using the Double "Y" Adapter. Apply dielectric grease to all electrical connections to prevent corrosion. Use the provided alcohol pad to clean surfaces before applying grease.

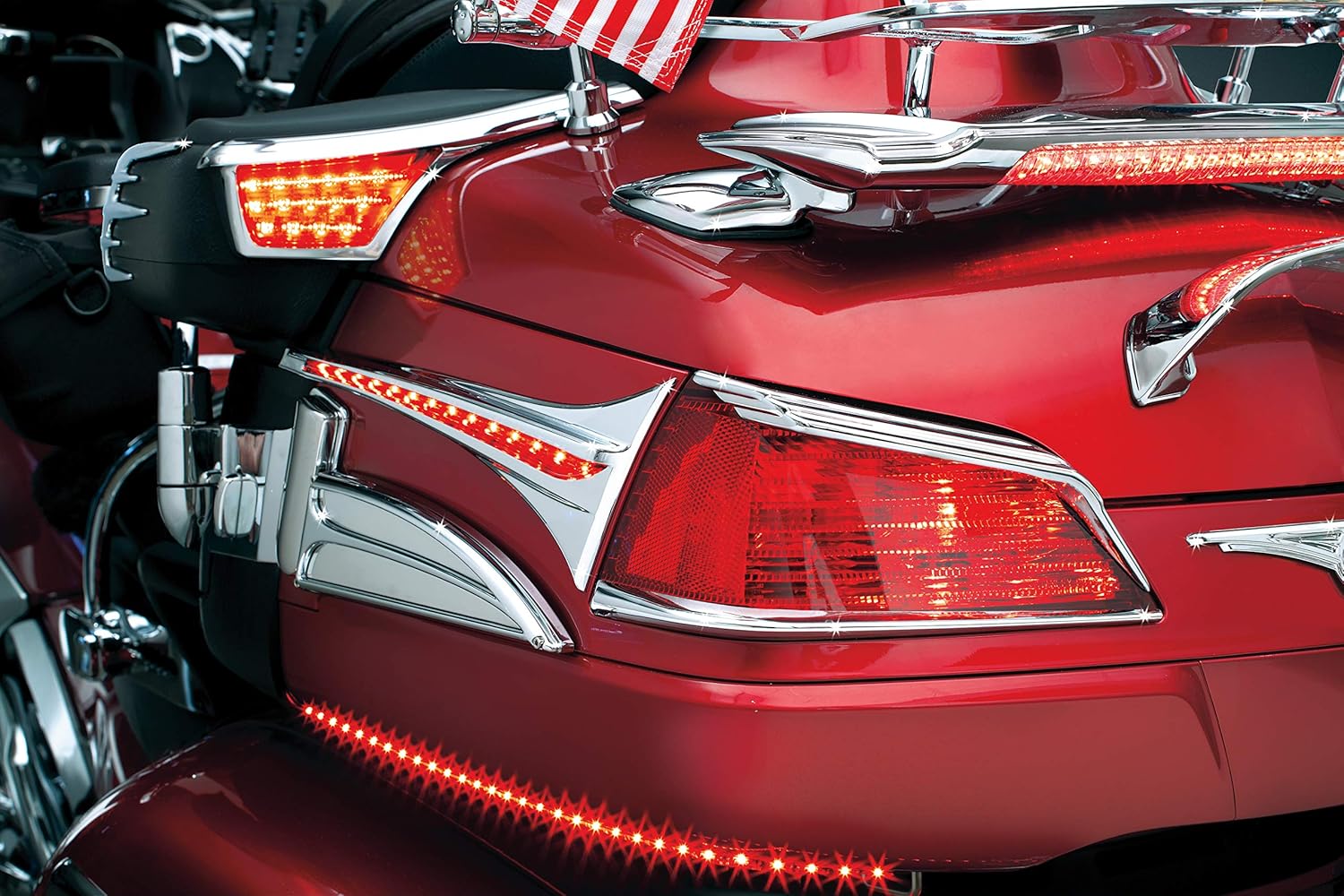

   చిత్రం 2: వెనుక view of a red Honda Gold Wing GL1800 with Kuryakyn 3240 LED Passenger Armrest Trim and other Kuryakyn lighting accessories, highlighting the integrated LED turn signals and running lights.
5. సురక్షిత వైరింగ్: Use the black nylon cable ties to neatly secure all wiring, ensuring it is clear of moving parts, exhaust, and any pinch points.
6. పరీక్ష కార్యాచరణ: Reconnect the motorcycle battery. Turn on the ignition and test the running light and turn signal functions of the newly installed armrest trim. Ensure all lights operate correctly.
7. Reassemble Motorcycle: Once functionality is confirmed, reattach any body panels or components that were removed during installation.


   Image 3: Close-up of the Kuryakyn 3240 LED Passenger Armrest Trim on a red Honda Gold Wing GL1800, showing the detailed chrome finish and the bright red LED light strip.

ఆపరేటింగ్ సూచనలు

The Kuryakyn 3240 LED Passenger Armrest Trim is designed for seamless integration with your motorcycle's existing electrical system. Once properly installed, the LED lights will function as follows:

• రన్నింగ్ లైట్లు: When your motorcycle's ignition is on and headlights are activated, the LED lights on the armrest trim will illuminate as running lights, providing increased rear visibility.
• టర్న్ సిగ్నల్స్: When the turn signal is activated, the corresponding armrest trim LED lights will flash in conjunction with your motorcycle's existing turn signals, indicating your intended direction.

This product is waterproof, ensuring reliable performance in various weather conditions.

నిర్వహణ

To ensure the longevity and optimal performance of your Kuryakyn 3240 LED Passenger Armrest Trim, follow these maintenance guidelines:

• శుభ్రపరచడం: Clean the LED lenses and chrome trim regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the plastic or chrome finish.
• తనిఖీ: Periodically inspect all wiring connections for tightness and signs of wear or corrosion. Reapply dielectric grease if necessary.
• నష్టం తనిఖీ: Check the armrest trim for any physical damage, such as cracks or loose components, especially after long rides or if the motorcycle has been exposed to rough conditions.

ట్రబుల్షూటింగ్

If you experience issues with your Kuryakyn 3240 LED Passenger Armrest Trim, consider the following troubleshooting steps:

• వెలుతురు లేని లైట్లు:
  • అన్ని విద్యుత్ కనెక్షన్లు సురక్షితంగా మరియు సరిగ్గా అమర్చబడి ఉన్నాయని నిర్ధారించుకోవడానికి వాటిని తనిఖీ చేయండి.
  • Verify that the motorcycle battery is fully charged and properly connected.
  • Inspect the motorcycle's fuse box for any blown fuses related to accessory lighting.
  • Ensure that any required plug-and-play adapters (P/N 3241 or 3230) are correctly installed and compatible with your motorcycle year.
• Turn Signals Not Flashing:
  • Confirm that your motorcycle's main turn signals are functioning correctly.
  • Check the wiring connections specific to the turn signal function of the armrest trim.
• అడపాదడపా ఆపరేషన్:
  • Loose connections are a common cause of intermittent operation. Re-check all connections and ensure they are tight.
  • Inspect wiring for any signs of damage, fraying, or corrosion.

If problems persist after performing these checks, contact Kuryakyn customer support or a qualified motorcycle technician.

స్పెసిఫికేషన్లు

వారంటీ సమాచారం

Kuryakyn products are manufactured to high standards. For specific warranty terms and conditions, please refer to the official Kuryakyn webసైట్‌లో లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని నేరుగా సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

కస్టమర్ మద్దతు

If you require further assistance with installation, operation, or troubleshooting, please visit the official Kuryakyn website or contact their customer support team. Always provide your product model number (3240) and details of your motorcycle (make, model, year) when seeking support.

Kuryakyn Official Webసైట్: www.kuryakyn.com
