విక్టరీ 50617102 కాయిల్ ఆవిరిపోరేటర్, P84 E10 ఇన్స్ట్రక్షన్ మాన్యువల్
మోడల్: 50617102
1. పరిచయం
This manual provides essential information for the proper installation, operation, and maintenance of the Victory 50617102 Coil Evaporator, P84 E10. This component is designed for use in commercial refrigeration systems. Adhering to the guidelines in this manual will help ensure optimal performance and longevity of the unit.
2. భద్రతా సమాచారం
హెచ్చరిక: సరికాని సంస్థాపన, సర్దుబాటు, మార్పు, సేవ లేదా నిర్వహణ ఆస్తి నష్టం, గాయం లేదా మరణానికి కారణం కావచ్చు. ఈ పరికరాన్ని ఇన్స్టాల్ చేయడానికి లేదా సర్వీసింగ్ చేయడానికి ముందు ఇన్స్టాలేషన్, ఆపరేటింగ్ మరియు నిర్వహణ సూచనలను పూర్తిగా చదవండి.
- Always disconnect power to the refrigeration system before performing any installation, maintenance, or service.
- Ensure all connections are secure and leak-free to prevent refrigerant loss.
- చేతి తొడుగులు మరియు కంటి రక్షణ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) ధరించండి.
- Only qualified personnel should install or service this equipment.
- Refer to all applicable local and national codes and regulations.
3. ఉత్పత్తి ముగిసిందిview
The Victory 50617102 Coil Evaporator is a genuine OEM replacement part designed for efficient heat exchange within a refrigeration system. It consists of a series of finned tubes through which refrigerant flows, absorbing heat from the surrounding air.

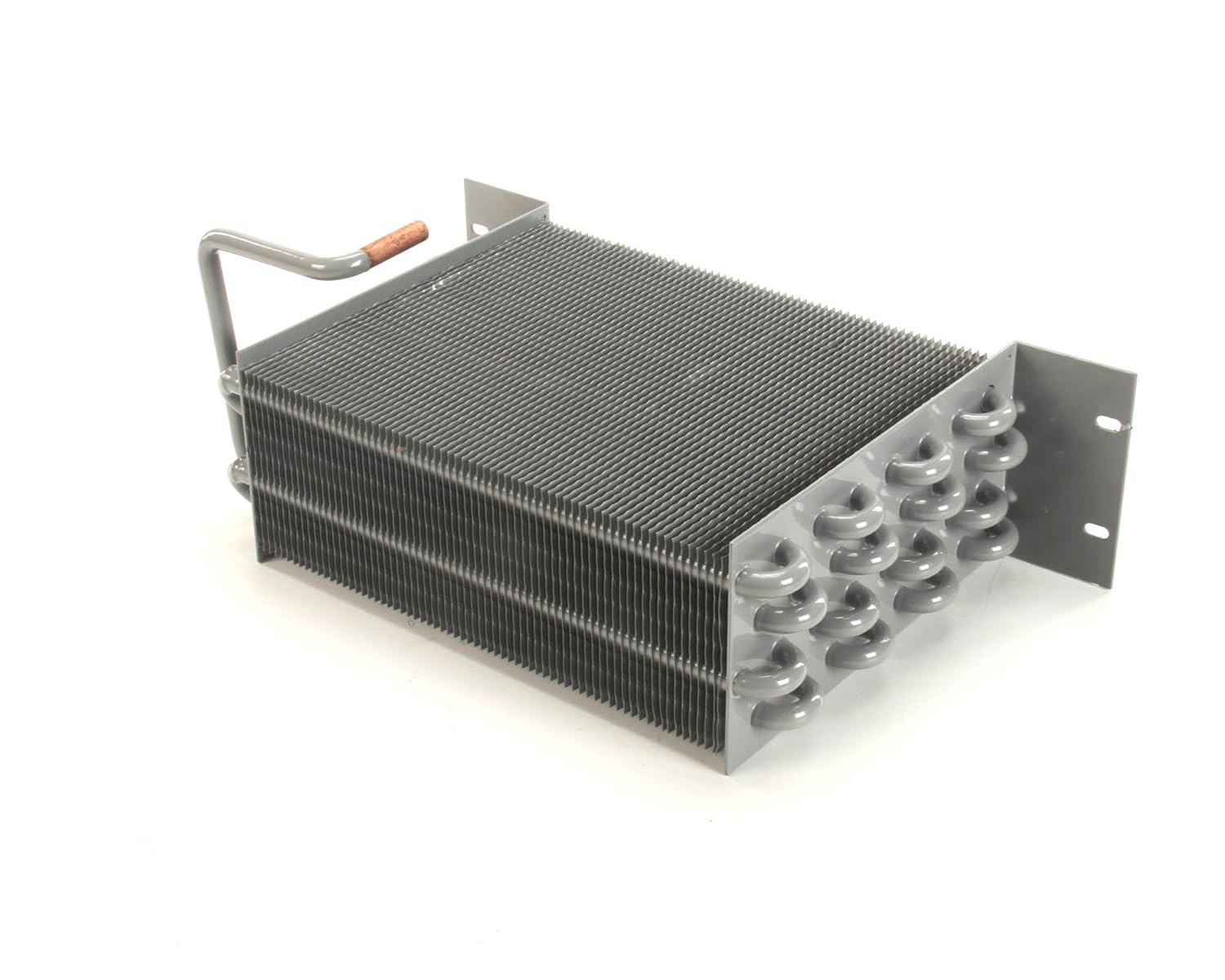

మూర్తి 1: ముందు view of the Victory 50617102 Coil Evaporator, showing the finned coil block and copper tubing connections.
చిత్రం 2: కోణీయ view of the evaporator coil, highlighting the U-bend connections on one side and mounting brackets.
మూర్తి 3: వైపు view of the evaporator coil, showing the refrigerant inlet/outlet tubes and the overall compact design.
చిత్రం 4: వెనుక కోణం view of the evaporator coil, illustrating the robust construction and fin arrangement for heat transfer.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the evaporator coil should only be performed by a certified refrigeration technician.
- తయారీ: Ensure the refrigeration system is depressurized and all power is disconnected. Remove the old evaporator coil, if applicable.
- మౌంటు: Securely mount the new Victory 50617102 coil in the designated evaporator compartment using appropriate fasteners. Ensure proper airflow around the coil.
- Refrigerant Line Connections: Carefully connect the refrigerant lines to the coil's inlet and outlet ports. Use proper brazing techniques if required, ensuring a leak-free seal. Avoid overheating the coil during brazing.
- లీక్ టెస్టింగ్: After connections are made, perform a thorough leak test using an approved method (e.g., nitrogen pressure test) to ensure system integrity.
- తరలింపు: Evacuate the system to remove non-condensable gases and moisture.
- శీతలకరణి ఛార్జింగ్: Recharge the system with the correct type and amount of refrigerant as specified by the system manufacturer.
- పవర్ పునరుద్ధరణ: Restore power to the system and verify proper operation.
5. ఆపరేటింగ్ సూచనలు
The Victory 50617102 Coil Evaporator operates as an integral part of a larger refrigeration system. Its operation is controlled by the system's thermostat and other control components. No direct user interaction with the coil itself is typically required during normal operation.
- Ensure the refrigeration system is powered on and set to the desired temperature.
- Monitor the system for unusual noises, vibrations, or temperature fluctuations.
- Maintain clear airflow around the evaporator coil to ensure efficient heat transfer.
6. నిర్వహణ
Regular maintenance is crucial for the efficient and reliable operation of the evaporator coil.
- కాయిల్ క్లీనింగ్: Periodically inspect the coil fins for dirt, dust, and debris accumulation. Clean the fins using a soft brush, compressed air, or a mild coil cleaner. Ensure the fins are not bent or damaged during cleaning.
- Drain Pan Cleaning: Inspect and clean the condensate drain pan and drain line to prevent blockages and overflow.
- ఫ్యాన్ తనిఖీ: If applicable, inspect the evaporator fan motor and blades for proper operation and cleanliness.
- Refrigerant Leak Check: Periodically check for refrigerant leaks around connections and throughout the coil.
- వృత్తిపరమైన తనిఖీ: Schedule regular inspections and maintenance by a qualified refrigeration technician.
7. ట్రబుల్షూటింగ్
This section outlines common issues related to evaporator coils and potential solutions. For complex problems, contact a qualified technician.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| తగినంత శీతలీకరణ లేదు | Dirty evaporator coil fins తక్కువ శీతలకరణి ఛార్జ్ నిరోధిత గాలి ప్రవాహం Faulty expansion valve | Clean coil fins Check for leaks and recharge system Clear obstructions, check fan Consult technician for replacement |
| Coil Freezing Up | Low airflow over coil తక్కువ శీతలకరణి ఛార్జ్ థర్మోస్టాట్ పనిచేయకపోవడం Dirty air filter (if applicable) | Check fan operation, clear obstructions Check for leaks and recharge system Inspect and replace thermostat Replace or clean air filter |
| యూనిట్ నుంచి నీరు కారుతోంది | Clogged condensate drain line Cracked drain pan Improper unit leveling | Clear drain line Replace drain pan Adjust unit leveling |
8. స్పెసిఫికేషన్లు
The following specifications apply to the Victory 50617102 Coil Evaporator:
- మోడల్ సంఖ్య: 50617102
- ఉత్పత్తి రకం: Food Service Supply
- తయారీదారు: విజయం
- ఉత్పత్తి కొలతలు: 21 x 15 x 9 అంగుళాలు
- ప్యాకేజీ కొలతలు: 9.0 "L x 11.0" W x 17.0" H
- ఉత్పత్తి బరువు: 5.2 పౌండ్లు
- మూలం దేశం: యునైటెడ్ స్టేట్స్
9. వారంటీ మరియు మద్దతు
For warranty information and technical support regarding your Victory 50617102 Coil Evaporator, please refer to the documentation provided with your complete refrigeration system or contact Victory customer service directly. Ensure you have your model number and purchase details available when seeking support.
