Legrand - OnQ Cat 6 Patch Cable User Manual

ఉత్పత్తి ముగిసిందిview

The On-Q Cat 6 Patch Cable is engineered for high-performance network installations, supporting voice, data, video, and security applications. This cable is designed to provide superior bandwidth, ensuring reliable and fast connections. Each cable undergoes rigorous 100-percent testing to ensure it meets and exceeds the EIA/TIA 568B performance requirements for Cat 6 cabling.

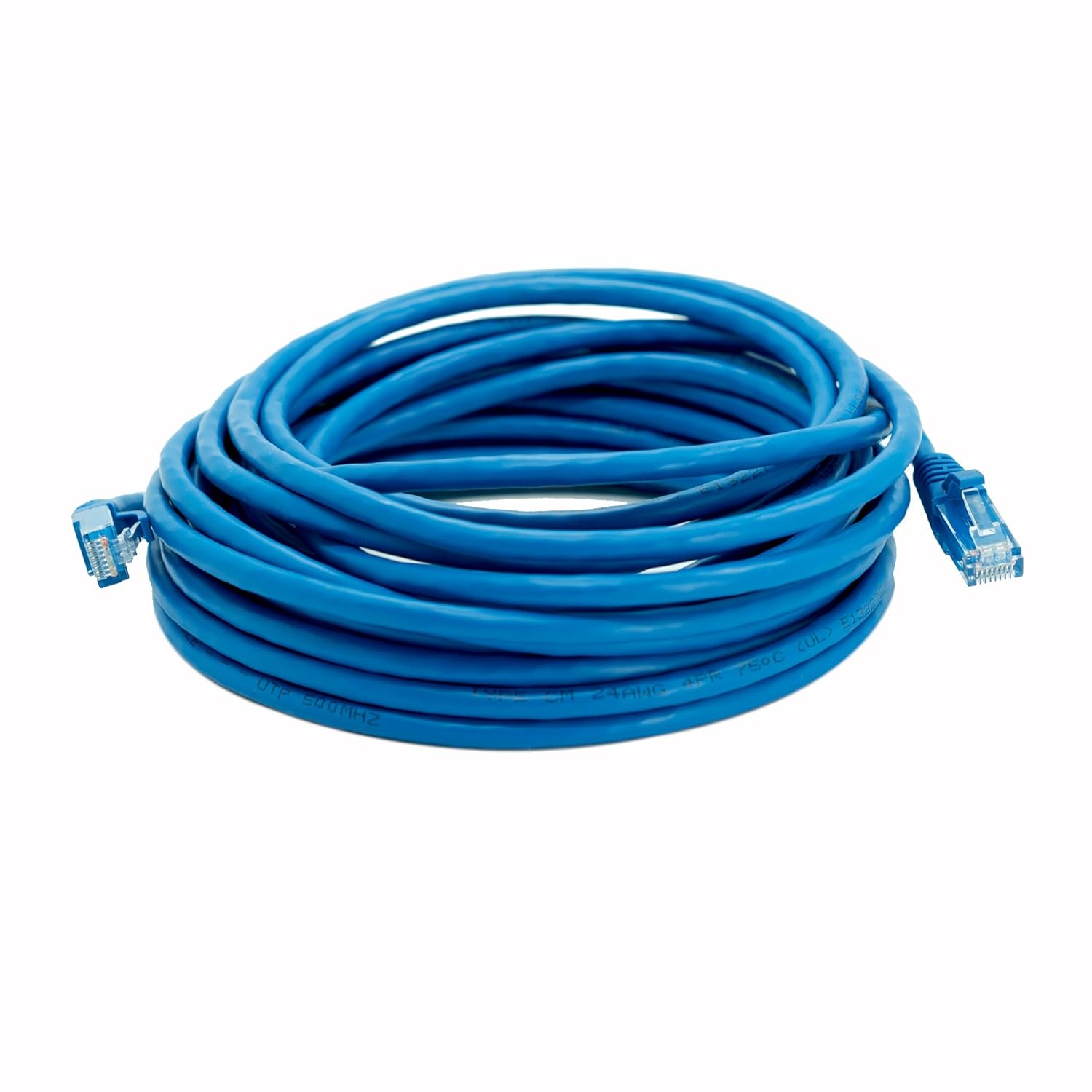

Image: A coiled blue Legrand On-Q Cat 6 Patch Cable, showcasing its length and flexibility.

ముఖ్య లక్షణాలు:

• CAT 6A Cable Management: Fully supports 10 Gigabit Ethernet speeds with 250MHz bandwidth and exceeds 750 insertion cycles as specified in FCC part 68 Subpart.
• Patch Cable Protection: Features a snagless overmold design to prevent the insertion tab from catching on other cables during installation or removal.
• Certified Performance: UL verified to meet and support the Cat 6 performance patch cable specification.
• బహుముఖ అప్లికేషన్: Ideal for voice, data, video, and security network installations where high bandwidth is crucial.

Image: A graphic highlighting key features: 250MHz support for 10 Gigabit speeds, UL verification for Cat 6 specifications, and 24 AWG stranded patch cable construction.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Installing your Legrand - OnQ Cat 6 Patch Cable is straightforward. Follow these steps for optimal performance:

1. పోర్టులను గుర్తించండి: Locate the Ethernet ports on your devices (e.g., router, modem, computer, gaming console, smart TV, printer). These ports are typically labeled as "LAN" or "Ethernet" and resemble a larger phone jack.
2. మొదటి చివరను కనెక్ట్ చేయండి: Gently insert one end of the Cat 6 patch cable into the Ethernet port of your first device until you hear a click, indicating it is securely latched.
3. రెండవ చివరను కనెక్ట్ చేయండి: Insert the other end of the cable into the Ethernet port of your second device. Ensure it also clicks into place.
4. కనెక్షన్‌ని ధృవీకరించండి: Most devices will have an LED indicator near the Ethernet port that illuminates or blinks when a successful connection is established. Refer to your device's manual for specific indicator behavior.

This cable is designed for broad compatibility, supporting reverse and forward connections with Cat5, Cat5e, Cat6, Cat6a, and Cat7 standards.

Image: A blue Ethernet cable connected to the back of a network router, demonstrating a typical setup.

Image: A graphic illustrating the cable's compatibility with common Ethernet devices such as gaming consoles, smart TVs, laptops, and printers.

ఆపరేటింగ్ సూచనలు

Once connected, the Legrand - OnQ Cat 6 Patch Cable operates automatically to facilitate network communication between your devices. It functions as a physical medium for transmitting data signals.

• డేటా బదిలీ: The cable enables high-speed data transfer, supporting up to 10 Gigabit Ethernet speeds, making it suitable for demanding applications like online gaming, 4K video streaming, and large file బదిలీలు.
• సిగ్నల్ సమగ్రత: Constructed with pure copper conductors and designed to minimize crosstalk and interference, ensuring a stable and reliable connection.
• ప్లగ్ అండ్ ప్లే: No software or drivers are required for operation. Simply connect the cable between compatible devices.

Image: A detailed close-up of the RJ45 connector end of the Cat 6 cable, showing the clear housing and gold-plated pins.

నిర్వహణ మరియు సంరక్షణ

Proper care and maintenance will extend the lifespan and ensure the continued performance of your Cat 6 patch cable.

• Avoid Kinks and Sharp Bends: Do not bend the cable sharply or tightly, as this can damage the internal conductors and reduce performance. Maintain a gentle curve when routing.
• కనెక్టర్లను రక్షించండి: Avoid pulling the cable by the cord itself when disconnecting. Always grasp the RJ45 connector housing. Keep connectors clean and free of dust or debris.
• Prevent Snagging: The cable features a snagless overmold design, but still exercise caution when routing through tight spaces or near other cables to prevent damage to the tab.
• నిల్వ: When not in use, coil the cable loosely and store it in a dry, cool place away from direct sunlight or extreme temperatures.
• శుభ్రపరచడం: If necessary, gently wipe the cable with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.

Image: A graphic emphasizing the PVC shielded jacket designed to prevent snagging, highlighting the protective feature of the cable's connector.

ట్రబుల్షూటింగ్

If you encounter issues with your Legrand - OnQ Cat 6 Patch Cable, consider the following troubleshooting steps:

ఉత్పత్తి లక్షణాలు

వారంటీ మరియు మద్దతు

For information regarding warranty coverage and customer support for your Legrand - OnQ Cat 6 Patch Cable, please refer to the official Legrand On-Q webసైట్ లేదా వారి కస్టమర్ సేవను నేరుగా సంప్రదించండి.

You can visit the official On-Q store for more products and support information: On-Q Store on Amazon

ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
