Schneider Electric HU363DSEI 100-Amp Unfused Heavy Duty Safety Switch Instruction Manual

1. పరిచయం

This manual provides essential information for the safe installation, operation, and maintenance of the Schneider Electric HU363DSEI 100-Amp Unfused Heavy Duty Safety Switch. It is crucial to read and understand all instructions before proceeding with any work involving this equipment. This device is designed to provide a means of manually opening and closing a circuit, and for providing a visible indication of whether the circuit is open or closed.

2. భద్రతా సమాచారం

ప్రమాదం: విద్యుత్ షాక్, పేలుడు లేదా ఆర్క్ ఫ్లాష్ ప్రమాదం

• ఈ పరికరాలను ఇన్‌స్టాల్ చేయడం, ఆపరేట్ చేయడం, సర్వీస్ చేయడం మరియు నిర్వహించడం అర్హత కలిగిన సిబ్బంది మాత్రమే చేయాలి.
• Perform all work on this equipment only after the power has been turned OFF and verified as de-energized.
• ఎల్లప్పుడూ సరిగ్గా రేట్ చేయబడిన వాల్యూమ్‌ని ఉపయోగించండిtage sensing device to confirm that power is OFF.
• తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) వర్తింపజేయండి మరియు సురక్షితమైన విద్యుత్ పని పద్ధతులను అనుసరించండి.
• లాక్ అవుట్ మరియు tag out the switch according to established safety procedures before performing any work.
• Replace all covers and close the switch door before turning on power.

ఈ సూచనలను పాటించడంలో వైఫల్యం మరణానికి లేదా తీవ్రమైన గాయానికి దారి తీస్తుంది.

3. ఉత్పత్తి ముగిసిందిview

The Schneider Electric HU363DSEI is a 100-Amp, 3-pole, 600V AC/DC unfused heavy-duty safety switch. It features a stainless steel enclosure and is designed for applications requiring robust protection and reliable circuit disconnection. The interlock mechanism prevents the enclosure door from being opened when the switch is in the ON position, enhancing safety.

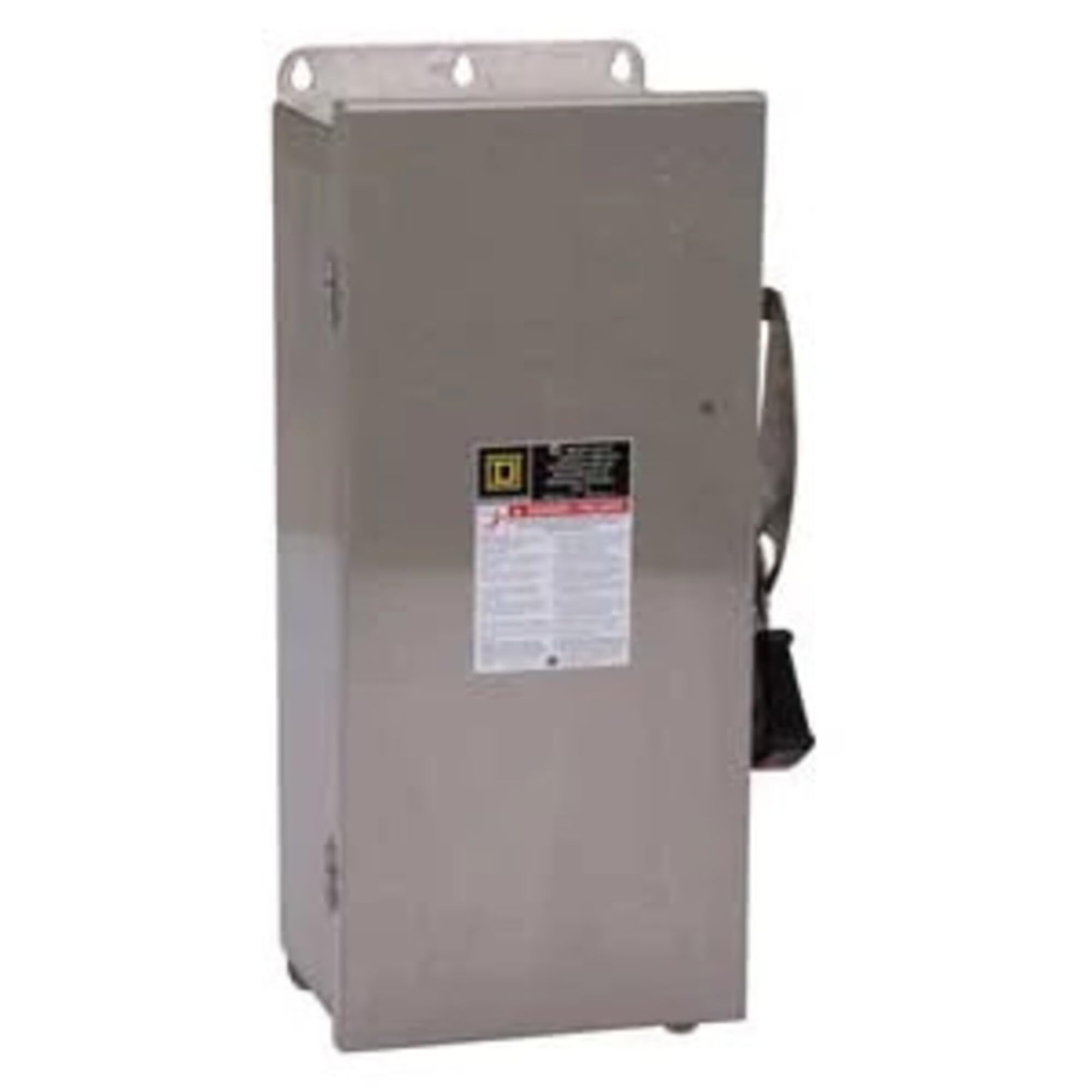

This image displays the Schneider Electric HU363DSEI 100-Amp unfused heavy-duty safety switch. It features a robust stainless steel enclosure with a visible operating handle on the side and mounting brackets at the top. A warning label is affixed to the front panel.

4. స్పెసిఫికేషన్లు

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

అన్ని జాతీయ మరియు స్థానిక విద్యుత్ కోడ్‌లకు అనుగుణంగా అర్హత కలిగిన ఎలక్ట్రీషియన్ ద్వారా ఇన్‌స్టాలేషన్ నిర్వహించబడాలి.

1. De-energize Power: Ensure all power to the installation site is OFF and locked out/tagged out before beginning any work. Verify with a voltagఇ మీటర్.
2. మౌంటు: Securely mount the safety switch to a suitable surface using appropriate hardware. The enclosure is designed for wall mounting.
3. వైరింగ్:
   • Open the enclosure door (ensure the switch handle is in the OFF position).
   • Connect incoming power conductors to the line terminals and outgoing load conductors to the load terminals.
   • Ensure all connections are tight and properly torqued according to the specifications provided on the device or in the detailed wiring diagram (if supplied separately).
   • Connect the equipment grounding conductor to the designated ground lug.
4. క్లోజ్ ఎన్‌క్లోజర్: Ensure all wiring is neat and secure. Close and latch the enclosure door.
5. Re-energize Power: Remove lockout/tagout devices and restore power to the circuit.

6. ఆపరేటింగ్ సూచనలు

The Schneider Electric HU363DSEI safety switch is operated via the external handle.

• ఆన్ చేయడానికి: Move the operating handle to the ON position. This connects the power to the load.
• ఆపివేయడానికి: Move the operating handle to the ఆఫ్ position. This disconnects the power from the load.
• Interlock Feature: The enclosure door cannot be opened when the switch handle is in the ON position. To open the door, the handle must first be moved to the OFF position.

7. నిర్వహణ

Regular maintenance should only be performed by qualified personnel with power de-energized and locked out/tagబయటపడ్డాడు.

• ఆవర్తన తనిఖీ: Annually inspect the switch for signs of wear, corrosion, or damage. Check for loose connections.
• శుభ్రపరచడం: Keep the exterior of the enclosure clean and free of dust and debris. Use a dry, lint-free cloth. Do not use abrasive cleaners or solvents.
• టెర్మినల్ టార్క్: Periodically verify that all terminal connections are torqued to the manufacturer's specifications.
• ఆపరేటింగ్ మెకానిజం: Ensure the operating handle moves freely and the switch mechanism operates smoothly.

8. ట్రబుల్షూటింగ్

If the safety switch is not functioning as expected, consider the following common issues:

• లోడ్ చేయడానికి శక్తి లేదు:
  • Verify the switch handle is in the ON position.
  • Check the upstream power source to ensure it is energized.
  • Inspect wiring connections for looseness or damage (only with power OFF and locked out/tagged out).
• Door Will Not Open:
  • Ensure the operating handle is fully in the OFF position. The interlock mechanism prevents opening when ON.
• Handle Stiff or Not Moving:
  • Do not force the handle. De-energize power and inspect the internal mechanism for obstructions or damage. If damaged, replace the unit.

For issues not resolved by these steps, contact qualified service personnel.

9. వారంటీ

According to product information, this item is sold with వారంటీ లేదు. Please refer to your purchase agreement or retailer for any applicable return policies.

10. మద్దతు

For technical assistance or further information regarding Schneider Electric products, please visit the official Schneider Electric website or contact their customer support services. Always provide the model number (HU363DSEI) when seeking support.

ష్నైడర్ ఎలక్ట్రిక్ Webసైట్: www.se.com
