థర్మాల్‌టేక్ అర్బన్ S71 విండో ఫుల్ టవర్ కంప్యూటర్ కేస్ VP500M1W2N యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the setup, operation, and maintenance of your Thermaltake URBAN S71 Window Full Tower Computer Case, model VP500M1W2N. The URBAN S71 is designed with a simple and elegant aesthetic, offering ample space and features for a robust computer build.

మూర్తి 1.1: ముందు view of the Thermaltake URBAN S71 computer case, showcasing its brushed aluminum finish front door panel and top I/O ports.

మూర్తి 1.2: వైపు view of the Thermaltake URBAN S71 computer case, highlighting the transparent window panel for viewing internal components.

2. సెటప్

2.1 అన్‌ప్యాకింగ్ మరియు తనిఖీ

Carefully remove the computer case from its packaging. Inspect the case for any signs of damage that may have occurred during transit. Retain the packaging for future transport or storage.

2.2 Interior Layout and Component Installation

The URBAN S71 offers a spacious interior for easy component installation. The side panel can be removed to access the internal bays and motherboard tray.

Figure 2.1: The Thermaltake URBAN S71 computer case with its side panel open, providing a clear view of the internal structure, drive bays, and fan mounts.

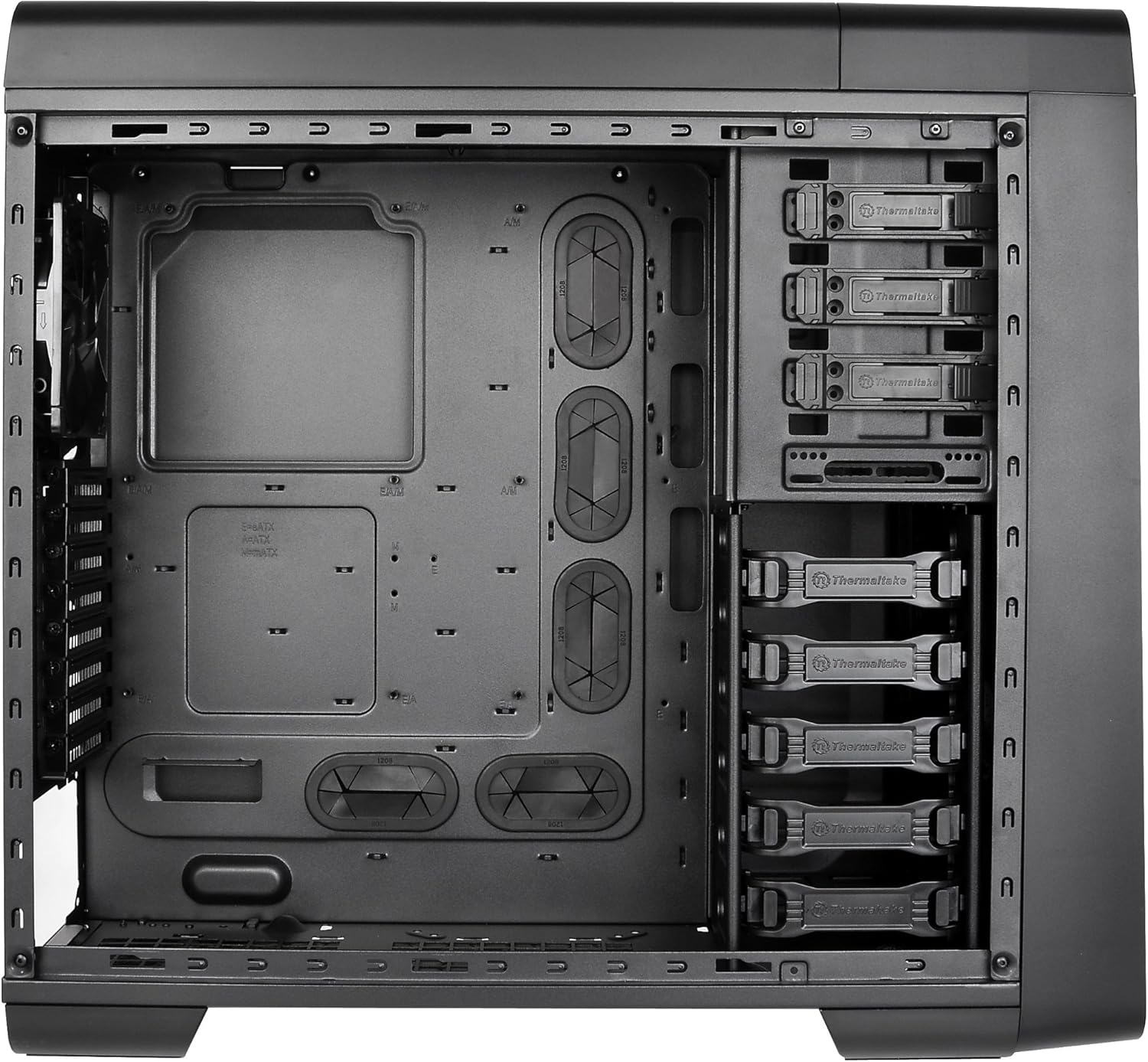

Figure 2.2: A detailed interior view of the Thermaltake URBAN S71, showing the motherboard tray, cable management cutouts, and various drive bays.

2.2.1 మదర్బోర్డ్ సంస్థాపన

1. కేసు వెనుక ఓపెనింగ్‌లో I/O షీల్డ్‌ను ఇన్‌స్టాల్ చేయండి.
2. Align your Extended ATX, ATX, or Micro ATX motherboard with the standoffs.
3. స్క్రూలతో మదర్‌బోర్డును భద్రపరచండి.

2.2.2 డ్రైవ్ ఇన్‌స్టాలేషన్

The case supports multiple drive configurations:

• External Bays: 4 x 5.25" bays for optical drives or other 5.25" devices.
• అంతర్గత బేలు: 5 x 3.5" or 2.5" bays for hard drives or SSDs.

Figure 2.3: An optical drive being installed into one of the 5.25-inch external drive bays, demonstrating the tool-less design.

2.2.3 విద్యుత్ సరఫరా సంస్థాపన

Install your power supply unit (PSU) at the bottom rear of the case. Ensure proper orientation for airflow.

2.2.4 ఎక్స్‌పాన్షన్ కార్డ్ ఇన్‌స్టాలేషన్

The case features 8 expansion slots. Remove the necessary slot covers and install your graphics cards or other expansion cards, securing them with screws.

2.3 శీతలీకరణ వ్యవస్థ

The URBAN S71 comes with preinstalled fans for optimized ventilation:

• 2 x 200mm speed control fans (front and top).
• 1 x 120mm turbo fan (rear).

మూర్తి 2.4: View of the large 200mm fan mounted at the front of the case, providing intake airflow.

మూర్తి 2.5: View of the 200mm fan mounted on the top panel, designed for exhaust airflow.

Additional fan mounting areas are available for customization.

2.4 కేబుల్ నిర్వహణ

Utilize the cutouts and space behind the motherboard tray for efficient cable routing. This improves airflow and maintains a clean interior appearance.

చిత్రం 2.6: వెనుక view of the case, illustrating the expansion slots, rear fan mount, and rubber grommets for external liquid cooling tubes, which also aid in cable management.

3. ఆపరేటింగ్

3.1 Front Panel I/O Ports

The top front panel provides convenient access to:

• 2 x USB 3.0 ports for high-speed data transfer.
• 2 x USB 2.0 ports for standard connectivity.
• HD microphone and headset jacks.
• Power and Reset buttons.

3.2 Top-Mounted HDD Docking Station

The case features a top-mounted 2.5" or 3.5" HDD Docking Station for quick and easy hot-swapping of drives.

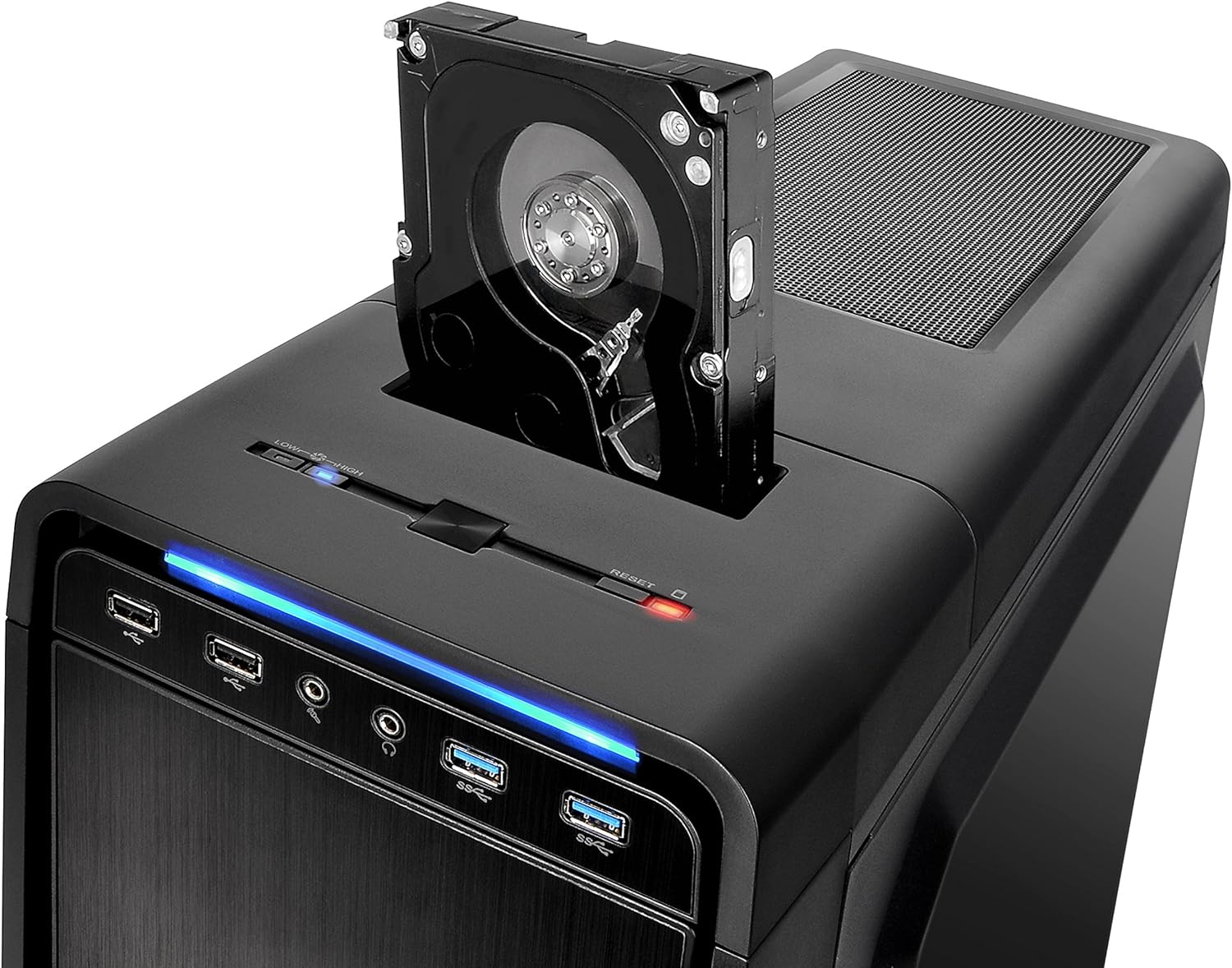

Figure 3.1: Close-up of the top-mounted HDD docking station, showing a hard drive inserted for quick access and data transfer.

1. Ensure your system supports hot-swapping for optimal functionality.
2. Gently insert a 2.5" or 3.5" SATA drive into the slot until it clicks into place.
3. To remove, gently pull the drive upwards.

4. నిర్వహణ

4.1 డస్ట్ ఫిల్టర్ క్లీనింగ్

The URBAN S71 is equipped with removable dust filters to prevent dust buildup inside the case, which can affect component performance and longevity. Regular cleaning is recommended.

Figure 4.1: The removable dust filter located on the top panel, designed to prevent dust from entering the case through the top fan mounts.

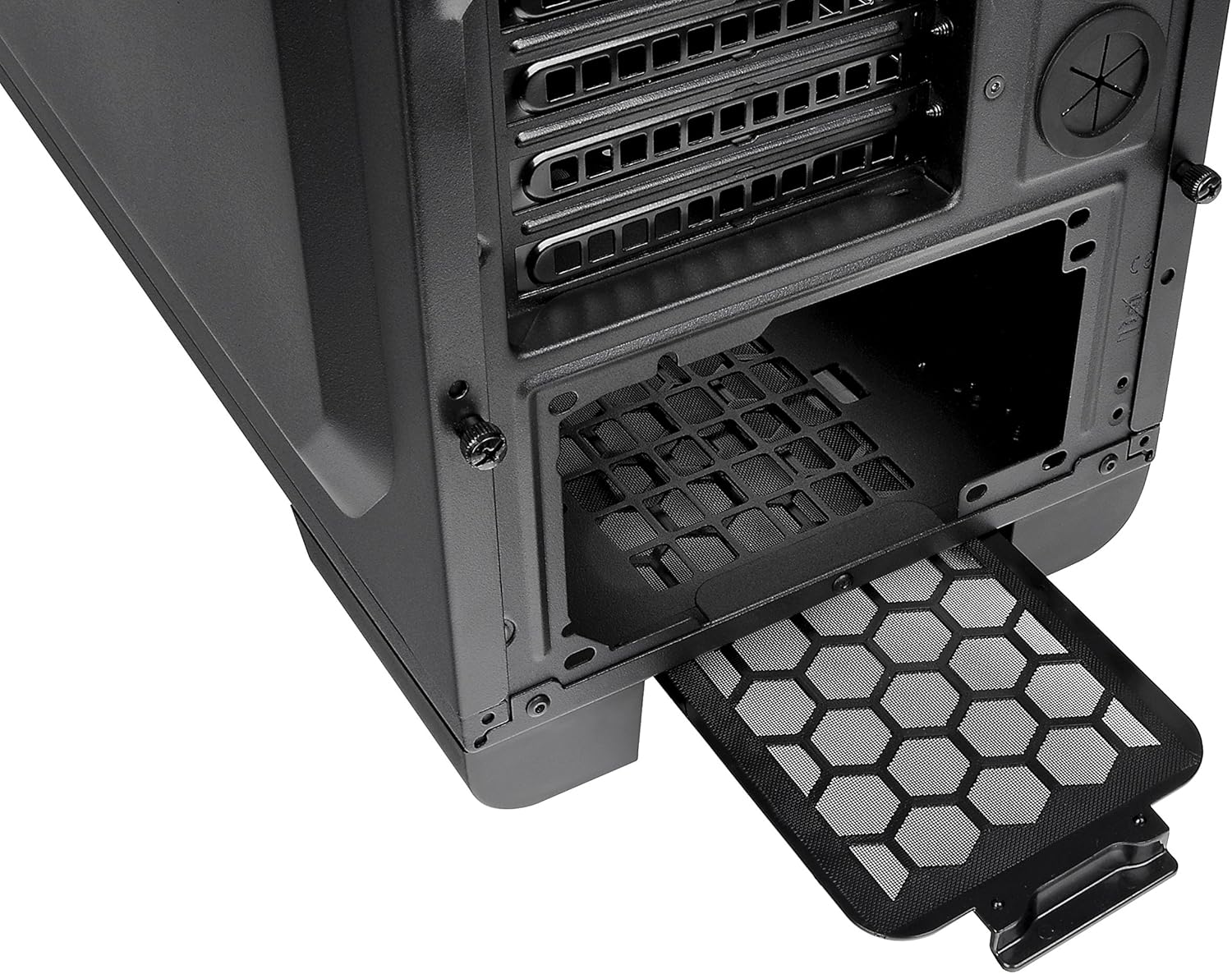

Figure 4.2: The removable dust filter located at the bottom of the case, protecting the power supply and optional bottom fan from dust.

1. Gently slide out the dust filters from their respective slots (top and bottom).
2. Clean the filters using compressed air or by rinsing them with water. Ensure they are completely dry before reinserting.
3. Reinsert the filters into their slots.

4.2 సాధారణ శుభ్రపరచడం

కేస్ బాహ్య భాగాన్ని మృదువైన, d వస్త్రంతో తుడవండి.amp వస్త్రం. ముగింపుకు హాని కలిగించే కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను ఉపయోగించడం మానుకోండి.

5. ట్రబుల్షూటింగ్

5.1 విద్యుత్ సమస్యలు

• శక్తి లేదు: Ensure the power supply is properly connected to the motherboard and all components. Check that the power button cable from the case is correctly connected to the motherboard's front panel header.
• తిరుగుతున్న ఫ్యాన్లు: Verify that all fan cables are securely connected to the motherboard or fan controller.

5.2 USB పోర్ట్‌లు పనిచేయడం లేదు

• Check that the USB 3.0 and USB 2.0 cables from the front panel are correctly connected to the corresponding headers on your motherboard.

5.3 HDD Docking Station Not Detected

• Ensure the SATA data and power cables for the docking station are securely connected to your motherboard and power supply.
• Verify that hot-swapping is enabled in your motherboard's BIOS/UEFI settings if you encounter detection issues.

6. స్పెసిఫికేషన్లు

Below are the technical specifications for the Thermaltake URBAN S71 Window Full Tower Computer Case (VP500M1W2N).

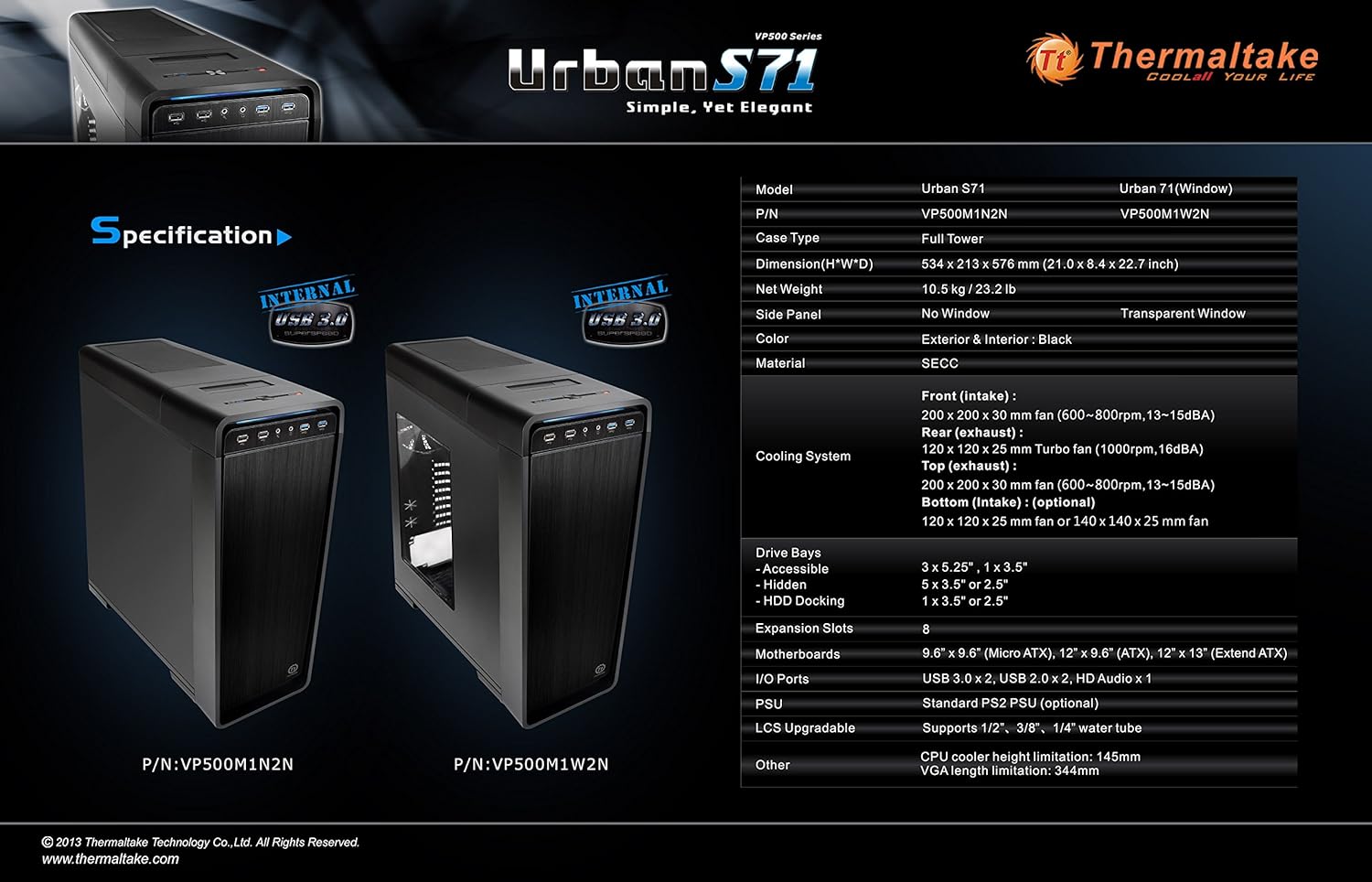

Figure 6.1: Official specification diagram for the Thermaltake URBAN S71, detailing dimensions, drive bays, cooling system, and I/O ports.

7. వారంటీ మరియు మద్దతు

7.1 వారంటీ సమాచారం

Please refer to the warranty card included with your product or visit the official Thermaltake webవివరణాత్మక వారంటీ నిబంధనలు మరియు షరతుల కోసం సైట్‌ను చూడండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

7.2 సాంకేతిక మద్దతు

For technical assistance, troubleshooting beyond this manual, or inquiries about replacement parts, please contact Thermaltake customer support. You can find contact information on the official Thermaltake webసైట్: www.thermaltake.com.
