The Argo ARM-6P is a robust Six Zone Control Switching Relay designed for efficient management of heating zones. This unit features an electronic fuse with auto-reset capability and a powerful 30VA transformer, capable of handling up to 15 zones when used with compatible add-on modules. Its double-sided printed circuit board construction ensures reliability, having been 100% factory tested.

Key features include separate isolated switch and ZC/ZR relays to protect the boiler aquastat, a diagnostic light for easy troubleshooting, switchable priority, and a priority safety timer to ensure all zones receive heat and prevent freeze-ups. A 5-second time delay for boiler shut-off is also integrated. The unit operates on 120V/60Hz power.

Image: The Argo ARM-6P Six Zone Control Switching Relay, showing its black casing and clear window for viewing internal components.

సంస్థాపన మరియు సెటప్

ముఖ్యమైన: Installation of the Argo ARM-6P should only be performed by a qualified electrician or HVAC technician. Ensure all local electrical codes and safety regulations are followed. Disconnect power to the heating system before beginning installation.

మౌంటు

Select a suitable location near the boiler or heating system, ensuring adequate ventilation and protection from moisture. Securely mount the relay unit to a wall or panel using appropriate fasteners.

వైరింగ్

The ARM-6P is designed for 120V/60Hz operation. Connect the main power supply to the designated terminals. Connect the thermostat wires for each zone to the corresponding zone terminals. Ensure proper polarity for all connections. The unit features separate isolated switch and ZC/ZR relays for boiler aquastat protection.

The 30VA transformer is robust enough to handle up to 15 zones, which can be achieved by integrating Plug-in, Add-on Modules (AD-1 or AD-4) if more than six zones are required. Refer to the wiring diagram provided with the physical product for detailed connection instructions.

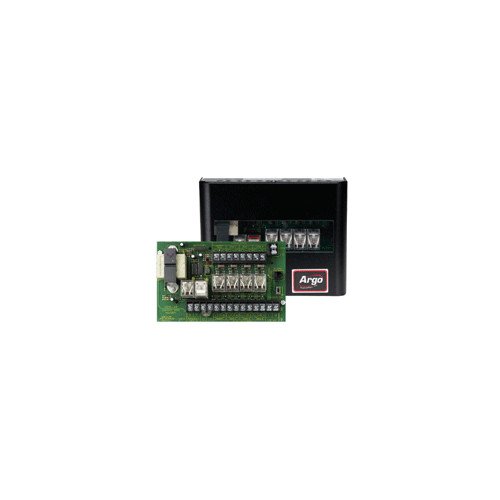

Image: The internal circuit board of the Argo ARM-6P relay, showing the various terminals and electronic components for zone control.

ఆపరేటింగ్ సూచనలు

పవర్ ఆన్

Once installation is complete and verified, restore power to the heating system. The ARM-6P will power on. The electronic fuse will auto-reset if a temporary overload occurs.

జోన్ కంట్రోల్

Each connected thermostat will signal its respective zone on the ARM-6P. When a thermostat calls for heat, the corresponding relay on the ARM-6P will activate, sending a signal to the boiler.

Switchable Priority

The ARM-6P features a switchable priority setting. This allows a designated zone (e.g., domestic hot water) to take precedence over other heating zones when calling for heat. Consult the physical product's internal settings or manual for how to configure this feature.

Priority Safety Timer

To prevent other zones from being without heat for extended periods, the unit includes a priority safety timer. This timer ensures that even if a priority zone is continuously calling for heat, other zones will receive heat every 30 minutes. This also helps prevent freeze-ups in non-priority zones.

Boiler Shut-off Delay

A 5-second time delay is incorporated for boiler shut-off. This feature helps to optimize boiler operation and prevent short cycling.

నిర్వహణ

The Argo ARM-6P is designed for reliable, maintenance-free operation. Its double-sided printed circuit board construction and 100% factory testing contribute to its durability.

• ఆవర్తన తనిఖీ: Annually, or as part of routine HVAC system maintenance, visually inspect the unit for any signs of damage, loose connections, or excessive dust accumulation.
• శుభ్రపరచడం: If dust is present, gently clean the exterior of the unit with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure power is disconnected before cleaning.
• Electronic Fuse: The unit features an auto-resetting electronic fuse, eliminating the need for manual fuse replacement.

ట్రబుల్షూటింగ్

The ARM-6P includes a Relay Diagnostic Light, which can assist in identifying operational issues. This light is easily visible through the window on the cover.

For complex issues or if troubleshooting steps do not resolve the problem, contact a certified HVAC technician or the manufacturer's support.

స్పెసిఫికేషన్లు

• మోడల్: ARM-6P
• బ్రాండ్: ARGO
• ఇన్పుట్ వాల్యూమ్tage: 120V / 60Hz
• ట్రాన్స్ఫార్మర్ రేటింగ్: 30VA
• మండలాల సంఖ్య: 6 (expandable up to 15 with AD-1 or AD-4 add-on modules)
• ప్రస్తుత రేటింగ్‌ని సంప్రదించండి: 6 Amps
• ఫ్యూజ్ రకం: Electronic, Auto-Reset
• నిర్మాణం: Double-sided printed circuit board
• ఫీచర్లు: Relay Diagnostic Light, Switchable Priority, Priority Safety Timer (30 min), 5-second boiler shut-off delay, Isolated switch & ZC/ZR relays.
• వస్తువు బరువు: 2 పౌండ్లు

వారంటీ మరియు మద్దతు

Information regarding the specific warranty terms for the Argo ARM-6P Six Zone Control Switching Relay was not available in the provided product data. For detailed warranty information, please refer to the documentation included with your product or visit the official ARGO manufacturer's webసైట్.

For technical support, installation assistance, or service inquiries, please contact ARGO customer service or a certified HVAC professional.
