1.1 ఉత్పత్తి ముగిసిందిview
The Bogen BG-NR100 Night Ringer is an essential component for integrating telephone ringing into a paging or public address system. It is engineered to detect incoming telephone ring signals or external contact closures and generate a loud, clear electronic ringer tone. Its compact design and low current draw make it an efficient and reliable solution for various commercial and industrial applications.
1.2 ముఖ్య లక్షణాలు
- Responds to 90V ring signals or external contact closures.
- Produces a clear dual-frequency electronic ringer tone.
- Easily connects to any standard paging system.
- Automatically mutes background music while ringing.
- Features a 0-level ringer volume control for adjustable output.
- Compact size for convenient installation.
- Low current draw for energy efficiency.
2. భద్రతా సమాచారం
Please read all safety instructions carefully before installing or operating the Bogen BG-NR100 Night Ringer. Failure to follow these instructions may result in electric shock, fire, or other hazards.
2.1 సాధారణ భద్రతా జాగ్రత్తలు
- ఈ పరికరాన్ని వర్షం లేదా తేమకు బహిర్గతం చేయవద్దు.
- ఏ వెంటిలేషన్ ఓపెనింగ్లను నిరోధించవద్దు.
- రేడియేటర్లు, హీట్ రిజిస్టర్లు, స్టవ్లు లేదా వేడిని ఉత్పత్తి చేసే ఇతర ఉపకరణాలు వంటి ఏదైనా ఉష్ణ వనరుల దగ్గర ఇన్స్టాల్ చేయవద్దు.
- తయారీదారు పేర్కొన్న జోడింపులు/యాక్సెసరీలను మాత్రమే ఉపయోగించండి.
- అన్ని సేవలను అర్హత కలిగిన సేవా సిబ్బందికి సూచించండి.
2.2 విద్యుత్ భద్రత
- విద్యుత్ సరఫరా వాల్యూమ్ నిర్ధారించుకోండిtage matches the requirements specified for the device.
- Disconnect power before making any connections or performing maintenance.
- Avoid touching exposed wires or terminals when the unit is powered.
- సురక్షితమైన ఆపరేషన్ కోసం సరైన గ్రౌండింగ్ అవసరం.
3. సెటప్
3.1 అన్ప్యాకింగ్
Carefully remove the Night Ringer from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. If damage is found, contact your supplier immediately.
3.2 మౌంటు

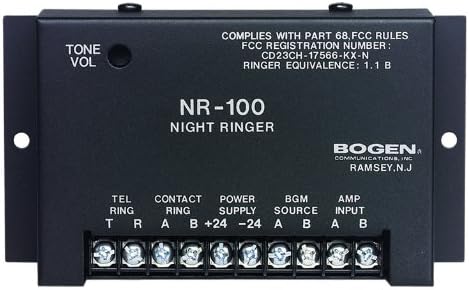

The BG-NR100 is designed for surface mounting. Use appropriate screws (not supplied) to secure the unit to a wall or other stable surface using the mounting tabs on either side of the enclosure. Ensure the mounting location allows for adequate ventilation and access to connections.
3.3 వైరింగ్ కనెక్షన్లు
All connections are made via the screw terminal block located on the front of the unit. Ensure power is disconnected before making any wiring connections.
| టెర్మినల్ లేబుల్ | వివరణ | ఫంక్షన్ |
|---|---|---|
| TEL RING (T, R) | Telephone Ring Input | Connect to the tip (T) and ring (R) lines of a standard 90V telephone ring signal source. |
| CONTACT RING (A, B) | External Contact Closure Input | Connect to a dry contact closure (e.g., from a relay or switch) to trigger the ringer. |
| POWER SUPPLY (+24, -24) | పవర్ ఇన్పుట్ | Connect to a regulated 24V DC power supply. Observe polarity (+24V to +24, -24V to -24). |
| BGM SOURCE (A, B) | నేపథ్య సంగీతం ఇన్పుట్ | Connect the background music source here. The unit will mute this input during a ring event. |
| AMP INPUT (A, B) | Amplifier Input / Output to Paging System | Connect this output to the input of your paging amplifier or public address system. This carries the ringer tone and the muted BGM. |
4. ఆపరేటింగ్
4.1 ప్రాథమిక ఆపరేషన్
Once properly connected and powered, the BG-NR100 will automatically detect an incoming 90V telephone ring signal or a closure on the Contact Ring terminals. Upon detection, the unit will generate a dual-frequency electronic ringer tone and simultaneously mute any background music connected to the BGM Source input. The ringer tone will be sent to the Amp Input terminals for connection to your paging system.
4.2 వాల్యూమ్ నియంత్రణ
The ringer volume can be adjusted using the TONE VOL knob located on the top left of the unit. Rotate the knob clockwise to increase the volume and counter-clockwise to decrease it. Adjust the volume to a suitable level for your environment.
5. నిర్వహణ
5.1 శుభ్రపరచడం
To clean the unit, wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners. Ensure the unit is powered off and disconnected from all sources before cleaning.
5.2 సాధారణ సంరక్షణ
The BG-NR100 is designed for reliable operation and requires minimal maintenance. Ensure it is installed in a location free from excessive dust, moisture, and extreme temperatures. Periodically check all wiring connections to ensure they are secure.
6. ట్రబుల్షూటింగ్
If you experience issues with your Bogen BG-NR100 Night Ringer, refer to the following table for common problems and solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| No ringer tone output. | యూనిట్కు పవర్ లేదు. | Check power supply connections and ensure 24V DC is present. |
| Incorrect or no input signal (TEL RING or CONTACT RING). | Verify 90V ring signal on TEL RING or proper contact closure on CONTACT RING. | |
| Volume knob set too low. | Adjust the TONE VOL knob clockwise. | |
| Ringer tone is distorted or weak. | Improper connection to paging ampజీవితకాలం. | నిర్ధారించండి AMP INPUT is correctly connected to the amplifier input. Check ampలైఫైయర్ సెట్టింగులు. |
| Background music does not mute. | BGM SOURCE not connected correctly. | Verify BGM SOURCE connections. Ensure the music source is routed through the Night Ringer. |
If the problem persists after attempting these solutions, please contact Bogen technical support or a qualified service technician.
7. స్పెసిఫికేషన్లు
Technical specifications for the Bogen BG-NR100 Night Ringer:
| గుణం | విలువ |
|---|---|
| తయారీదారు | బోజెన్ |
| బ్రాండ్ | బోగెన్ |
| మోడల్ సంఖ్య | BG-NR100 |
| వస్తువు బరువు | 1 పౌండ్ |
| ఉత్పత్తి కొలతలు | 1 x 5 x 3 అంగుళాలు |
| FCC Registration Number | CD23CH-17566-KX-N |
| రింగర్ సమానత్వం | 1.1 బి |
| మొదటి తేదీ అందుబాటులో ఉంది | నవంబర్ 27, 2013 |
8. వారంటీ మరియు మద్దతు
8.1 వారంటీ సమాచారం
For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Bogen website. Bogen Communications, Inc. typically provides a limited warranty against defects in materials and workmanship for a specified period from the date of purchase.
8.2 సాంకేతిక మద్దతు
If you require technical assistance or have questions regarding the installation or operation of your BG-NR100 Night Ringer, please contact Bogen technical support. Contact information can usually be found on the Bogen webసైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్లో.
