Axiom 2-Pack Ni-MH Rechargeable Battery Instruction Manual

1. పరిచయం

This manual provides comprehensive instructions for the safe and effective use of your Axiom 2-Pack Ni-MH rechargeable batteries. These batteries are designed as replacements for various V-Tech cordless phone models, ensuring reliable power and extended talk time.

ప్యాకేజీ విషయాలు:

• 2x Axiom Ni-MH Rechargeable Batteries (850mAh, 2.4V)

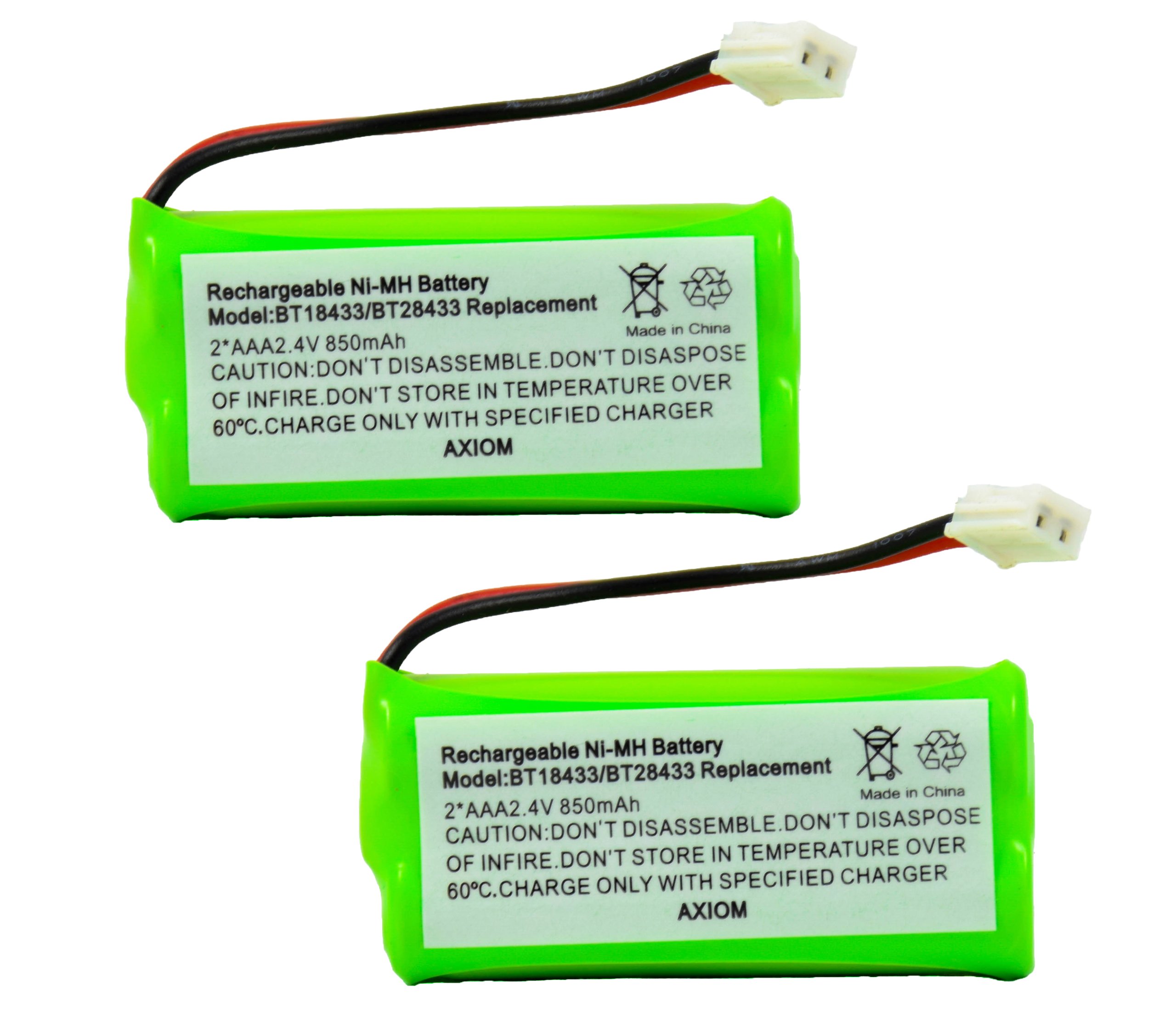

మూర్తి 1: Two green Axiom Ni-MH rechargeable batteries. Each battery is labeled with 'Rechargeable Ni-MH Battery', 'Model: BT18433/BT28433 Replacement', '2*AAA 2.4V 850mAh', and safety cautions regarding disassembly, disposal, fire, temperature, and charging. The batteries feature a white connector with red and black wires.

2. భద్రతా సమాచారం

Please read and adhere to the following safety guidelines to prevent damage to the batteries, your device, or personal injury:

• DO NOT DISASSEMBLE: Attempting to open or modify the battery can lead to hazardous situations.
• DO NOT DISPOSE OF IN FIRE: బ్యాటరీలను మంటల్లో పారవేస్తే అవి పేలవచ్చు లేదా లీక్ కావచ్చు.
• DO NOT STORE IN TEMPERATURES OVER 60°C (140°F): అధిక ఉష్ణోగ్రతలు బ్యాటరీ పనితీరును దిగజార్చుతాయి మరియు భద్రతా ప్రమాదాన్ని కలిగిస్తాయి.
• CHARGE ONLY WITH SPECIFIED CHARGER: Use only the charger provided with your cordless phone or a compatible charger designed for Ni-MH batteries.
• ఓవర్-వాల్యూమ్TAGE AND SHORT-CIRCUIT PROTECTION: These batteries are equipped with protection features, but always handle them with care to avoid short circuits.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps to correctly install the new Axiom rechargeable battery into your V-Tech cordless phone:

1. బ్యాటరీ కంపార్ట్‌మెంట్‌ను గుర్తించండి: On most V-Tech cordless phones, the battery compartment is located on the back of the handset. Refer to your phone's original manual if you cannot locate it.
2. పాత బ్యాటరీని తీసివేయండి: Carefully open the battery compartment cover. Disconnect the old battery's connector from the phone's socket and remove the battery.
3. కొత్త బ్యాటరీని చొప్పించండి: Connect the new Axiom battery's connector to the phone's socket. Ensure the connector is properly aligned and securely inserted.
4. బ్యాటరీ స్థానం: Place the new battery into the compartment, ensuring wires are not pinched.
5. కంపార్ట్‌మెంట్ మూసివేయండి: బ్యాటరీ కంపార్ట్‌మెంట్ కవర్ సురక్షితంగా స్థానంలో క్లిక్ అయ్యే వరకు దాన్ని మార్చండి.

4. ఆపరేషన్

ప్రారంభ ఛార్జింగ్:

After installing the new battery, place the handset on its charging cradle. For optimal performance, allow the battery to charge continuously for 12-16 hours before its first use, even if the phone indicates a full charge sooner. This conditions the battery for maximum capacity.

రెగ్యులర్ ఉపయోగం మరియు ఛార్జింగ్:

• Return the handset to the charging cradle when not in use to keep the battery fully charged.
• These Ni-MH batteries feature మెమరీ ప్రభావం లేదు, meaning you do not need to fully discharge them before recharging. You can charge them at any time without significantly impacting their lifespan or capacity.

5. నిర్వహణ

Proper care extends the life of your batteries:

• నిల్వ: If storing the batteries for an extended period, keep them in a cool, dry place, away from direct sunlight and extreme temperatures (below 60°C). It is recommended to charge them periodically (e.g., every 3-6 months) to prevent deep discharge.
• శుభ్రపరచడం: Keep the battery contacts and the phone's charging contacts clean and free of dust or debris. Use a dry, soft cloth for cleaning.
• పారవేయడం: When the batteries reach the end of their life, dispose of them responsibly according to local regulations for rechargeable batteries. Do not dispose of them in household waste.

6. ట్రబుల్షూటింగ్

If you experience issues with your phone's power or battery life, consider the following:

• Phone Not Holding Charge:
  • ఛార్జింగ్ క్రెడిల్‌లో హ్యాండ్‌సెట్ సరిగ్గా అమర్చబడిందని నిర్ధారించుకోండి.
  • Verify the charging cradle is connected to a working power outlet.
  • Clean the charging contacts on both the handset and the cradle.
  • Allow for a full 12-16 hour initial charge cycle.
  • If the battery is old, its capacity may have diminished; replacement may be necessary.
• ఫోన్ ఆన్ చేయడం లేదు:
  • Check if the battery is correctly installed and its connector is secure.
  • Ensure the battery has been charged.
  • If the issue persists, the battery may be faulty or completely discharged.

7. స్పెసిఫికేషన్లు

8. Compatible V-Tech Cordless Phone Models

These Axiom batteries are compatible with a wide range of V-Tech cordless phone models, including but not limited to the following series:

• DS6101, DS6111, DS6121, DS6121-3, DS6121-4, DS6121-5, DS6151
• DS6201, DS6211, DS6211-2, DS6221, DS6221-3
• DS6301, DS6321-4
• Other compatible models include: 6010, 6030, 6031, 6032, 6041, 6042, 6043, 6044, 6051, 6052, 6053, 6110, 6111, 6113, 6121, 6122, 6201, 6204, 6205, 6209, 6211, 6215, 6219, 6221, 6222, 6225, 6226, 6228, 6229, 6245, 6301, 6321, 6322, 8300, 8301, 831, CS6209, CS6219 series, CS6229 series, DS3101, DS3111-2, DS6111 series, DS6115-2, DS6121 series, DS6122-5, DS6211 series, DS6221 series, DS6222-4, DS6222-5, DS6321 series, DS6322 series, EMBARQ eGO, ip-8300, ip-831, IS6110, LS6113, LS6204, LS6205, LS6215-2, LS6226-2, LS6245, VS6121-4, VT-6042, VT-6043, VT-6052, VT-6053.
• Also compatible with AT&T/Lucent models: 3101, 3111, AT-3201, AT-3211-2, BT-18433, BT-184342, BT-28433, BT-284342, BT-6010, BT-8000, BT-8001, BT-8300, SL82000 series, TL90078, TL92278, TL92328, TL92378.

For a complete list of compatible models, please refer to the product packaging or contact Axiom customer support.

9. వారంటీ మరియు మద్దతు

Specific warranty information for Axiom products may vary. Please refer to the product packaging or the Axiom official website for details regarding warranty coverage and customer support contact information.

For technical assistance or inquiries, please contact Axiom customer service.
