Radwin RW-7102-2000 IDU-E with 2 TDM Ports User Manual

1. ఉత్పత్తి ముగిసిందిview

The Radwin RW-7102-2000 IDU-E is an Indoor Unit (IDU) designed for telecommunication applications, specifically featuring 2 TDM ports. This unit also includes 2 Ethernet interfaces and external alarm interfaces, providing comprehensive connectivity and monitoring capabilities. It operates with a wide range DC power feed, from -20VDC to -60VDC. Please note that the AC/DC power adaptor (RW-9921-0032) must be ordered separately.

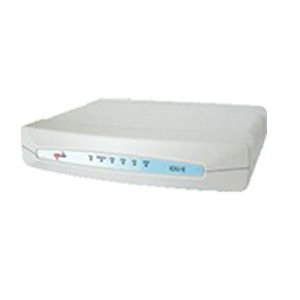

This image displays the Radwin RW-7102-2000 IDU-E, an indoor unit for telecommunications. It is a compact, rectangular device, predominantly white, featuring a series of indicator lights on its front panel. These lights, colored blue and red, provide visual status feedback for the unit's operation. The device is designed for integration into network infrastructure, facilitating data and voice transmission.

ముఖ్య లక్షణాలు:

• 2 TDM ports (RW-9312204050) for traditional telecommunication services.
• 2 Ethernet interfaces for modern IP-based network connectivity.
• External alarm interfaces for system monitoring and fault detection.
• Wide range DC power input: -20VDC to -60VDC.

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

This section provides general guidelines for setting up your Radwin RW-7102-2000 IDU-E. For detailed installation procedures, refer to the comprehensive installation guide provided with your unit or available on the manufacturer's webసైట్.

2.1 అన్‌ప్యాకింగ్ మరియు తనిఖీ

1. Carefully unpack the IDU-E unit from its packaging.
2. Inspect the unit for any signs of physical damage that may have occurred during transit. If damage is found, contact your supplier immediately.
3. ప్యాకింగ్ జాబితాలో జాబితా చేయబడిన అన్ని భాగాలు ఉన్నాయని ధృవీకరించండి.

2.2 శక్తి అవసరాలు

• The IDU-E requires a DC power input ranging from -20VDC to -60VDC.
• An AC/DC power adaptor (model RW-9921-0032) is required for operation but is sold separately. Ensure you have the correct adaptor before proceeding.
• Connect the power adaptor to the designated power input port on the IDU-E.

2.3 Connecting Interfaces

• TDM Ports: Connect your TDM lines to the 2 TDM ports using appropriate cabling.
• ఈథర్నెట్ ఇంటర్‌ఫేస్‌లు: Connect your Ethernet cables to the 2 Ethernet ports for network integration.
• External Alarm Interfaces: If utilizing, connect external alarm systems to the dedicated alarm interfaces for remote monitoring.

3. ఆపరేటింగ్ సూచనలు

Once the Radwin RW-7102-2000 IDU-E is properly installed and powered, it is ready for operation. The unit typically operates autonomously after initial configuration. Configuration details are usually managed via a network management system or direct console access, depending on your network setup.

3.1 పవర్ ఆన్

1. Ensure all necessary cables (power, TDM, Ethernet, alarms) are securely connected.
2. Apply power to the unit via the connected AC/DC adaptor.
3. Observe the indicator lights on the front panel. Refer to the unit's specific documentation for the meaning of each light (e.g., power status, link status, activity).

3.2 ప్రాథమిక ఆపరేషన్

• The IDU-E facilitates the transmission of TDM and Ethernet traffic.
• Monitor the status indicators for normal operation. Green lights typically indicate active links and proper functioning.
• Any red or amber lights, or unexpected blinking patterns, may indicate a fault or an issue requiring attention.

4. నిర్వహణ

The Radwin RW-7102-2000 IDU-E is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.

4.1 సాధారణ సంరక్షణ

• Keep the unit in a clean, dry, and well-ventilated environment.
• Ensure proper airflow around the unit to prevent overheating.
• యూనిట్‌ను తీవ్రమైన ఉష్ణోగ్రతలు, తేమ లేదా ప్రత్యక్ష సూర్యకాంతికి గురికాకుండా ఉండండి.

4.2 శుభ్రపరచడం

• Dust the exterior of the unit periodically with a soft, dry cloth.
• Do not use liquid cleaners or aerosol sprays directly on the unit.

4.3 ఫర్మ్‌వేర్ నవీకరణలు

Periodically check the Radwin support website for available firmware updates. Firmware updates can provide performance enhancements, new features, and security improvements. Follow the manufacturer's instructions carefully when performing firmware updates.

5. ట్రబుల్షూటింగ్

This section provides basic troubleshooting steps for common issues. For more complex problems, consult the detailed technical documentation or contact Radwin support.

5.1 శక్తి లేదు

• పవర్ కనెక్షన్‌ని తనిఖీ చేయండి: Ensure the AC/DC power adaptor is securely connected to both the IDU-E and a working power outlet.
• పవర్ సోర్స్‌ని వెరిఫై చేయండి: Confirm that the power outlet is active.
• Inspect Adaptor: Ensure the correct Radwin AC/DC power adaptor (RW-9921-0032) is being used and that it is not damaged.

5.2 No Link on Ethernet/TDM Ports

• కేబుల్‌లను తనిఖీ చేయండి: Ensure all Ethernet and TDM cables are properly connected and not damaged.
• Verify Peer Device: Confirm that the connected device (e.g., switch, router, TDM equipment) is powered on and functioning correctly.
• సూచిక లైట్లు: Observe the link/activity indicator lights on the IDU-E and the connected device.

5.3 సిస్టమ్ అలారాలు

• If external alarms are triggered or internal alarm indicators are active, consult the detailed product documentation for specific alarm codes and their meanings.
• Address the root cause of the alarm as indicated by the system.

6. స్పెసిఫికేషన్లు

7. వారంటీ సమాచారం

This Radwin RW-7102-2000 IDU-E unit comes with a 3 నెలల వారంటీ from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use conditions. For specific terms, conditions, and claim procedures, please refer to the official warranty documentation provided with your product or contact Radwin customer support.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.

8. మద్దతు

For technical assistance, product inquiries, or to report issues, please contact Radwin customer support. You can typically find support contact information, including phone numbers, email addresses, and online support portals, on the official Radwin webసైట్.

తయారీదారు: Radwin

Webసైట్: www.radwin.com

When contacting support, please have your product model (RW-7102-2000) and serial number ready to expedite assistance.
