TOOLPORT 6x12m PVC Reception Tent Instruction Manual

1. భద్రతా సూచనలు

Please read and understand all safety instructions before assembling and using the TOOLPORT 6x12m PVC Reception Tent. Failure to follow these instructions may result in damage to the tent or personal injury.

• Wind and Snow Loads: This tent has not been tested for specific wind and snow loads. We disclaim all responsibility for damage caused by such conditions.
• అసెంబ్లీ: Always assemble the tent according to the provided instructions.
• మంచు తొలగింపు: In case of light snowfall, immediately remove snow from the roof to prevent accumulation.
• గాలి పరిస్థితులు: If wind increases, use a storm kit (sold separately) to secure the tent. In case of strong gusts or heavy snowfall, it is recommended to temporarily dismantle the tent.
• Static Calculations: For tents with a side height of 2.6m or more, a Safety Pack Plus (providing static calculations for wind and snow resistance limits) can be requested from the manufacturer.
• సాధారణ నిరాకరణ: We disclaim all responsibility for direct and indirect damage caused to persons, animals, and materials. Always observe safety instructions.
• తన్యత బలం: According to DIN EN ISO 13934-1, the tensile strength is determined by an elongation test on a 5 cm wide strip of the tarpaulin. The specified value indicates the tear strength per 5 cm width of the tarpaulin (in the longitudinal direction).

2. ఉత్పత్తి ముగిసిందిview

The TOOLPORT 6x12m PVC Reception Tent is designed to provide a versatile and spacious covered area for various events. It features a robust galvanized steel frame and high-quality PVC tarpaulins, ensuring durability and protection.

ముఖ్య లక్షణాలు:

• High-Quality Tarpaulin: Made from durable PVC 700 N material, featuring a stable, single-element roof.
• Optimal Climate Control: Side panels are equipped with wind deflectors, promoting optimal air circulation and temperature regulation inside the tent.
• దృఢమైన స్టీల్ ఫ్రేమ్: Constructed with galvanized steel tubes (approx. 38mm diameter) and connectors (approx. 42mm diameter) for enhanced stability.
• సురక్షిత అసెంబ్లీ: Features a bolted assembly system with wing screws for strong load resistance and ease of installation.
• సులభమైన సెటప్: Designed for quick assembly with numbered tubes and clear instructions. Includes ground fixation accessories.
• Waterproof and UV Protected: Tarpaulins are 100% waterproof with thermo-welded seams and offer UV protection (UV 50+).
• ఉష్ణోగ్రత నిరోధకత: Suitable for temperatures between -20 °C and +50 °C.

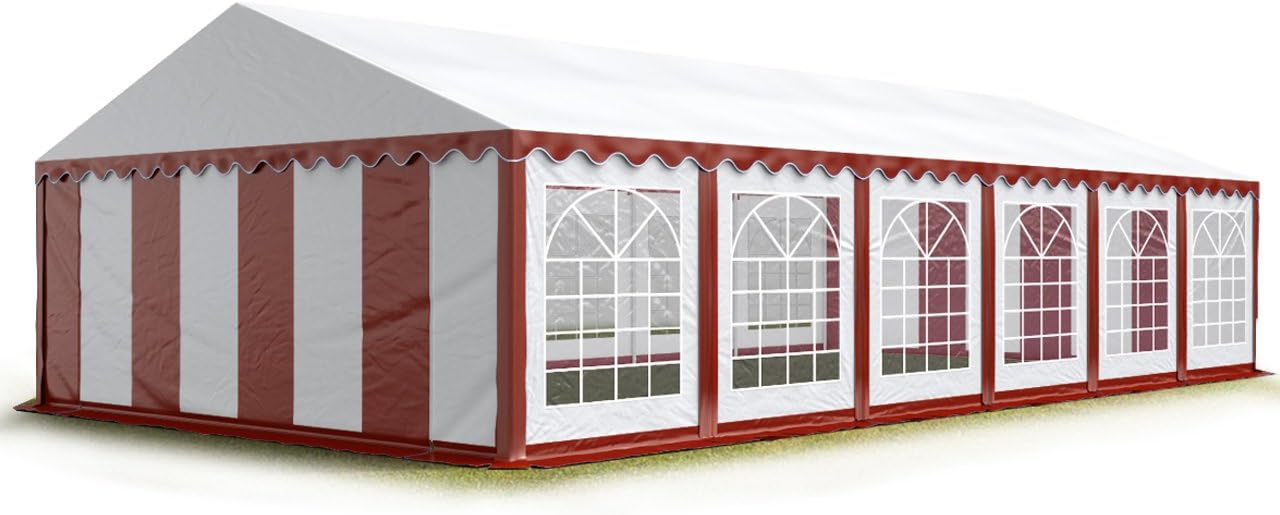

Image 1: The TOOLPORT 6x12m PVC Reception Tent in red and white stripes, fully assembled.

3. భాగాల జాబితా

Before beginning assembly, ensure all components are present and undamaged. Refer to the packing list for detailed part identification.

• Galvanized Steel Frame Structure (tubes and connectors)
• Roof Tarpaulin (one piece)
• Side Tarpaulins (detachable every two meters)
• Gable End Tarpaulins (one with zipper door)
• టెన్షనర్లు
• గ్రౌండ్ పెగ్స్ / స్టేక్స్
• గై రోప్స్
• Wing Screws and Assembly Tools
• అసెంబ్లీ సూచనల మాన్యువల్

Image 2: An illustration detailing the tent's components, highlighting the galvanized steel frame, bolted connections, and PVC tarpaulin features.

4. సెటప్ సూచనలు

Assembly typically requires 3-4 people for tents of this size. Follow the numbered parts and diagrams in the detailed assembly manual provided with your product.

4.1. ఫ్రేమ్ అసెంబ్లీ

1. భాగాలను అన్‌ప్యాక్ చేయండి: Lay out all frame tubes and connectors on a clean, flat surface. Organize them according to their numbering.
2. బేస్ ఫ్రేమ్‌ను సమీకరించండి: Connect the horizontal and vertical base tubes using the appropriate connectors. Ensure all connections are secure with wing screws.
3. నిటారుగా నిలువు మద్దతులు: బేస్ ఫ్రేమ్‌కు నిలువు మద్దతు స్తంభాలను అటాచ్ చేయండి.
4. పైకప్పు నిర్మాణాన్ని వ్యవస్థాపించండి: Connect the roof trusses and ridge poles. The bolted connections ensure a strong and stable structure.

Image 3: Detail of the galvanized steel frame connection, showing the bolted assembly for enhanced stability.

4.2. Tarpaulin Installation

1. Roof Tarpaulin: Carefully drape the one-piece roof tarpaulin over the assembled frame. Ensure it is centered and evenly distributed. The roof tarpaulin features an overhanging panel to block drafts.
2. Side Tarpaulins: Attach the side tarpaulins to the frame. These are designed to be removable every two meters for flexibility.
3. Gable Ends: Install the gable end tarpaulins. One gable end includes a robust zipper door for easy access.

4.3. గుడారాన్ని భద్రపరచడం

1. నేల స్థిరీకరణ: Use the provided ground pegs/stakes to secure the tent's feet to the ground.
2. గై రోప్స్: Attach and tension the guy ropes to further stabilize the tent, especially in windy conditions.

అంచనా వేయబడిన అసెంబ్లీ సమయం:

• For 3m wide tents: 1 to 1.5 hours (2 people)
• For 4m wide tents: 1.5 to 2 hours (3-4 people)
• For 5m wide or larger tents: 2 to 2.5 hours (3-4 people)

చిత్రం 4: ఒక ఓవర్view of side wall and gable end features, along with guidance on calculating available space and estimated assembly times.

5. ఆపరేటింగ్ సూచనలు

Once assembled, the tent provides a functional space. Consider the following for optimal use:

• యాక్సెస్: Utilize the zipper door on the gable end for entry and exit. Ensure it is fully closed when not in use to maintain internal conditions.
• వెంటిలేషన్: The side panels with wind deflectors allow for controlled air circulation. Adjust the side panels as needed to manage airflow and temperature.
• వశ్యత: The side panels are detachable every two meters, offering flexibility to open up sections of the tent or create multiple entrances.

Image 5: Interior perspective of the tent, highlighting the spacious environment and the design of the windowed side panels.

6. నిర్వహణ

Regular maintenance will extend the lifespan of your TOOLPORT reception tent.

• Cleaning Tarpaulins: Clean PVC tarpaulins with mild soap and water. Avoid harsh chemicals or abrasive materials that could damage the PVC coating. Ensure tarpaulins are completely dry before storage to prevent mold and mildew.
• ఫ్రేమ్ తనిఖీ: Periodically inspect the galvanized steel frame for any signs of damage, rust, or loose connections. Tighten any loose wing screws.
• Snow Management: As mentioned in safety instructions, promptly remove any snow accumulation from the roof to prevent structural stress.
• వాతావరణ సంసిద్ధత: In anticipation of strong winds or heavy snowfall, consider temporarily dismantling the tent to prevent damage.
• నిల్వ: When not in use, dismantle the tent and store all components in a dry, protected area away from direct sunlight and extreme temperatures.

7. ట్రబుల్షూటింగ్

ఈ విభాగం మీరు ఎదుర్కొనే సాధారణ సమస్యలను పరిష్కరిస్తుంది.

• డేరా అస్థిరత: Ensure all ground pegs are firmly secured and guy ropes are properly tensioned. Re-check all bolted frame connections. Refer to Section 1 for severe weather precautions.
• నీటి లీకేజీలు: Verify that the roof tarpaulin is correctly positioned and taut. Check for any tears or punctures in the PVC material. The tent features thermo-welded seams for waterproofing.
• ఫ్రేమ్‌ను అసెంబుల్ చేయడంలో ఇబ్బంది: Ensure you are following the numbered parts in the assembly manual. If a part does not fit, do not force it; re-check the diagram for correct orientation.
• తప్పిపోయిన భాగాలు: If any components are missing upon delivery, contact the seller immediately.

8. స్పెసిఫికేషన్లు

Image 6: A dimensional diagram of the tent frame, indicating its length, width, and height measurements.

9. వారంటీ మరియు మద్దతు

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact the seller directly. Information regarding spare parts availability is not explicitly provided in this manual; please inquire with the seller for details.
