1. ఉత్పత్తి ముగిసిందిview
The Legrand On-Q WP3404WH10 is a 4-port single gang keystone wall plate designed to support up to four keystone inserts. This white, screw-in plastic wall plate is suitable for various low-voltage applications, including data, voice, audio, and video connections. It is constructed from high-impact flame-retardant plastic, ensuring durability and safety. The design features a matte finish and is slightly larger than standard wall plates to help cover minor drywall imperfections.
- అనుకూలత: Supports most keystone insert combinations.
- మెటీరియల్: High-impact flame-retardant plastic.
- ముగించు: Matte white.
- కొలతలు: Approximately 4.69 inches (H) x 2.94 inches (W).
- ధృవపత్రాలు: RoHS Compliant, UL Listed (ANSI/UL 1863).
మూర్తి 1: ముందు view of the Legrand On-Q 4-Port Keystone Wall Plate. This image shows the white plastic wall plate with four square openings for keystone inserts and two screw holes for mounting.
2. ఇన్స్టాలేషన్ సూచనలు
This section outlines the steps for installing the Legrand On-Q 4-Port Keystone Wall Plate. Ensure all power is off before beginning any electrical work.
2.1 అవసరమైన సాధనాలు మరియు పదార్థాలు
- స్క్రూడ్రైవర్ (ఫిలిప్స్ హెడ్ సిఫార్సు చేయబడింది)
- తక్కువ వాల్యూమ్tage mounting bracket or single gang wall box
- Keystone inserts (e.g., RJ45, HDMI, Coaxial)
- Associated cabling
2.2 దశల వారీ సంస్థాపన
- వాల్ ఓపెనింగ్ సిద్ధం చేయండి: Ensure a standard single gang wall box or low voltage mounting bracket is properly installed in the wall.
- Install Keystone Inserts: Before mounting the wall plate, snap the desired keystone inserts into the four openings on the wall plate. Ensure they are oriented correctly (not upside down) to avoid difficulty in seating them fully. Apply firm, even pressure until each keystone clicks securely into place.
- Connect Cabling: Connect the appropriate cables to the rear of each keystone insert.
- Mount the Wall Plate: Align the wall plate with the mounting holes of the wall box or bracket. Secure the plate using the provided screws. Do not overtighten.
- పరీక్ష కనెక్షన్లు: Once installed, test all connections to ensure proper functionality.
Figure 2: Installation in progress. A screwdriver is used to secure the wall plate to the wall, with keystone jacks already inserted.

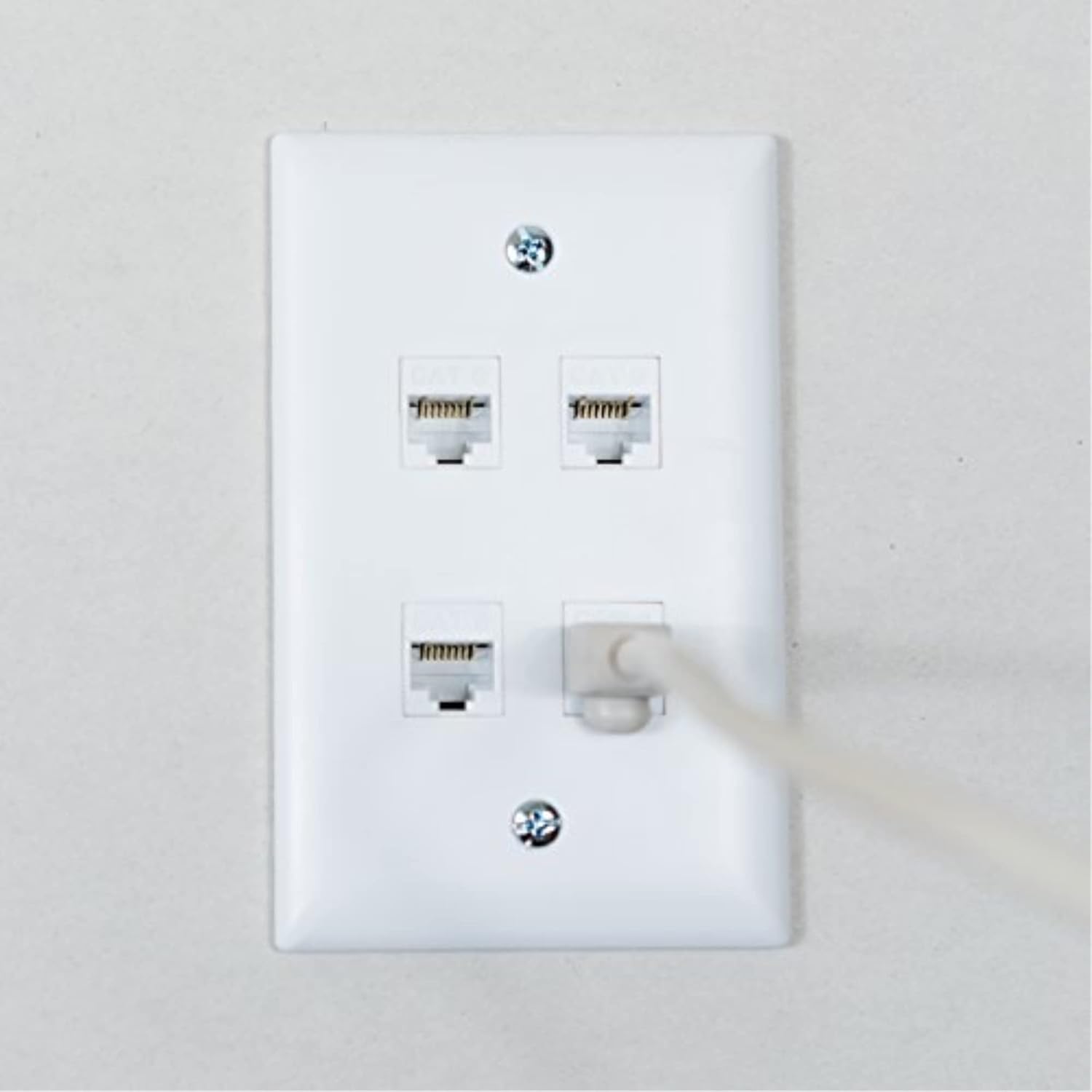

Figure 3: A network cable connected to one of the installed keystone jacks on the wall plate, demonstrating usage.
3. ఆపరేషన్
The Legrand On-Q 4-Port Keystone Wall Plate functions as a passive interface for your keystone-compatible connections. Once installed and populated with keystone inserts, its operation involves simply plugging in the corresponding cables (e.g., Ethernet, HDMI, coaxial) into the front of the keystone jacks.
- కనెక్ట్ చేసే పరికరాలు: Insert the appropriate cable connector into the front port of the keystone jack until it clicks into place.
- పరికరాలను డిస్కనెక్ట్ చేస్తోంది: To remove a cable, gently press the release tab (if present on the connector) and pull the cable straight out. Avoid pulling on the cable itself without releasing the tab to prevent damage to the keystone jack or cable.
4. నిర్వహణ
The Legrand On-Q Keystone Wall Plate requires minimal maintenance to ensure its longevity and appearance.
- శుభ్రపరచడం: మృదువైన, పొడి లేదా కొద్దిగా d ఉపయోగించండిamp cloth to wipe the surface of the wall plate. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- తనిఖీ: Periodically check the wall plate and keystone inserts for any signs of damage or loose connections. Ensure mounting screws remain snug.
5. ట్రబుల్షూటింగ్
ఈ విభాగం ఇన్స్టాలేషన్ లేదా ఉపయోగం సమయంలో తలెత్తే సాధారణ సమస్యలను పరిష్కరిస్తుంది.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Keystone insert does not snap into place easily. |
|
|
| Cables do not connect securely to keystone jacks. |
|
|
| Wall plate appears loose after installation. |
|
|
6. స్పెసిఫికేషన్లు
| గుణం | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | WP3404WH10 |
| బ్రాండ్ | On-Q (Legrand) |
| పోర్టుల సంఖ్య | 4 Keystone openings |
| Gang Type | సింగిల్ గ్యాంగ్ |
| రంగు | తెలుపు |
| మెటీరియల్ | High Impact Flame Retardant Plastic |
| మౌంటు రకం | Screw-In (for Single Gang Wall Box or LV Bracket) |
| Product Dimensions (H x W) | 4.69" x 2.94" |
| ముగింపు రకం | Plastic, Matte |
| ధృవపత్రాలు | UL Listed (ANSI/UL 1863), RoHS Compliant |
| వస్తువు బరువు | 8 ఔన్సులు |
| UPC | 804428121497 |
Figure 4: Diagram showing the approximate dimensions of the wall plate: 4.69 inches in height and 2.94 inches in width.
7. వారంటీ మరియు మద్దతు
For specific warranty information regarding your Legrand On-Q WP3404WH10 wall plate, please refer to the documentation included with your purchase or visit the official Legrand On-Q website. General product support and technical assistance can also be found through the manufacturer's resources.
తయారీదారు: Legrand On-Q
Webసైట్: www.legrand.us/onq (This is a general link, specific support pages may vary)
