హాస్వింగ్ AQUOS 12V 55LBS ట్రోలింగ్ మోటార్ యూజర్ మాన్యువల్

పరిచయం

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Haswing AQUOS 12V 55LBS Transom Mount Electric Trolling Motor. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Figure 1: Haswing AQUOS 12V 55LBS Transom Mount Electric Trolling Motor. This image displays the complete trolling motor assembly, including the motor head, shaft, transom mount bracket, and propeller.

సాంకేతిక లక్షణాలు

సెటప్ మరియు ఇన్‌స్టాలేషన్

1. అన్ప్యాకింగ్ మరియు తనిఖీ

Carefully remove all components from the packaging. Inspect for any signs of damage during transit. Ensure all parts listed in the packing list are present.

2. ట్రోలింగ్ మోటారును అమర్చడం

The Haswing AQUOS trolling motor is designed for transom mounting. Secure the motor to the boat's transom using the integrated clamp bracket. Ensure the clamps are tightened securely to prevent movement during operation.

Figure 2: Tilting Mechanism. This image illustrates the rock-solid aluminum alloy gear lock bracket, which allows for easy deployment and stowing of the motor. The motor can be tilted in and out of the water to adjust for depth or fishing conditions.

3. Adjusting Shaft Length

The shaft length is adjustable to suit various transom heights and water depths. Loosen the depth collar to adjust the shaft to the desired depth, then tighten the collar firmly to secure the shaft in place. The adjustable range is approximately 24.4 inches.

Figure 3: Shaft Length Adjustment. This diagram shows the total shaft length of 35.4 inches and the adjustable portion of approximately 24.4 inches, allowing for customization based on boat type and water depth.

4. బ్యాటరీ కనెక్షన్

Connect the motor's power cables to a 12V deep cycle battery (minimum 105AH recommended). Ensure correct polarity: red to positive (+), black to negative (-). Secure all connections to prevent loose contacts and ensure optimal performance.

ఆపరేటింగ్ సూచనలు

1. Powering On and Speed Control

The motor features five forward speeds and three reverse speeds. Use the control handle to select the desired speed. The variable speed control allows for precise adjustments to match fishing conditions.

Figure 4: Speed Control. This image illustrates the dial for selecting five forward speeds and three reverse speeds, allowing for precise speed adjustments during operation.

2. స్టీరింగ్

The motor offers 360-degree electric steering control. The ergonomic handle is extendable up to 13.7 inches (35cm) for comfortable and convenient steering, especially when seated.

Figure 5: Extendable Handle. This image shows the ergonomic telescoping handle, which extends up to 13.8 inches (approximately 35cm) for enhanced steering comfort and control.

3. బ్యాటరీ పవర్ ఇండికేటర్

A built-in LED power reader allows you to monitor the available battery power at any time, helping you plan your fishing trip effectively and avoid unexpected power loss.

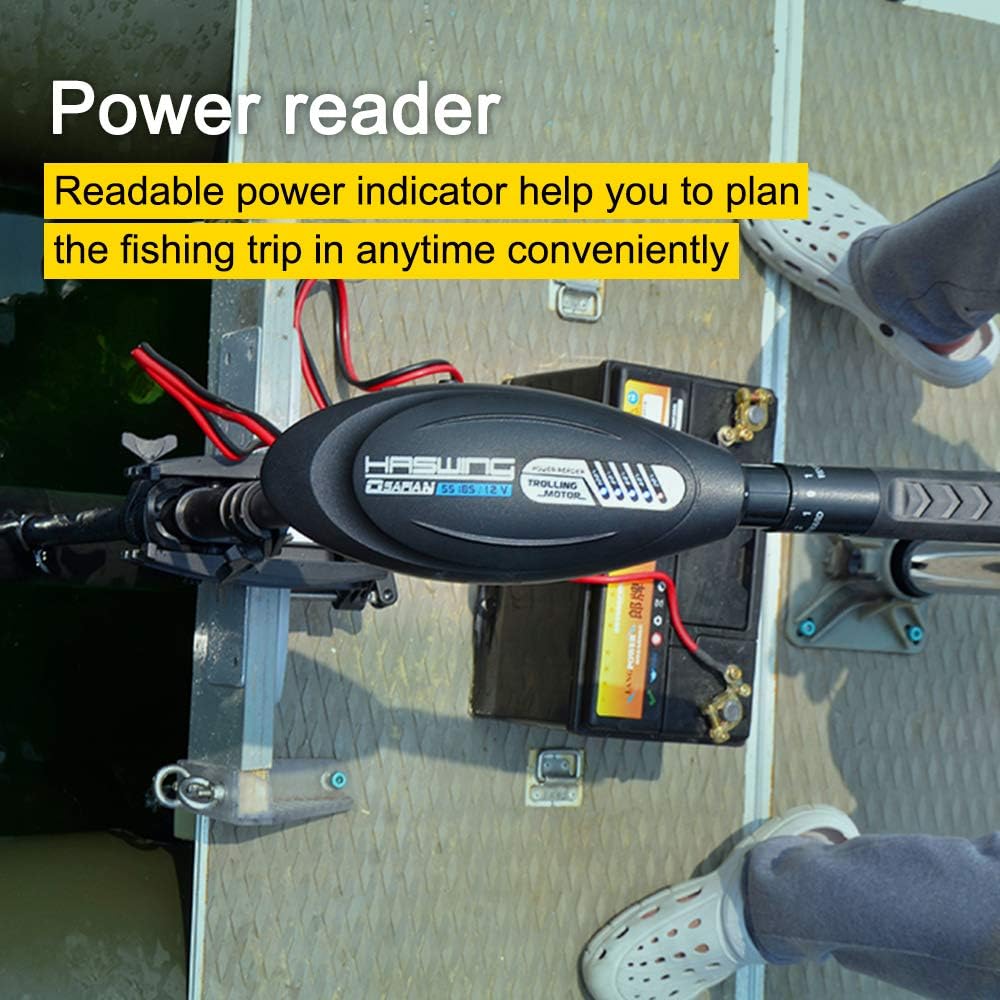

Figure 6: Power Reader. This image highlights the readable power indicator on the motor head, which helps users conveniently check the battery level.

4. మడత హ్యాండిల్

The handle can fold up to 110 degrees, providing more flexible helm positioning and compact storage when not in use or during transport.

Figure 7: Folding Handle. This image demonstrates the 110-degree folding capability of the handle, offering flexible helm positioning and compact storage.

5. నిశ్శబ్ద ఆపరేషన్

The motor is designed for quiet operation, minimizing disturbance to marine life and enhancing the fishing experience.

Figure 8: Quiet Operation. This underwater view shows the propeller and a fish, illustrating the motor's quiet design that helps avoid startling marine life.

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ ట్రోలింగ్ మోటార్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• ప్రతి ఉపయోగం తర్వాత:
  • Rinse the motor, especially the propeller and shaft, with fresh water after each use, particularly in saltwater environments, to prevent corrosion.
  • Inspect the propeller for any fishing line, weeds, or debris. Remove any obstructions to prevent damage to the motor or propeller.
  • అన్ని విద్యుత్ కనెక్షన్లు తుప్పు పట్టడం లేదా వదులుగా ఉన్నాయా అని తనిఖీ చేయండి. అవసరమైన విధంగా శుభ్రం చేసి బిగించండి.
• కాలానుగుణంగా:
  • Inspect the sacrificial anode (if present) for wear. Replace if significantly corroded to protect other metal components.
  • Check the propeller nut for tightness.
  • Lubricate moving parts of the mounting bracket and steering mechanism with a marine-grade lubricant.
• నిల్వ:
  • Store the motor in a dry, cool place when not in use.
  • Disconnect the battery during long-term storage.

ట్రబుల్షూటింగ్

వారంటీ సమాచారం

Haswing products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Haswing webవారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

కస్టమర్ మద్దతు

For technical assistance, spare parts, or any inquiries regarding your Haswing AQUOS Trolling Motor, please contact Haswing customer support through their official webసైట్ లేదా మీ ఉత్పత్తి ప్యాకేజింగ్‌లో అందించిన సంప్రదింపు సమాచారం.

గమనిక: సపోర్ట్‌ను సంప్రదించేటప్పుడు ఎల్లప్పుడూ మీ ఉత్పత్తి మోడల్ నంబర్ (4336339984) మరియు కొనుగోలు తేదీని అందించండి.
