1. ఉత్పత్తి ముగిసిందిview
The SIGLENT SPD3303X is a programmable linear DC power supply designed for precision applications. It features three independently controlled and isolated outputs, providing flexibility for various testing and development needs. The unit is equipped with a 4.3-inch TFT-LCD display, offering clear and accurate readings of 5-digit voltage and 4-digit current.
ముఖ్య లక్షణాలు ఉన్నాయి:
- Programmable linear DC power supply with high stability.
- Three independently controlled and isolated outputs.
- High resolution: 1 mV for voltage మరియు కరెంట్ కోసం 1 mA.
- 4.3-inch TFT-LCD display with 5-digit voltage and 4-digit current readings.
- Channels 1 and 2 are adjustable (0-30V, 0-3.2A), while channel 3 has fixed selections (2.5V, 3.3V, 5V at 3.2A).
- Supports independent, series, and parallel output modes.
- Integrated timing output function for automated sequences.
- Ability to save and recall 5 groups of setting parameters.
- Output short-circuit and overload protection for enhanced safety.
మూర్తి 1.1: ముందు view of the SIGLENT SPD3303X DC Power Supply, showing the display, control knobs, and output terminals.
2. భద్రతా సమాచారం
To ensure safe operation and prevent damage to the instrument or injury to personnel, please observe the following safety precautions:
- మాన్యువల్ చదవండి: పరికరాన్ని ఆపరేట్ చేసే ముందు ఎల్లప్పుడూ ఈ సూచనల మాన్యువల్ని చదివి అర్థం చేసుకోండి.
- శక్తి మూలం: Connect the instrument only to a power source with the specified voltage and frequency. Ensure the power cord is properly grounded.
- పర్యావరణం: Operate the power supply in a dry, well-ventilated area. Avoid operating in environments with excessive dust, humidity, or corrosive gases.
- వెంటిలేషన్: Do not block the ventilation openings on the instrument. Adequate airflow is essential to prevent overheating.
- కనెక్షన్లు: Always disconnect the power cord before making or changing any connections to the output terminals.
- ఓవర్లోడ్ రక్షణ: గరిష్ట వాల్యూమ్ను మించవద్దుtage and current ratings of the power supply or the connected load.
- సర్వీసింగ్: Do not attempt to open the instrument casing or perform any internal adjustments. Refer all servicing to qualified service personnel.
- ఉపకరణాలు: తయారీదారు పేర్కొన్న ఉపకరణాలు మరియు జోడింపులను మాత్రమే ఉపయోగించండి.
3. ఉత్పత్తి భాగాలు
3.1 ఫ్రంట్ ప్యానెల్ ఓవర్view
The front panel provides the main interface for controlling and monitoring the power supply. It includes the TFT-LCD display, control knobs, function buttons, and output terminals for channels 1, 2, and 3.
మూర్తి 3.1: క్లోజ్-అప్ view of the SPD3303X display, showing voltage, current, and power readings for Channel 1 and Channel 2.
3.2 వెనుక ప్యానెల్ ఓవర్view
The rear panel houses the AC power input, cooling fan, and additional terminals for specific configurations or remote control interfaces.
Figure 3.2: Rear panel of the SPD3303X, illustrating the AC power input, cooling fan, and various communication ports.
4. సెటప్
4.1 అన్ప్యాకింగ్ మరియు ప్రారంభ తనిఖీ
Upon receiving your SPD3303X, carefully unpack the instrument and inspect it for any signs of damage that may have occurred during transit. If any damage is found, contact your supplier immediately.
Verify that all standard accessories are included:
- పవర్ కార్డ్
- USB కేబుల్
- టెస్ట్ లీడ్స్
- త్వరిత ప్రారంభ మార్గదర్శి / వినియోగదారు మాన్యువల్
4.2 ప్లేస్మెంట్ మరియు వెంటిలేషన్
Place the power supply on a stable, level surface. Ensure there is sufficient space around the instrument (at least 10 cm on all sides) for proper ventilation. Do not place the unit near heat sources or in direct sunlight.
4.3 పవర్ కనెక్షన్
- Ensure the power switch on the front panel is in the OFF position.
- Connect the provided AC power cord to the power input socket on the rear panel of the instrument.
- పవర్ కార్డ్ యొక్క మరొక చివరను గ్రౌండెడ్ AC పవర్ అవుట్లెట్లోకి ప్లగ్ చేయండి.
4.4 Connecting a Load
Before connecting any load, ensure the power supply is turned off. Connect your load to the appropriate output terminals (CH1, CH2, or CH3) using suitable test leads. Observe correct polarity (red for positive, black for negative).
5. ఆపరేటింగ్ సూచనలు
5.1 ప్రాథమిక ఆపరేషన్
- పవర్ ఆన్: Press the main power switch on the front panel to turn on the instrument. The display will illuminate.
- ఛానెల్ ఎంపిక: Use the CH1, CH2, or CH3 buttons to select the desired output channel for adjustment.
- సెట్టింగ్ వాల్యూమ్tagఇ మరియు ప్రస్తుత: వాల్యూమ్ని తిప్పండిtage and current adjustment knobs to set the desired output values. The 1mV/1mA resolution allows for fine adjustments. Press the 'Fine' button for more precise control.
- Output Enable/Disable: Press the 'ON/OFF' button for the selected channel to enable or disable its output. The 'All ON/OFF' button controls all channels simultaneously.
5.2 అవుట్పుట్ మోడ్లు
The SPD3303X supports three primary output modes:
- స్వతంత్ర మోడ్: Each channel operates as a separate power supply with its own voltagఇ మరియు ప్రస్తుత సెట్టింగ్లు.
- సిరీస్ మోడ్: Channels 1 and 2 can be connected in series to provide a higher output voltage (up to 60V). This mode is useful for applications requiring higher voltage than a single channel can provide.
- సమాంతర మోడ్: Channels 1 and 2 can be connected in parallel to provide a higher output current (up to 6.4A). This mode is suitable for loads requiring more current.

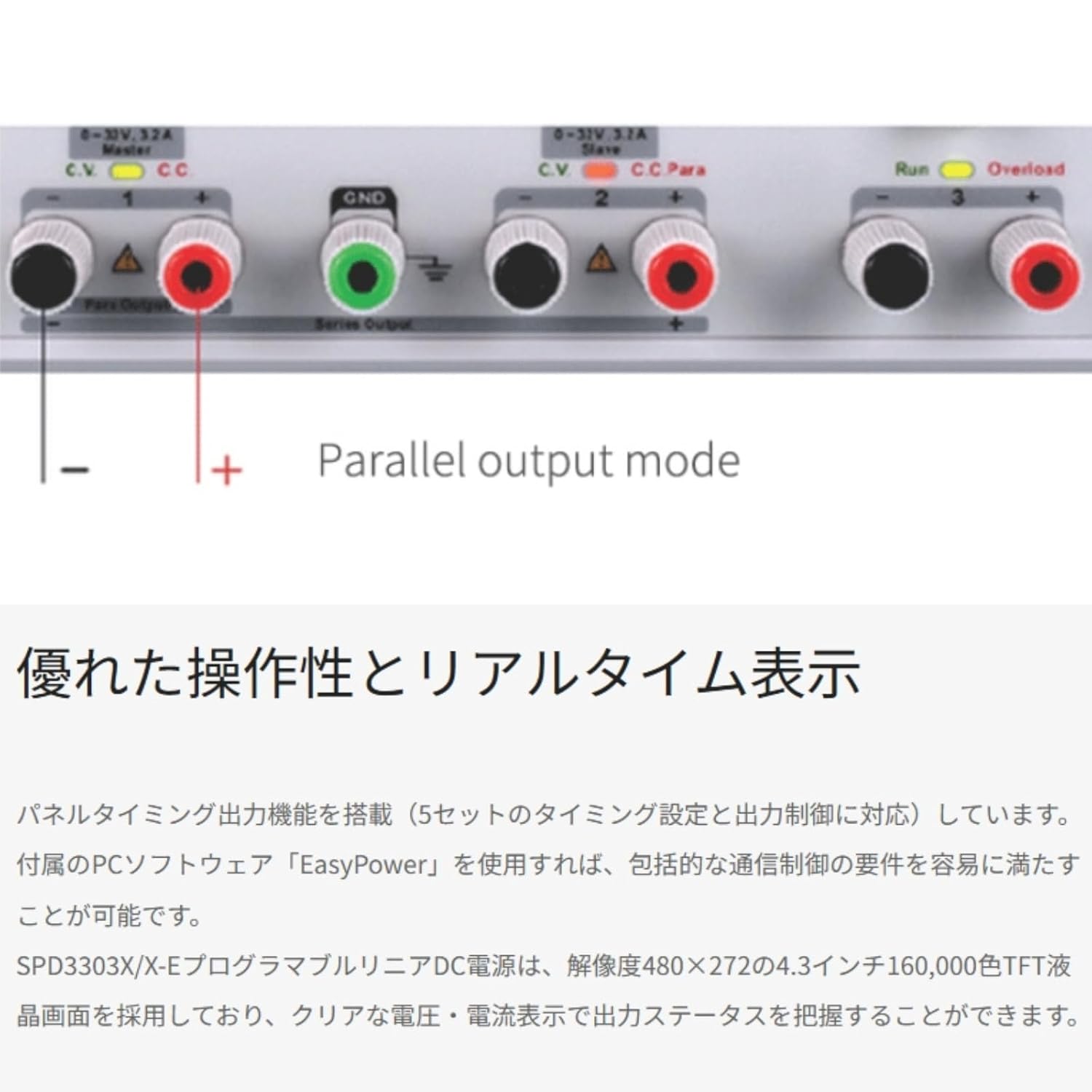

Figure 5.1: Illustration of parallel output mode, showing how Channel 1 and Channel 2 can be combined for increased current output.
5.3 అధునాతన విధులు
- Timing Output Function: The SPD3303X allows users to program up to 5 groups of timing settings for automated output control. This enables the power supply to execute sequences of voltage and current changes over specified durations.
Figure 5.2: The timing output interface on the SPD3303X display, showing programmable steps for voltage, current, and duration.
- Saving and Recalling Settings: The instrument can store up to 5 groups of user-defined settings in its internal memory. These settings can be quickly recalled for repetitive tasks.
- రిమోట్ ప్రోగ్రామింగ్: The SPD3303X supports remote control via USB or LAN interfaces. Siglent's EasyPower PC software can be used to program and monitor the power supply from a computer, offering comprehensive control features.
6. నిర్వహణ
6.1 శుభ్రపరచడం
To maintain the appearance and performance of your power supply, clean the exterior regularly. Use a soft, dry cloth. For stubborn dirt, a cloth lightly dampened with water or a mild detergent can be used. Ensure no liquid enters the instrument. Do not use abrasive cleaners, solvents, or strong chemicals.
6.2 నిల్వ
When not in use for extended periods, store the SPD3303X in a dry, dust-free environment, away from direct sunlight and extreme temperatures. It is recommended to keep the original packaging for safe storage and transport.
7. ట్రబుల్షూటింగ్
This section provides solutions to common issues you might encounter with the SPD3303X DC Power Supply.
- శక్తి లేదు:
- Check if the power cord is securely connected to both the instrument and the AC outlet.
- Verify that the AC outlet is functional.
- Check the fuse on the rear panel (if accessible and user-replaceable).
- అవుట్పుట్ వాల్యూమ్ లేదుtagఇ/ప్రస్తుతం:
- Ensure the individual channel's 'ON/OFF' button is pressed and the output is enabled.
- Check if the 'All ON/OFF' button is enabled.
- వాల్యూమ్ అని ధృవీకరించండిtage and current limits are set above zero.
- Check for any overload or short-circuit conditions on the load. The overload protection may have activated.
- సరికాని రీడింగ్లు:
- పరీక్ష లీడ్లు సరిగ్గా కనెక్ట్ అయ్యాయని మరియు దెబ్బతినకుండా చూసుకోండి.
- Verify the load is connected correctly.
- If persistent, the unit may require calibration. Contact customer support.
- Fan Noise is Excessive:
- Ensure adequate ventilation around the unit. Blocked vents can cause the fan to work harder.
- High ambient temperatures or heavy loads can increase fan speed.
For issues not covered here, please refer to the official Siglent support resources.
8. స్పెసిఫికేషన్లు
The following table lists the key technical specifications for the SIGLENT SPD3303X DC Power Supply:
| స్పెసిఫికేషన్ | విలువ |
|---|---|
| మోడల్ సంఖ్య | SPD3303X |
| బ్రాండ్ | Siglent |
| అవుట్పుట్ ఛానెల్లు | 3 (CH1, CH2 adjustable 0-30V/0-3.2A; CH3 fixed 2.5V/3.3V/5V at 3.2A) |
| అవుట్పుట్ వాట్tage | 220 వాట్స్ (మొత్తం) |
| రిజల్యూషన్ | 1 mV, 1 mA |
| ప్రదర్శించు | 4.3-అంగుళాల TFT-LCD |
| ఉత్పత్తి కొలతలు (L x W x H) | 16 x 14 x 11 అంగుళాలు |
| వస్తువు బరువు | 0.01 ounces (Note: This value appears unusually low and may be a data entry error. Refer to manufacturer's official specifications for accurate weight.) |
| శీతలీకరణ పద్ధతి | గాలి |
| అనుకూల పరికరాలు | Personal Computer (for remote control) |
| తయారీదారు | Siglent Technologies NA Inc. |
9. వారంటీ మరియు మద్దతు
9.1 వారంటీ సమాచారం
For detailed warranty terms and conditions, please refer to the official documentation provided with your SIGLENT SPD3303X DC Power Supply or visit the official Siglent Technologies website. Warranty periods and coverage may vary by region and product.
9.2 కస్టమర్ మద్దతు
If you require technical assistance, have questions about the operation of your device, or need to arrange for service, please contact Siglent Technologies customer support. Contact information can typically be found on the manufacturer's webసైట్ లేదా చేర్చబడిన డాక్యుమెంటేషన్లో.
