పరిచయం
This instruction manual provides essential information for the proper installation, operation, and maintenance of your GeneralAire Genuine OEM Replacement Humidifier Vapor Pad, model GA-23. This vapor pad is designed to ensure optimal performance of your GeneralAire humidifier, specifically models like the 1099LHS and the discontinued model 950.
Regular replacement of the humidifier vapor pad is crucial for maintaining efficient humidification and air quality in your home or building. Please read these instructions thoroughly before proceeding with installation or maintenance.
ఉత్పత్తి ముగిసిందిview
The GeneralAire GA-23 Vapor Pad is a critical component of your bypass or fan-powered humidifier. It is designed to absorb water and provide a large surface area for evaporation, allowing the humidifier to add moisture to the air circulated through your HVAC system.

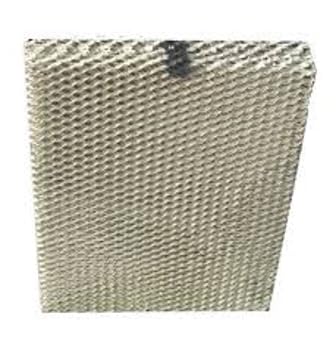

Image: The GeneralAire GA-23 Humidifier Vapor Pad, a rectangular, honeycomb-like structure designed for water absorption and evaporation.
చిత్రం: దగ్గరగా view of the GeneralAire GA-23 Humidifier Vapor Pad, showing its textured surface designed for efficient water distribution.
This genuine OEM replacement pad ensures compatibility and performance consistent with the original specifications of your GeneralAire humidifier.
ఇన్స్టాలేషన్ సూచనలు
Before beginning installation, ensure your humidifier and HVAC system are turned off at the thermostat and the main power supply.
- పవర్ ఆఫ్ చేయండి: Locate the circuit breaker for your furnace/humidifier and switch it to the OFF position. Turn off the water supply valve to the humidifier.
- Access Humidifier: Open the humidifier cover or access panel. This may involve releasing latches or removing screws, depending on your specific humidifier model.
- Remove Old Vapor Pad: Carefully slide out the old vapor pad and its frame (if applicable). Dispose of the old pad responsibly.
- Clean Humidifier: While the pad is removed, it is recommended to clean the humidifier's water distribution tray and drain pan to remove any mineral deposits or debris. Use a mild detergent and water, then rinse thoroughly.
- Install New Vapor Pad: Insert the new GeneralAire GA-23 Vapor Pad into the humidifier, ensuring it is correctly oriented according to your humidifier's design. The pad should fit snugly within its holder.
- మళ్లీ కలపండి: Close and secure the humidifier cover or access panel.
- విద్యుత్ మరియు నీటిని పునరుద్ధరించండి: Turn the water supply valve back on. Restore power to the furnace/humidifier at the circuit breaker.
- పరీక్ష ఆపరేషన్: Set your thermostat to call for heat and humidity (if applicable) to verify proper operation of the humidifier and the new vapor pad. Check for any leaks.
గమనిక: Some users have reported slight variations in pad dimensions. Ensure the pad is properly seated to prevent water bypass. If the pad seems slightly short, ensure careful side-to-side alignment within the holder.
ఆపరేషన్ మరియు నిర్వహణ
ఆపరేషన్
The GA-23 Vapor Pad operates passively within your humidifier. Once installed, water flows over the pad, and the furnace fan circulates air through the moistened pad, adding humidity to your home's air. The humidifier's humidistat controls when the unit operates to maintain your desired humidity level.
Maintenance (Pad Replacement)
The vapor pad should be replaced at least once per heating season, or more frequently in areas with hard water or heavy humidifier usage. Signs that a pad needs replacement include:
- Reduced humidification output.
- Visible mineral buildup or discoloration on the pad.
- Unpleasant odors from the humidifier.
Refer to the "Installation Instructions" section for detailed steps on replacing the vapor pad.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Low Humidity Output | Old, clogged, or improperly installed vapor pad. | Replace the vapor pad. Ensure correct installation and water flow. |
| నీరు లీక్ | Vapor pad not seated correctly. | Re-seat the vapor pad, ensuring it is fully within its frame and aligned. Check water lines for secure connections. |
| అసహ్యకరమైన వాసన | Mineral buildup or mold on the vapor pad or within the humidifier. | Replace the vapor pad and thoroughly clean the humidifier's internal components. |
If issues persist after following these steps, consult your humidifier's main instruction manual or contact a qualified HVAC technician.
స్పెసిఫికేషన్లు
- మోడల్ సంఖ్య: GA23
- పార్ట్ రకం: Humidifier Vapor Pad (Replacement)
- అనుకూలత: GeneralAire 1099LHS Humidifier, Discontinued Model 950, and other compatible GeneralAire models.
- కొలతలు (సుమారుగా): 14.17 x 11.81 x 2.99 inches (as per package dimensions, actual pad size may vary slightly)
- రంగు: Blue, White (referring to the pad material and frame)
- తయారీదారు: జనరల్ఎయిర్
- UPC: 0683786079233
Image: Product packaging for the GeneralAire GA-23 Humidifier Vapor Pad, highlighting its compatibility with the 1099LHS Humidifier and discontinued model 950.
వారంటీ మరియు మద్దతు
As a replacement part, the GeneralAire GA-23 Vapor Pad typically falls under the warranty terms of the original humidifier unit or a limited warranty for the part itself. Please refer to the warranty documentation provided with your GeneralAire humidifier for specific details regarding replacement parts.
For technical support, product inquiries, or to locate authorized service providers, please contact GeneralAire directly through their official webసైట్ లేదా కస్టమర్ సర్వీస్ ఛానెల్లు.
