Franke PKG11031CHA Granite Undermount Single Bowl Sink Instruction Manual

పరిచయం

This manual provides detailed instructions for the installation, operation, maintenance, and care of your Franke PKG11031CHA granite undermount single bowl kitchen sink. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Retain this manual for future reference.

ఉత్పత్తి ముగిసిందిview

The Franke PKG11031CHA is a single bowl kitchen sink constructed from durable granite material, designed for undermount installation. Its Champagne finish offers a refined aesthetic for various kitchen designs.

చిత్రం 1: పై నుండి క్రిందికి view of the Franke PKG11031CHA Champagne granite single bowl sink, featuring a central square drain cover. This image illustrates the sink's overall shape and color.

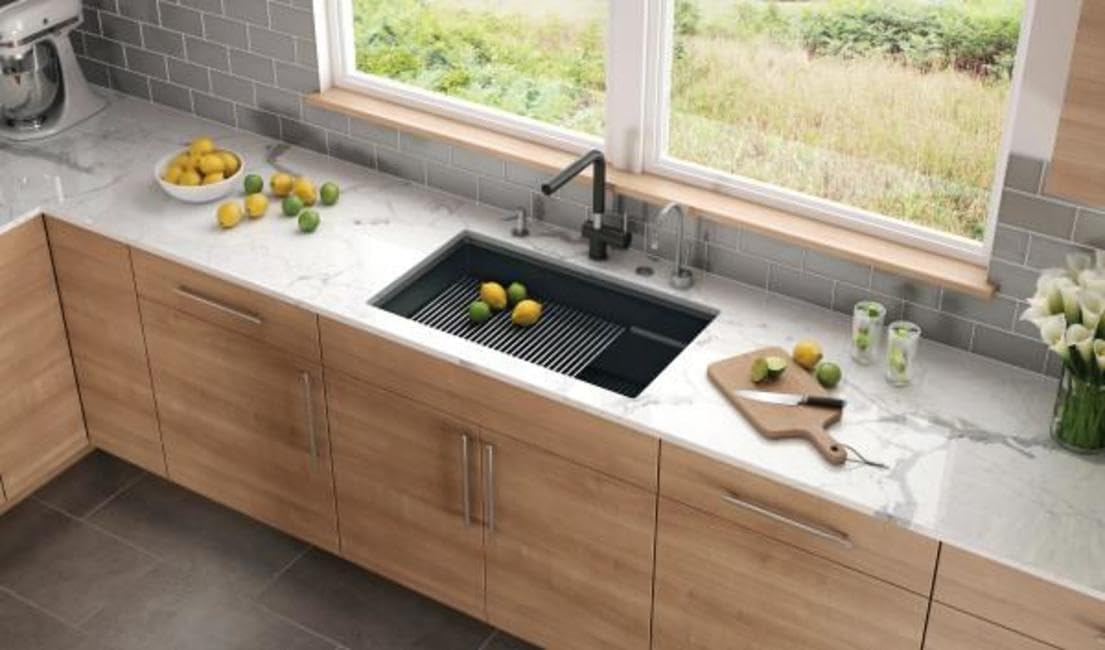

Figure 2: The Franke PKG11031CHA sink shown installed in a kitchen countertop, equipped with a drying rack and other kitchen accessories. This image demonstrates the sink's integration into a functional kitchen space.

Figure 3: The Franke PKG11031CHA sink installed in a kitchen countertop, presented without additional accessories. This view highlights the clean lines and spaciousness of the single bowl design.

భద్రతా సమాచారం

• సంస్థాపన సమయంలో ఎల్లప్పుడూ భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) ధరించండి.
• Ensure all water supply lines are turned off before beginning any installation work.
• Handle the sink with care to avoid damage or injury due to its weight and material.
• Verify that the countertop material and cabinet structure can support the weight of the sink when filled with water.
• Do not use corrosive chemicals or abrasive tools on the sink surface, as this can cause damage.

ఇన్‌స్టాలేషన్ (సెటప్)

The Franke PKG11031CHA sink is designed for undermount installation. Professional installation is recommended to ensure proper fit and sealing.

ప్రీ-ఇన్‌స్టాలేషన్ తనిఖీలు:

• కనిష్ట క్యాబినెట్ పరిమాణం: Ensure your base cabinet has a minimum width of 36 inches to accommodate the sink.
• చేర్చబడిన హార్డ్‌వేర్: All necessary hardware for installation is included with your sink.
• Countertop Cutout: The countertop must have a precise cutout for undermount installation. Consult a professional for accurate measurements and cutting.

ఇన్‌స్టాలేషన్ దశలు (సాధారణ మార్గదర్శకాలు):

1. Carefully position the sink beneath the countertop cutout.
2. Apply a continuous bead of silicone sealant around the rim of the sink where it meets the underside of the countertop.
3. Secure the sink to the countertop using the provided mounting clips and hardware. Tighten evenly to ensure a secure fit.
4. Install the drain assembly into the sink's drain opening (3-1/2 inch connection). Ensure all seals are watertight.
5. Connect the plumbing according to local codes and manufacturer instructions for your specific faucet and drain system.
6. సింక్‌ను ఉపయోగించే ముందు సీలెంట్ పూర్తిగా గట్టిపడనివ్వండి. క్యూరింగ్ సమయాల కోసం సీలెంట్ తయారీదారు సూచనలను చూడండి.

Operation (Usage)

The Franke PKG11031CHA sink functions as a standard kitchen sink for washing dishes, preparing food, and other kitchen tasks. Its single bowl design provides ampపెద్ద వస్తువులకు le స్థలం.

• Ensure the drain stopper is properly seated when filling the sink.
• Avoid dropping heavy or sharp objects into the sink, as this may cause damage to the granite surface.
• Do not pour boiling water directly into the sink without running cold water simultaneously, especially if the sink is cold, to prevent thermal shock.

నిర్వహణ మరియు సంరక్షణ

Proper care will help maintain the appearance and durability of your Franke granite sink.

• రోజువారీ శుభ్రపరచడం: Wipe the sink with a dry cloth after each use to prevent water spots and mineral buildup.
• రెగ్యులర్ క్లీనింగ్: Use a mild soap or a non-abrasive granite cleaner with a soft cloth or sponge. Rinse thoroughly with water and dry.
• నివారించండి:
  • Abrasive cleaners, scouring pads, or steel wool.
  • Harsh chemicals such as oven cleaner, paint stripper, or strong acids/alkalis.
  • Leaving acidic foods (e.g., lemon juice, vinegar) or strong dyes on the surface for extended periods.
• మరక తొలగింపు: For stubborn stains, consult Franke's official care guide or use a specialized granite stain remover, following the product instructions carefully.

ట్రబుల్షూటింగ్

ఈ విభాగం మీ కిచెన్ సింక్‌తో మీరు ఎదుర్కొనే సాధారణ సమస్యలను పరిష్కరిస్తుంది.

• నెమ్మదిగా నీరు కారడం:

  Check for blockages in the drain or P-trap. Use a plunger or a drain snake if necessary. Avoid chemical drain cleaners as they can damage plumbing or the sink finish.
• నీటి మచ్చలు/ఖనిజ నిర్మాణం:

  Regularly wipe the sink dry after use. For existing buildup, use a solution of white vinegar and water (1:1 ratio) applied with a soft cloth, then rinse thoroughly.

• Dull Finish:

  Ensure you are using non-abrasive cleaners. Specialized granite polish or mineral oil can help restore luster, applied sparingly and buffed with a soft cloth.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

Your Franke PKG11031CHA sink is covered by Franke's limited lifetime warranty. This warranty covers manufacturing defects under normal use and service.

For detailed warranty information, claims, or technical support, please visit the official Franke webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. వారంటీ ప్రయోజనాల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

ఫ్రాంకే అఫీషియల్ Webసైట్: www.franke.com
