Premier 1 IntelliShock 10 Fence Energizer Instruction Manual

పరిచయం

This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of your Premier 1 IntelliShock 10 Fence Energizer. Please read all instructions carefully before use to ensure proper functionality and safety.

భద్రతా సమాచారం

• Always disconnect the energizer from the power source before handling or performing any maintenance.
• Do not install the energizer in wet conditions or in areas prone to flooding.
• Ensure proper grounding of the energizer as specified in the setup instructions.
• పిల్లలను మరియు అనధికార సిబ్బందిని విద్యుత్ కంచె నుండి దూరంగా ఉంచండి.
• Avoid touching the fence wires directly when the energizer is active.
• This energizer is designed for animal control and should not be used for any other purpose.
• The energizer is not waterproof. Protect it from direct rain and moisture.

ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని భాగాలు ఉన్నాయని ధృవీకరించండి:

• IntelliShock 10 Energizer (1.0 Joule output)
• 12V leads and wiring harness
• 3 ft. galvanized ground rod
• సూచనల మాన్యువల్ (ఈ పత్రం)

గమనిక: A 12V battery is required for operation and is చేర్చబడలేదు ఈ కిట్‌లో.

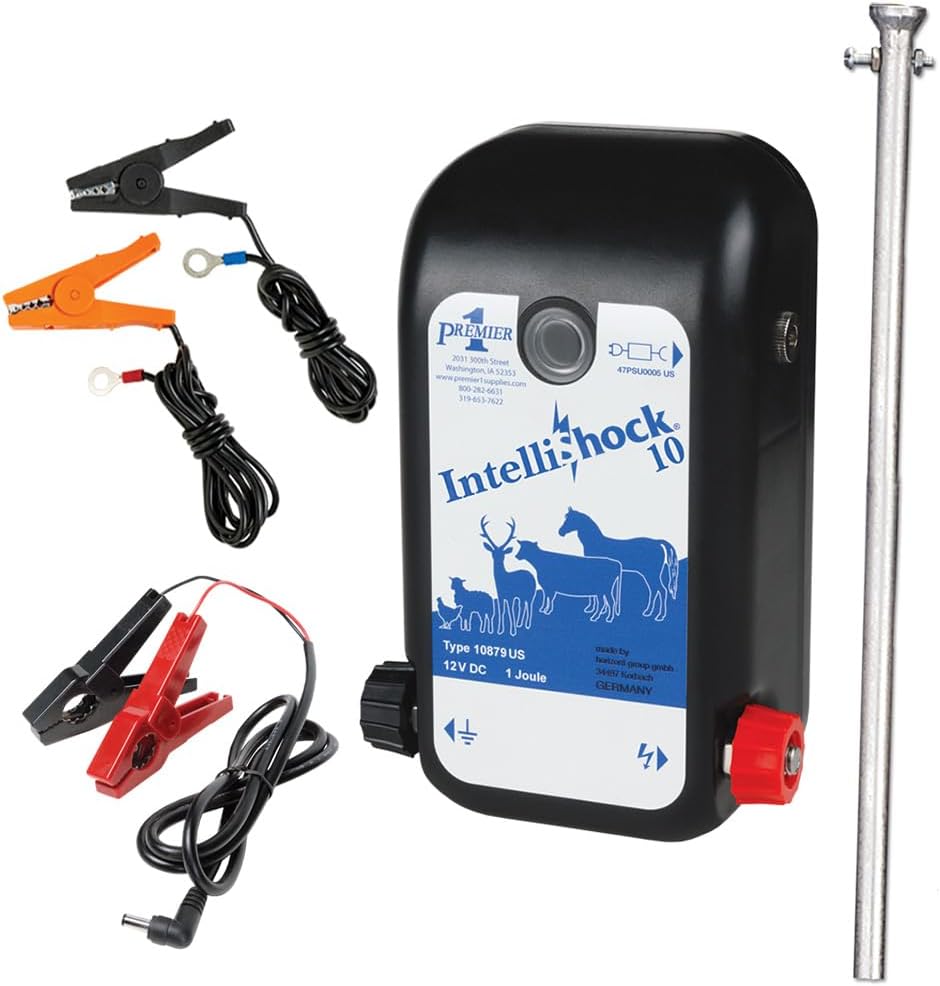

Image: The Premier 1 IntelliShock 10 Fence Energizer shown with its included 12V leads, wiring harness, and a 3-foot galvanized ground rod. The main energizer unit is black with a white label detailing its specifications and animal illustrations.

సెటప్

1. Grounding the Energizer

1. Select a location for the ground rod that is moist and free from debris.
2. Drive the 3 ft. galvanized ground rod fully into the earth.
3. Connect the green (ground) terminal of the energizer to the ground rod using the provided wiring. Ensure a secure connection.

Image: A close-up of the back of the IntelliShock 10 energizer, showing the ground rod inserted into its mounting bracket, ready for installation. The energizer's label with model information is visible.

2. Connecting to the Fence

1. Connect the red (fence) terminal of the energizer to your electric fence line. Use appropriate insulated wire for this connection.
2. Ensure all fence connections are tight and free from corrosion.

Image: The IntelliShock 10 energizer mounted on a fence post, with wires connecting it to the electric fence netting and a ground rod. A dog is visible in the background, demonstrating the fence's purpose.

3. Battery Connection (12V DC)

1. Connect the 12V leads and wiring harness to a suitable 12V deep cycle battery (not included).
2. Ensure correct polarity: red to positive (+), black to negative (-).
3. Connect the other end of the wiring harness to the energizer's 12V input port.
4. For outdoor installations, house the battery and energizer in a protective enclosure to shield them from weather elements.

Image: A Premier 1 IntelliShock 10 energizer integrated into a solar-powered electric fence system. The energizer is housed within a metal box alongside a battery, with a solar panel mounted above to charge the battery. This setup is shown in a grassy outdoor environment.

Image: A Premier 1 IntelliShock 10 energizer and solar panel setup in a winter landscape with snow on the ground. The energizer and battery are protected within a metal enclosure, demonstrating year-round usability.

ఆపరేటింగ్ సూచనలు

పవర్ ఆన్

Once all connections (ground, fence, and battery) are securely made, the IntelliShock 10 energizer will begin to operate. A flashing indicator light on the unit typically confirms operation.

IntelliShock Technology

The IntelliShock 10 features an automatic adjustment system that optimizes battery draw. If the fence is not heavily loaded by weeds or shorts, the unit can reduce battery consumption by up to 67%. This extends the time between battery recharges, especially during periods of low vegetation or dormant grass.

Fence Capacity

The energizer is capable of powering various fence configurations:

• Approximately 2 miles of 3-strand cattle fence.
• Approximately 3/4 mile of 5-7 strand sheep fence.
• Up to 10 of the 164-foot sheep/goat nets.
• Up to 4-5 of the 164-foot poultry nets.

Note: Actual fence distances may vary depending on the amount of grass or weed load on the fence line.

నిర్వహణ

• బ్యాటరీ సంరక్షణ: Regularly check the charge level of your 12V battery. Recharge as needed to ensure continuous operation. The IntelliShock feature helps extend battery life, but periodic recharging is still necessary.
• కలుపు నియంత్రణ: Keep the fence line clear of excessive vegetation. Heavy weed growth can reduce fence effectiveness and increase battery drain.
• కనెక్షన్ తనిఖీలు: Periodically inspect all connections (battery, ground, fence) for corrosion, looseness, or damage. Clean or replace as necessary.
• వాతావరణ రక్షణ: As the energizer is not waterproof, ensure it remains protected from direct rain, snow, and excessive moisture. A suitable weatherproof enclosure is recommended for outdoor installations.

ట్రబుల్షూటింగ్

• No Power/Weak Pulse:
  • Check battery charge. Recharge or replace if low.
  • Inspect all wiring connections for secure contact and correct polarity.
  • Examine the fence line for heavy weed contact or shorts to the ground. Clear any obstructions.
  • Verify the ground rod connection is solid and the rod is adequately driven into moist earth.
• Indicator Light Not Flashing:
  • Confirm the energizer is receiving power from the battery.
  • Check for any visible damage to the energizer unit or its power cord.
• ఊహించని శక్తి నష్టం:
  • This could indicate a severe short on the fence line or a depleted battery. Address these issues as described above.
  • If the power cord or wiring harness shows signs of burning or damage, immediately disconnect the energizer and replace the affected components.

If troubleshooting steps do not resolve the issue, contact Premier 1 Supplies customer support.

స్పెసిఫికేషన్లు

వారంటీ సమాచారం

The Premier 1 IntelliShock 10 energizer comes with a 3 సంవత్సరాల వారంటీ from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact Premier 1 Supplies customer support.

మద్దతు

For technical assistance, replacement parts, or any questions regarding your IntelliShock 10 Fence Energizer, please contact Premier 1 Supplies directly. Visit their official webసంప్రదింపు సమాచారం కోసం సైట్ లేదా మీ కొనుగోలు డాక్యుమెంటేషన్‌ను చూడండి.

మీరు సందర్శించడం ద్వారా మరింత సమాచారం మరియు మద్దతు వనరులను కనుగొనవచ్చు Premier 1 Supplies Store on Amazon.
