InstallGear Car Keyless Entry System User Manual

1. పరిచయం

The InstallGear Car Keyless Entry System provides a convenient and secure way to control your vehicle's door locks and trunk remotely. This system includes a main control unit and two 3-button remote key fobs, designed to enhance your vehicle's accessibility and security features.

చిత్రం 1.1: పైగాview of the InstallGear Keyless Entry System components.

This manual provides essential information for the proper installation, operation, and maintenance of your new keyless entry system. Please read it thoroughly before attempting installation or use.

2. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని అంశాలు మీ ప్యాకేజీలో ఉన్నాయని నిర్ధారించుకోండి:

• 1 x Main Control Unit Module
• 2 x 3-Button Remote Key Fobs
• 1 x Wiring Harness with Integrated Fuse

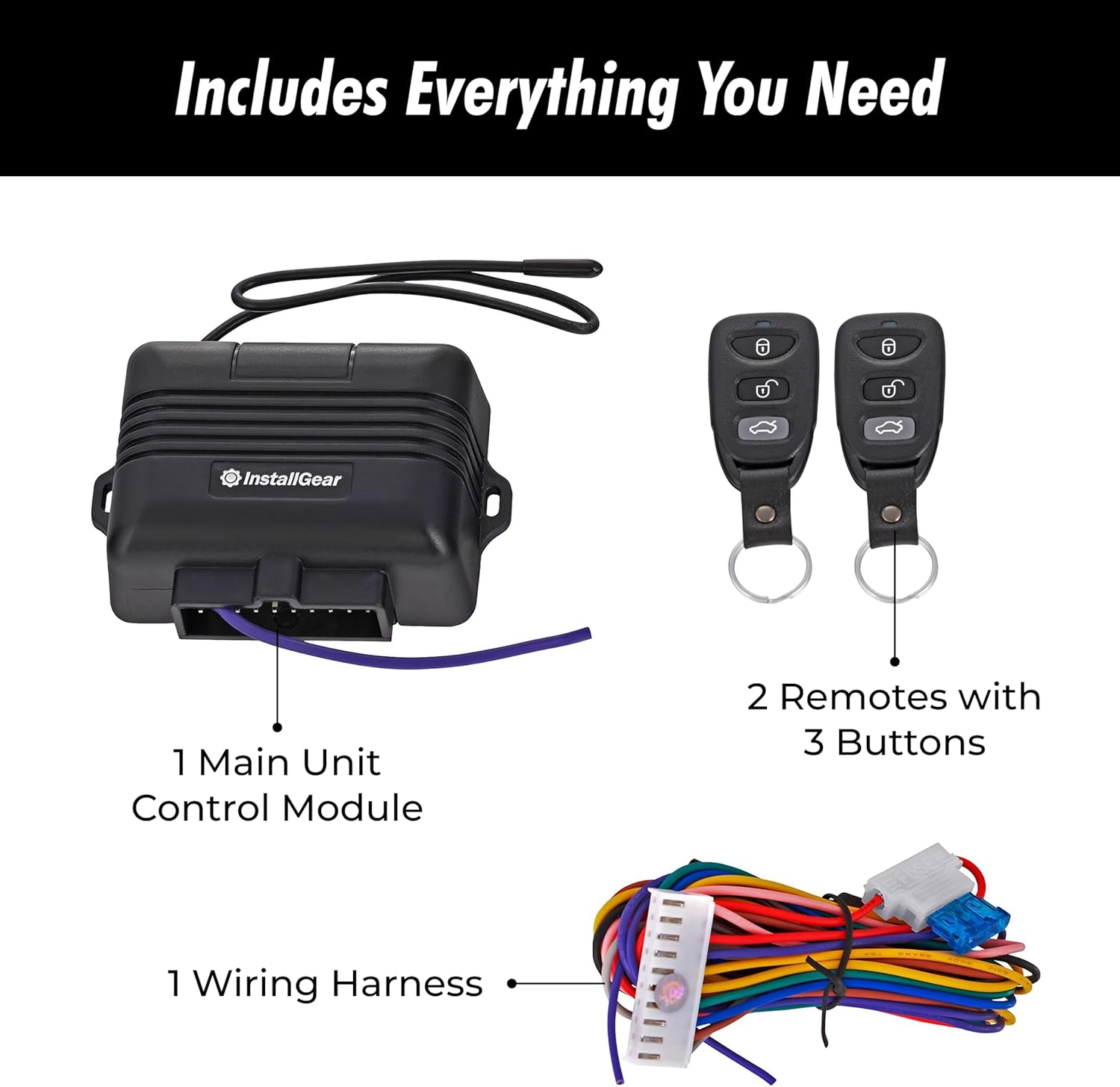

Figure 2.1: Contents of the InstallGear Keyless Entry System package.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

ముఖ్యమైన భద్రతా నోటీసు:

Installation of this keyless entry system requires advanced knowledge of automotive electrical systems and vehicle-specific wiring diagrams. Incorrect installation can lead to vehicle damage, electrical shorts, or fire. It is highly recommended that installation be performed by a qualified professional. If you are not experienced with car electrical wiring, please seek professional assistance.

3.1. General Installation Steps (Professional Installation Recommended)

1. వాహన బ్యాటరీని డిస్‌కనెక్ట్ చేయండి: Before beginning any electrical work, disconnect the negative terminal of your vehicle's battery to prevent accidental shorts.
2. Identify Vehicle Wiring: Obtain your vehicle's specific wiring diagram to identify the correct wires for constant 12V power, ground, door lock/unlock signals (positive or negative trigger), and optional trunk release or parking light signals. This system supports various lock types.
3. కంట్రోల్ యూనిట్‌ను మౌంట్ చేయండి: Choose a secure, dry location inside the vehicle, typically under the dashboard, to mount the main control unit. Ensure it is away from excessive heat or moisture.
4. Connect Power and Ground: Connect the main control unit's power wire (typically red) to a constant 12V power source and the ground wire (typically black) to a reliable chassis ground point.
5. Connect Lock/Unlock Wires: Based on your vehicle's wiring diagram and lock type (e.g., negative trigger, positive trigger, 5-wire reverse polarity), connect the appropriate wires from the system's wiring harness to your vehicle's central locking system.
6. Connect Optional Features: If desired, connect the trunk release wire and parking light wires according to your vehicle's diagram.
7. అన్ని కనెక్షన్లను సురక్షితం చేయండి: Use high-quality connectors, solder, and electrical tape or heat shrink tubing to ensure all connections are secure and insulated.
8. పరీక్షా వ్యవస్థ: Reconnect the vehicle battery. Test the lock, unlock, and trunk pop functions using the remote key fobs before reassembling any interior panels.
9. సురక్షిత వైరింగ్: Route and secure all wiring to prevent pinching, chafing, or interference with moving parts.

Figure 3.1: Professional installation is recommended for optimal performance and safety.

4. ఆపరేటింగ్ సూచనలు

Your InstallGear Keyless Entry System comes with two 3-button remote key fobs for convenient operation.

Figure 4.1: The two included 3-button remote key fobs.

4.1. Remote Key Fob Functions

• లాక్ బటన్ (🔒): Press this button once to lock all vehicle doors. The vehicle's parking lights may flash once to confirm the lock action (if connected).
• అన్‌లాక్ బటన్ (🔓 🔓 తెలుగు): Press this button once to unlock all vehicle doors. The vehicle's parking lights may flash twice to confirm the unlock action (if connected).
• Trunk Pop Button (🚗): Press and hold this button for approximately 2-3 seconds to activate the trunk release function. This will open your vehicle's trunk or hatch (if connected and supported by your vehicle).

Figure 4.2: Unlocking your car with a press of a button.

Figure 4.3: Effortlessly popping your trunk remotely.

5. నిర్వహణ

5.1. సాధారణ సంరక్షణ

To ensure the longevity and proper functioning of your keyless entry system:

• Keep the remote key fobs dry and away from extreme temperatures.
• Avoid dropping the key fobs or subjecting them to strong impacts.
• Periodically check the wiring connections for any signs of wear or corrosion, especially if the system was self-installed.

5.2. Remote Key Fob Battery Replacement

If the range of your remote key fob decreases significantly or it stops responding, the battery may need replacement. Refer to the specific key fob design for battery type and replacement instructions. Typically, this involves opening the remote casing and replacing a small coin-cell battery (e.g., CR2032).

6. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your InstallGear Keyless Entry System.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

InstallGear products are designed for reliability and durability. For specific warranty information, including coverage period and terms, please refer to the documentation included with your purchase or visit the official InstallGear website. If you encounter any issues or require technical assistance, please contact InstallGear customer support through their official channels.

For the latest product information, FAQs, and support resources, please visit the Amazonలో InstallGear స్టోర్.
