Samsung DC92-00621C PCB Sub Assembly Instruction Manual

1. పరిచయం

This manual provides essential information for the proper handling, installation, and maintenance of your Samsung DC92-00621C PCB Sub Assembly. This component is an authorized Original Equipment Manufacturer (OEM) part designed to fit various Samsung brand dryer models. It serves as a critical electronic control board within the appliance.

Please read this manual thoroughly before attempting any installation or service to ensure safe and correct operation.

2. భద్రతా సమాచారం

హెచ్చరిక: విద్యుత్ షాక్ లేదా గాయం ప్రమాదం.

• Always disconnect power to the appliance before installing, removing, or servicing this part. Failure to do so can result in serious injury or death.
• Installation should only be performed by a qualified technician. Improper installation can lead to appliance malfunction, damage, or personal injury.
• సంస్థాపన సమయంలో చేతి తొడుగులు మరియు కంటి రక్షణ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) ధరించండి.
• Handle the PCB with care to avoid damage from electrostatic discharge. It is recommended to use an anti-static wrist strap.
• అన్ని ప్యాకేజింగ్ మెటీరియల్స్ పిల్లలకు అందుబాటులో లేకుండా ఉంచండి.

3. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో ఈ క్రింది అంశాలు ఉన్నాయని నిర్ధారించుకోండి:

• One (1) Samsung DC92-00621C PCB Sub Assembly

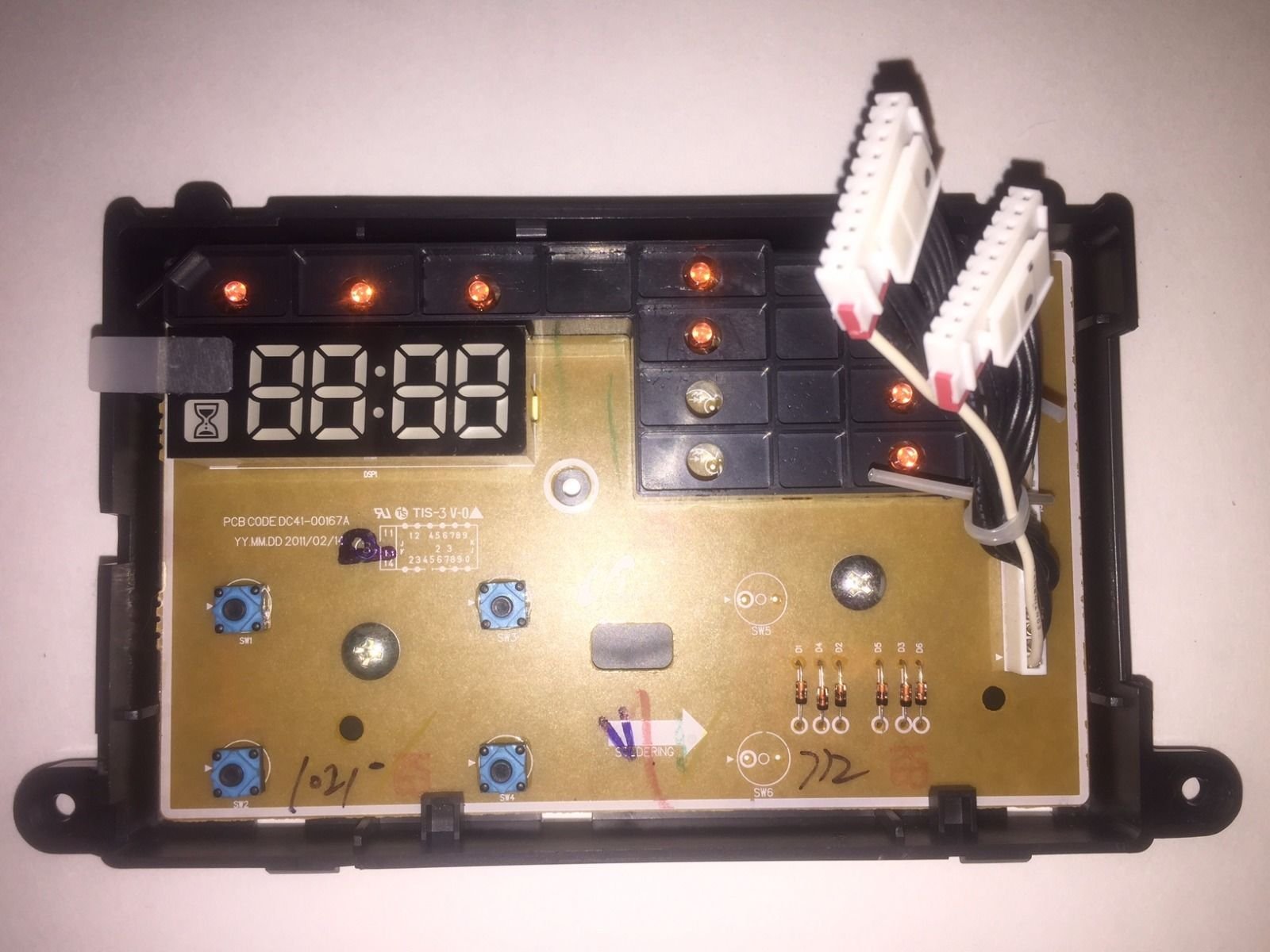

Image: The Samsung DC92-00621C PCB Sub Assembly, an electronic control board for dryers.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Samsung DC92-00621C PCB Sub Assembly is a replacement part for specific Samsung dryer models. Due to the complexity of appliance repair and the electrical nature of this component, professional installation is strongly recommended.

సాధారణ సంస్థాపనా మార్గదర్శకాలు (అర్హత కలిగిన సాంకేతిక నిపుణుల కోసం):

1. పవర్ డిస్‌కనెక్ట్ చేయండి: Ensure the dryer is completely disconnected from its power source (unplugged or circuit breaker off) before beginning.
2. Access the Existing PCB: Carefully disassemble the dryer panels as required to gain access to the existing PCB sub assembly. Refer to your specific dryer model's service manual for detailed instructions.
3. డాక్యుమెంట్ కనెక్షన్లు: Before disconnecting any wires, take clear photos or make detailed diagrams of all wire connections to the old PCB. This is crucial for correct reassembly.
4. పాత PCB ని తొలగించండి: Disconnect all wiring harnesses and mounting screws securing the old PCB. Carefully remove it.
5. కొత్త PCB ని ఇన్‌స్టాల్ చేయండి: Position the new DC92-00621C PCB Sub Assembly in place and secure it with the appropriate mounting screws.
6. వైరింగ్‌ను తిరిగి కనెక్ట్ చేయండి: Using your documented connections, carefully reconnect all wiring harnesses to the new PCB. Ensure all connections are secure and correctly seated.
7. డ్రైయర్‌ను తిరిగి అమర్చండి: Reassemble the dryer panels, ensuring all components are properly aligned and secured.
8. పరీక్ష కార్యాచరణ: Restore power to the dryer and perform a test cycle to verify proper operation of the appliance.

5. ఆపరేటింగ్ సూచనలు

The DC92-00621C PCB Sub Assembly is an internal electronic component of your Samsung dryer. It does not have direct user-operable controls. Its function is to manage and control various operations of the dryer, such as motor control, heating elements, sensor inputs, and user interface commands.

Once correctly installed, the PCB operates automatically as part of the dryer's system. Refer to your dryer's user manual for instructions on how to operate the appliance itself.

6. నిర్వహణ

The DC92-00621C PCB Sub Assembly is designed to be maintenance-free under normal operating conditions. No routine user maintenance is required for this component.

• పొడిగా ఉంచండి: Ensure the environment around the PCB remains dry and free from moisture to prevent damage.
• పరిశుభ్రత: If the dryer interior is being cleaned, ensure no liquids come into contact with the PCB. Dust accumulation on the PCB is generally not an issue, but excessive buildup can be carefully removed with compressed air by a qualified technician.
• భౌతిక ప్రభావాన్ని నివారించండి: Protect the PCB from any physical impact or vibration that could damage its components or connections.

7. ట్రబుల్షూటింగ్

If your dryer is experiencing issues after the installation of a new PCB, or if you suspect the PCB is malfunctioning, consider the following general troubleshooting steps. For detailed diagnostics, consult a qualified appliance technician.

• శక్తి లేదు: Ensure the dryer is properly plugged into a working outlet and the circuit breaker has not tripped.
• తప్పు వైరింగ్: Double-check all wire connections to the PCB against your documentation or the dryer's service manual. Loose or incorrect connections are a common cause of malfunction.
• భాగం అనుకూలత: Verify that the DC92-00621C is the correct PCB sub assembly for your specific Samsung dryer model.
• ఎర్రర్ కోడ్‌లు: If your dryer displays an error code, refer to your dryer's user manual or service manual for the meaning of the code and recommended solutions.
• వృత్తిపరమైన రోగ నిర్ధారణ: If issues persist, it is highly recommended to contact a certified appliance technician for diagnosis and repair. Attempting complex repairs without proper training can be dangerous and may void warranties.

8. స్పెసిఫికేషన్లు

9. వారంటీ సమాచారం

Warranty coverage for the Samsung DC92-00621C PCB Sub Assembly is typically provided by the manufacturer or the seller at the point of purchase. Specific warranty terms, conditions, and duration may vary.

Please retain your proof of purchase and refer to the warranty documentation provided with your original appliance or contact Samsung customer service or your retailer for detailed warranty information.

10. మద్దతు

For technical assistance, installation questions, or to report a suspected defect, please contact:

• శామ్‌సంగ్ కస్టమర్ సర్వీస్: Refer to the official Samsung webమీ ప్రాంతానికి సంబంధించిన సంప్రదింపు సమాచారం కోసం సైట్.
• అధీకృత సేవా కేంద్రాలు: Locate an authorized Samsung service center for professional repair and support.
• మీ రిటైలర్: Contact the retailer from whom you purchased the part for initial support or warranty claims.
