ఉత్పత్తి ముగిసిందిview
The SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler is designed for efficient and reliable fastening in various professional and semi-professional applications. This manual provides essential information for the safe and effective use of your tool.
SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler

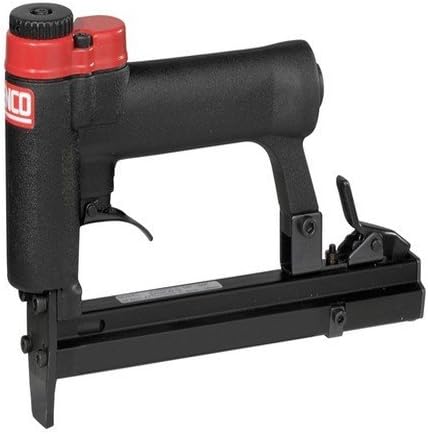

An image showing the SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler, a black tool with red accents on the air inlet and trigger mechanism. The tool features a long magazine for staples and a comfortable grip.
ముఖ్యమైన భద్రతా సూచనలు
Always follow basic safety precautions when using this pneumatic tool to reduce the risk of personal injury. Read all instructions before operating.
- కంటి రక్షణ: Always wear ANSI Z87.1 approved safety glasses with side shields.
- వినికిడి రక్షణ: ఎక్కువసేపు ఉపయోగించేటప్పుడు వినికిడి రక్షణను ధరించండి.
- గాలిని డిస్కనెక్ట్ చేయండి: Always disconnect the air supply before making adjustments, clearing jams, servicing, or leaving the tool unattended.
- Proper Air Pressure: సాధనం కోసం సిఫార్సు చేయబడిన గరిష్ట గాలి పీడనాన్ని మించకూడదు.
- Never Point: సాధనాన్ని మీపై లేదా ఇతరులపై ఎప్పుడూ చూపవద్దు.
- వర్క్పీస్ కాంటాక్ట్: Ensure the tool is firmly against the workpiece before firing.
- మాన్యువల్ చదవండి: Familiarize yourself with all controls and operating procedures.
ప్యాకేజీ విషయాలు
Upon opening the package, verify that all items are present and undamaged.
- SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler
- (Refer to product packaging for any additional accessories or documentation)
సెటప్ గైడ్
1. Air Supply Connection
- Ensure your air compressor is turned off and completely depressurized.
- Connect a suitable air hose (minimum 3/8-inch inner diameter recommended) to the tool's air inlet.
- It is highly recommended to use an air filter/regulator/lubricator (FRL) unit in your air line for optimal tool performance and longevity.
- Set the air pressure at the regulator to the recommended operating range, typically between 70-120 PSI (4.8-8.3 bar), as indicated on the tool or in its specifications.
2. ఫాస్టెనర్లను లోడ్ చేస్తోంది
- Always disconnect the air supply from the tool before loading fasteners.
- Locate and open the magazine latch or push button.
- Insert a stick of the correct type and size of fine wire staples into the magazine. Ensure the staples are oriented correctly.
- Close the magazine latch securely until it clicks into place.
ఆపరేటింగ్ సూచనలు
1. సాధారణ ఆపరేషన్
- సాధనాన్ని గాలి సరఫరాకు కనెక్ట్ చేయండి.
- Hold the tool firmly with both hands, if possible, and place the nose of the tool against the workpiece where the fastener is to be driven.
- Depress the trigger to drive a staple. Release the trigger to stop.
- Allow the tool to fully cycle after each fastener is driven.
2. Depth Adjustment (if applicable)
Some models of staplers feature a depth adjustment mechanism to control how deep the fastener is driven. If your tool has this feature:
- Locate the depth adjustment dial or lever on the tool.
- Adjust the setting as needed. A higher setting typically drives the fastener deeper.
- Always test the depth setting on a scrap piece of material before fastening your final workpiece.
3. Clearing Jams
If the tool jams, follow these steps:
- IMMEDIATELY disconnect the air supply from the tool.
- Locate the jam clearing mechanism, which may involve opening the nose piece or a specific latch.
- Carefully remove the jammed fastener using pliers or a similar tool. Do not force it.
- Ensure all parts are clear of debris.
- Close the jam clearing mechanism securely before reconnecting the air supply.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your SENCO stapler.
1. సరళత
- Apply 5-10 drops of pneumatic tool oil into the tool's air inlet daily or before each use.
- Do not over-lubricate.
- If using an FRL unit with an auto-lubricator, manual oiling may not be necessary. Consult your FRL unit's manual.
2. శుభ్రపరచడం
- Keep the tool clean and free of dirt, dust, and debris.
- Wipe down the exterior with a clean, dry cloth.
- Periodically check and clean the air filter on your FRL unit to ensure clean air supply.
3. నిల్వ
- Always disconnect the air supply before storing the tool.
- Store the tool in a clean, dry environment, away from extreme temperatures and humidity.
ట్రబుల్షూటింగ్
ఈ విభాగం మీ న్యూమాటిక్ స్టెప్లర్తో మీరు ఎదుర్కొనే సాధారణ సమస్యలను పరిష్కరిస్తుంది.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Tool not firing | No air supply / Low air pressure / Fastener jam | Check air hose connection, ensure compressor is on and pressurized, increase air pressure, clear any jams. |
| Tool jamming frequently | Incorrect fastener size / Damaged fasteners / Worn driver blade | Ensure correct fastener type and size, inspect fasteners for damage, contact authorized service for driver blade replacement. |
| Air leak from tool | Loose fittings / Damaged O-rings / Worn seals | Tighten all air fittings, inspect and replace damaged O-rings or seals. If problem persists, seek professional service. |
| Fasteners not driven flush | Low air pressure / Incorrect depth adjustment / Hard material | Increase air pressure, adjust depth setting, ensure tool is suitable for material. |
స్పెసిఫికేషన్లు
Key technical specifications for the SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler:
| ఫీచర్ | వివరాలు |
|---|---|
| తయారీదారు | సెంకో |
| బ్రాండ్ | సెంకో |
| మోడల్ సంఖ్య | 9260761 |
| ASIN | B01HR2YYUU |
| శక్తి మూలం | Pneumatic (Air-powered) |
| ఫాస్టెనర్ రకం | Fine Wire Staples |
| ఉత్పత్తి స్థితి | Currently available (as of listing date) |
వారంటీ మరియు మద్దతు
For detailed warranty information, please refer to the warranty card or documentation included with your SENCO SFW05-C Pneumatic Semi Pro Fine Wire Stapler. Warranty terms and conditions may vary by region and retailer.
For technical support, service, or to inquire about replacement parts, please contact Senco customer service directly. Visit the official Senco webఅత్యంత తాజా సంప్రదింపు సమాచారం మరియు మద్దతు వనరుల కోసం సైట్.
- Senco Official Webసైట్: www.senco.com (Please verify the correct regional webసైట్)
- కస్టమర్ సేవ: చూడండి website or product packaging for phone numbers and email contacts.
