Turbochef CON-3012-1 Service Kit, Control Board 2020 Instruction Manual

1. పరిచయం

This instruction manual provides essential information for the proper installation, operation, and maintenance of the Turbochef CON-3012-1 Service Kit, Control Board 2020. This genuine OEM replacement part is designed to ensure the continued safety, reliability, and performance of your TurboChef oven. Please read this manual thoroughly before proceeding with any installation or service.

2. భద్రతా సమాచారం

హెచ్చరిక:

• Always disconnect power to the appliance before installing or servicing the control board. Failure to do so can result in serious injury or death.
• ఇన్‌స్టాలేషన్‌ను అర్హత కలిగిన సేవా సిబ్బంది మాత్రమే నిర్వహించాలి.
• Use only genuine TurboChef replacement parts to ensure compatibility and maintain product warranty.
• Handle electronic components with care to prevent electrostatic discharge (ESD) damage.

3. ఉత్పత్తి ముగిసిందిview

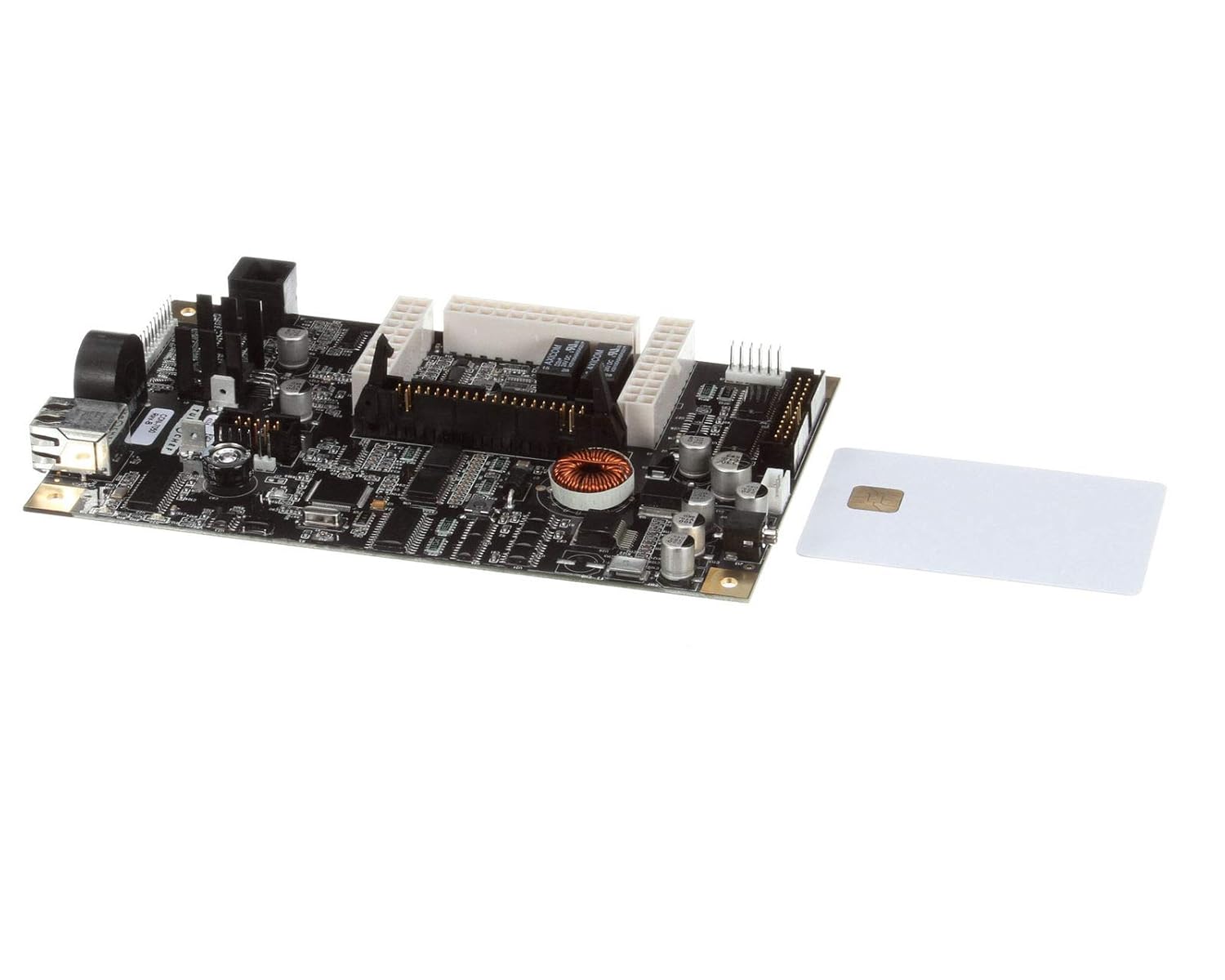

Figure 1: The Turbochef CON-3012-1 Control Board, featuring various electronic components, connectors, and a separate white smart card with a gold chip. This image illustrates the primary components of the service kit.

The CON-3012-1 Service Kit includes the main control board and associated components necessary for replacement in compatible TurboChef oven models. This board is crucial for managing the oven's functions, including temperature control, cooking cycles, and user interface interactions.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

This section outlines the general steps for replacing the control board. Refer to your specific oven model's service manual for detailed, model-specific instructions and diagrams.

1. తయారీ:
   • Ensure the oven is completely disconnected from the power supply.
   • Gather necessary tools (e.g., screwdrivers, pliers, anti-static wrist strap).
   • Clear a clean, static-free workspace.
2. Accessing the Control Board:
   • Carefully open the oven's access panel where the control board is located. This typically involves removing screws or latches.
   • Take photos of existing wiring connections before disconnecting to aid reassembly.
3. పాత బోర్డును తొలగించడం:
   • Disconnect all wiring harnesses and connectors from the old control board. Note their positions.
   • పాత కంట్రోల్ బోర్డ్‌ను దాని హౌసింగ్ నుండి అన్‌మౌంట్ చేయండి.
4. కొత్త బోర్డును ఇన్‌స్టాల్ చేయడం:
   • Carefully place the new CON-3012-1 control board into position and secure it.
   • Reconnect all wiring harnesses and connectors to their correct positions on the new board, referring to your photos if needed. Ensure all connections are secure.
5. చివరి దశలు:
   • Close and secure the oven's access panel.
   • పొయ్యిని విద్యుత్ సరఫరాతో తిరిగి కనెక్ట్ చేయండి.
   • Perform initial power-on tests as per your oven's service manual.

5. ఆపరేటింగ్ సూత్రాలు

The CON-3012-1 control board is the central processing unit for your TurboChef oven. Once installed and powered, it manages various operational aspects:

• ఉష్ణోగ్రత నియంత్రణ: Monitors and controls heating elements to maintain precise cooking temperatures.
• Program Execution: Executes pre-programmed cooking cycles and user-defined settings.
• సెన్సార్ ఇంటిగ్రేషన్: Processes data from various sensors (e.g., temperature, door sensors) to ensure safe and efficient operation.
• User Interface Communication: Facilitates interaction between the user and the oven's display and controls.
• రోగనిర్ధారణ విధులు: Performs self-diagnostics and reports errors through the oven's display or service codes.

No direct user operation of the control board itself is required beyond its proper installation and the normal operation of the oven it controls.

6. నిర్వహణ

The Turbochef CON-3012-1 Control Board is designed for long-term reliability. Regular maintenance primarily involves ensuring the environment around it is clean and free from obstructions.

• శుభ్రపరచడం: Periodically, with power disconnected, gently clean any dust or debris from around the control board using a soft brush or compressed air. Avoid using liquids or abrasive cleaners.
• తనిఖీలు: During routine oven maintenance, visually inspect the control board for any signs of damage, loose connections, or overheating (e.g., discoloration).
• పర్యావరణ నియంత్రణ: Ensure the oven's ventilation systems are clear and functioning correctly to prevent excessive heat buildup around the control board.

Note: Do not attempt to repair the control board yourself. If a fault is suspected, replace the board with a genuine OEM part.

7. ట్రబుల్షూటింగ్

If your TurboChef oven experiences issues after control board replacement, consider the following common troubleshooting steps. For complex issues, consult a qualified service technician.

8. స్పెసిఫికేషన్లు

• మోడల్ సంఖ్య: CON-3012-1
• ఉత్పత్తి రకం: Food Service Supply / Oven Control Board
• ప్యాకేజీ కొలతలు: 10.04 x 6.77 x 3.15 అంగుళాలు (25.5 x 17.2 x 8 సెం.మీ.)
• వస్తువు బరువు: సుమారు 13.93 ఔన్సులు (395 గ్రాములు)
• తయారీదారు: Turbochef
• మూలం దేశం: యునైటెడ్ స్టేట్స్
• అనుకూలత: Designed for specific TurboChef oven models (refer to oven's service manual for exact compatibility).

9. వారంటీ మరియు మద్దతు

This Turbochef CON-3012-1 Service Kit, Control Board 2020, as a genuine OEM part, is covered by TurboChef's standard warranty policy for replacement parts. For specific warranty terms and conditions, please refer to the documentation provided with your original TurboChef oven or contact TurboChef customer support directly.

For technical support, service inquiries, or to locate authorized service centers, please visit the official TurboChef website or contact their customer service department. When contacting support, please have your oven's model and serial number, along with the CON-3012-1 part number, ready.

Official TurboChef Webసైట్: www.turbochef.com
