The Masterplug 60ft Cord Reel is a retractable extension lead designed for convenient power distribution. It features a winding handle, a safety overload circuit breaker, and an integrated power switch. This unit provides four grounded outlets and utilizes a 14AWG cable, rated for 13 amps, making it suitable for various household, DIY, and commercial applications.

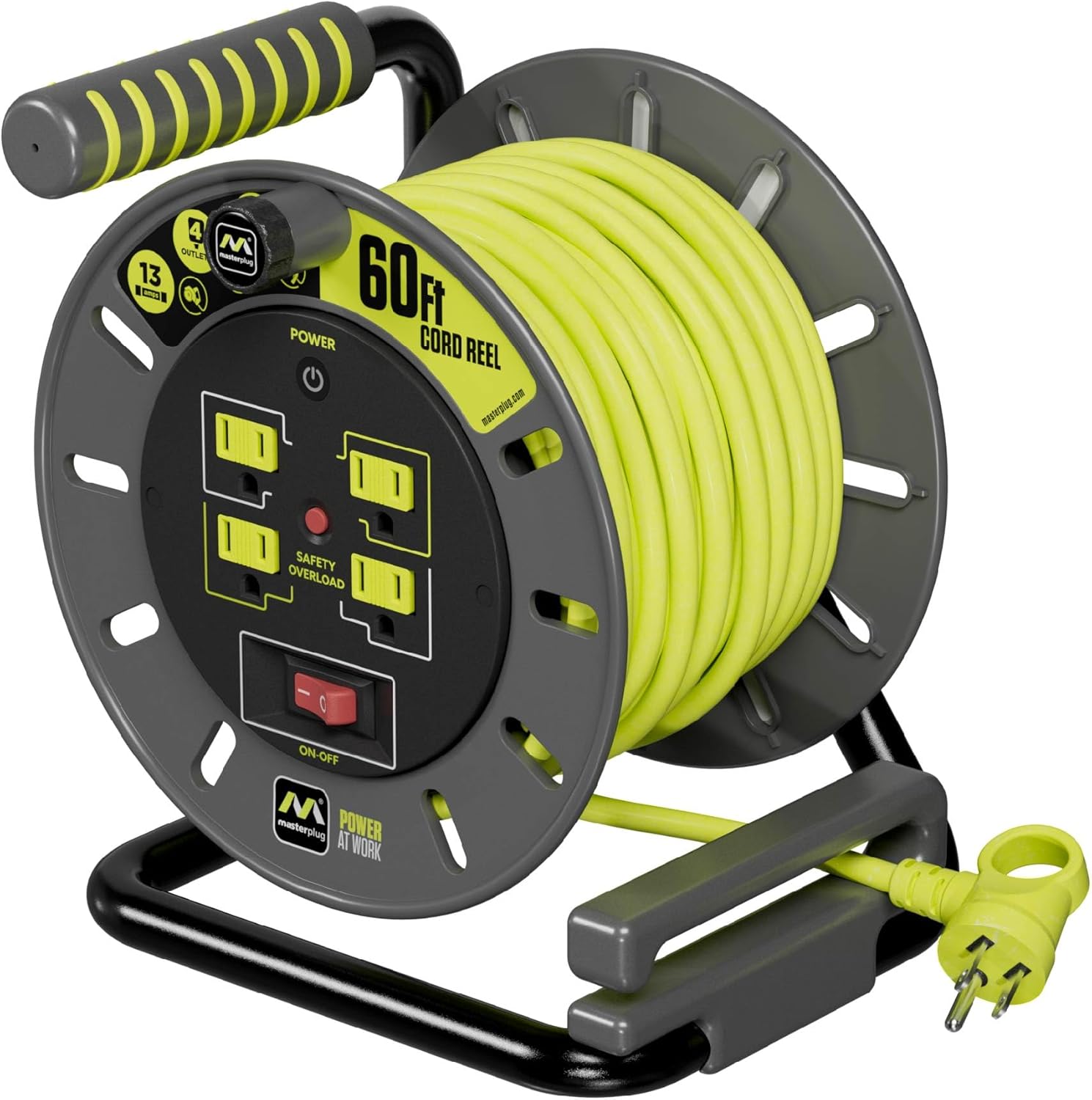

Figure 1: Masterplug 60ft Cord Reel, showcasing its compact design and integrated outlets.
కీ ఫీచర్లు
- 60ft Extension Cord: Provides extended reach for power access in various locations.
- 4 Shuttered Power Outlets: Offers multiple connection points for appliances, with safety shutters for protection.
- LED సూచిక: Visually confirms when power is live to the outlets.
- ఇంటిగ్రేటెడ్ పవర్ స్విచ్: Allows for convenient control of power directly at the reel.
- Safety Overload Circuit Breaker: Automatically cuts power in case of an overload, protecting connected devices and the unit. A reset button is provided.
- Winding Handle & Cord Guide: Facilitates easy, tangle-free winding and unwinding of the cable.
- High Visibility 14AWG Cable: Durable 14-gauge cable with bright coloring for enhanced safety and visibility.
- Heavy Duty Steel Stand: Provides stability and durability for the cord reel.
మూర్తి 2: వివరంగా view of the control panel, highlighting the power switch, outlets, LED, and overload protection.
చిత్రం 3: పైగాview of the cord reel's ergonomic design, including the carry handle and cord guide.
సెటప్
- యూనిట్ను అన్ప్యాక్ చేయండి: Carefully remove the Masterplug Cord Reel from its packaging. Ensure all components, including the reel and any included accessories, are present and undamaged.
- Position the Reel: Place the cord reel on a stable, flat surface. The heavy-duty steel stand provides stability. Ensure the reel is positioned away from water sources or excessive moisture.
- Unwind the Cable: To extend the cable, grasp the plug end and pull the cable away from the reel. The integrated cord guide will help prevent tangles. Unwind only the necessary length of cable for your task.
- శక్తి మూలానికి కనెక్ట్ చేయండి: Plug the main power cord of the reel into a suitable grounded 120V wall outlet.
- వాల్ మౌంటింగ్ (ఐచ్ఛికం): If wall mounting is desired, use the provided wall mount bracket (if included) and appropriate fasteners to secure it to a sturdy surface. The reel can then be easily attached and detached from the bracket.
ఆపరేటింగ్ సూచనలు
- పవర్ ఆన్: After plugging the reel into a wall outlet, press the red "ON-OFF" switch located on the face of the reel to the "ON" position. The power LED indicator will illuminate, confirming that power is live to the outlets.
- ఉపకరణాలను కనెక్ట్ చేస్తోంది: Plug your electrical appliances or power tools into any of the four shuttered outlets on the reel. Ensure that the total current draw of all connected devices does not exceed 13 amps.
- Monitoring Overload: The safety overload circuit breaker will trip and cut power if the connected load exceeds 13 amps. If this occurs, disconnect some appliances, then press the red "SAFETY OVERLOAD" reset button to restore power.
- పవర్ ఆఫ్: To turn off power to the outlets, press the red "ON-OFF" switch to the "OFF" position.
- Rewinding the Cable: When finished, disconnect all appliances. Use the winding handle on the side of the reel to neatly retract the cable. The integrated cord guide will assist in smooth, tangle-free winding.
Video 1: Official Masterplug video demonstrating the features and operation of the cord reel, including winding and power distribution.
నిర్వహణ
- సాధారణ తనిఖీ: Periodically inspect the entire length of the cable for any signs of damage, cuts, fraying, or exposed wires. Check the plug, outlets, and casing for cracks or loose connections.
- శుభ్రపరచడం: Ensure the unit is unplugged from the power source before cleaning. Wipe the reel and cable with a dry or slightly damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించవద్దు.
- నిల్వ: Store the cord reel in a dry, cool place away from direct sunlight and extreme temperatures. Ensure the cable is fully wound onto the reel to prevent kinks and damage.
- ఓవర్లోడింగ్ను నివారించండి: Always adhere to the 13-amp maximum load capacity to prevent damage to the unit and potential hazards.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| అవుట్లెట్లకు విద్యుత్ లేదు. |
|
|
| Cable does not retract smoothly. |
|
|
| Power LED not illuminated. |
|
|
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | OMA601114G4SL-US |
| కేబుల్ పొడవు | 60 అడుగులు |
| వైర్ గేజ్ | 14 AWG |
| Ampఎరేజ్ రేటింగ్ | 13 Amps |
| అవుట్లెట్ల సంఖ్య | 4 (గ్రౌండెడ్) |
| వాల్యూమ్tage | 120 వోల్ట్లు |
| ప్లగ్ ఫార్మాట్ | రకం B |
| ఉత్పత్తి కొలతలు | 9.75 x 2.5 x 4.5 అంగుళాలు |
| వస్తువు బరువు | 8.6 పౌండ్లు |
| తయారీదారు | లూసెకో పిఎల్సి |
Figure 4: Product dimensions for the Masterplug 60ft Cord Reel.
వారంటీ & మద్దతు
The Masterplug 60ft Cord Reel comes with a 3 సంవత్సరాల వారంటీ from the date of purchase, covering defects in materials and workmanship under normal use. For warranty claims, technical support, or any inquiries regarding your product, please contact Masterplug customer service.
Please refer to the official Masterplug webఅత్యంత తాజా సంప్రదింపు సమాచారం మరియు వివరణాత్మక వారంటీ నిబంధనల కోసం సైట్ లేదా మీ ఉత్పత్తి ప్యాకేజింగ్ను సంప్రదించండి.
