పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of the GOTRONIC 553100 Power Line Monitor. This device is engineered to monitor 240VAC power lines, ensuring normal line conditions and correct ABC phase rotation for critical industrial applications.
భద్రతా సమాచారం
Please read all safety instructions carefully before installing or operating this device. Failure to follow these instructions may result in electrical shock, fire, or damage to the product or connected equipment.
- ఇన్స్టాలేషన్ మరియు సర్వీసింగ్ను అర్హత కలిగిన ఎలక్ట్రికల్ సిబ్బంది మాత్రమే నిర్వహించాలి.
- Disconnect all power sources before wiring, installing, or servicing the unit.
- విద్యుత్ ప్రమాదాలను నివారించడానికి సరైన గ్రౌండింగ్ ఉండేలా చూసుకోండి.
- Do not operate the device in wet, explosive, or otherwise hazardous environments.
- సరఫరా వాల్యూమ్ అని ధృవీకరించండిtage పరికరం యొక్క రేట్ చేయబడిన వాల్యూమ్తో సరిపోలుతుందిtage (240VAC) and frequency (50/60 Hz).
ఉత్పత్తి ముగిసిందిview
The GOTRONIC 553100 is a robust power line monitor designed for industrial applications. It features a compact design with clear indicators and terminal connections for easy integration into control systems.
Image 1: The GOTRONIC 553100 Power Line Monitor, shown next to its original cardboard packaging. The front panel displays "GO®Tronic Power Line Monitor" with a red pilot light and terminal labels A, B, C, C1 N/O1 N/C1, C2 N/O2 N/C2. A serial number "SN 000092" is also visible.
The front panel includes a red pilot light that illuminates to indicate normal line conditions and correct ABC phase rotation when the device is energized and operating correctly. The device also incorporates internal control relays for system integration.
చిత్రం 2: వివరణాత్మక view of the front panel of the GOTRONIC 553100 Power Line Monitor. The red pilot light is clearly visible, along with the text "CR AND PILOT LIGHT ARE ENERGIZED FOR NORMAL LINE AND ABC ROTATION" and the serial number "SN 000205".
సెటప్ మరియు ఇన్స్టాలేషన్
వైరింగ్ రేఖాచిత్రం
The device is designed for 240VAC operation. Refer to the following wiring diagram for correct connection to your system. Ensure all connections adhere to local electrical codes and safety standards.
Image 3: The back panel of the GOTRONIC 553100, featuring a "TYPICAL WIRING DIAGRAM" for a "MANUAL START MAG. STARTER". It illustrates connections for L1, L2, L3 to a motor, with the power monitor integrated into the control circuit. The model number "553100" and "240 VOLTS AC 50/60 HZ" are also visible.
- Mount the Power Line Monitor securely in a suitable electrical enclosure, away from excessive heat, moisture, and vibration.
- Connect the L1, L2, and L3 phases of the 240VAC supply to the corresponding input terminals (A, B, C) on the monitor as indicated in the wiring diagram.
- Integrate the monitor's output relay contacts (N/O, N/C) into your control circuit as required for motor protection, alarm systems, or other control functions.
- Ensure all terminal connections are tight and secure to prevent loose contacts and potential arcing.
- Double-check all wiring against the provided diagram and your system's schematics before applying power to the unit.
వాల్యూమ్tagఇ మరియు ఫ్రీక్వెన్సీ

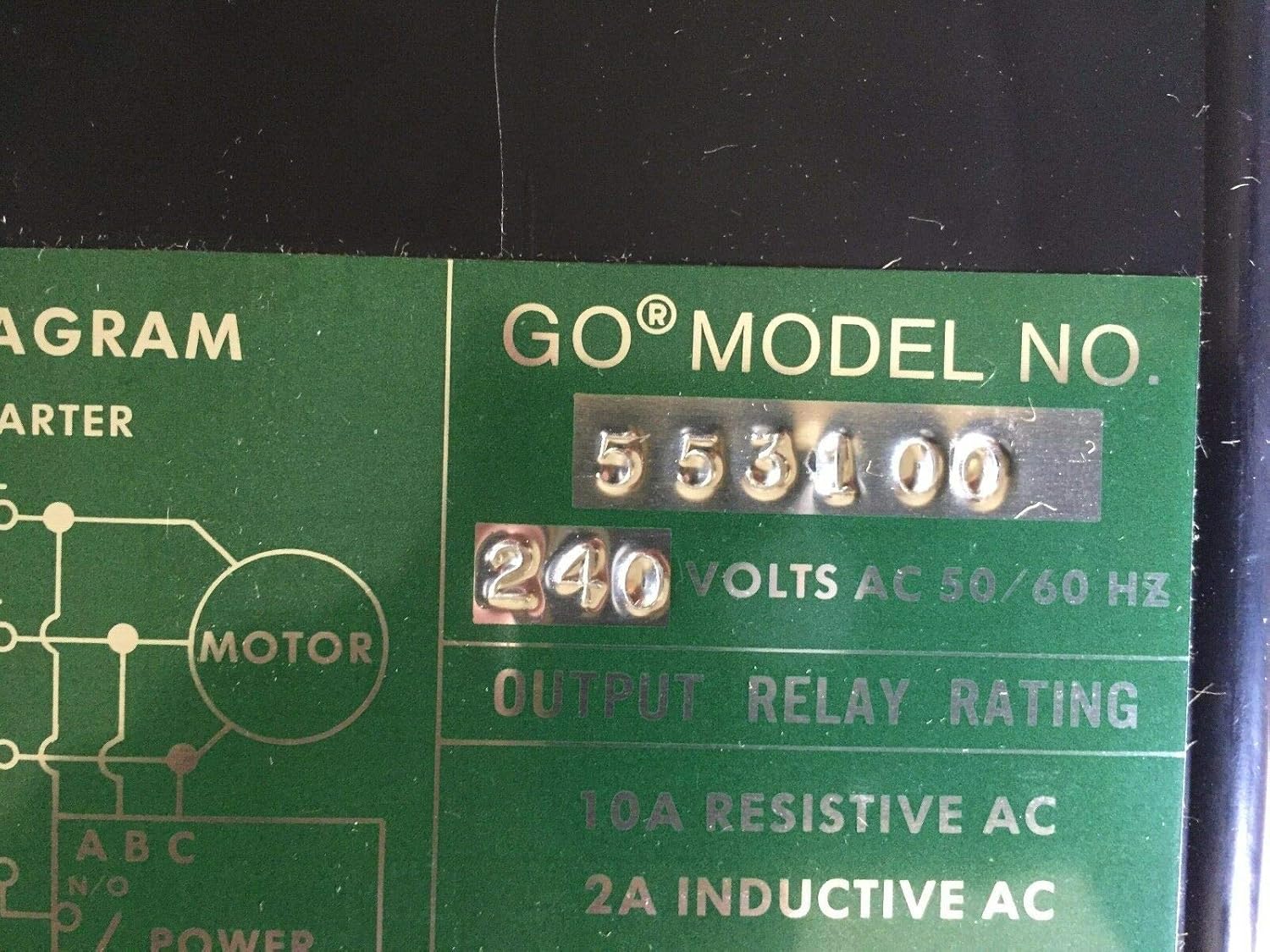

చిత్రం 4: క్లోజప్ view highlighting the "GO® MODEL NO. 553100" and "240 VOLTS AC 50/60 HZ" markings on the device's label, confirming its electrical specifications.
This device is specifically rated for 240 వోల్ట్స్ AC, 50/60 Hz. It is crucial to ensure your power supply matches these specifications to prevent damage to the unit and ensure proper operation.
ఆపరేషన్
Once properly installed and powered, the GOTRONIC 553100 Power Line Monitor will continuously monitor the incoming 240VAC power lines for voltage and phase rotation anomalies.
- సాధారణ ఆపరేషన్: When the power lines are within acceptable voltage limits and the phase rotation (ABC) is correct, the red pilot light on the front panel will be energized (illuminated). Concurrently, the internal control relay (CR) will also be energized, indicating a healthy and stable power supply.
- అసాధారణ పరిస్థితులు: If a phase loss, undervoltagఇ, ఓవర్ వోల్tage, or incorrect phase rotation (e.g., ACB instead of ABC) occurs, the pilot light will de-energize (turn off). The internal control relay will also de-energize, which can be utilized to trip a contactor, activate an alarm system, or initiate other protective measures for connected equipment.
నిర్వహణ
The GOTRONIC 553100 Power Line Monitor is designed for reliable, maintenance-free operation under normal industrial conditions.
- ఆవర్తన తనిఖీ: Periodically inspect the unit and its wiring for any visible signs of damage, loose connections, or excessive dust accumulation.
- శుభ్రపరచడం: If necessary, gently clean the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners, abrasive materials, or solvents, as these may damage the casing లేదా అంతర్గత భాగాలు.
- వినియోగదారు-సేవ చేయదగిన భాగాలు లేవు: There are no user-serviceable parts inside the unit. Do not attempt to open, disassemble, or repair the device. Doing so will void any warranty and may pose a safety risk.
ట్రబుల్షూటింగ్
This section provides solutions to common issues you may encounter with the Power Line Monitor.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Pilot light off, even with power applied. |
|
|
| Connected equipment does not start/stop as expected. |
|
|
స్పెసిఫికేషన్లు
- మోడల్: 553100
- బ్రాండ్: గోట్రోనిక్
- ఇన్పుట్ వాల్యూమ్tage: 240 VAC
- ఫ్రీక్వెన్సీ: 50/60 Hz
- Output Relay Rating:
- 10A Resistive AC
- 2A Inductive AC
- 10A @ 28 VDC Resistive
- ఫంక్షన్: వాల్యూమ్tage/Phase Monitor, Transmission Distribution Relays
- వస్తువు బరువు: 3.21 పౌండ్లు
- ప్యాకేజీ కొలతలు: 1 x 1 x 1 అంగుళాలు
- తయారీదారు: గోట్రోనిక్
- మొదటి తేదీ అందుబాటులో ఉంది: జనవరి 1, 2016
వారంటీ సమాచారం
This product is covered by the standard manufacturer's warranty. For specific warranty terms and conditions, including duration and coverage details, please refer to the documentation provided at the time of purchase or contact GOTRONIC customer support directly. Keep your proof of purchase for warranty claims.
కస్టమర్ మద్దతు
For technical assistance, troubleshooting guidance, or any inquiries regarding the GOTRONIC 553100 Power Line Monitor, please contact your authorized distributor or the manufacturer directly.
When contacting support, please have your product's model number (553100) and serial number (if applicable) readily available to facilitate quicker service.
