Senco Brad Nails User Manual

1. పరిచయం

This manual provides essential information for the proper use and handling of Senco Brad Nails, Model A201009. These galvanized smooth stem brad nails are designed for a variety of fastening applications, ensuring secure and clean finishes.

సాధారణ అప్లికేషన్లు ఉన్నాయి:

• Decorative moldings
• Furniture moldings
• క్యాబినెట్‌లు
• డ్రాయర్లు
• Box bottoms
• బేస్బోర్డులు
• Chair rails
• చిత్ర ఫ్రేమ్‌లు

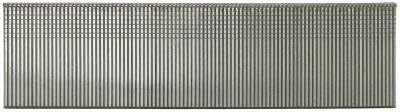

Figure 1: Senco Brad Nails (Model A201009). This image displays a strip of collated brad nails, ready for use in a compatible nail gun. The nails are uniform in size and appear to be galvanized for corrosion resistance.

2. సెటప్ మరియు అనుకూలత

Senco Brad Nails are designed for use with compatible 18-gauge brad nailers. Ensure your nailer is rated for 1-inch, 18-gauge brad nails before loading.

2.1. Loading the Nails

1. మొదటి భద్రత: Always disconnect the air supply (for pneumatic nailers) or remove the battery (for cordless nailers) before loading or unloading fasteners.
2. ఓపెన్ మ్యాగజైన్: Locate and open the nailer's magazine latch.
3. Insert Nails: Slide a strip of Senco Brad Nails into the magazine with the points facing forward. Ensure the nails are seated correctly in the track.
4. మ్యాగజైన్ మూసివేయండి: Close the magazine latch securely until it clicks into place.
5. పవర్‌ని మళ్లీ కనెక్ట్ చేయండి: Reconnect the air supply or insert the battery.

Refer to your specific brad nailer's instruction manual for detailed loading procedures.

3. ఆపరేటింగ్ సూచనలు

Once loaded, Senco Brad Nails are ready for application. Always wear appropriate personal protective equipment (PPE), including safety glasses, during operation.

3.1. Fastening Procedure

1. ఉపరితలాన్ని సిద్ధం చేయండి: Ensure the workpiece surface is clean and free of debris.
2. Position Nailer: Place the nose of the brad nailer firmly against the workpiece where the nail is to be driven.
3. Activate Trigger: Depress the trigger to drive the nail. For sequential firing nailers, you may need to depress the nose first, then the trigger.
4. Inspect Fastening: After driving, inspect the nail to ensure it is fully seated and flush with or slightly below the surface. Adjust nailer depth settings if necessary.

3.2 అప్లికేషన్లు

These brad nails are ideal for delicate trim work and applications where minimal splitting is desired. Their galvanized coating provides enhanced corrosion resistance, making them suitable for interior applications where moisture might be a concern, or for light-duty exterior use in protected areas.

4. నిర్వహణ మరియు నిల్వ

Proper maintenance and storage will ensure the longevity and performance of your Senco Brad Nails.

4.1. నిల్వ

• Store nails in their original packaging in a cool, dry place.
• Avoid exposure to high humidity or direct moisture, which can lead to corrosion.
• తీవ్రమైన ఉష్ణోగ్రతల నుండి దూరంగా ఉంచండి.

4.2. హ్యాండ్లింగ్

• Handle nail strips carefully to prevent bending or breaking, which can cause feeding issues in the nailer.
• Do not drop nail boxes or strips.

5. ట్రబుల్షూటింగ్

Most issues related to brad nail fastening are often due to the nailer itself or improper loading. However, here are some common scenarios and considerations related to the nails:

5.1. Nails Not Feeding

• Check Nail Orientation: Ensure nails are loaded correctly with points facing forward.
• దెబ్బతిన్న స్ట్రిప్: Inspect the nail strip for bent or broken nails. Replace damaged strips.
• Correct Gauge/Length: Verify that the nails are the correct 18-gauge, 1-inch length for your nailer.

5.2. Nails Bending/Not Driving Fully

• Workpiece Material: Extremely hard wood or knots can cause nails to bend. Consider pre-drilling or using a different fastener type for such materials.
• Nailer Issues: This is often a nailer issue (e.g., insufficient air pressure, worn driver blade, incorrect depth setting). Refer to your nailer's manual.

6. స్పెసిఫికేషన్లు

Detailed specifications for Senco Brad Nails, Model A201009:

7. వారంటీ మరియు మద్దతు

Specific warranty information for Senco Brad Nails is typically covered under the general terms for fasteners and consumables. For detailed warranty policies or technical support, please refer to the official Senco website or contact Senco customer service directly. This manual does not provide specific warranty details or direct support contacts.

మరింత సహాయం కోసం, సందర్శించండి Senco Store on Amazon or the official Senco webసైట్.
