PETKIT P410 Smart Pet Drinking Fountain User Manual

1. పరిచయం

The PETKIT P410 Smart Pet Drinking Fountain is designed to provide your pets with fresh, filtered water. Featuring an intelligent working mode, a triple purification system, and an ultra-silent pump, this 2-liter capacity fountain ensures your pet's hydration needs are met with convenience and efficiency. This manual will guide you through the setup, operation, and maintenance of your new pet drinking fountain.

Image 1.1: The PETKIT P410 Smart Pet Drinking Fountain, a white square-shaped device with a clear top and a water level indicator on the front.

చిత్రం 1.2: ఒక ఓవర్view of the PETKIT P410's key features, including its triple purifying system, intelligent working mode, water-shortage alert, and filter replacement notification.

2. భద్రతా సమాచారం

• ఉపకరణాన్ని ఉపయోగించే ముందు అన్ని సూచనలను జాగ్రత్తగా చదవండి.
• ఈ ఉపకరణం ఇండోర్ ఉపయోగం కోసం మాత్రమే.
• Do not immerse the electrical adapter or power cord in water or other liquids.
• Ensure the power cord is placed where it cannot be tripped over or damaged.
• ఫౌంటెన్‌ను శుభ్రపరిచే ముందు లేదా నిర్వహణ చేసే ముందు ఎల్లప్పుడూ దాన్ని అన్‌ప్లగ్ చేయండి.
• Keep out of reach of children and pets during assembly and disassembly.
• Use only original PETKIT parts and accessories.

3. ప్యాకేజీ విషయాలు

దయచేసి ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయో లేదో తనిఖీ చేయండి:

• PETKIT P410 Smart Pet Drinking Fountain Unit
• ఫిల్టర్ ట్రే
• Filter Element (pre-installed or separate)
• నీటి పంపు
• పవర్ అడాప్టర్
• వినియోగదారు మాన్యువల్

4. సెటప్

1. భాగాలను అన్‌ప్యాక్ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తొలగించండి.
2. శుభ్రం చేయు భాగాలు: Rinse the water tray, filter tray, and water tank thoroughly with clean water. Do not use soap or harsh detergents.
3. ఫిల్టర్‌ని ఇన్‌స్టాల్ చేయండి: Place the filter element into the filter tray. Ensure it is seated correctly.
4. ఫౌంటెన్‌ని సమీకరించండి: Place the water pump into its designated slot in the main unit. Then, place the filter tray with the filter element on top of the pump. Finally, place the drinking tray on top of the filter tray.
5. నీటితో నింపండి: Fill the water tank with clean drinking water up to the MAX fill line. The water level indicator on the front will show the current water volume.
6. పవర్ కనెక్ట్ చేయండి: Connect the power adapter to the fountain and then plug it into a wall outlet. The fountain will start operating.

చిత్రం 4.1: ఒక అంతర్గత view of the PETKIT P410, highlighting the water level indicator and internal components.

5. ఆపరేటింగ్ మోడ్‌లు

The PETKIT P410 offers two operating modes: Smart Mode and Normal Mode. You can switch between modes using the button on the front of the fountain.

• స్మార్ట్ మోడ్: Equipped with a light sensor, the fountain automatically adjusts the frequency of water output between day and night. This mode is quieter and more energy-efficient, providing water when needed while conserving power.
• సాధారణ మోడ్: In this mode, the fountain provides a continuous flow of water, ensuring constant access for your pets, especially after periods of high activity.

Image 5.1: Illustration showing the PETKIT P410's control button for switching between Smart and Normal operating modes.

హెచ్చరిక సూచికలు

• బ్లూ లైట్: A blue indicator light signifies a low water level. The fountain will automatically shut off when the water level is critically low to prevent pump damage. Refill the water tank promptly.
• ఆరెంజ్ లైట్: An orange indicator light signals that it is time to replace the filter element. Refer to the Maintenance section for filter replacement instructions.

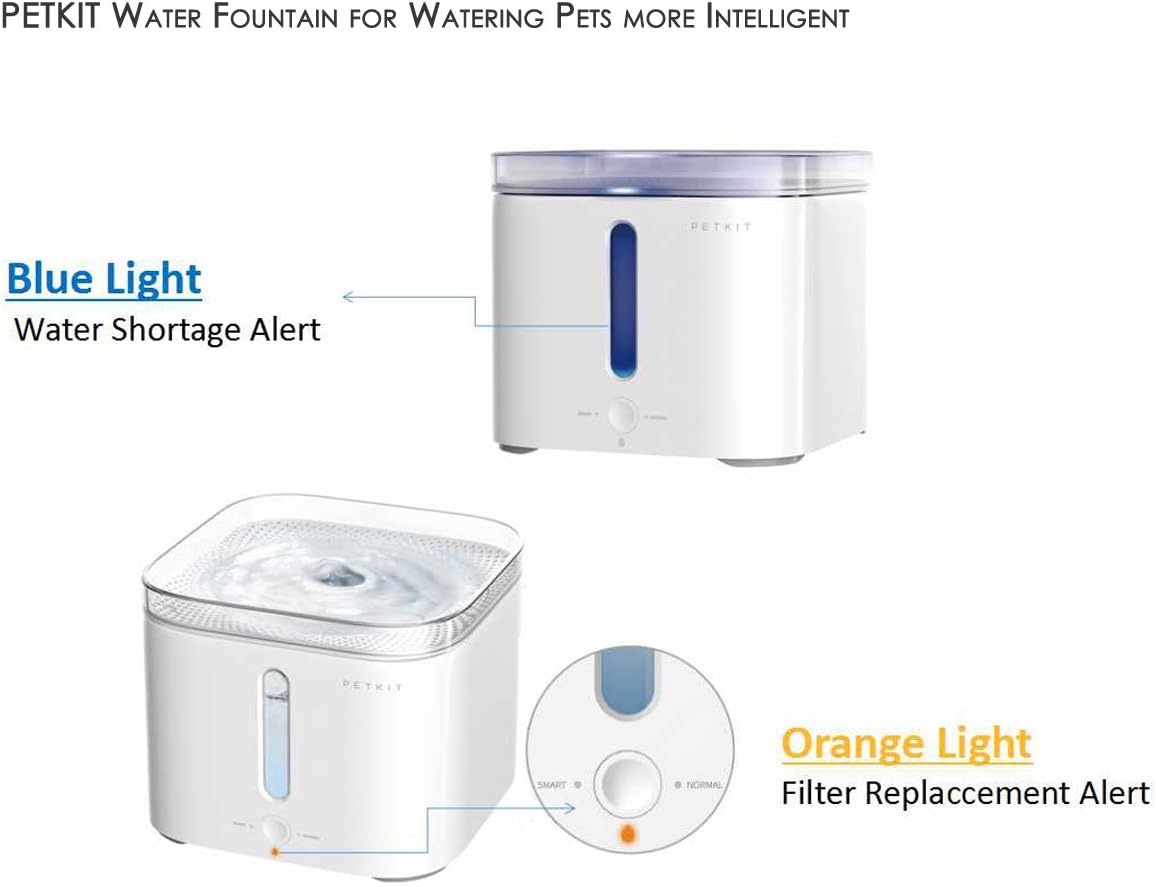

Image 5.2: The PETKIT P410 displaying a blue light for water shortage and an orange light for filter replacement.

6. నిర్వహణ

6.1 Cleaning the Fountain

Regular cleaning is essential to maintain hygiene and prolong the life of your fountain. It is recommended to clean the fountain at least once a week.

1. Unplug the fountain from the power outlet.
2. Disassemble the drinking tray, filter tray, and water tank.
3. ఫిల్టర్ మూలకాన్ని తీసివేయండి.
4. Clean all components (except the power adapter and pump motor) with clean water. You may use a soft brush to remove any residue. Do not use abrasive cleaners.
5. Rinse thoroughly to ensure no cleaning residue remains.
6. Reassemble the fountain after all parts are clean.

6.2 ఫిల్టర్ భర్తీ

The PETKIT P410 uses a triple cleaning system filter, consisting of a mesh screen, activated carbon, and ion-exchange resin, to purify the water. The orange indicator light will illuminate when it's time to replace the filter, typically every 1-2 months depending on usage and water quality.

చిత్రం 6.1: వివరణాత్మకమైనది view of the PETKIT P410's filter components, including the mesh screen, activated carbon filter, and ion-exchange resin.

1. ఫౌంటెన్‌ను అన్‌ప్లగ్ చేయండి.
2. Remove the drinking tray and filter tray.
3. పాత ఫిల్టర్ మూలకాన్ని తీసివేయండి.
4. Rinse the new filter element under running water for a few minutes to remove any loose carbon dust.
5. Place the new filter element into the filter tray.
6. Reassemble the fountain and plug it back in.
7. Press and hold the mode button for 5 seconds to reset the filter replacement reminder. The orange light will turn off.

7. ట్రబుల్షూటింగ్

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information or technical support, please refer to the warranty card included with your product or visit the official PETKIT website. You may also contact PETKIT customer service directly for assistance with product issues or inquiries.

10. Pet Usage Exampలెస్

Image 10.1: A dog happily drinking fresh water from the PETKIT P410 Smart Pet Drinking Fountain.

Image 10.2: A cat drinking from the PETKIT P410 Smart Pet Drinking Fountain, demonstrating its suitability for feline companions.
