Fantech PB110 Inline Exhaust Bath Fan Kit User Manual

1. పరిచయం

This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fantech PB110 Inline Exhaust Bath Fan Kit. Please read this manual thoroughly before beginning installation or operation to ensure proper use and to prevent potential hazards.

The Fantech PB110 is a powerful and efficient inline exhaust fan designed for remote mounting, ensuring quiet operation in bathroom ventilation applications. It is engineered to use a 4-inch flexible duct and features an unobtrusive intake grille for improved aesthetics.

2. భద్రతా సమాచారం

Always follow basic safety precautions when installing, operating, and maintaining this product to reduce the risk of fire, electric shock, or injury to persons.

• యూనిట్‌ను సర్వీసింగ్ లేదా శుభ్రపరిచే ముందు పవర్‌ను డిస్‌కనెక్ట్ చేయండి.
• అన్ని స్థానిక మరియు జాతీయ విద్యుత్ కోడ్‌లకు అనుగుణంగా అర్హత కలిగిన ఎలక్ట్రీషియన్ ద్వారా ఇన్‌స్టాలేషన్ నిర్వహించబడాలి.
• అన్ని వైరింగ్ కనెక్షన్లు సురక్షితంగా ఉన్నాయని మరియు సరిగ్గా ఇన్సులేట్ చేయబడిందని నిర్ధారించుకోండి.
• Do not use this fan with any solid-state speed control device unless specifically designed for this application.
• This fan is intended for general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• Keep all foreign objects away from the fan blades and grille openings.
• Wear appropriate personal protective equipment (PPE) during installation, including gloves and eye protection.

3. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి.

• Fantech PB110 Inline Fan Unit
• Intake Grille Assembly (7-inch)
• మౌంటు బ్రాకెట్లు/హార్డ్‌వేర్
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)

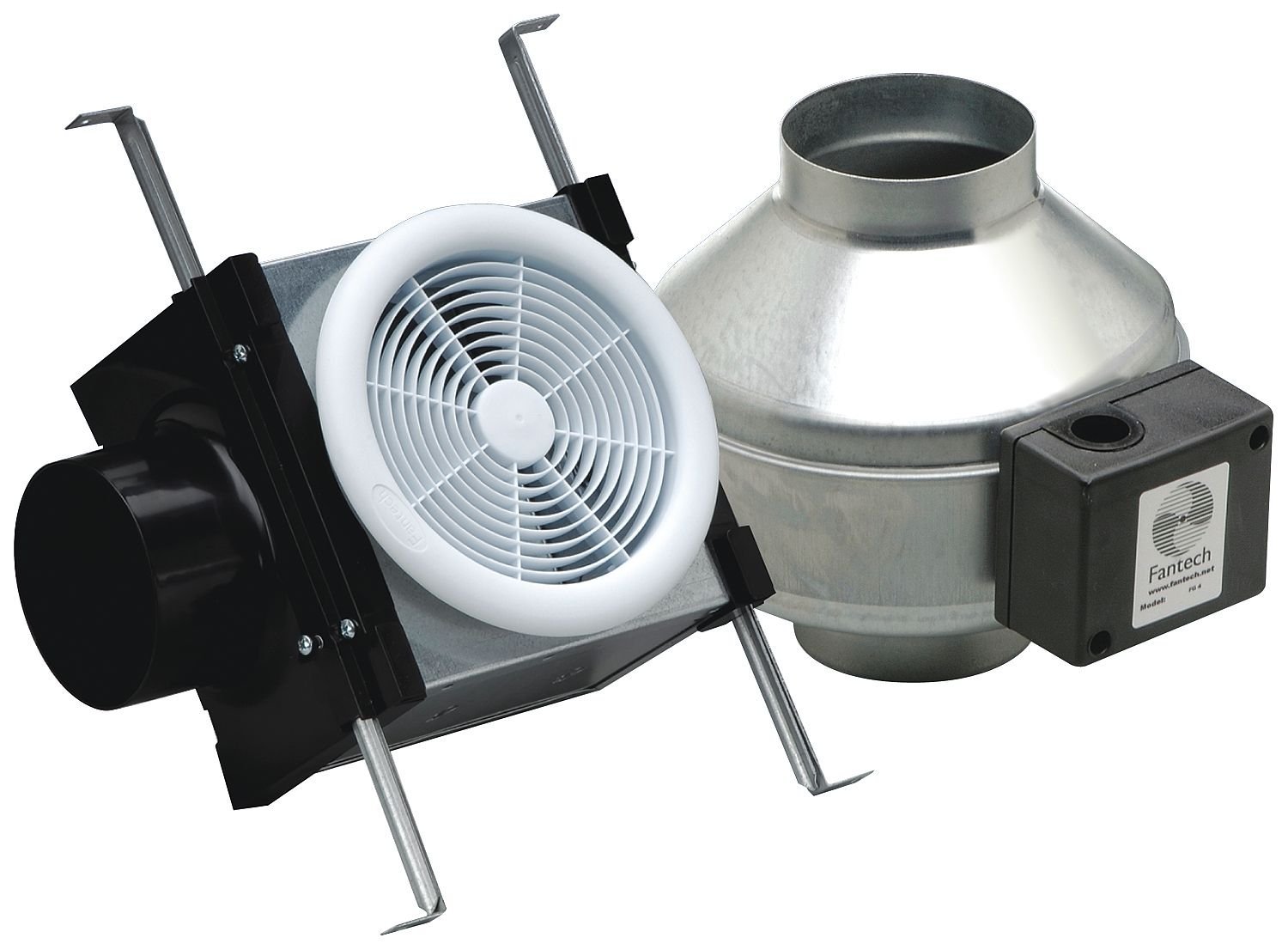

Figure 1: Fantech PB110 Inline Exhaust Bath Fan Kit components. This image displays the primary components of the Fantech PB110 Inline Exhaust Bath Fan Kit. On the left is the intake grille assembly, featuring a white circular grille and a black duct connection. On the right is the main fan unit, a galvanized metal cylinder with a black electrical box attached, designed for remote mounting.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Fantech PB110 is designed for remote mounting, typically in an attic, crawl space, or utility closet, to minimize noise in the living area. It requires a 4-inch flexible duct for connection.

4.1 సంస్థాపనను ప్లాన్ చేస్తోంది

• Determine the optimal location for the fan unit, ensuring it is accessible for maintenance and away from living spaces for quiet operation.
• Plan the ducting path from the intake grille to the fan unit and from the fan unit to the exterior exhaust vent. Minimize bends and length for optimal airflow.
• Ensure adequate electrical supply is available at the fan unit's location.

4.2 Mounting the Fan Unit

1. Securely mount the Fantech PB110 inline fan unit using the provided mounting brackets. Ensure the unit is level and stable.
2. Connect the 4-inch flexible ducting to both the intake and exhaust ports of the fan unit. Use duct clamps or tape to ensure airtight connections.

4.3 Installing the Intake Grille

1. Cut an appropriate opening in the ceiling or wall for the 7-inch intake grille.
2. Connect the flexible duct from the fan unit to the intake grille assembly.
3. Secure the intake grille in place, ensuring a flush and aesthetically pleasing ముగింపు.

4.4 విద్యుత్ కనెక్షన్లు

హెచ్చరిక: అన్ని ఎలక్ట్రికల్ పని తప్పనిసరిగా లైసెన్స్ పొందిన ఎలక్ట్రీషియన్ చేత నిర్వహించబడాలి.

1. Ensure power to the circuit is OFF at the main breaker panel before making any electrical connections.
2. Wire the fan unit according to the wiring diagram provided on the unit's electrical box and in compliance with local electrical codes. The fan operates on standard household voltage (e.g., 120V AC).
3. Connect the fan to a dedicated switch or a timer switch for convenient operation.
4. Secure all wiring within the electrical box and replace the cover.

5. ఆపరేటింగ్ సూచనలు

Once properly installed and wired, operating the Fantech PB110 is straightforward.

• పవర్ ఆన్: Restore power to the circuit at the main breaker panel.
• యాక్టివేషన్: Turn on the fan using the wall switch or timer connected to the unit.
• ఆపరేషన్: The fan will begin to exhaust air from the room. Due to its remote mounting design, the fan operates quietly, with the primary audible sound being the movement of air through the grille.
• నిష్క్రియం: Turn off the fan using the wall switch or allow the timer to complete its cycle.

For optimal performance, operate the fan during and after activities that generate moisture or odors in the bathroom.

6. నిర్వహణ

Regular maintenance ensures the longevity and efficient operation of your Fantech PB110 fan.

6.1 Cleaning the Intake Grille

• ఫ్రీక్వెన్సీ: Clean the intake grille periodically, or when visible dust accumulation occurs.
• విధానం:
  1. సర్క్యూట్ బ్రేకర్ వద్ద ఫ్యాన్‌కు పవర్ ఆఫ్ చేయండి.
  2. Carefully remove the intake grille cover.
  3. Wipe the grille with a damp cloth or use a vacuum cleaner with a brush attachment to remove dust and debris.
  4. Ensure the grille is dry before reattaching.
  5. ఫ్యాన్‌కు శక్తిని పునరుద్ధరించండి.

6.2 Fan Unit Inspection

• ఫ్రీక్వెన్సీ: Annually, or if a decrease in performance is noticed.
• విధానం:
  1. సర్క్యూట్ బ్రేకర్ వద్ద ఫ్యాన్‌కు పవర్ ఆఫ్ చేయండి.
  2. Access the fan unit in its remote mounting location.
  3. Inspect the fan blades for dust buildup. If necessary, gently clean with a soft brush or vacuum.
  4. Check duct connections for any leaks or disconnections. Re-secure if needed.
  5. Inspect electrical connections for any signs of wear or damage.
  6. ఫ్యాన్‌కు శక్తిని పునరుద్ధరించండి.

7. ట్రబుల్షూటింగ్

This section provides solutions to common issues you may encounter with your Fantech PB110 fan.

If the problem persists after attempting these solutions, contact Fantech customer support.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or service inquiries regarding your Fantech PB110 Inline Exhaust Bath Fan Kit, please contact Fantech directly.

Refer to the official Fantech website or the product packaging for the most current contact information and warranty details.

ఫ్యాన్‌టెక్ అధికారిక Webసైట్: www.fantech.net
