పరిచయం
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Frigidaire EFIC227-BLACK Countertop Compact Ice Maker and Water Dispenser. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Frigidaire EFIC227 is a versatile 2-in-1 appliance designed to produce ice and dispense chilled water, making it ideal for various settings such as kitchens, offices, and dorm rooms. Its compact design allows it to fit conveniently under standard cabinets.
ఉత్పత్తి ముగిసిందిview

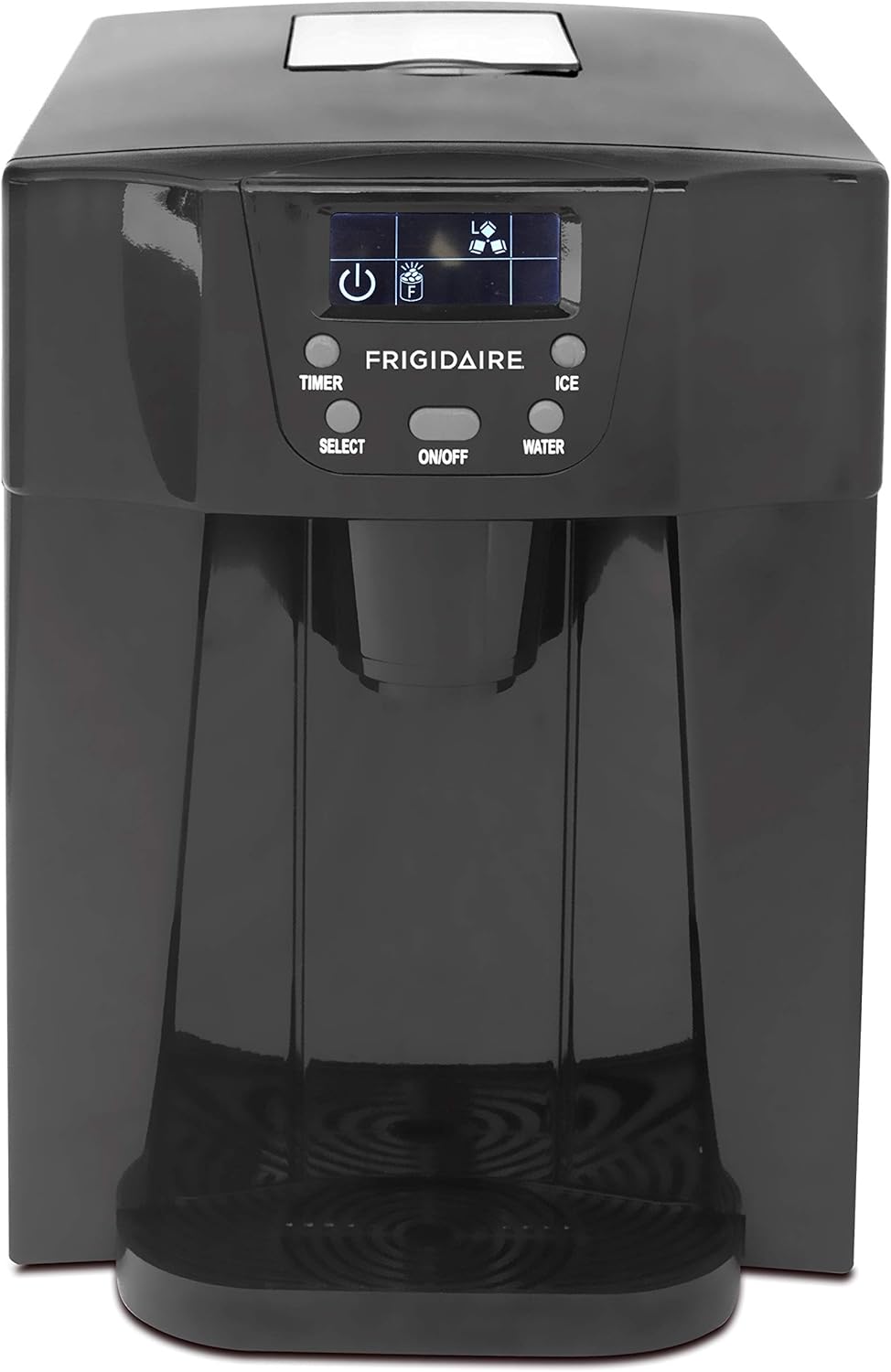

మూర్తి 1: ముందు view of the Frigidaire EFIC227-BLACK Countertop Compact Ice Maker and Water Dispenser. This image shows the control panel with buttons for Timer, Select, On/Off, and Water, along with indicators for ice and water functions. The ice and water dispensing spout is visible below the control panel.
మూర్తి 2: వైపు view of the Frigidaire EFIC227-BLACK Ice Maker and Water Dispenser, illustrating its compact dimensions. The appliance measures approximately 38.9 cm (15.3 inches) in depth, 25.1 cm (9.9 inches) in width, and 36.3 cm (14.3 inches) in height. These dimensions highlight its suitability for countertop placement.
ముఖ్య లక్షణాలు:
- 2-in-1 Water Dispenser with a built-in Ice Maker.
- Countertop design that dispenses ice and chilled water at the touch of a button.
- Compact and portable, suitable for kitchens, offices, lobbies, and break rooms.
- Push dispenser mechanism to minimize direct contact with ice and reduce cross-contamination.
- Produces up to 26 lbs. of ice per day.
- Easy-to-use controls for adjusting ice cube size (small to large).
సెటప్ మరియు ఇన్స్టాలేషన్
- అన్ప్యాకింగ్: Carefully remove the appliance from its packaging. Inspect for any shipping damage. Retain packaging materials for future transport if needed.
- ప్లేస్మెంట్: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit (at least 10 cm / 4 inches clearance on all sides).
- ప్రారంభ శుభ్రపరచడం: Before first use, clean the interior of the unit, including the water reservoir and ice basket, with a mild detergent and warm water. Rinse thoroughly and dry.
- నీరు నింపడం: Open the water reservoir cap and fill with clean, potable water. It is recommended to use filtered or bottled water to prevent mineral buildup and ensure optimal ice quality. Do not exceed the maximum fill line.
- పవర్ కనెక్షన్: Plug the power cord into a grounded electrical outlet (120 Volts, 60 Hz).
- మొదటి వినియోగ చక్రం: For the first use, it is advisable to run at least two ice-making cycles and discard the ice produced to ensure the system is thoroughly flushed.
ఆపరేటింగ్ సూచనలు
మంచు తయారీ:
- నీటి రిజర్వాయర్ నిండి ఉండేలా చూసుకోండి.
- నొక్కండి ఆన్/ఆఫ్ button to start the ice making process.
- ఉపయోగించండి ఎంచుకోండి button to choose your desired ice cube size (small or large). The indicator light will show the selected size.
- The unit will automatically begin producing ice. The ice basket will fill, and the unit will stop when the basket is full or the water level is low.
- To dispense ice, place a glass under the ice spout and press the ice dispensing lever.
నీటి పంపిణీ:
- నీటి రిజర్వాయర్ నిండి ఉండేలా చూసుకోండి.
- Place a glass under the water spout.
- నొక్కండి నీరు button to dispense chilled water. Release the button to stop.
టైమర్ ఫంక్షన్:
The timer function allows you to program the unit to start or stop at a specific time. Refer to the control panel for specific timer setting instructions, typically involving pressing the టైమర్ button and using ఎంచుకోండి to adjust hours.
నిర్వహణ మరియు శుభ్రపరచడం
Regular cleaning and maintenance will ensure the longevity and optimal performance of your ice maker and water dispenser.
- రోజువారీ శుభ్రపరచడం: ఒక మృదువైన, డితో బాహ్య భాగాన్ని తుడవండిamp cloth. Empty and clean the drip tray regularly to prevent water accumulation.
- Weekly Cleaning (Water Reservoir & Ice Basket):
- పవర్ అవుట్లెట్ నుండి యూనిట్ను అన్ప్లగ్ చేయండి.
- మంచు బుట్టను తొలగించండి.
- Locate the drain plug at the bottom of the unit (if applicable) and drain any remaining water from the reservoir.
- Clean the water reservoir and ice basket with a solution of warm water and mild detergent. For stubborn mineral deposits, a solution of water and white vinegar (1:1 ratio) can be used.
- Rinse all components thoroughly with clean water to remove any detergent or vinegar residue.
- తిరిగి కలపడానికి ముందు అన్ని భాగాలను పూర్తిగా ఆరబెట్టండి.
- కండెన్సర్ క్లీనింగ్: Periodically clean the condenser coils (located at the back or side of the unit) with a soft brush or vacuum cleaner to remove dust and lint. This improves efficiency and prevents overheating. Ensure the unit is unplugged before cleaning the condenser.
- నిల్వ: If storing the unit for an extended period, ensure it is completely drained, cleaned, and dry. Store in a cool, dry place.
గమనిక: Using filtered or distilled water can significantly reduce mineral buildup and the frequency of deep cleaning.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| యూనిట్ ఆన్ చేయడం లేదు. | విద్యుత్ సరఫరా లేదు; విద్యుత్ తీగ ప్లగ్ చేయబడలేదు; సర్క్యూట్ బ్రేకర్ ట్రిప్ అయింది. | విద్యుత్ కనెక్షన్ను తనిఖీ చేయండి; అవుట్లెట్ పనిచేస్తుందని నిర్ధారించుకోండి; సర్క్యూట్ బ్రేకర్ను రీసెట్ చేయండి. |
| Ice not being produced or very little ice. | Low water level; ambient temperature too high; air vents blocked; refrigerant leak. | Add water to reservoir; ensure proper ventilation; clean air vents; contact customer support for refrigerant issues. |
| Ice melts quickly. | Ambient temperature too high; ice basket not insulated; unit not designed for long-term ice storage. | Ensure unit is in a cool environment; transfer ice to a freezer for storage. |
| నీరు పంపిణీ చేయడం లేదు. | Low water level; water pump malfunction. | Refill water reservoir; if problem persists, contact customer support. |
| ఆపరేషన్ సమయంలో అసాధారణ శబ్దం. | Unit not level; internal component loose; normal compressor/fan noise. | Ensure unit is on a level surface; if noise is excessive or new, contact customer support. |
If the problem persists after attempting the suggested solutions, please contact customer support.
స్పెసిఫికేషన్లు
| గుణం | విలువ |
|---|---|
| మోడల్ పేరు | EFIC227-నలుపు |
| ఉత్పత్తి కొలతలు (D x W x H) | 38.9D x 25.1W x 36.3H Centimetres (approx. 15.3 x 9.9 x 14.3 inches) |
| కెపాసిటీ | 11.79 kg (Ice production: 26 lbs per day) |
| వాట్tage | 120 వాట్స్ |
| వాల్యూమ్tage | 120 వోల్ట్లు |
| శీతలకరణి | 134A |
| తయారీదారు | Curtis International LTD |
| మొదటి తేదీ అందుబాటులో ఉంది | ఆగస్టు 8, 2017 |
| UPC | 058465803148 |
వారంటీ మరియు మద్దతు
This Frigidaire EFIC227-BLACK Countertop Compact Ice Maker and Water Dispenser comes with a 1 సంవత్సరాల తయారీదారు వారంటీ కొనుగోలు చేసిన తేదీ నుండి. ఈ వారంటీ సాధారణ ఉపయోగంలో మెటీరియల్స్ మరియు పనితనంలో లోపాలను కవర్ చేస్తుంది.
The warranty does not cover damage resulting from misuse, neglect, accident, alteration, improper installation, or repair by unauthorized service personnel. Please retain your proof of purchase for warranty claims.
కస్టమర్ మద్దతు:
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the manufacturer, Curtis International LTD. Contact information can typically be found on their official webసైట్ లేదా ఉత్పత్తి ప్యాకేజింగ్లో.
వ్యాపార స్థలం: Mississauga, ON L5S 2A4, CA
