Urmet Mikra Housing Installation Manual

పరిచయం

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Urmet Mikra Housing, Model 1122/50. This product is designed for embedding audio kits, ensuring a secure and aesthetically integrated solution for your intercom system. Please read this manual thoroughly before installation and use to ensure proper function and safety.

భద్రతా సమాచారం

కింది భద్రతా జాగ్రత్తలను ఎల్లప్పుడూ గమనించండి:

• స్థానిక విద్యుత్ సంకేతాలు మరియు నిబంధనలకు అనుగుణంగా అర్హత కలిగిన సిబ్బంది మాత్రమే సంస్థాపన చేయాలి.
• Ensure power is disconnected before beginning any installation or maintenance work.
• Do not expose the product to excessive moisture or extreme temperatures beyond its specified operating conditions.
• Use only original Urmet accessories and components.
• ప్యాకేజింగ్ మెటీరియల్స్ పిల్లలకు అందుబాటులో లేకుండా ఉంచండి.

ఉత్పత్తి ముగిసిందిview

The Urmet Mikra Housing 1122/50 consists of a durable plastic housing designed for embedding and a naturally anodized aluminum cover frame. It is specifically engineered for the integration of Urmet audio kits.

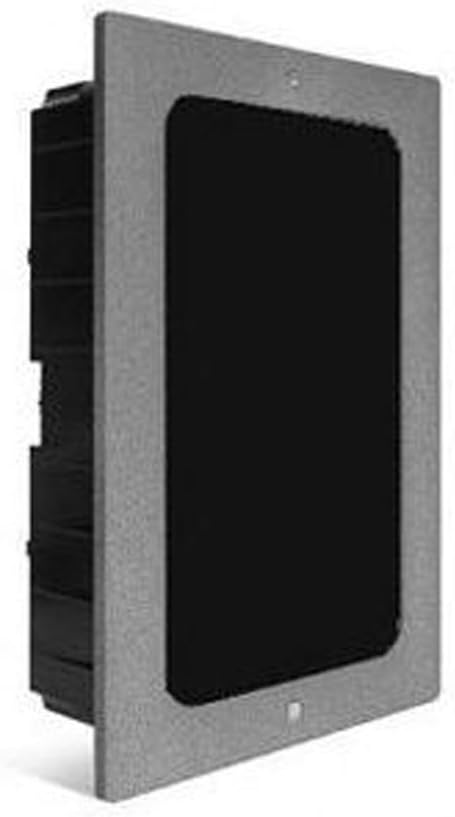

మూర్తి 1: ముందు view of the Urmet Mikra Housing 1122/50, showing the gray aluminum frame and the black recessed area for audio kit installation. The housing is designed for flush mounting.

ముఖ్య లక్షణాలు ఉన్నాయి:

• ప్లాస్టిక్ హౌసింగ్: Provides the main structure for embedding.
• Aluminum Cover Frame: Naturally anodized for durability and aesthetic appeal.
• IP44 రేటింగ్: Offers protection against solid objects larger than 1mm and splashing water from any direction.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps for proper installation of the Urmet Mikra Housing 1122/50:

1. ప్రారంభాన్ని సిద్ధం చేయండి: Create a recess in the wall or mounting surface with dimensions suitable for the housing. The required dimensions for the embedded part are approximately 207 mm (Height) x 113 mm (Width) x 50 mm (Depth).
2. Install the Plastic Housing: Insert the plastic housing into the prepared opening. Ensure it is level and securely fixed within the recess.
3. Integrate Audio Kit: Install the compatible Urmet audio kit (e.g., 1122/31, 1122/61, 1122/501) into the plastic housing according to the audio kit's specific instructions.
4. Attach Cover Frame: Secure the aluminum cover frame over the installed audio kit and plastic housing. The frame dimensions are 222 mm (Height) x 133 mm (Length) x 5 mm (Thickness). Ensure all mounting points are fastened securely.
5. పరీక్ష కార్యాచరణ: After installation, test the audio kit and overall system functionality to ensure correct operation.

అనుకూలత: This housing is compatible with the following Urmet audio kits:

• Villa compatible Audio 2-wire OEM: 1122/31
• Audio 2-wire hands-free OEM: 1122/61
• Audio 5-wire OEM: 1122/501

ఆపరేటింగ్ సూచనలు

The Urmet Mikra Housing 1122/50 serves as an enclosure for Urmet audio kits. Its operation is directly tied to the functionality of the audio kit installed within it. Refer to the specific instruction manual for your Urmet audio kit for detailed operating procedures, including call initiation, door release, and volume adjustments.

Once the audio kit is properly installed within the housing, its controls and indicators will be accessible through the opening in the cover frame. Ensure no obstructions are present that might hinder the audio kit's functionality.

నిర్వహణ మరియు సంరక్షణ

To ensure the longevity and proper appearance of your Urmet Mikra Housing, follow these maintenance guidelines:

• శుభ్రపరచడం: ఒక మృదువైన ఉపయోగించండి, డిamp cloth to wipe the aluminum cover frame and plastic housing. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• తనిఖీ: Periodically inspect the housing and frame for any signs of damage, loose connections, or wear. Address any issues promptly.
• పర్యావరణ పరిరక్షణ: While the product has an IP44 rating, prolonged exposure to extreme weather conditions should be minimized where possible to extend its lifespan.

ట్రబుల్షూటింగ్

Most issues related to the overall intercom system will stem from the audio kit itself or the wiring. The housing primarily provides physical protection and aesthetic integration.

• సమస్య: Audio kit does not fit or is misaligned.
  పరిష్కారం: Verify the audio kit model number against the compatibility list. Ensure the wall opening dimensions match the housing specifications. Re-check the installation steps.
• సమస్య: Cover frame is loose or does not sit flush.
  పరిష్కారం: Ensure all mounting screws are tightened. Check for any obstructions behind the frame or within the wall recess.
• సమస్య: Visible damage to the housing or frame.
  పరిష్కారం: If damage affects functionality or IP rating, consider replacing the affected component or the entire unit. Contact Urmet support for replacement parts.

For issues related to the audio functionality (e.g., no sound, distorted audio, door release failure), refer to the troubleshooting section of your specific Urmet audio kit manual.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For information regarding the warranty terms and conditions for your Urmet product, please refer to the documentation provided with your purchase or visit the official Urmet website. Warranty coverage typically applies to manufacturing defects and material faults.

For technical support, spare parts, or service inquiries, please contact Urmet customer service or your authorized Urmet dealer. When contacting support, please have your product model number (1122/50) and purchase details readily available.

తయారీదారు: ఉర్మెట్
