Owens Corning R-19 Fiberglass Roll Instruction Manual

1. పరిచయం

The Owens Corning R-19 Fiberglass Roll is designed to provide superior thermal and acoustical insulation for various residential and commercial applications. This manual provides essential information for the proper installation, understanding, and maintenance of your insulation product.

ముఖ్య లక్షణాలు:

• Individual Unfaced Roll - 23 Inches Wide x 39.2 Feet Long x 6.25 inches Deep
• Ideal for use in 2x6 walls, floors, crawlspaces and attics; providing excellent thermal control & effective acoustical control
• With less dust than other fiberglass products, EcoTouch PINK Fiberglass insulation has excellent stiffness and recovery characteristics
• Compression packaging from Owens Corning speeds job site handling and installation
• GREENGUARD GOLD Certified and validated to be Formaldehyde free

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is crucial for maximizing the performance of your Owens Corning R-19 Fiberglass Roll. Always ensure you wear appropriate personal protective equipment (PPE), including gloves, eye protection, and a dust mask, when handling fiberglass insulation.

2.1. Measuring Wall Cavities

Before installation, accurately measure the size of your wall cavities. Common sizes are 14.5 inches and 22.5 inches wide, and 92.5 inches high. The insulation is designed to be slightly wider and longer than the cavity to ensure a snug, friction fit.

Figure 2.1: A man installing Owens Corning fiberglass insulation in a ceiling cavity.

2.2. Product Selection (R-Value)

The R-value indicates the insulation's thermal resistance. A higher R-value signifies greater insulating power. For 2x6 walls, R-19 or R-21 insulation is typically recommended. This R-19 roll is suitable for 2x6 walls, floors, and crawlspaces.

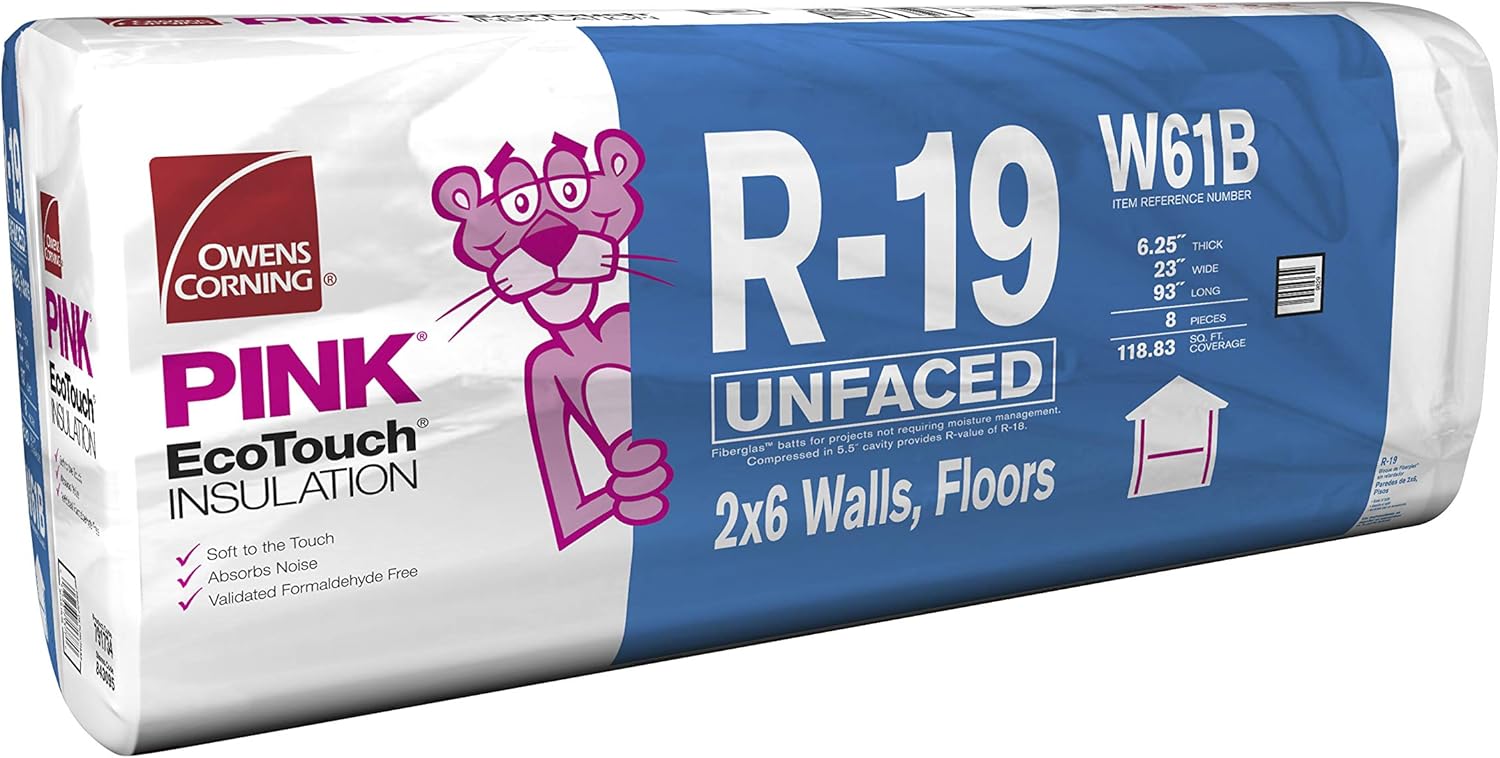

Figure 2.2: Owens Corning R-19 Unfaced Fiberglass Insulation Roll packaging, indicating its specifications and intended use.

2.3. Cutting and Fitting

While bats are pre-cut for standard sizes, rolls can be cut to fit specific project dimensions. Use a sharp utility knife and a straight edge for clean cuts. When installing around obstructions like electrical boxes, cut the insulation to fit precisely around them, ensuring no gaps are left.

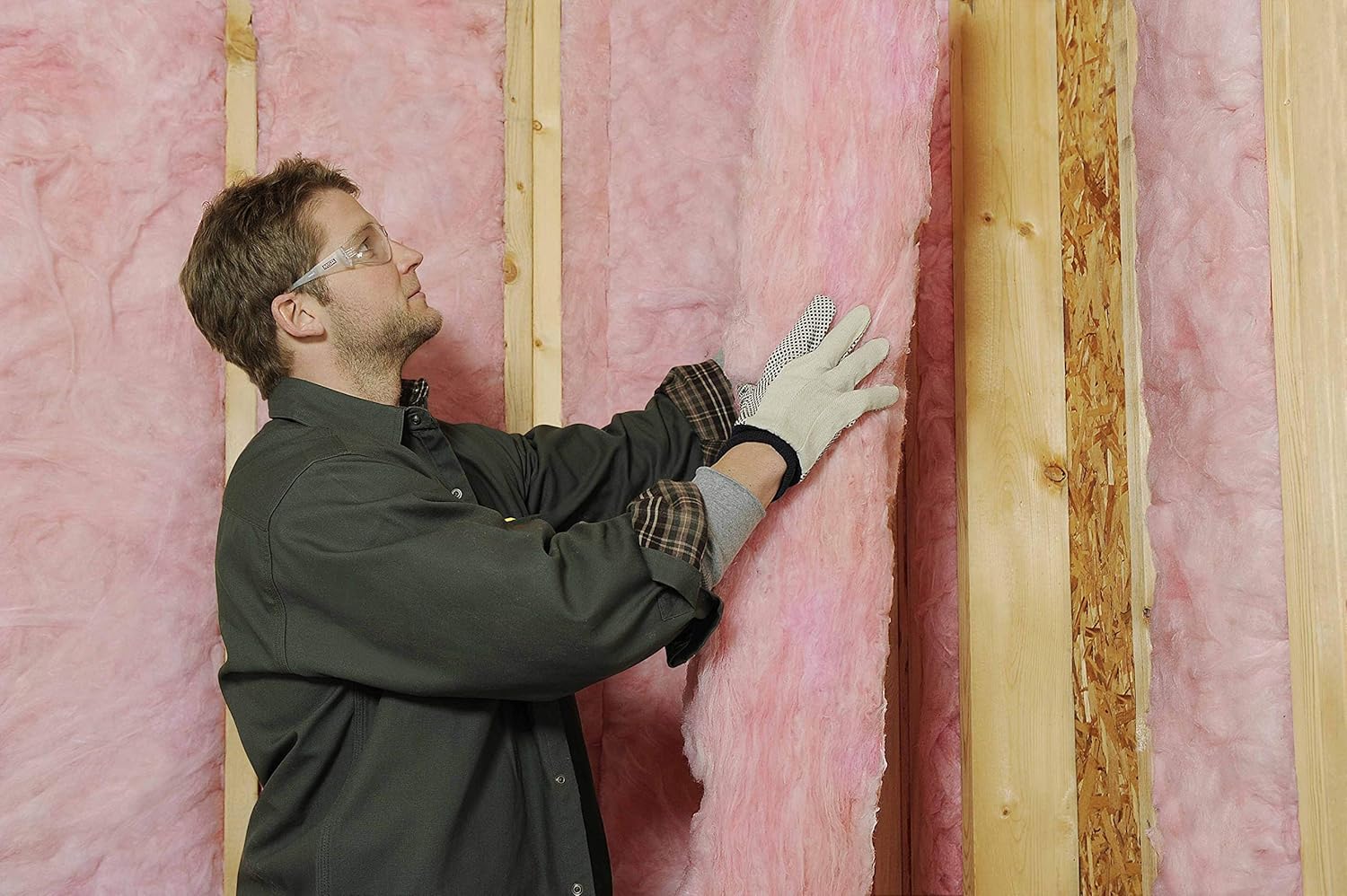

Figure 2.3: A man carefully fitting Owens Corning fiberglass insulation into a wall cavity.

2.4. ఇన్‌స్టాలేషన్ ప్రాసెస్

Press the unfaced insulation into the cavity. Ensure a snug fit along all edges to maximize energy savings and comfort. Unlike faced insulation, unfaced insulation does not require stapling. Avoid compressing the insulation, as this can reduce its insulating power.

Figure 2.4: Owens Corning fiberglass insulation properly installed in a ceiling, filling the cavities.

Figure 2.5: Owens Corning fiberglass insulation properly installed in wall cavities, including around a window opening.

2.5. అధికారిక ఇన్‌స్టాలేషన్ వీడియో

3. ఆపరేటింగ్ సూత్రాలు

Owens Corning R-19 Fiberglass Insulation functions by trapping air within its fibers, creating a barrier that resists heat flow. This resistance is quantified by the R-value. The higher the R-value, the more effective the insulation is at preventing heat transfer, leading to improved energy efficiency and indoor comfort.

This unfaced insulation is particularly effective for interior walls, floors, and crawlspaces where moisture management is not the primary concern. For exterior walls, faced insulation (which includes a vapor retarder) is often used to help control water vapor transmission, depending on local building codes.

4. నిర్వహణ

Owens Corning R-19 Fiberglass Insulation is a low-maintenance product. Once properly installed, it generally does not require ongoing maintenance. However, it is advisable to periodically inspect insulated areas for any signs of damage, moisture intrusion, or compression that could compromise its performance. Address any issues promptly to maintain optimal insulation effectiveness.

5. ట్రబుల్షూటింగ్

5.1. Reduced Insulating Power

లక్షణం: Noticeable drafts, inconsistent indoor temperatures, or higher energy bills despite insulation installation.

సాధ్యమైన కారణం: Insulation has been compressed during or after installation. Compression reduces the air pockets within the fiberglass, thereby lowering its R-value and insulating effectiveness.

పరిష్కారం: Inspect the affected areas. If insulation is compressed, gently fluff it up to restore its original thickness. If severe compression or damage is present, consider replacing the affected section of insulation.

5.2. Gaps or Voids

లక్షణం: Cold spots on walls or ceilings, or air leakage around outlets or fixtures.

సాధ్యమైన కారణం: Insulation was not cut or fitted properly around obstructions, or it has shifted over time, creating gaps.

పరిష్కారం: Carefully seal any gaps or voids with additional insulation pieces, ensuring a tight fit. For small gaps, expanding foam sealant designed for insulation can be used, but ensure it does not compress the fiberglass.

6. స్పెసిఫికేషన్లు

7. వారంటీ మరియు మద్దతు

Specific warranty information for the Owens Corning R-19 Fiberglass Roll is not provided in the available product data. For detailed warranty terms, product support, or technical assistance, please refer to the official Owens Corning website or contact their customer service directly. Always retain your proof of purchase for any warranty claims.

సంప్రదింపు సమాచారం: Please visit the official Owens Corning webఅత్యంత తాజా సంప్రదింపు వివరాలు మరియు మద్దతు వనరుల కోసం సైట్.
