పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Predator K117 10KW Antenna. Designed for robust performance, this antenna features a 0.38 x 24 inch coil, a 17-inch shaft, and a 58-inch whip, making it suitable for high-power radio communication applications. Please read this manual thoroughly before use to ensure proper setup and optimal performance.

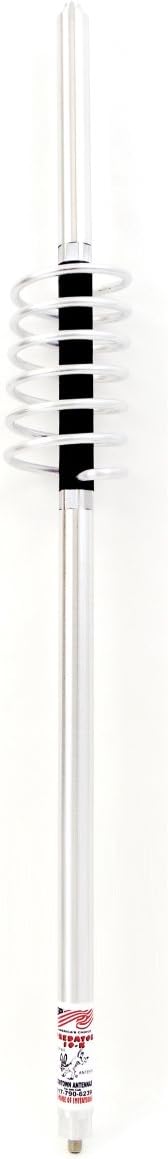

Image: The Predator K117 10KW Antenna, showcasing its silver finish, coiled section, and overall robust construction. This image provides a visual reference for the antenna's design and components.
సెటప్ మరియు ఇన్స్టాలేషన్
Proper installation is crucial for the performance and longevity of your Predator K117 antenna. Follow these steps carefully:
- మౌంటు స్థానం: Select a sturdy mounting point on your vehicle or structure that provides a clear line of sight and minimizes obstructions. Ensure the mounting surface can support the antenna's weight and withstand environmental conditions.
- యాంటెన్నా అసెంబ్లీ:
- Carefully unpackage all components: the 17-inch shaft, the 58-inch whip, and the coiled base.
- Attach the coiled base to your chosen mount. Ensure a secure, tight connection to prevent movement during operation.
- Thread the 17-inch shaft into the coiled base. Hand-tighten initially, then use a wrench if necessary, but avoid over-tightening.
- Insert the 58-inch whip into the top of the 17-inch shaft. Ensure it is fully seated.
- Coaxial Cable Connection: Connect a high-quality coaxial cable (not included) from your radio to the antenna's base connector. Ensure the connection is clean, dry, and securely tightened to prevent signal loss.
- గ్రౌండింగ్: For optimal performance and safety, ensure your antenna system is properly grounded. Consult a professional if you are unsure about grounding procedures for your specific application.
- SWR ట్యూనింగ్: After installation, it is essential to tune the antenna for optimal Standing Wave Ratio (SWR). Use an SWR meter to adjust the whip length until the SWR is as close to 1:1 as possible across your desired frequency range. High SWR can damage your radio equipment.
ఆపరేటింగ్ సూచనలు
The Predator K117 antenna is designed for high-power radio communication. Follow these guidelines for safe and effective operation:
- పవర్ హ్యాండ్లింగ్: This antenna is rated for 10KW (10,000 watts) of power. Ensure your radio's output power does not exceed this rating to prevent damage to the antenna or radio.
- ఫ్రీక్వెన్సీ పరిధి: The antenna is designed for specific radio frequencies. Refer to your radio's manual and the antenna's specifications to ensure compatibility.
- SWR Monitoring: Periodically check your SWR, especially after any changes to the antenna setup or operating environment. Significant changes in SWR may indicate an issue.
- పర్యావరణ పరిగణనలు: While robust, extreme weather conditions (e.g., severe ice, high winds) can affect antenna performance and integrity. Take precautions as necessary.
నిర్వహణ
Regular maintenance will help ensure the longevity and optimal performance of your Predator K117 antenna:
- దృశ్య తనిఖీ: Periodically inspect the antenna for any signs of physical damage, corrosion, or loose connections. Check the whip, shaft, coil, and mounting hardware.
- కనెక్షన్ సమగ్రత: Ensure all coaxial cable connections are clean, dry, and tight. Corrosion on connectors can degrade performance.
- శుభ్రపరచడం: Clean the antenna with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the finish.
- Whip Condition: Ensure the whip is straight and free from kinks or bends, which can affect tuning and performance.
ట్రబుల్షూటింగ్
If you experience issues with your Predator K117 antenna, consider the following common problems and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| అధిక SWR రీడింగ్ |
|
|
| పేలవమైన ప్రసారం/స్వీకరణ |
|
|
| Physical Damage to Antenna |
|
|
If problems persist after attempting these solutions, contact Predator customer support or a qualified technician.
స్పెసిఫికేషన్లు
- మోడల్: K117
- బ్రాండ్: ప్రిడేటర్
- పవర్ రేటింగ్: 10KW (10,000 Watts)
- యాంటెన్నా రకం: Mobile/Base Radio Antenna
- షాఫ్ట్ పొడవు: 17 అంగుళాలు
- విప్ పొడవు: 58 అంగుళాలు
- కాయిల్ పరిమాణం: 0.38 x 24 అంగుళాలు
- రంగు: వెండి
- ఛానెల్ల సంఖ్య: 1
- ఉత్పత్తి కొలతలు (మొత్తం): Approximately 58"L x 4"W x 59"H (Note: Height may vary slightly based on whip adjustment)
- బరువు: సుమారు 11 పౌండ్లు
- UPC: 652118391664
వారంటీ మరియు మద్దతు
For warranty information or technical support regarding your Predator K117 antenna, please refer to the manufacturer's official webసైట్లో లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని నేరుగా సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్లకు కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.
తయారీదారు: ప్రిడేటర్
సంప్రదింపు సమాచారం: Please visit the official Predator website for the most current contact details, including phone numbers and email addresses for customer support.
