COMTEC HDR360G 360-డిగ్రీ డ్రైవ్ రికార్డర్ యూజర్ మాన్యువల్

1. పరిచయం మరియు ఓవర్view

This manual provides essential information for the proper installation, operation, and maintenance of your COMTEC HDR360G 360-degree drive recorder. Please read this manual thoroughly before using the product to ensure safe and effective operation.

Image 1.1: The COMTEC HDR360G 360-Degree Drive Recorder unit.

2 కీ ఫీచర్లు

2.1. 360-Degree All-Direction Recording

The HDR360G records 360 degrees in all directions: front, back, left, and right. This ensures comprehensive coverage, capturing not only frontal accidents but also rear-end collisions, aggressive driving incidents, and close calls from the sides and rear.

Image 2.1: Visual representation of the 360-degree recording area, covering front, left, right, and rear perspectives around the vehicle.

2.2. Wide Vertical Field of View (240°)

The device features a vertical field of view of 240 degrees, exceeding 180 degrees. This wide vertical angle ensures that traffic lights, which were often difficult to capture with conventional 360-degree drive recorders, are now clearly recorded.

Image 2.2: Diagram illustrating the 240-degree vertical field of view, highlighting its ability to capture objects high above the vehicle.

2.3. Two-Split Recording Display

The HDR360G supports a two-split recording function that displays 360-degree footage side-by-side on the device's LCD. This allows for easy checking of front, side, and rear footage directly on the unit without the need for dedicated viewer సాఫ్ట్వేర్.

Image 2.3: The dashcam's screen displaying footage in a two-split format, showing both front and side viewలు ఏకకాలంలో.

2.4. Parking Surveillance Function

When equipped with the optional parking surveillance direct wiring cord (HDROP-14), the device continues 360-degree recording for up to 12 hours even with the engine off. It detects impacts and records footage before and after the event, protecting your vehicle while parked.

2.5. Discreet Installation

The product is designed for direct fixation to the front windshield, allowing for a discreet and clean installation that does not obstruct the driver's view.

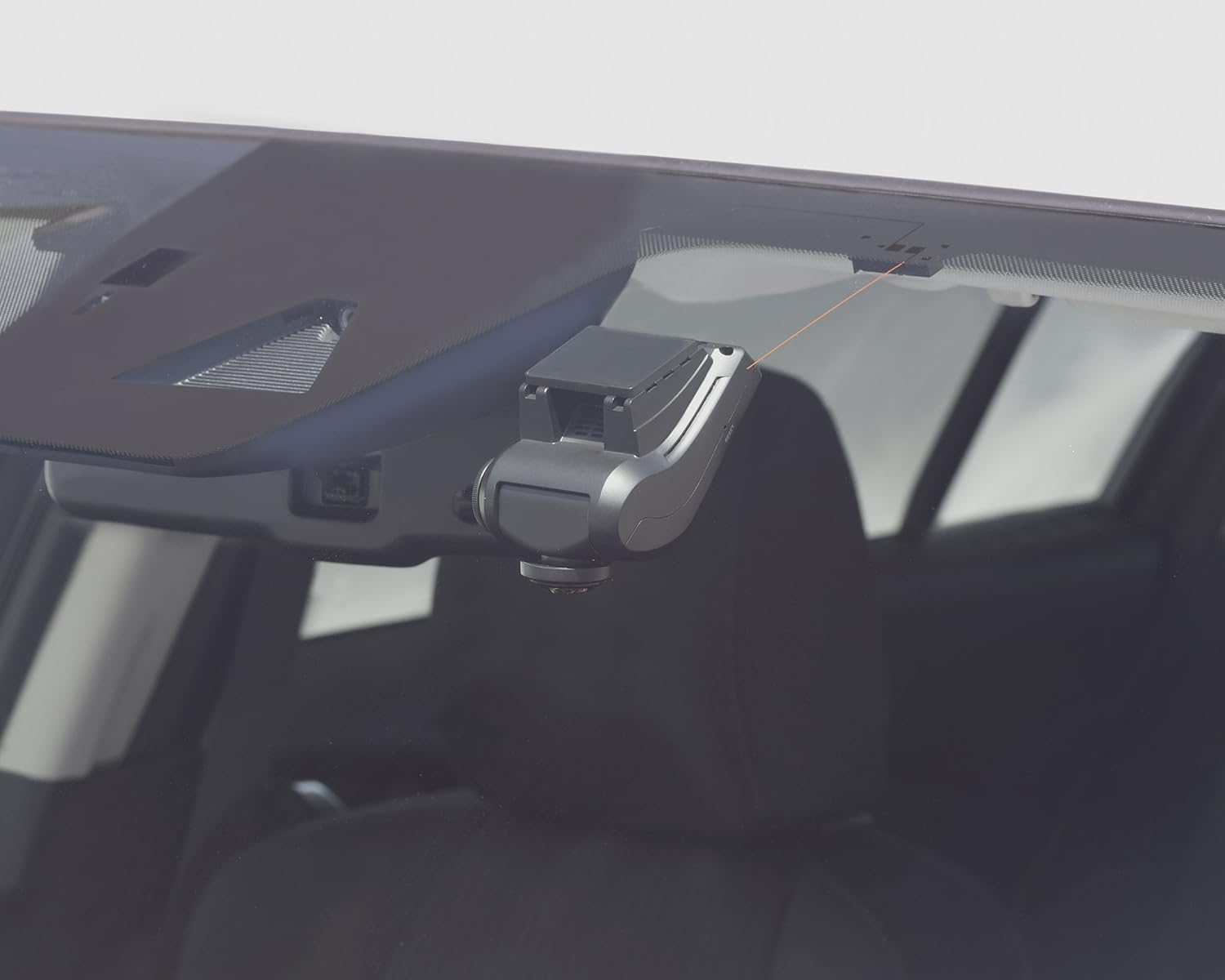

Image 2.4: The COMTEC HDR360G dashcam installed on a car's front windshield, showing its compact and unobtrusive placement.

2.6. WDR (వైడ్ డైనమిక్ రేంజ్)

The WDR function performs image correction to reduce whiteout and black crush, making the recording strong against backlighting conditions. This feature cannot be turned off.

2.7. LED Traffic Light Compatibility

The HDR360G records reliably even with different power frequencies used in Eastern and Western Japan, ensuring consistent performance with LED traffic lights nationwide.

2.8. మెరుగైన రాత్రి దృష్టి

Equipped with a large 1/2.5-inch image sensor, the device records clearer images than previous models. This larger sensor also significantly improves brightness during night recordings.

2.9. Three Recording Functions

• స్థిరమైన రికార్డింగ్: రికార్డ్స్ ఫూtage continuously from engine ON to engine OFF. Recording duration varies based on settings and microSDHC card capacity. Older files are automatically overwritten when the card is full.
• ఇంపాక్ట్ రికార్డింగ్: When the built-in G-sensor detects an impact, the device automatically saves the footage as impact recording data. This data is protected from being overwritten by constant recording.
• మాన్యువల్ రికార్డింగ్: Pressing a dedicated switch allows you to record footage at any desired moment. This footage is also saved as manual recording data and protected from overwriting.

2.10. Safety Functions for Recorded Footage

• బ్యాకప్ ఫంక్షన్: In case of power loss due to an accident, the built-in supercapacitor prevents file అవినీతి మరియు రికార్డ్ చేయబడిన ఫూను రక్షిస్తుందిtage.
• SD కార్డ్ తనిఖీ ఫంక్షన్: The device checks the microSDHC card at startup. If the card is damaged, an abnormality is displayed on the LCD, preventing missed recordings due to faulty storage.

2.11. GPS పనితనం

Equipped with GPS, the HDR360G records your vehicle's driving speed and location information along with the video data. Date and time information is automatically corrected by GPS, eliminating the need for manual settings.

2.12. Dedicated Viewer సాఫ్ట్‌వేర్

The included microSDHC card contains dedicated viewer software. This software allows you to review recorded data on your computer, including video, audio, and G-sensor information. With GPS, you can also display your vehicle's driving trajectory on Google Maps and check driving speed. Recorded data can be converted to video or still images and saved to your computer. Footage recorded with round settings can be viewed in three patterns (Round, 16:9, Panorama) using the viewer సాఫ్ట్వేర్.

3. సెటప్

3.1. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్‌కు ముందు, అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• HDR360G Main Unit
• మౌంటు బ్రాకెట్
• Cigar Plug Power Cable (for 12V/24V vehicles)
• Dedicated microSDHC Card (16GB, Class 10)
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)

3.2. ఇన్‌స్టాలేషన్ స్థానం

Install the main unit directly onto the front windshield, ensuring it does not obstruct the driver's view or interfere with airbags. Choose a location that allows for a clear view of the road and easy access to controls.

3.3. పవర్ కనెక్షన్

Connect the cigar plug power cable to your vehicle's cigar lighter socket. Ensure the cable is routed safely and does not interfere with driving. For parking surveillance, the optional direct wiring cord (HDROP-14) is required and should be installed by a qualified technician.

3.4. microSDHC Card Insertion

Insert the dedicated microSDHC card into the card slot on the main unit. Ensure it is inserted correctly until it clicks into place.

4. ఆపరేటింగ్ సూచనలు

4.1 ప్రారంభ ప్రారంభం

Once connected to power and the engine is started, the device will automatically power on and begin constant recording. The LCD will display the current view and recording status.

4.2 మెను నావిగేషన్

Use the buttons on the device (MENU, OK, UP, DOWN) to navigate through settings and playback options. Refer to the on-screen prompts for specific functions.

4.3. Playback on Device

In the menu, select 'Playback' to review రికార్డ్ చేసిన footage. You can switch between different recording modes (constant, impact, manual) and view the two-split display.

4.4. Manual Recording

Press the designated manual recording button to instantly save a segment of footage as manual recording data.

4.5. Parking Surveillance Activation

If the optional parking surveillance direct wiring cord is installed, the parking surveillance mode will activate automatically when the engine is turned off. The device will monitor for impacts and record accordingly.

5. నిర్వహణ

5.1. microSDHC Card Management

Regularly format the microSDHC card to maintain optimal recording performance and prevent data corruption. Formatting can be done through the device's menu. It is recommended to format the card at least once a month.

5.2. Cleaning the Lens and Unit

Gently wipe the camera lens and the main unit with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the device.

5.3. ఫర్మ్‌వేర్ నవీకరణలు

Check the COMTEC official website periodically for firmware updates. Keeping your device's firmware up-to-date ensures the best performance and access to new features.

6. ట్రబుల్షూటింగ్

6.1. పరికరం పవర్ ఆన్ అవ్వడం లేదు

• Check if the power cable is securely connected to both the device and the vehicle's power source.
• Ensure the vehicle's power source (e.g., cigar lighter socket) is functioning correctly.

6.2. Recording Issues / SD Card Error

• If an SD card error message appears, try formatting the microSDHC card through the device's menu.
• If formatting does not resolve the issue, the microSDHC card may be damaged and require replacement. Use a Class 10 microSDHC card (8GB to 32GB recommended).
• Ensure the microSDHC card is inserted correctly.

6.3. GPS Not Receiving Signal

• పరికరం స్పష్టంగా ఉందని నిర్ధారించుకోండి view of the sky, away from obstructions like metal tinting or other electronic devices that might interfere with the signal.
• It may take a few minutes for the GPS to acquire a signal after startup, especially in new locations.

6.4. Poor Image Quality at Night

• Ensure the windshield area in front of the camera lens is clean and free from dirt or smudges.
• While the device has enhanced night vision, extreme low-light conditions may still affect clarity.

7. స్పెసిఫికేషన్లు

7.1. Approximate Recording Times (16GB microSDHC card)

• Round Setting: Approximately 90 minutes
• Two-Split Setting: Approximately 100 minutes

8. వారంటీ మరియు మద్దతు

8.1. ఉత్పత్తి వారంటీ

The COMTEC HDR360G comes with a 3-సంవత్సరం ఉత్పత్తి వారంటీ from the date of purchase. This warranty covers manufacturing defects. Consumable parts are excluded from this warranty. Please retain your proof of purchase for warranty claims.

8.2. Noise Countermeasures

This product incorporates noise countermeasures to minimize interference with digital terrestrial broadcasting reception and car navigation GPS reception (according to COMTEC standards).

8.3. సంప్రదింపు సమాచారం

For technical support, warranty claims, or inquiries, please refer to the contact information provided on the official COMTEC webసైట్ లేదా మీ కొనుగోలుతో చేర్చబడిన డాక్యుమెంటేషన్.
